Turn Signal Lamp: Diagrams
Component Connector End Views

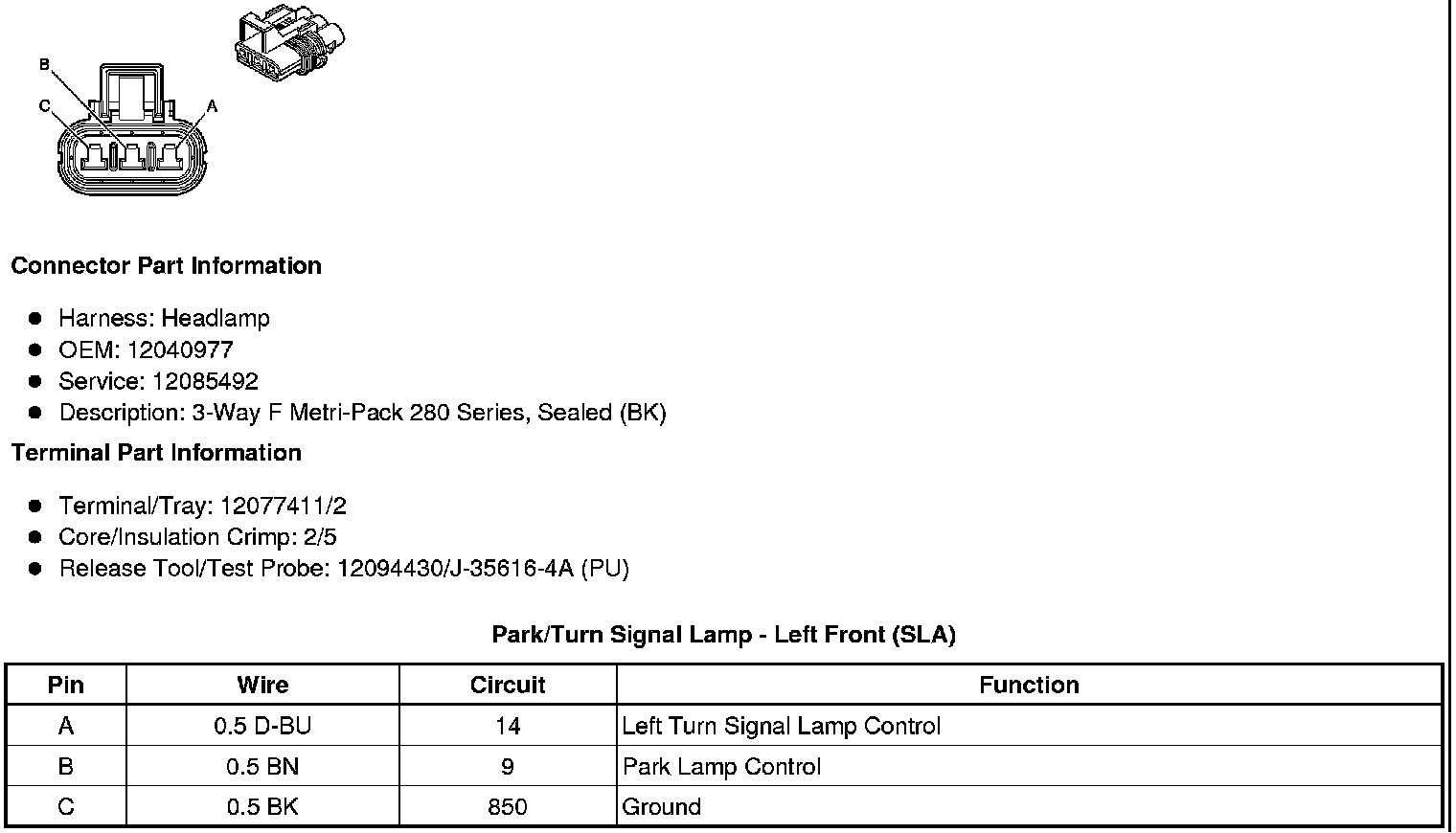

Park/Turn Signal Lamp - Left Front (SLA)

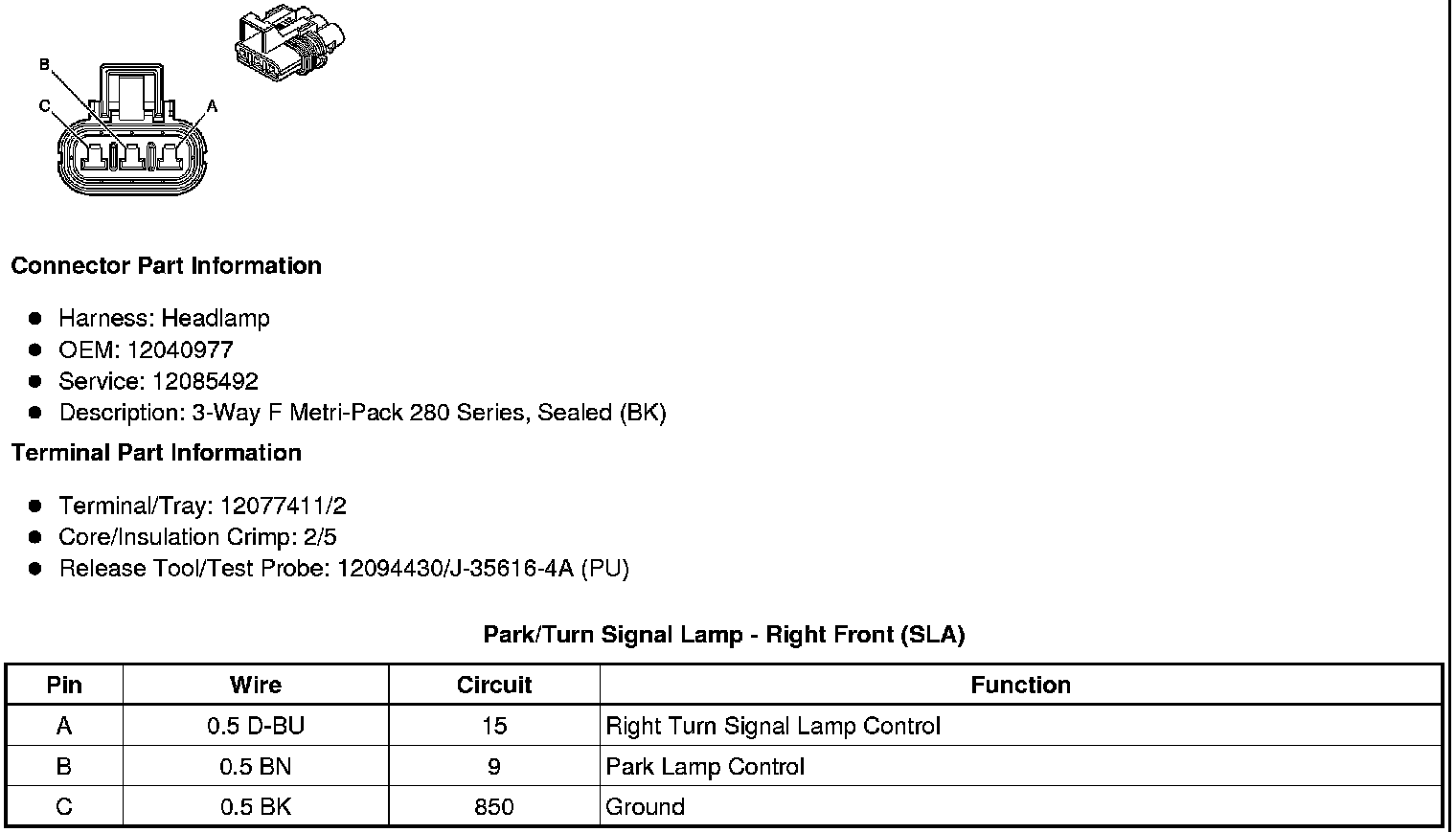

Park/Turn Signal Lamp - Right Front (SLA)
Tail/Stop and Turn Signal Lamp - Left (SUV with SLA)

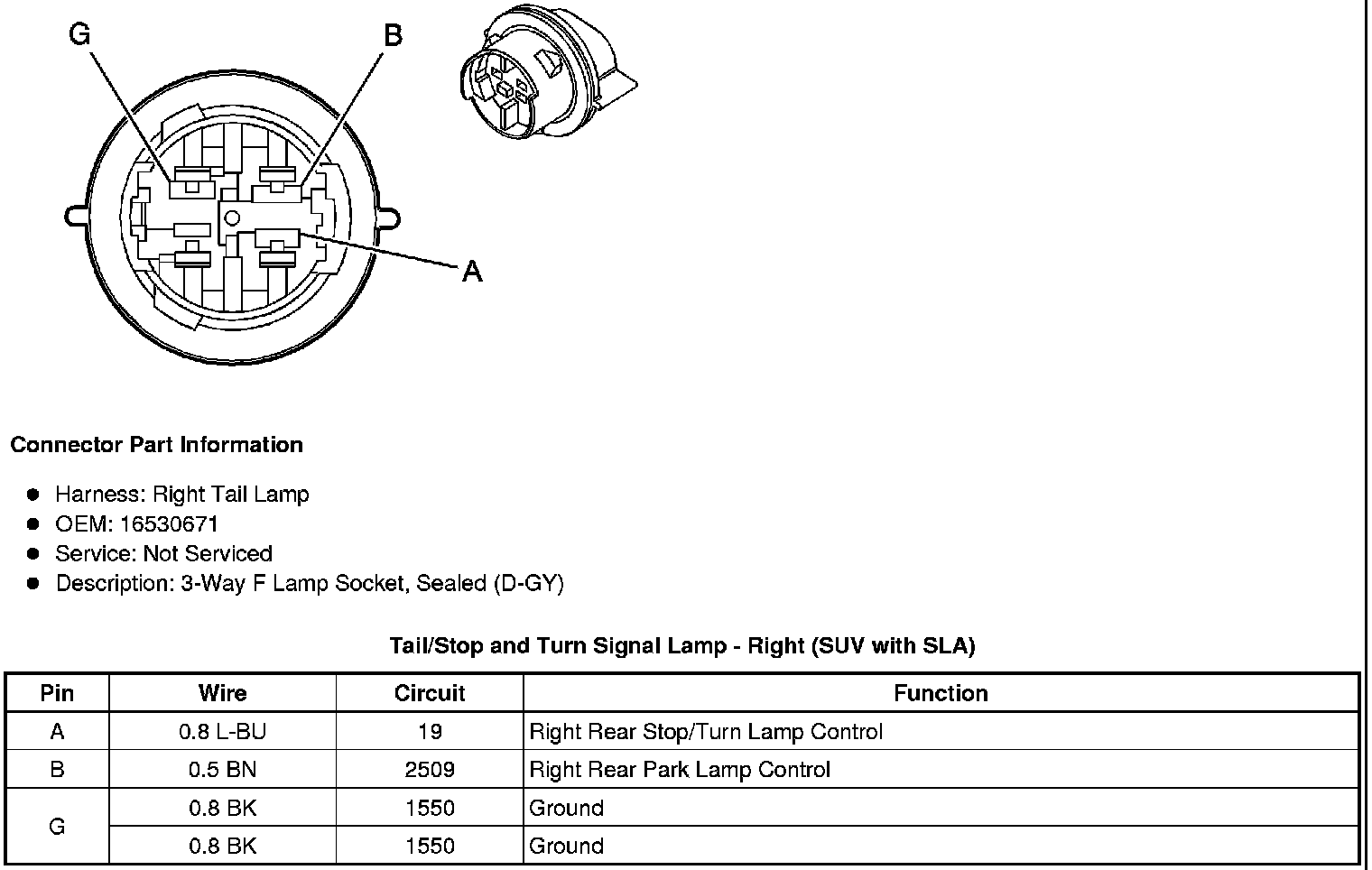

Tail/Stop and Turn Signal Lamp - Right (SUV with SLA)

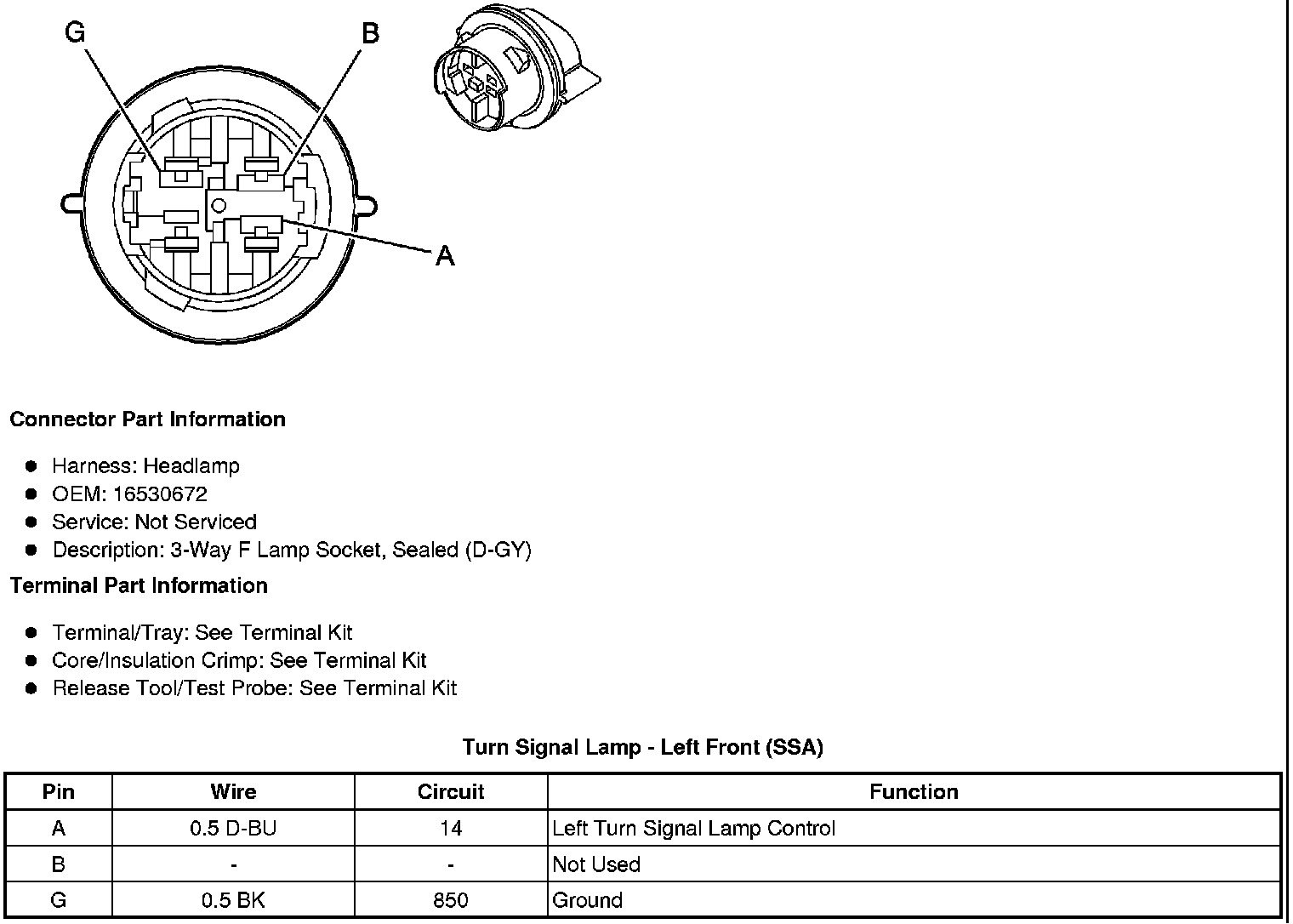

Turn Signal Lamp - Left Front (SSA)

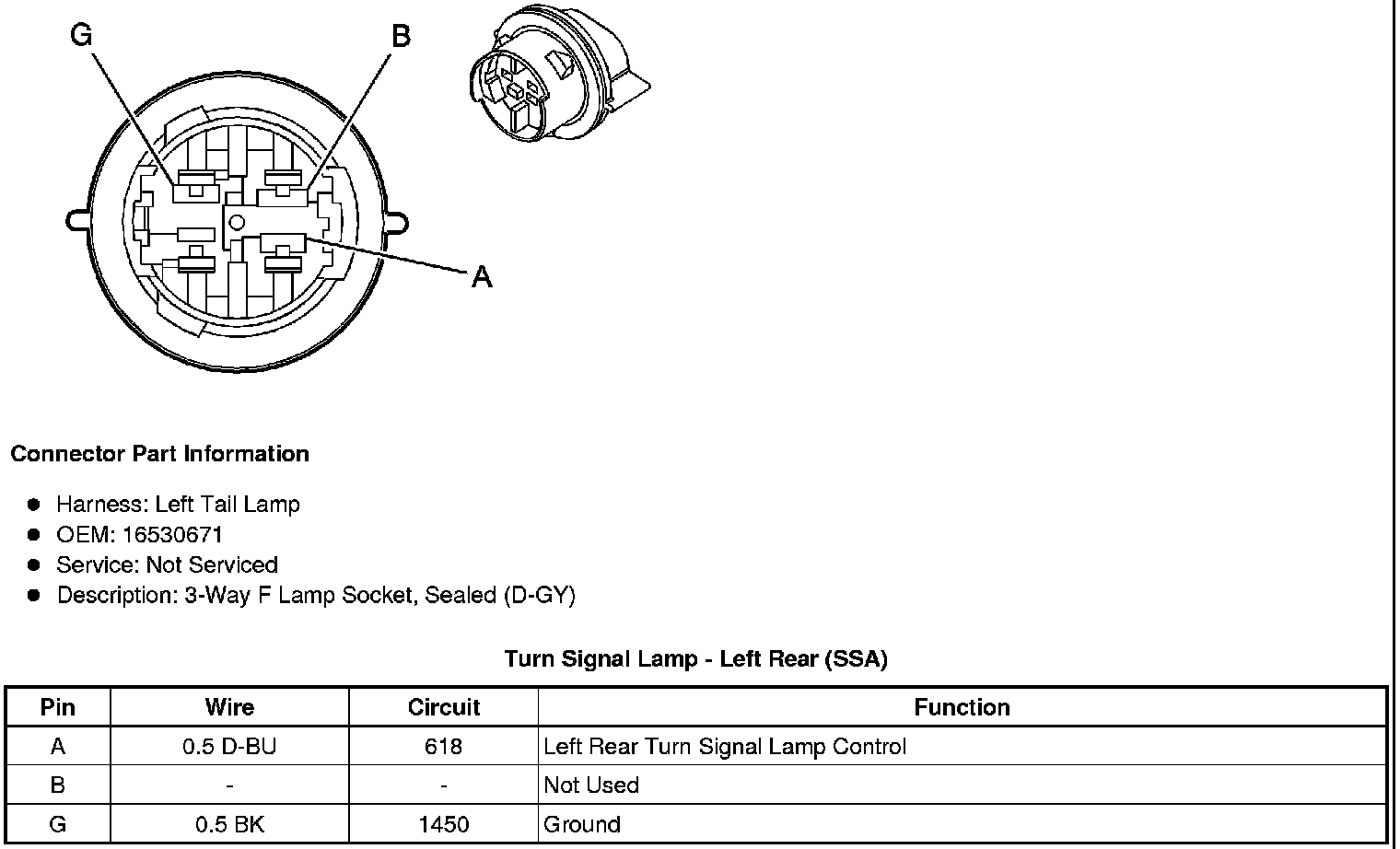

Turn Signal Lamp - Left Rear (SSA)
Turn Signal Lamp - Left Rear (Truck)
Turn Signal Lamp - Right Front (SSA)

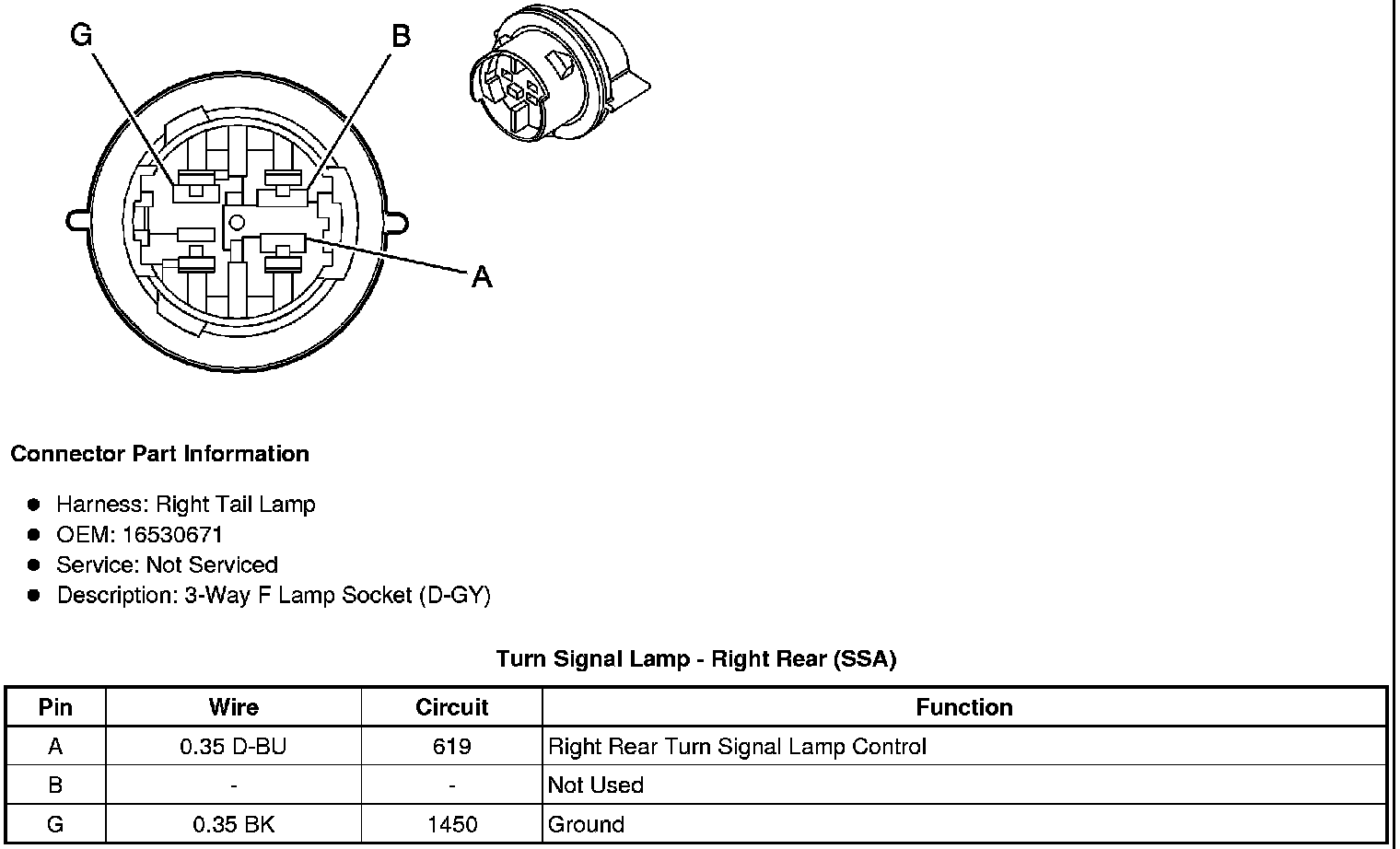

Turn Signal Lamp - Right Rear (SSA)

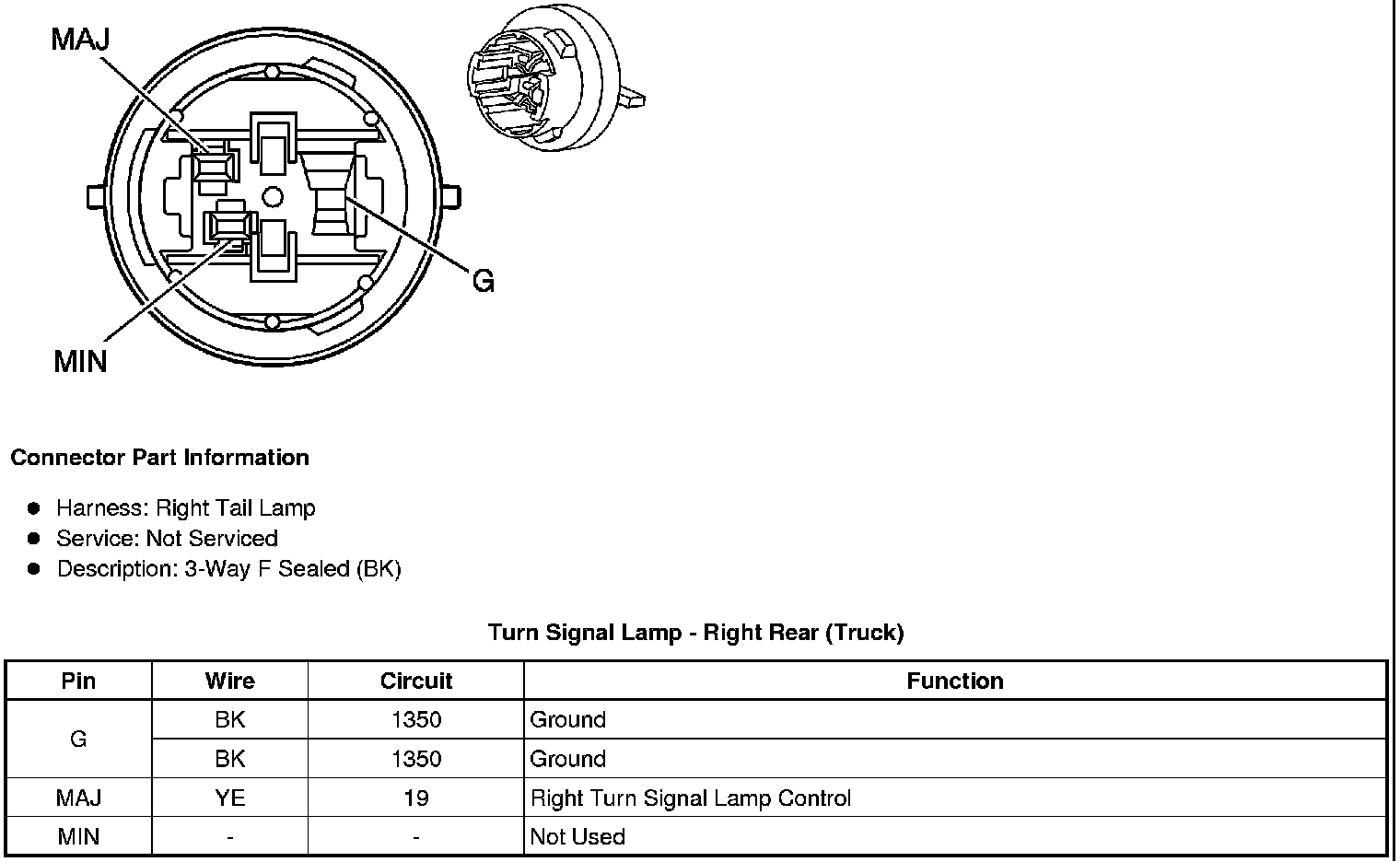

Turn Signal Lamp - Right Rear (Truck)

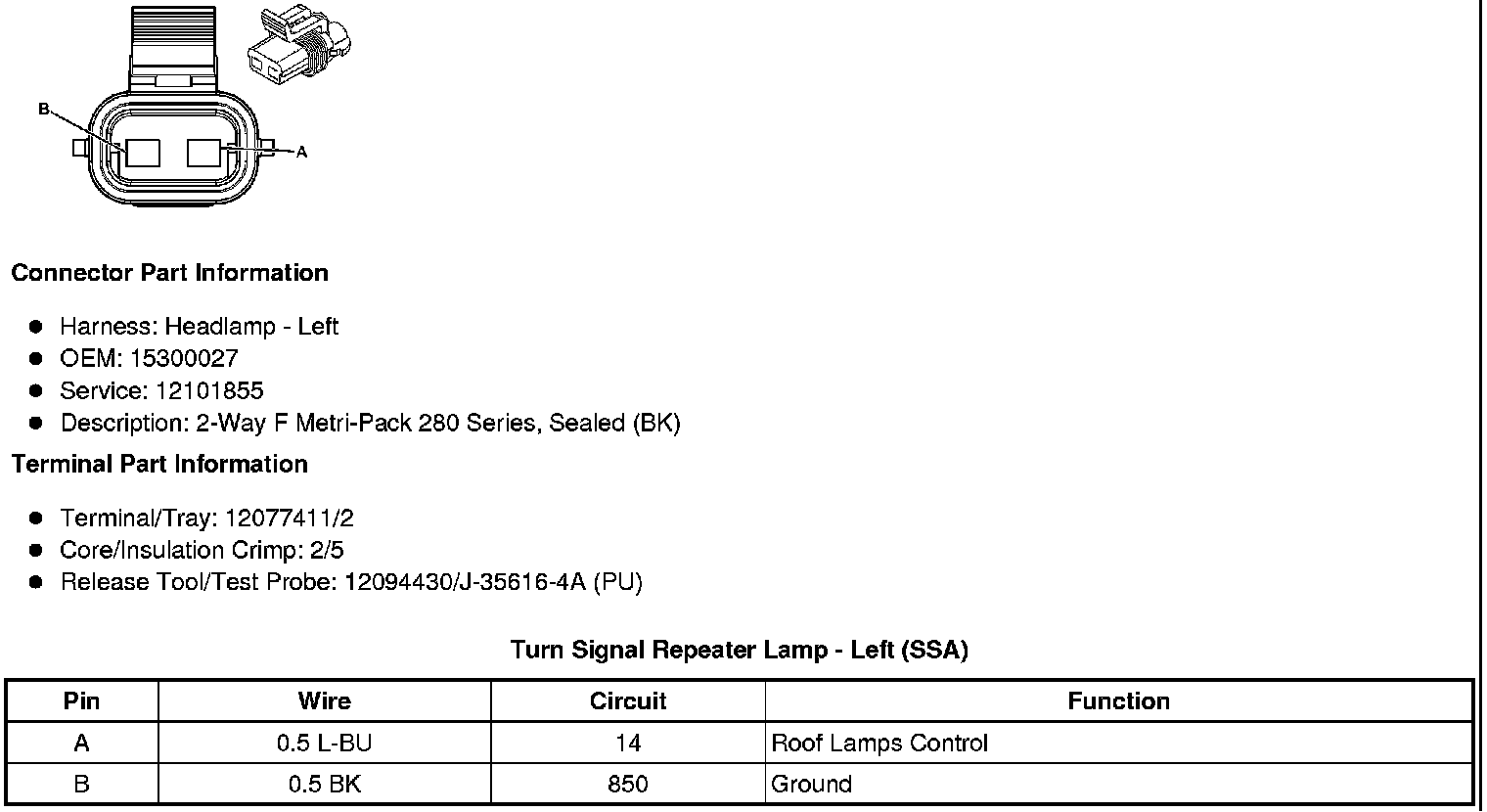

Turn Signal Repeater Lamp - Left (SSA)
Turn Signal Repeater Lamp - Right (SSA)
