Backup Lamp: Diagrams




Component Connector End Views

Backup Lamp - Left (SUV)

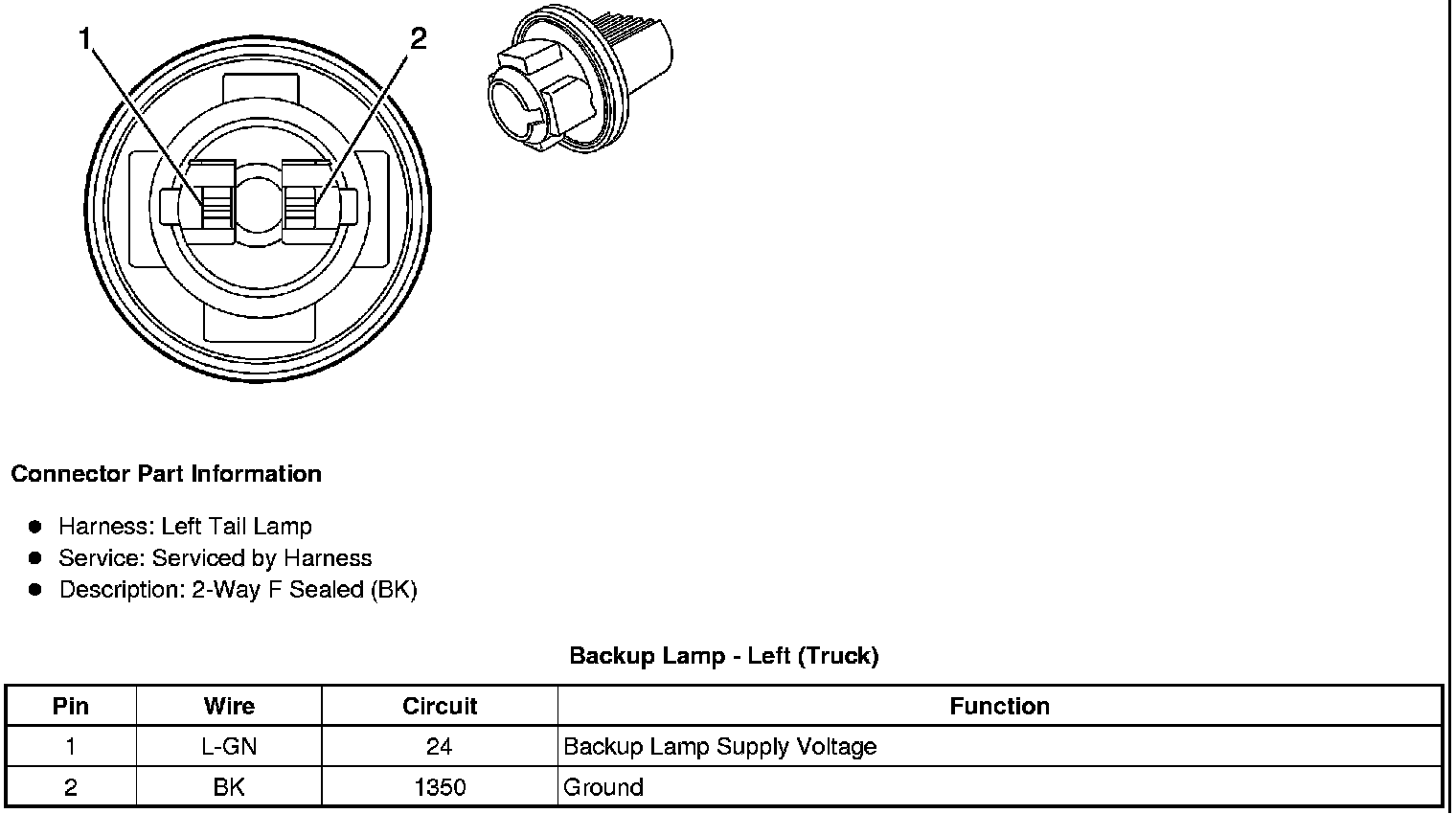

Backup Lamp - Left (Truck)

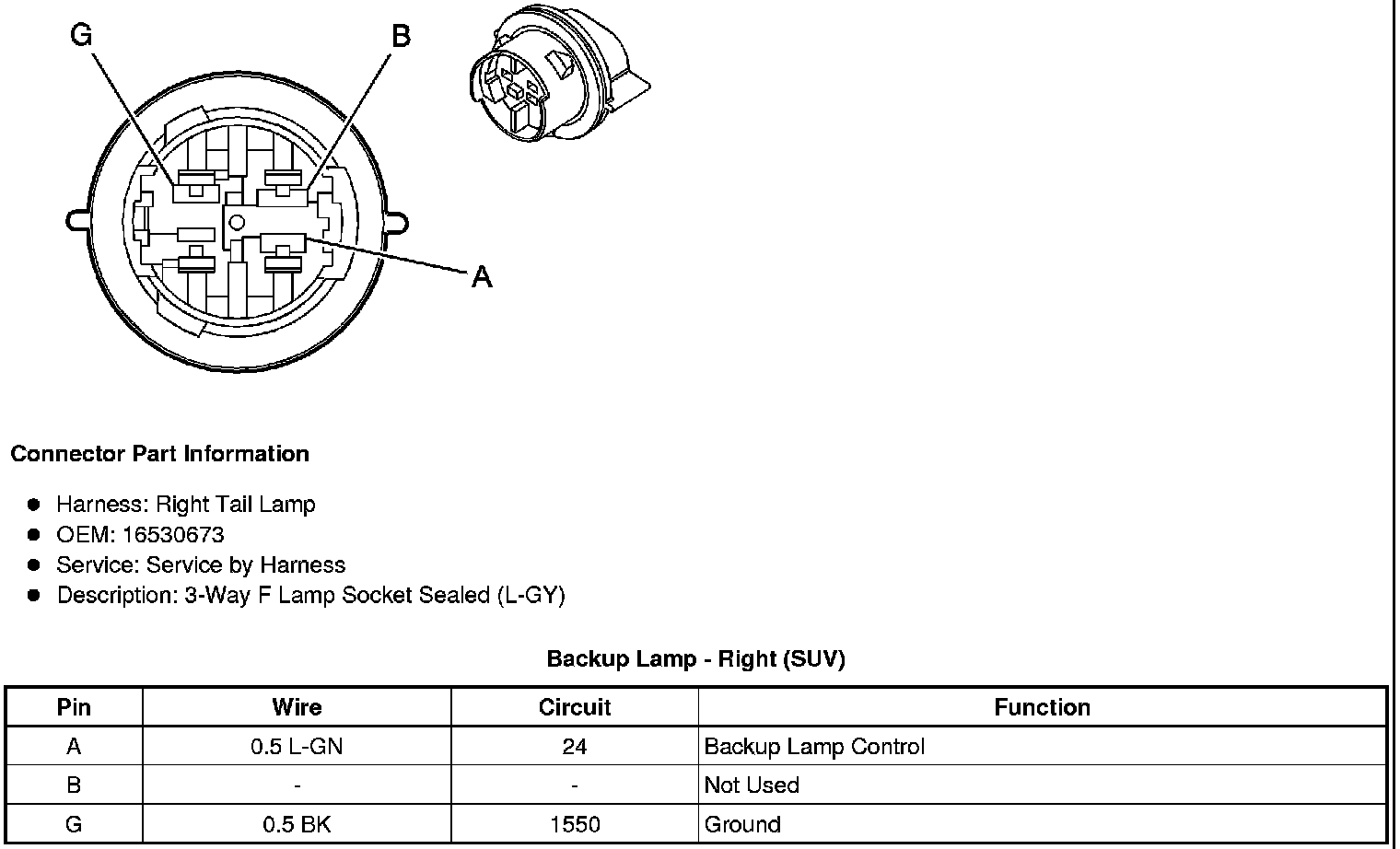

Backup Lamp - Right (SUV)

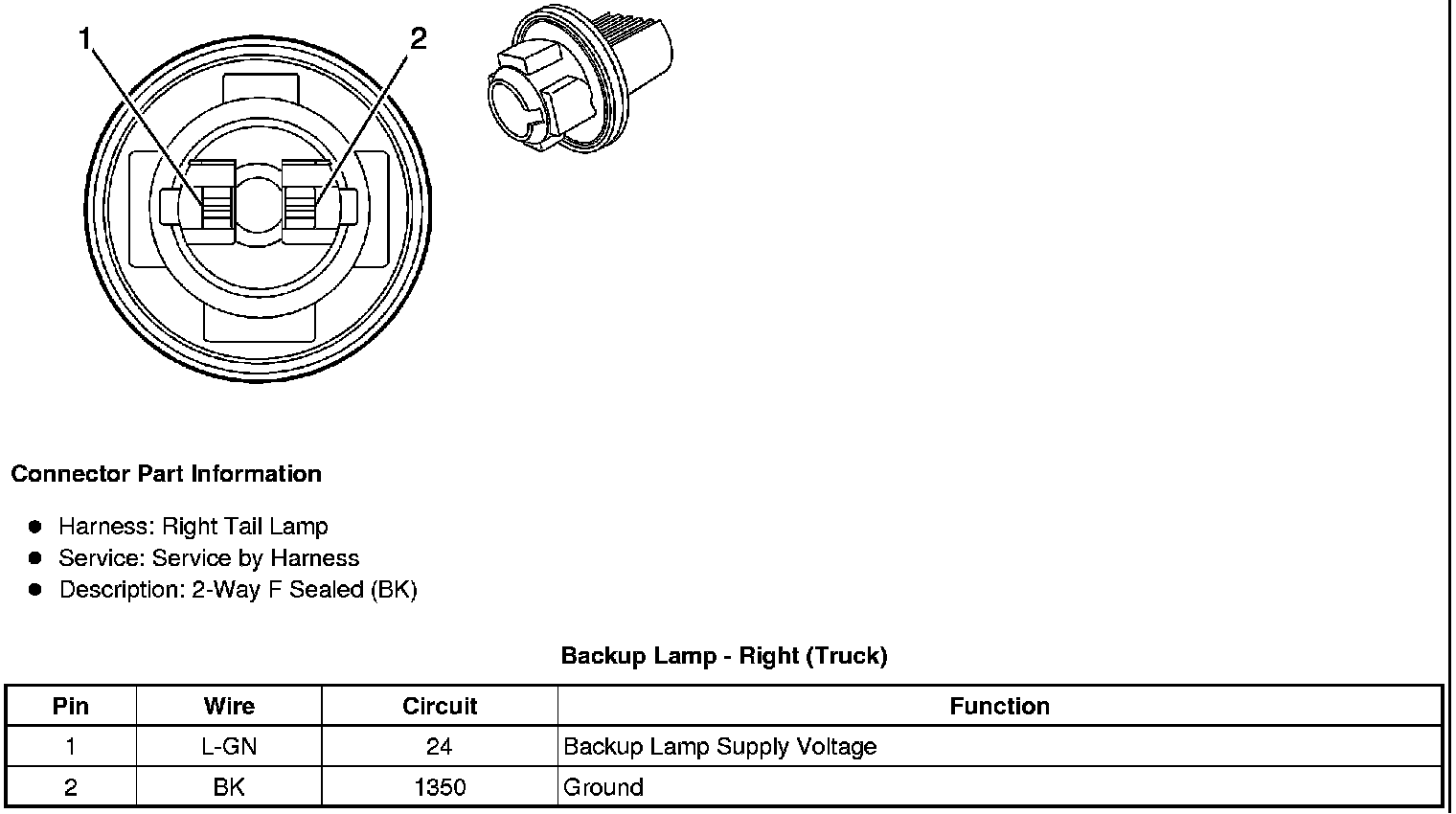

Backup Lamp - Right (Truck)
