Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Service and Repair >> Air Conditioning and Heater Module Assembly Replacement

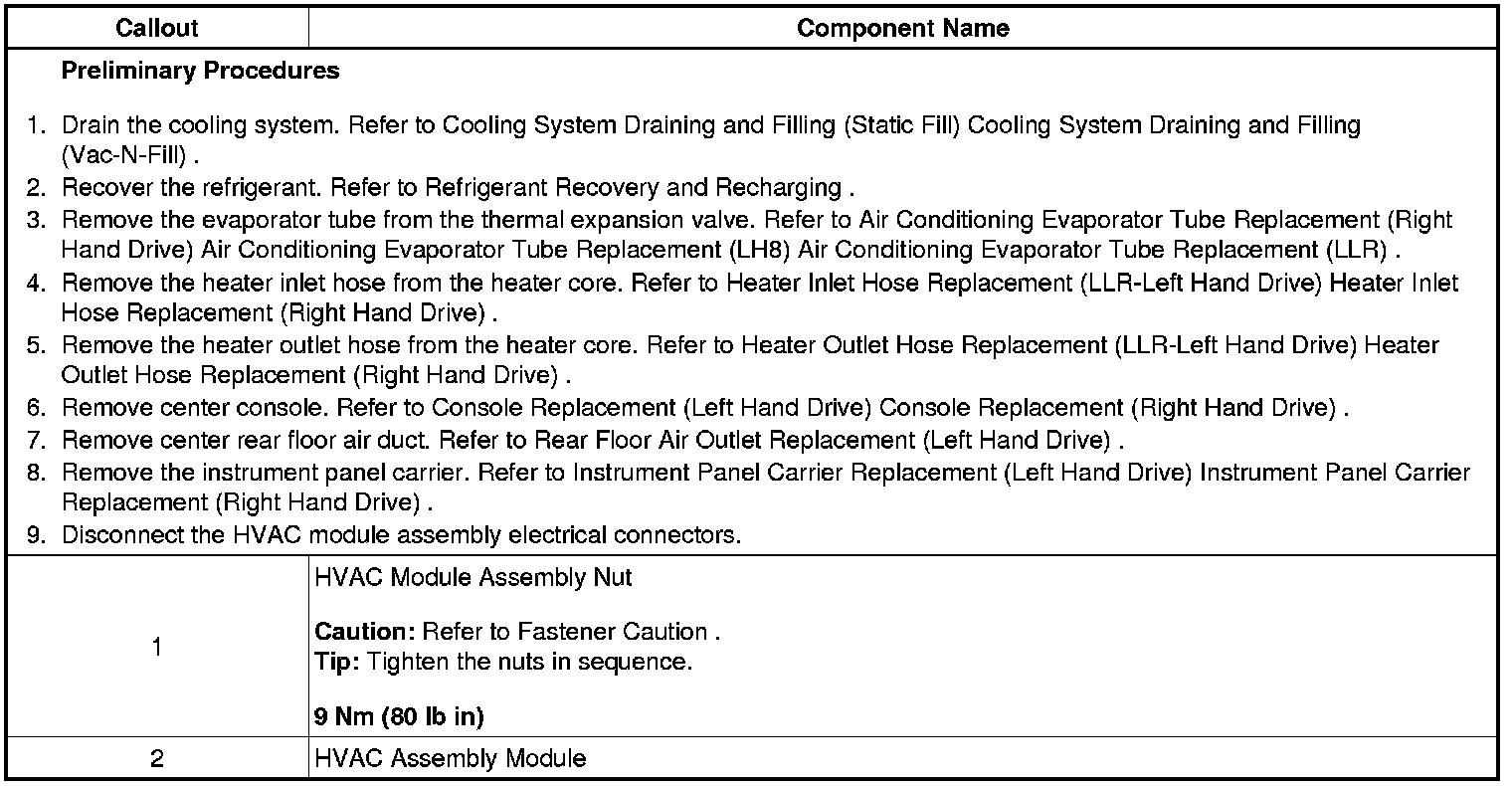

Air Conditioning and Heater Module Assembly Replacement

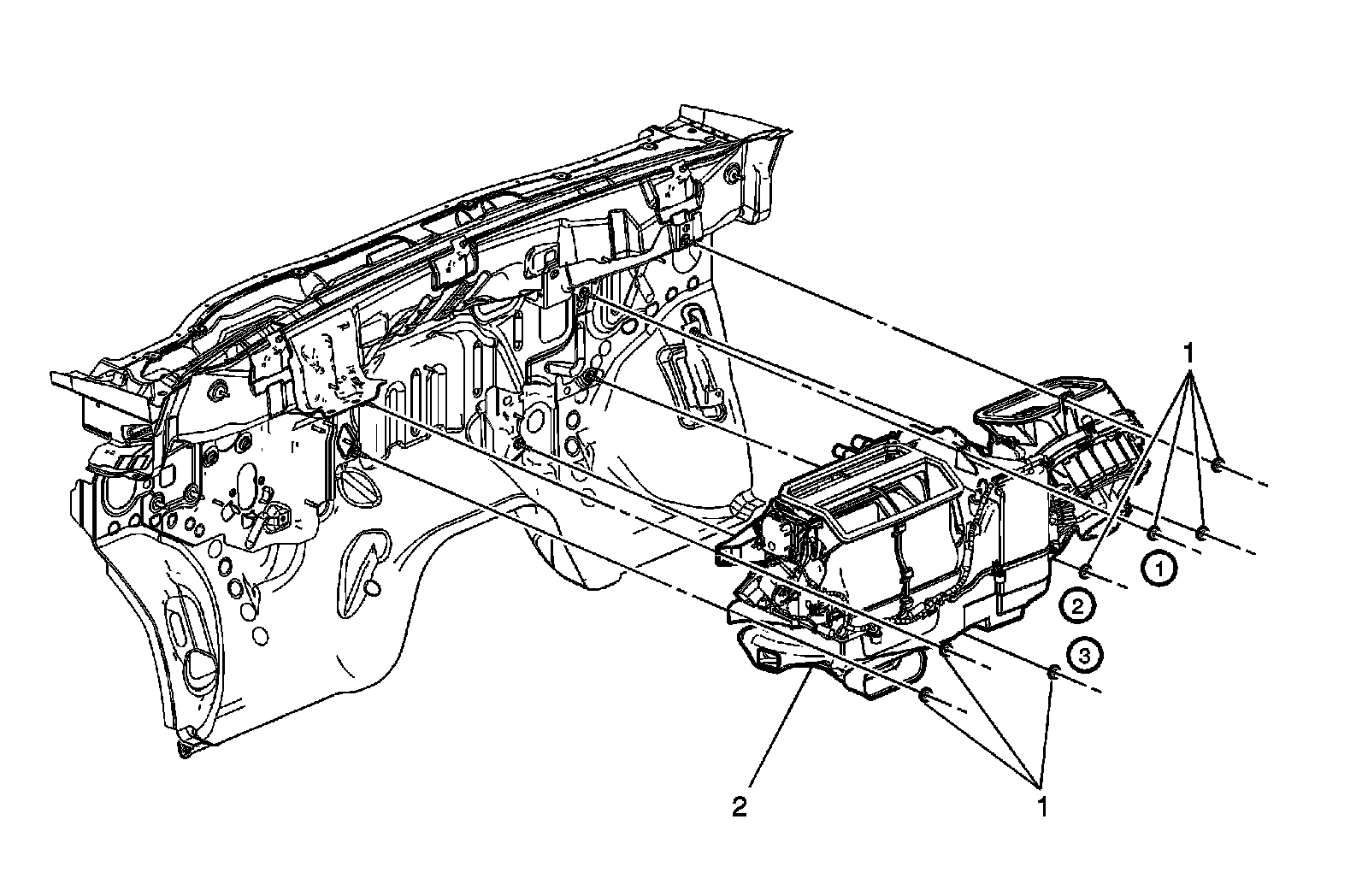

Air Conditioning and Heater Module Assembly Replacement (Left Hand Drive)
