Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Duct >> Service and Repair >> Side Window Defogger Outlet Duct Replacement - Right Side

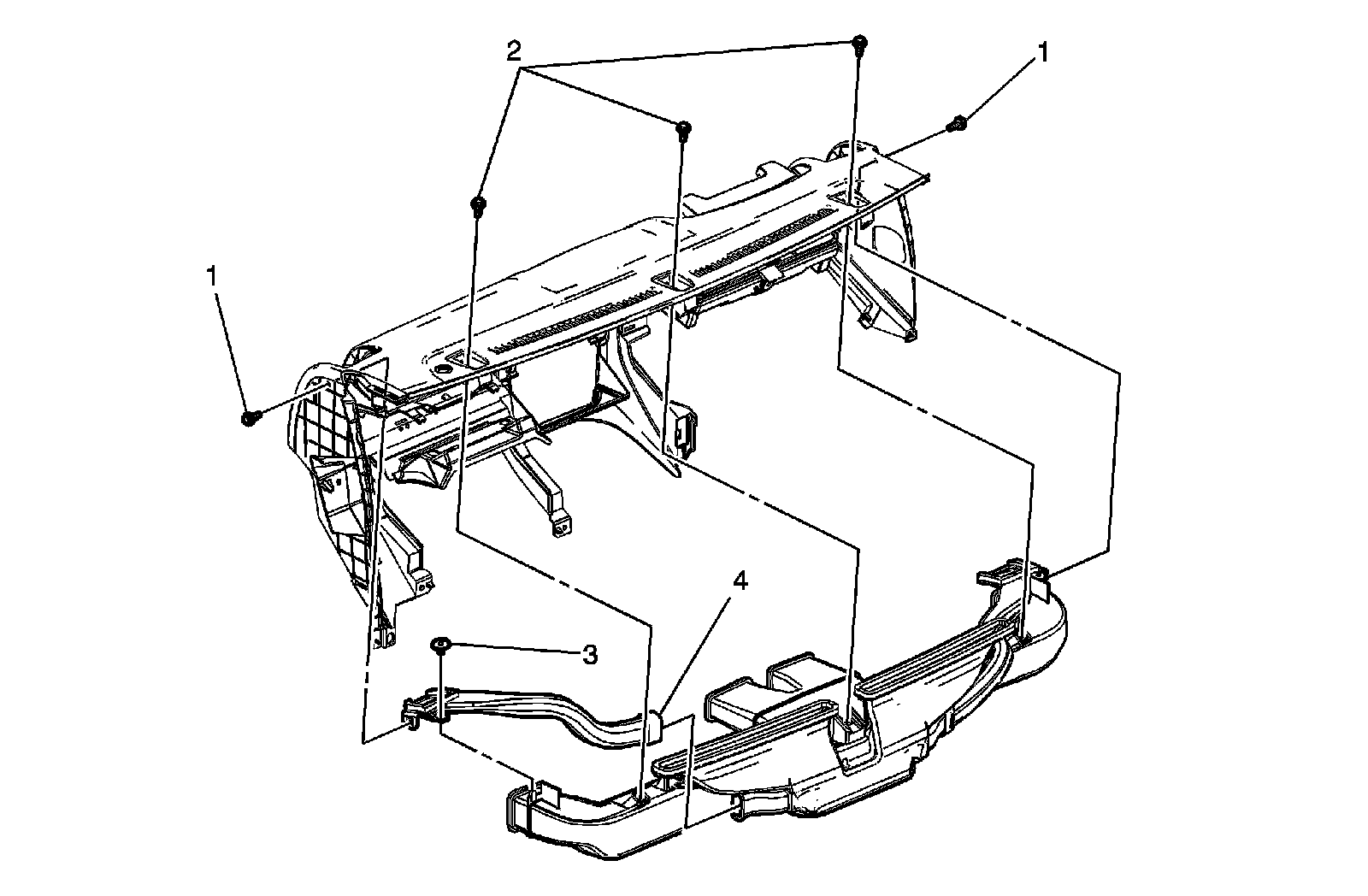

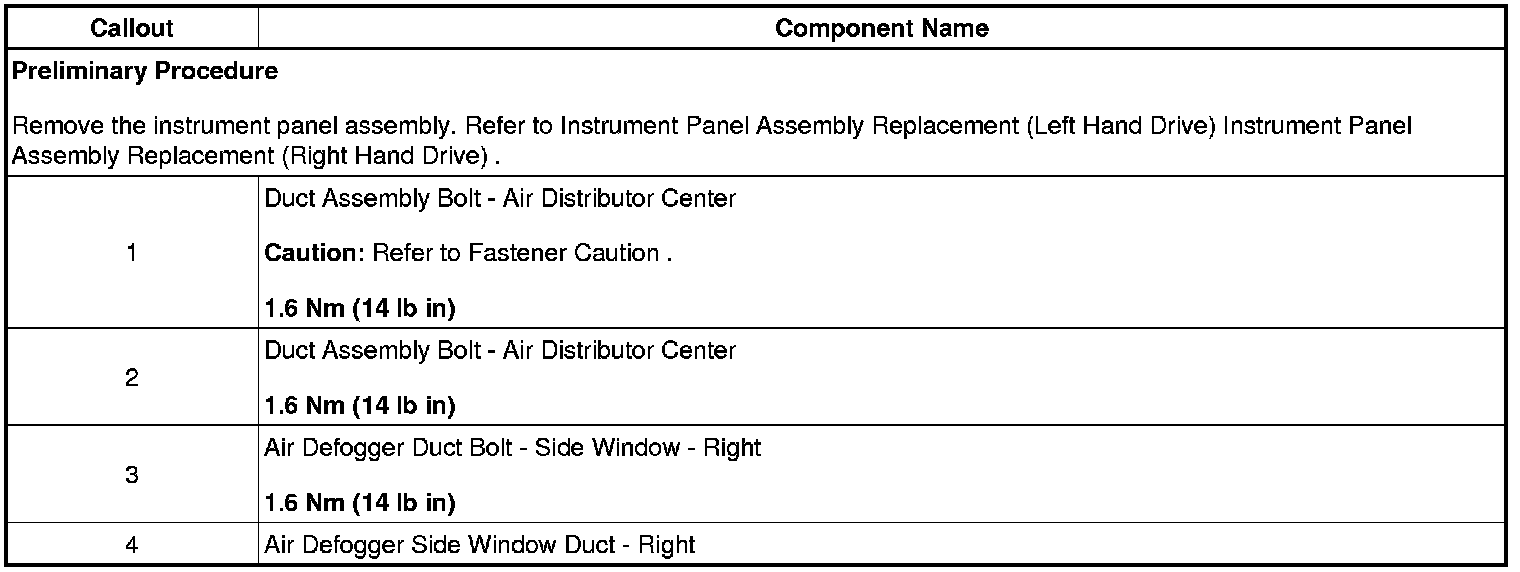

Side Window Defogger Outlet Duct Replacement - Right Side




Side Window Defogger Outlet Duct Replacement - Right Side (Left Hand Drive)
