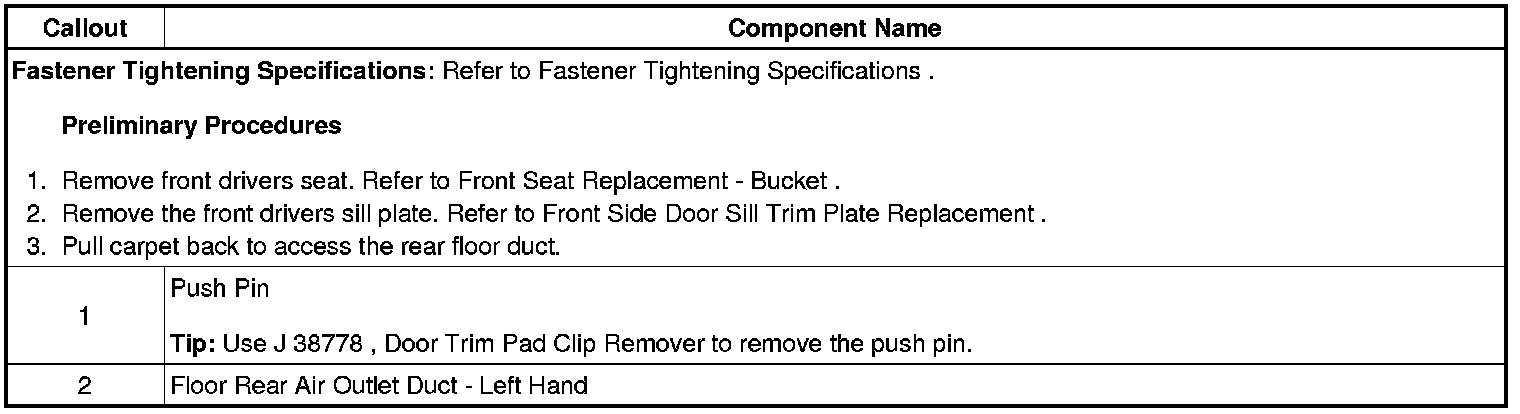

Floor Rear Air Outlet Duct Replacement - Left Side

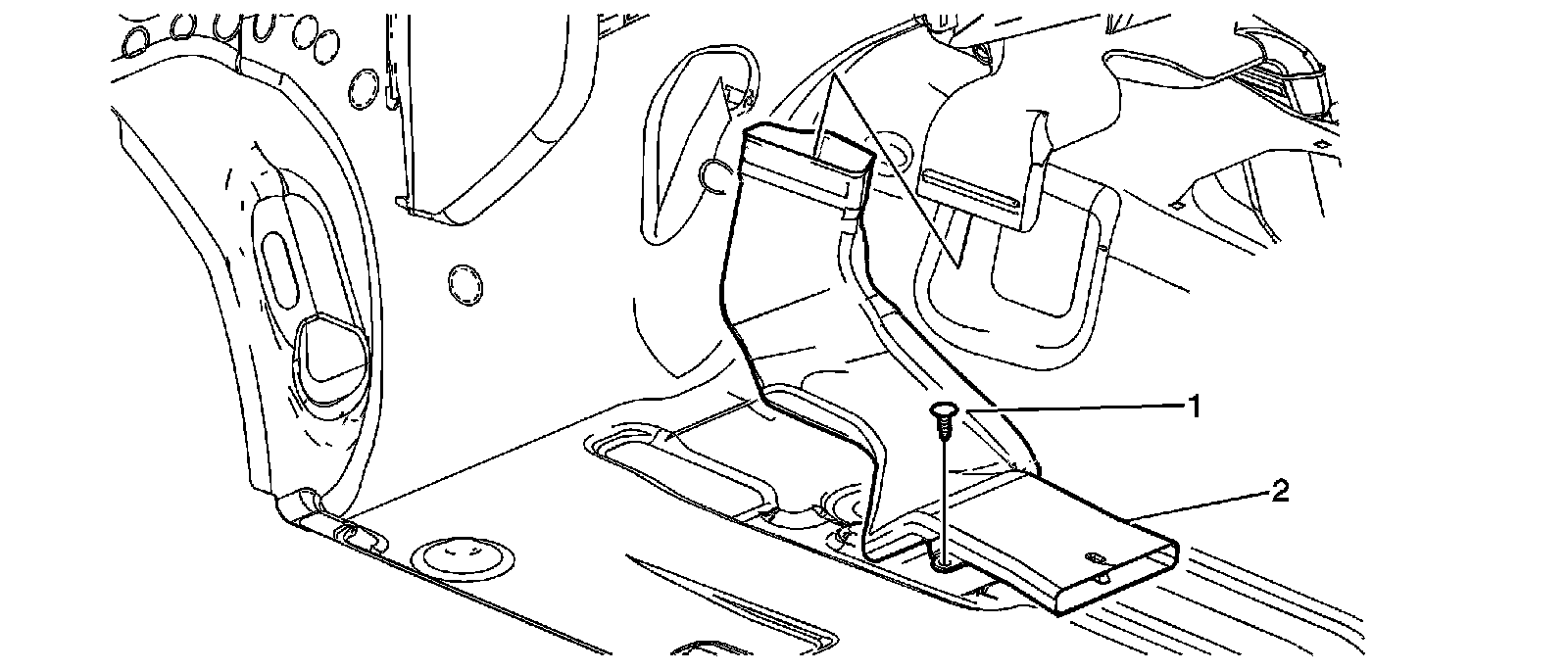

Floor Rear Air Outlet Duct Replacement - Left Side (Left Hand Drive)
