Coolant Recovery Reservoir Replacement
Coolant Recovery Reservoir Replacement

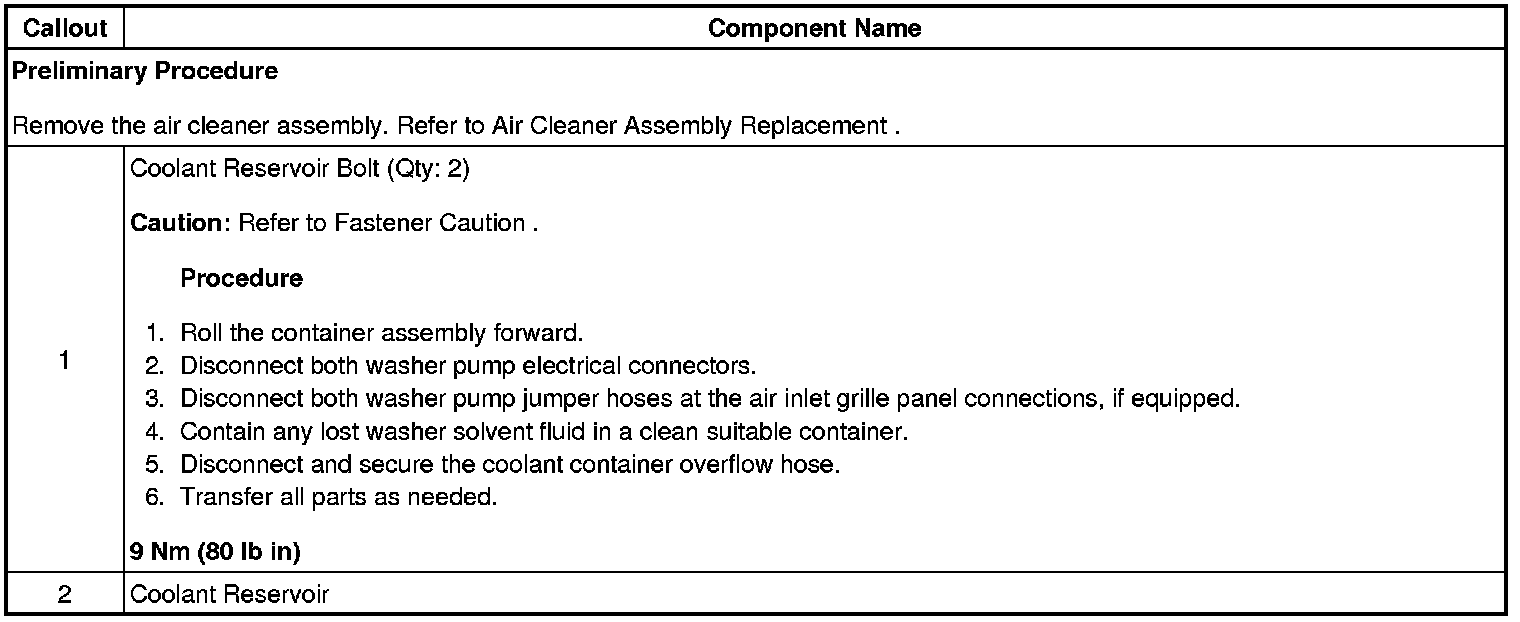

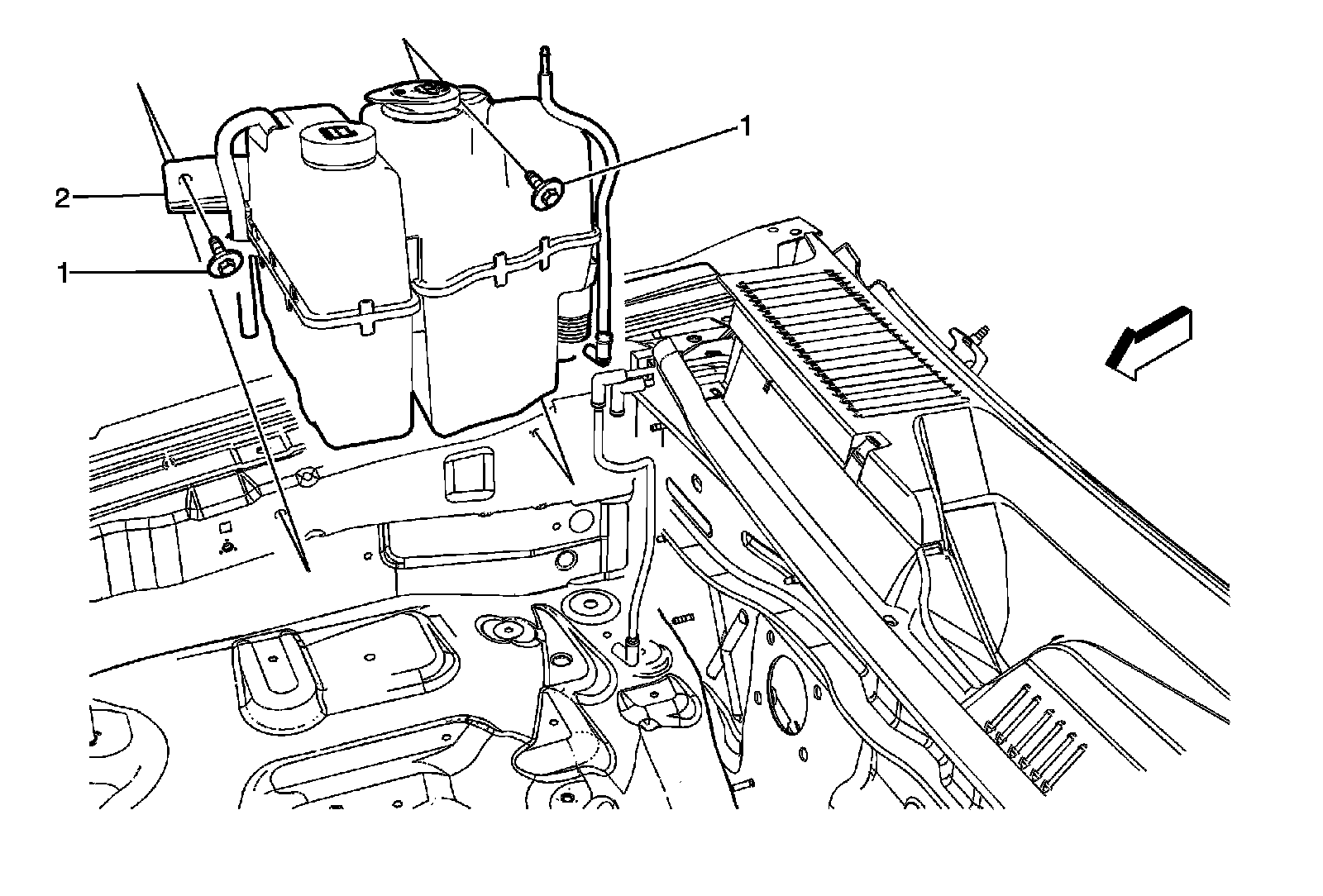

Coolant Recovery Reservoir Replacement (Left Hand Drive)
