Engine Control Module




Component Connector End Views

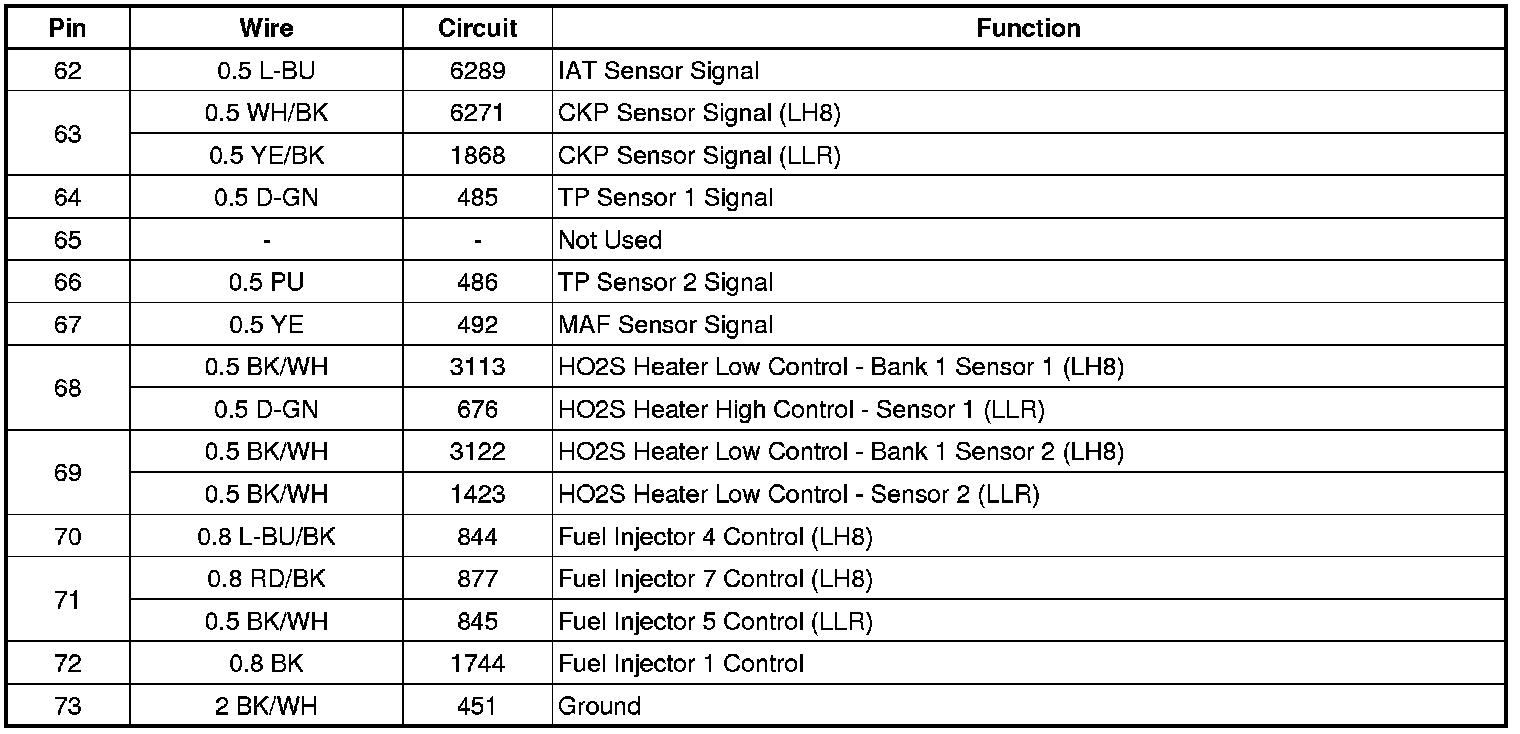

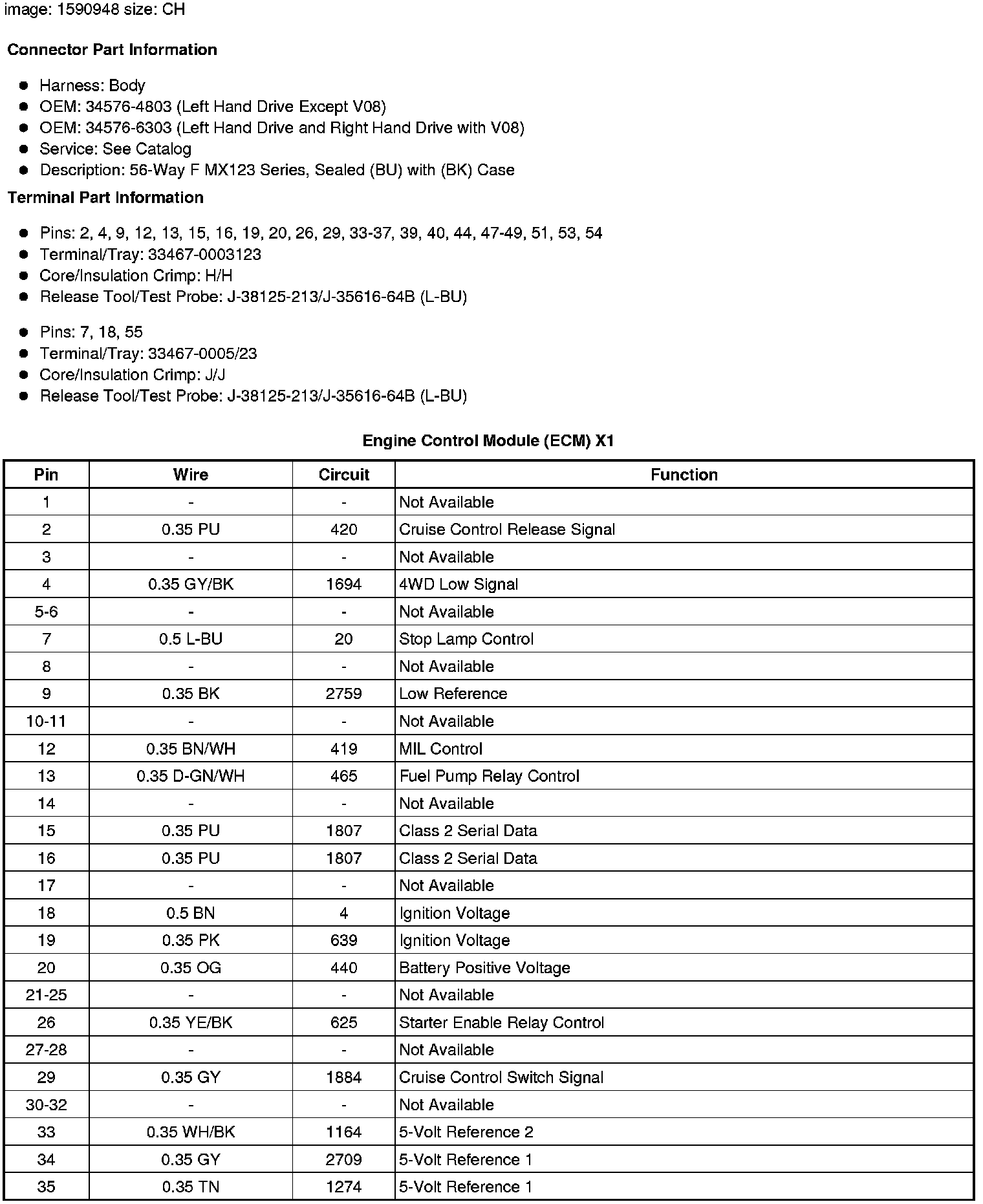

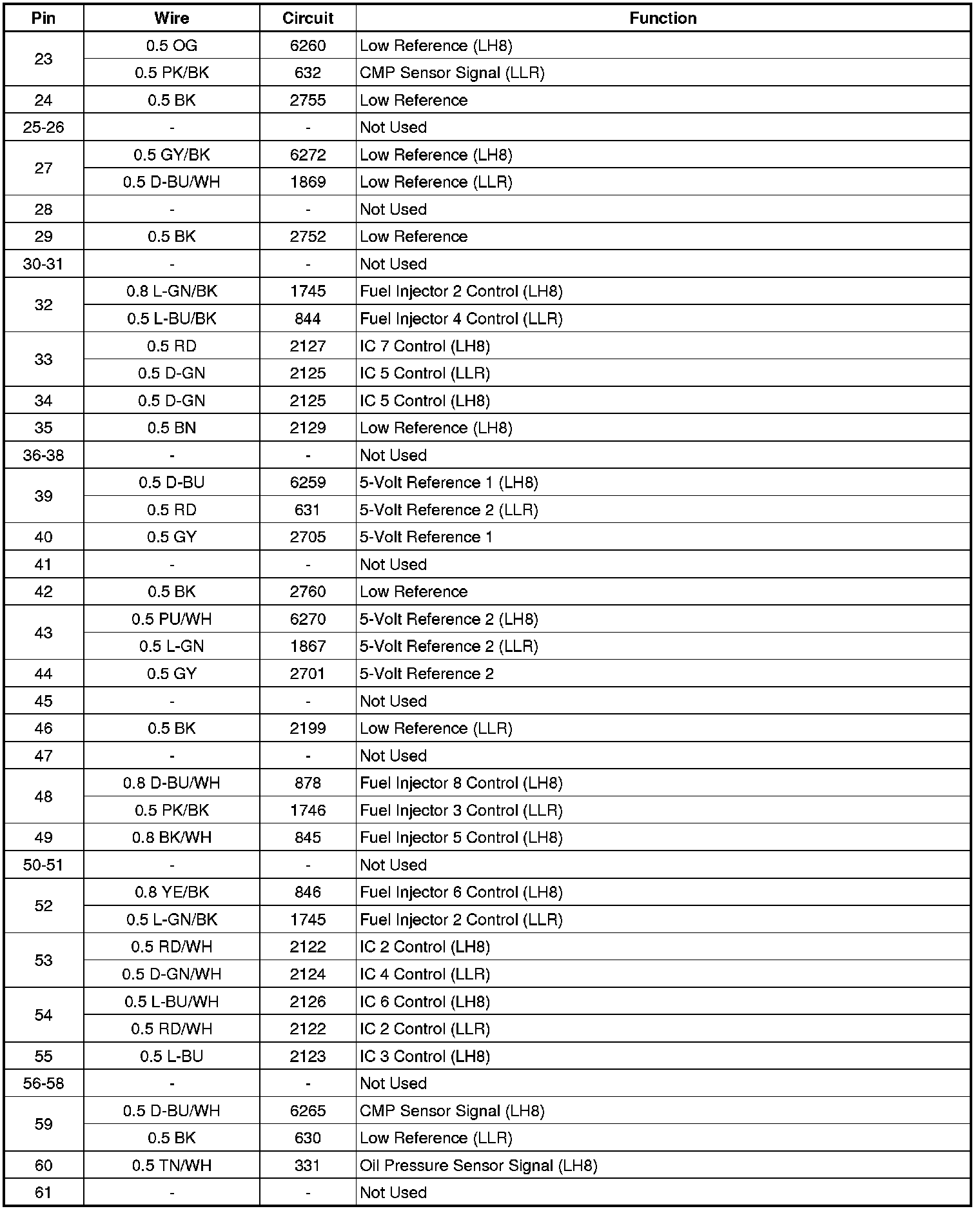

Engine Control Module (ECM) X1

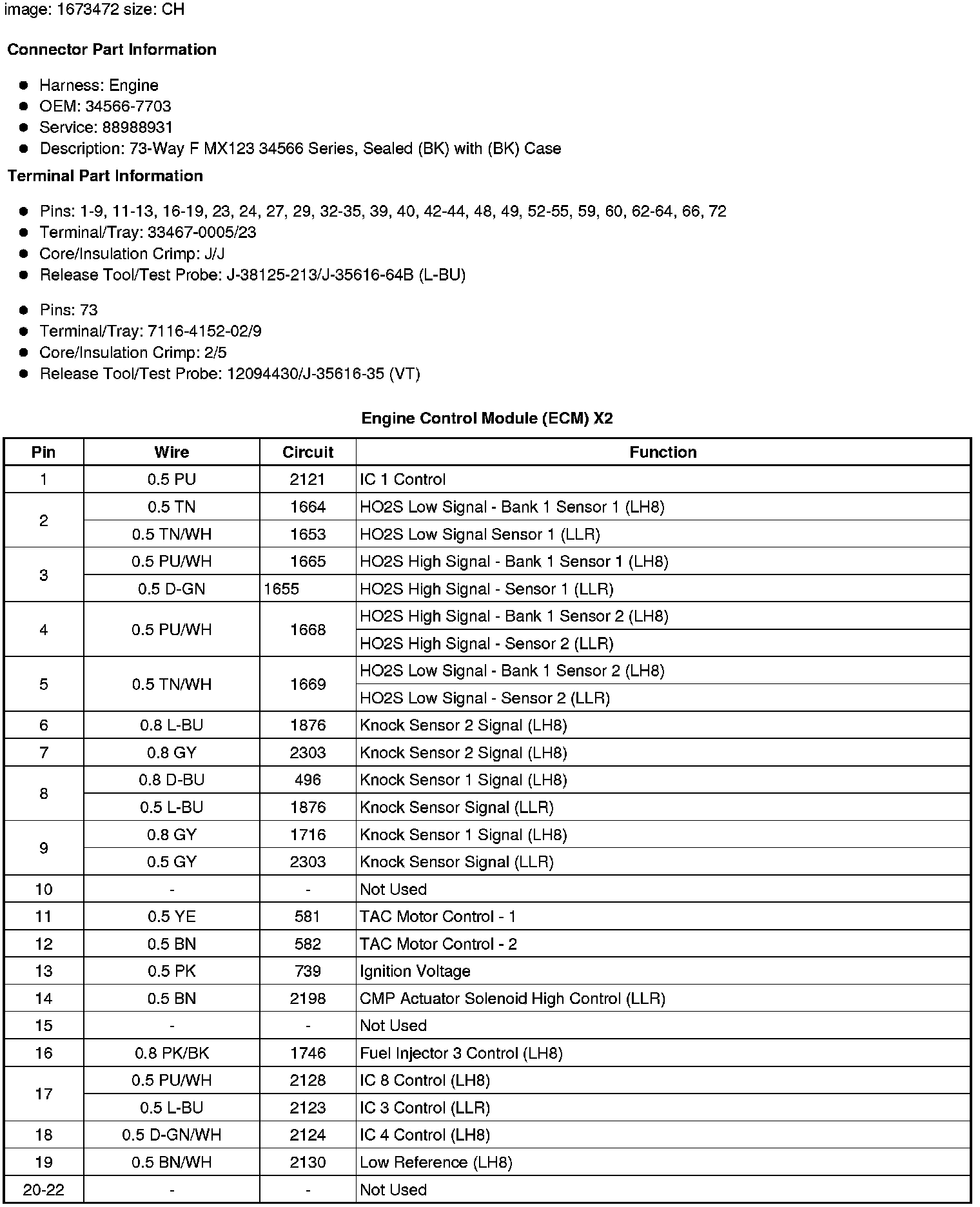

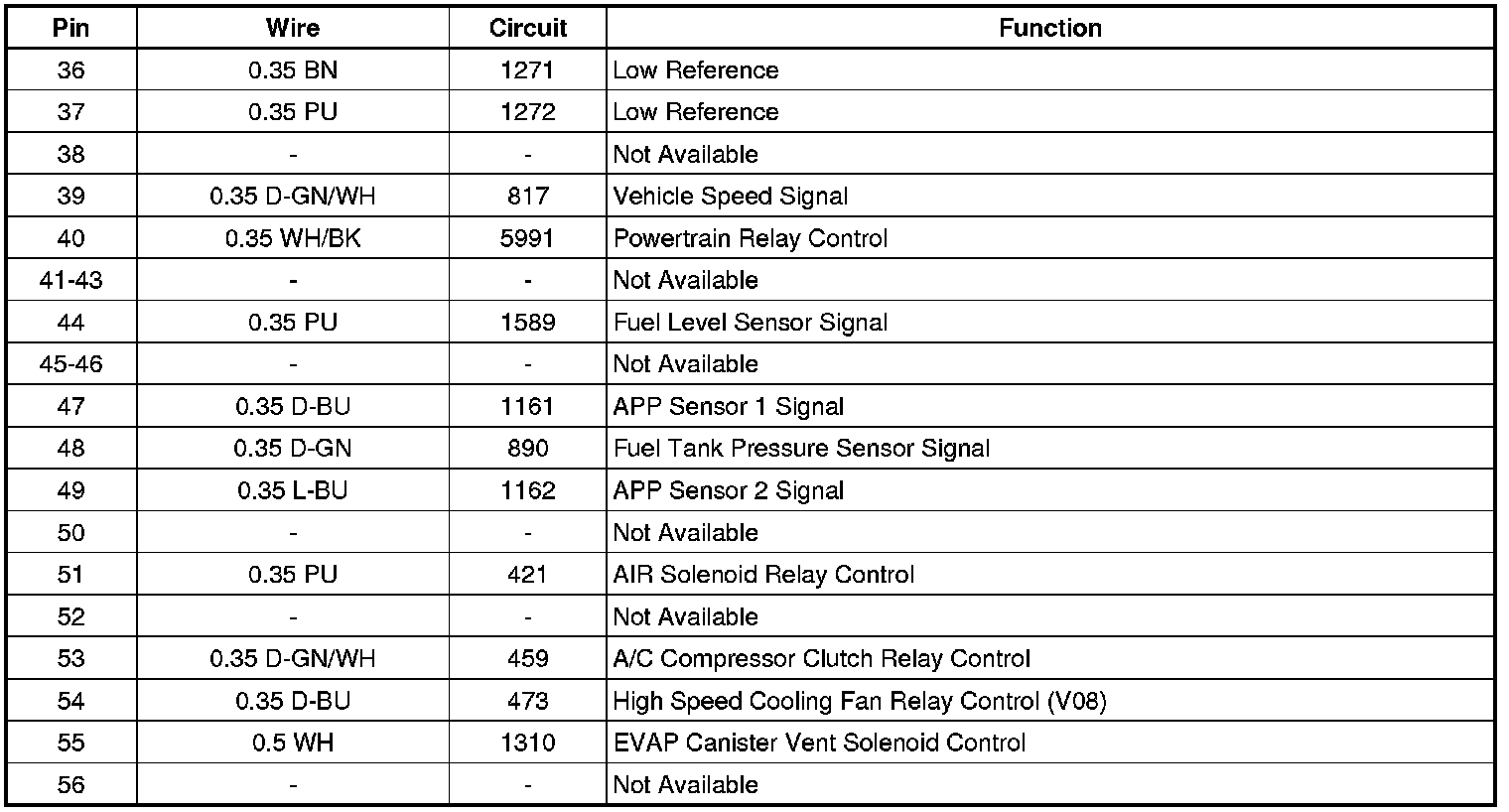

Engine Control Module (ECM) X2

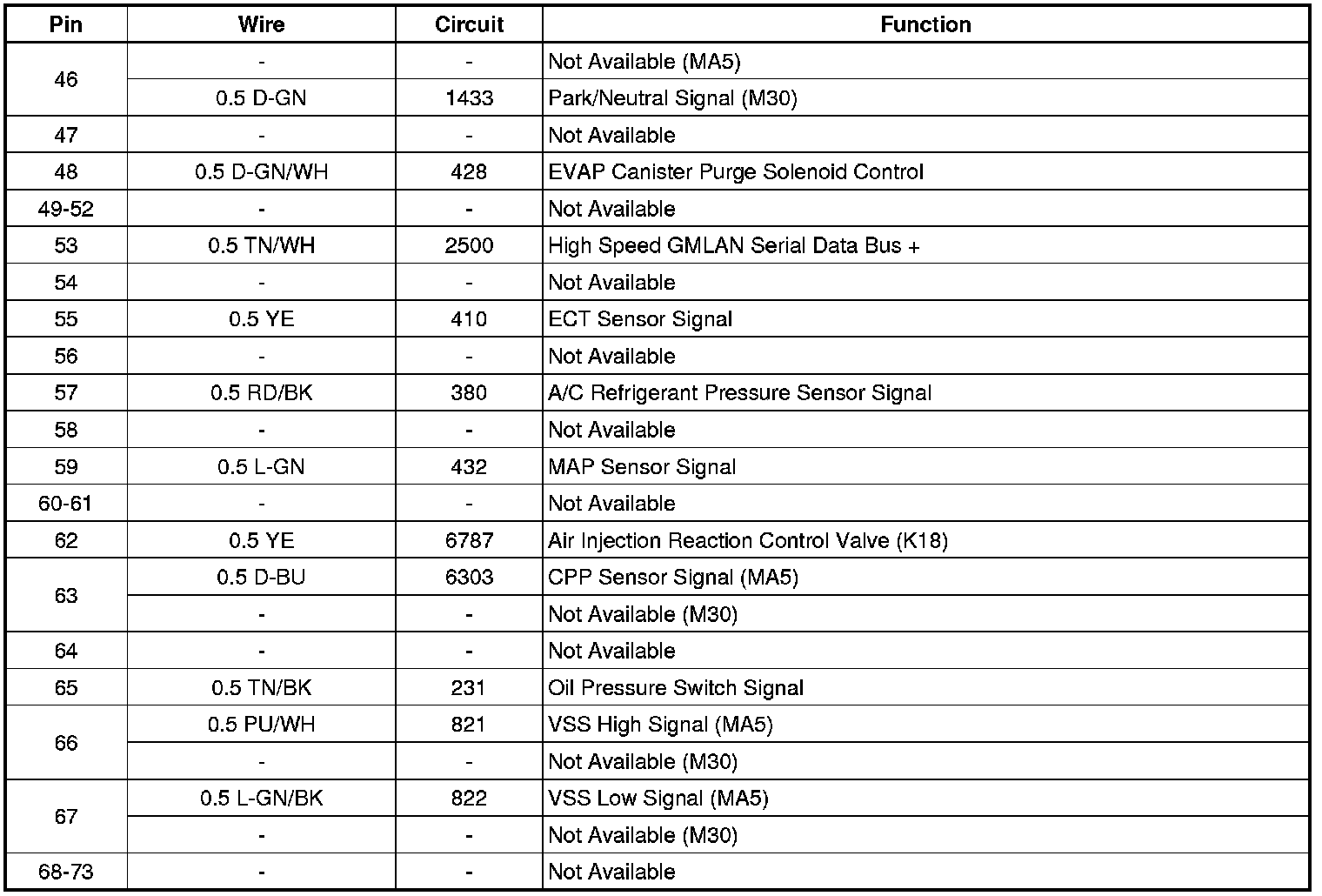

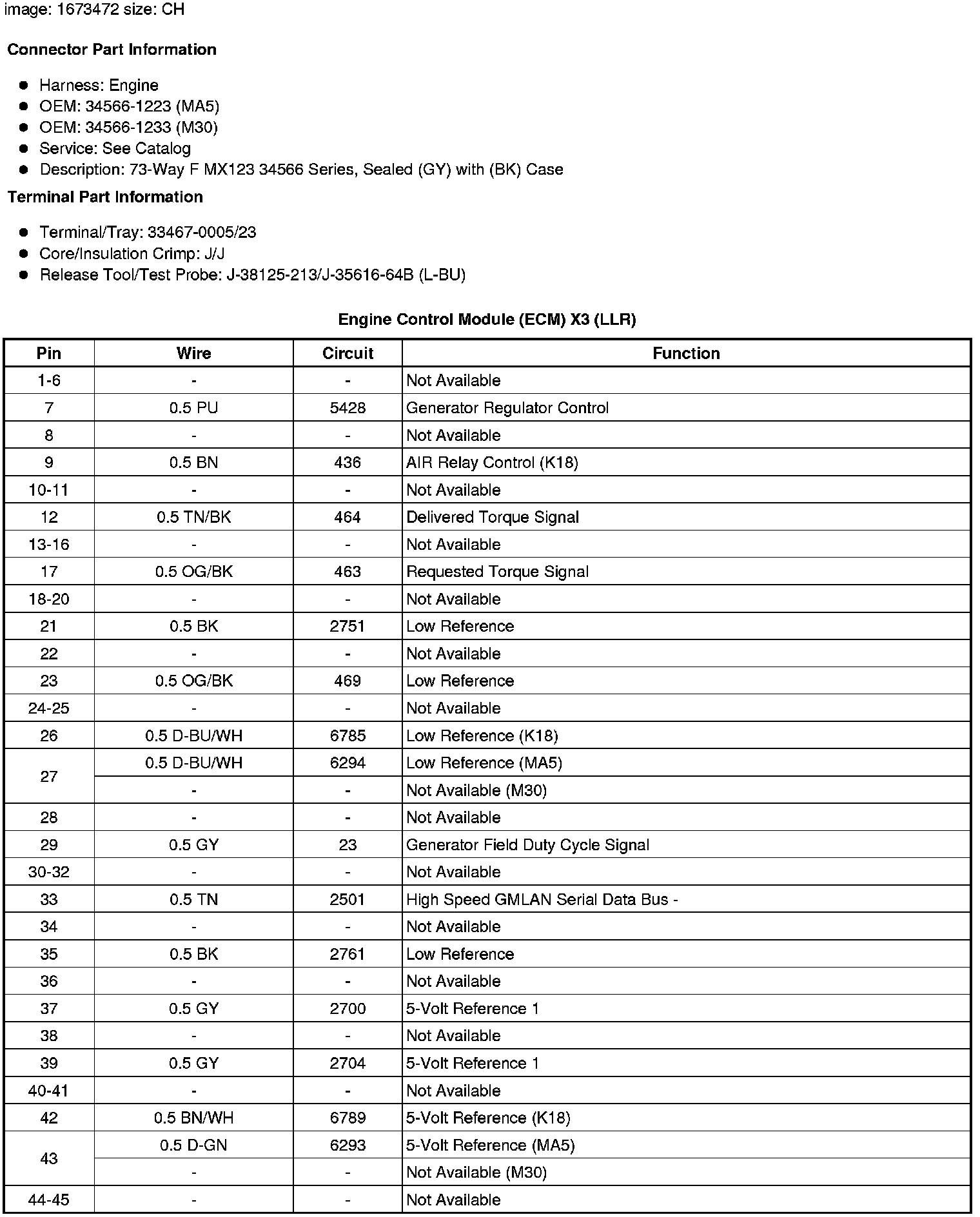

Engine Control Module (ECM) X3 (LLR)
