Trailer Connector/Provision Schematics




Trailer Connector/Provision Schematics

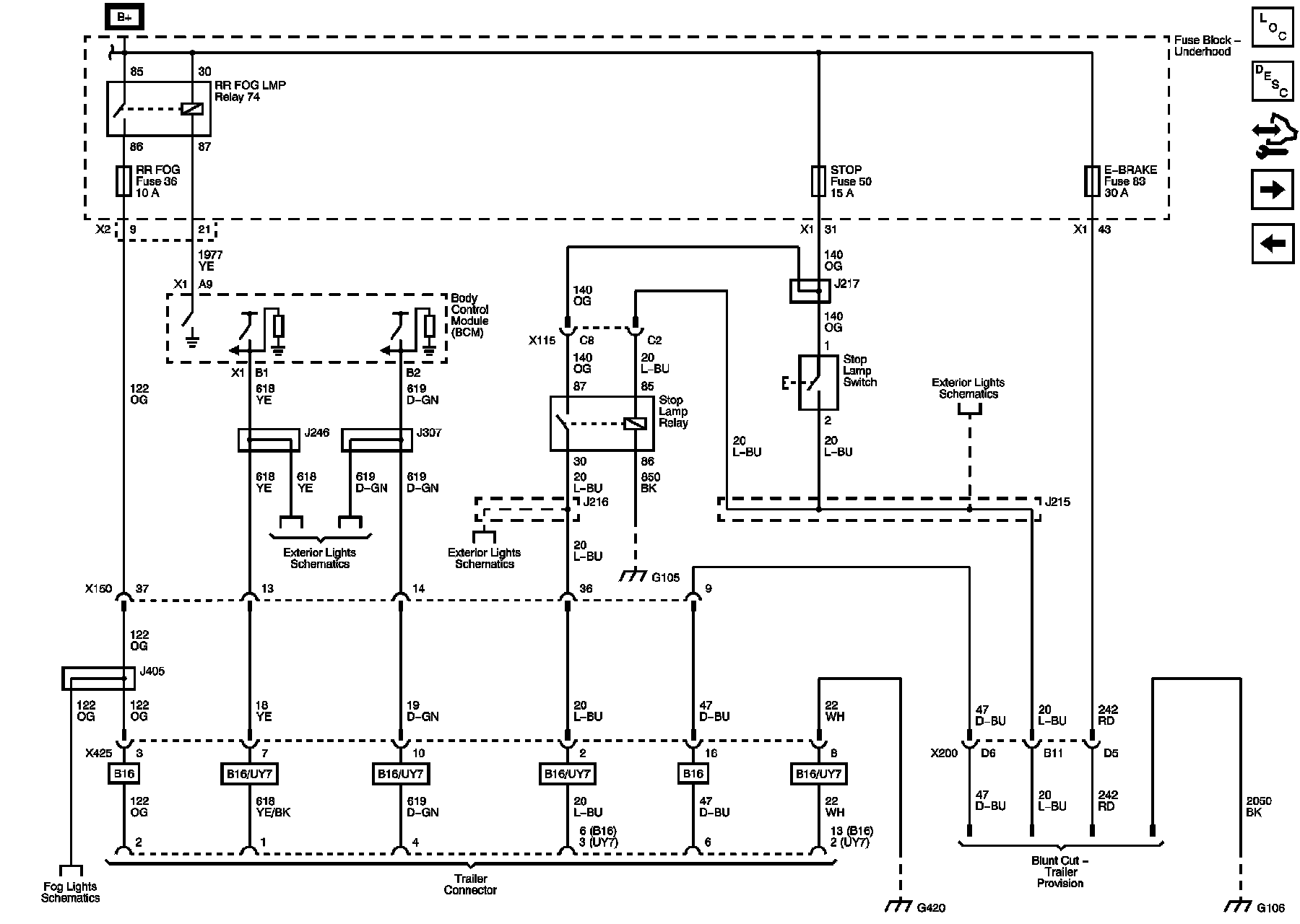

Trailer Wiring (SUV with SLA)

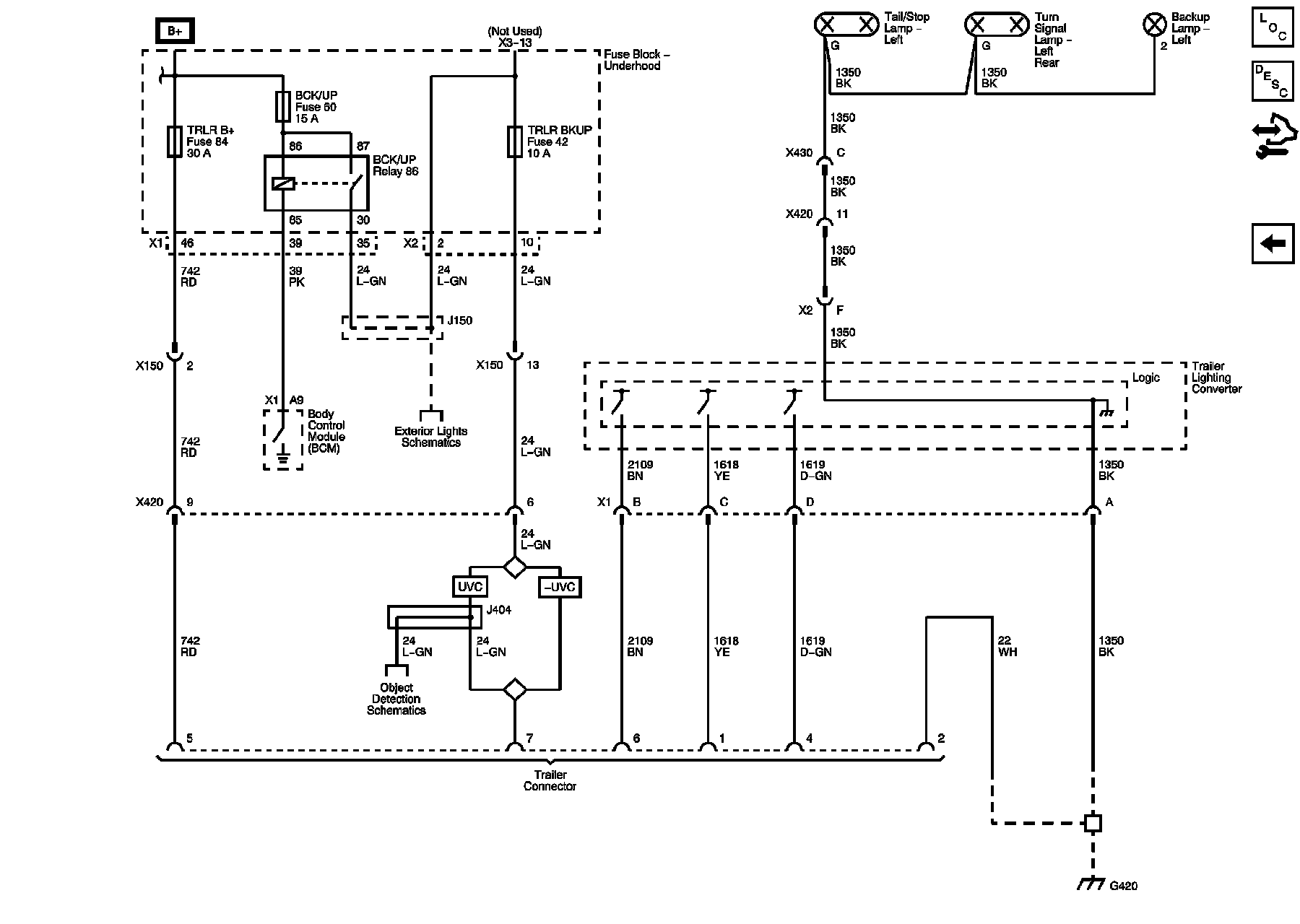

Trailer Wiring (SUV with SSA) 1 of 2

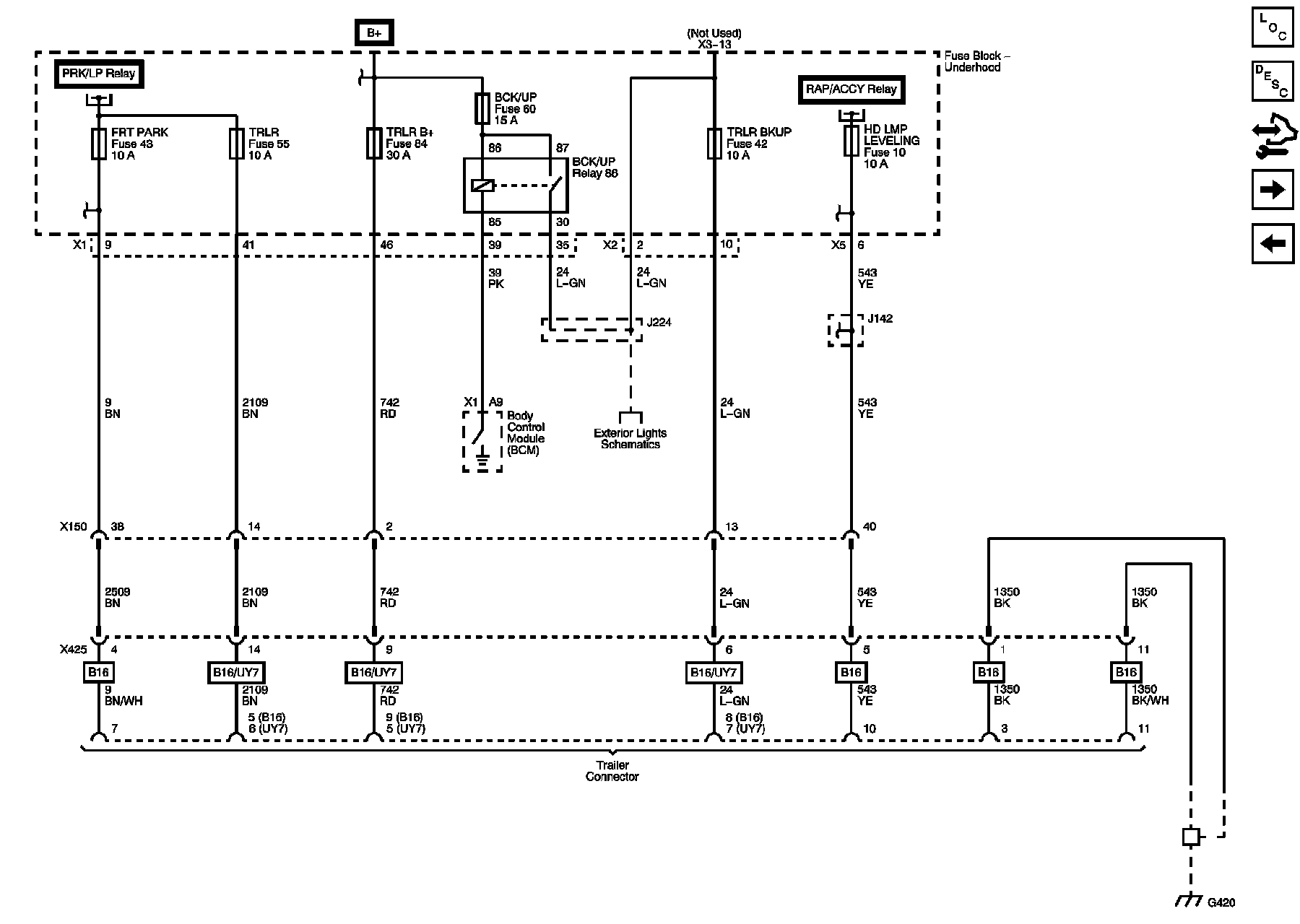

Trailer Wiring (SUV with SSA) 2 of 2

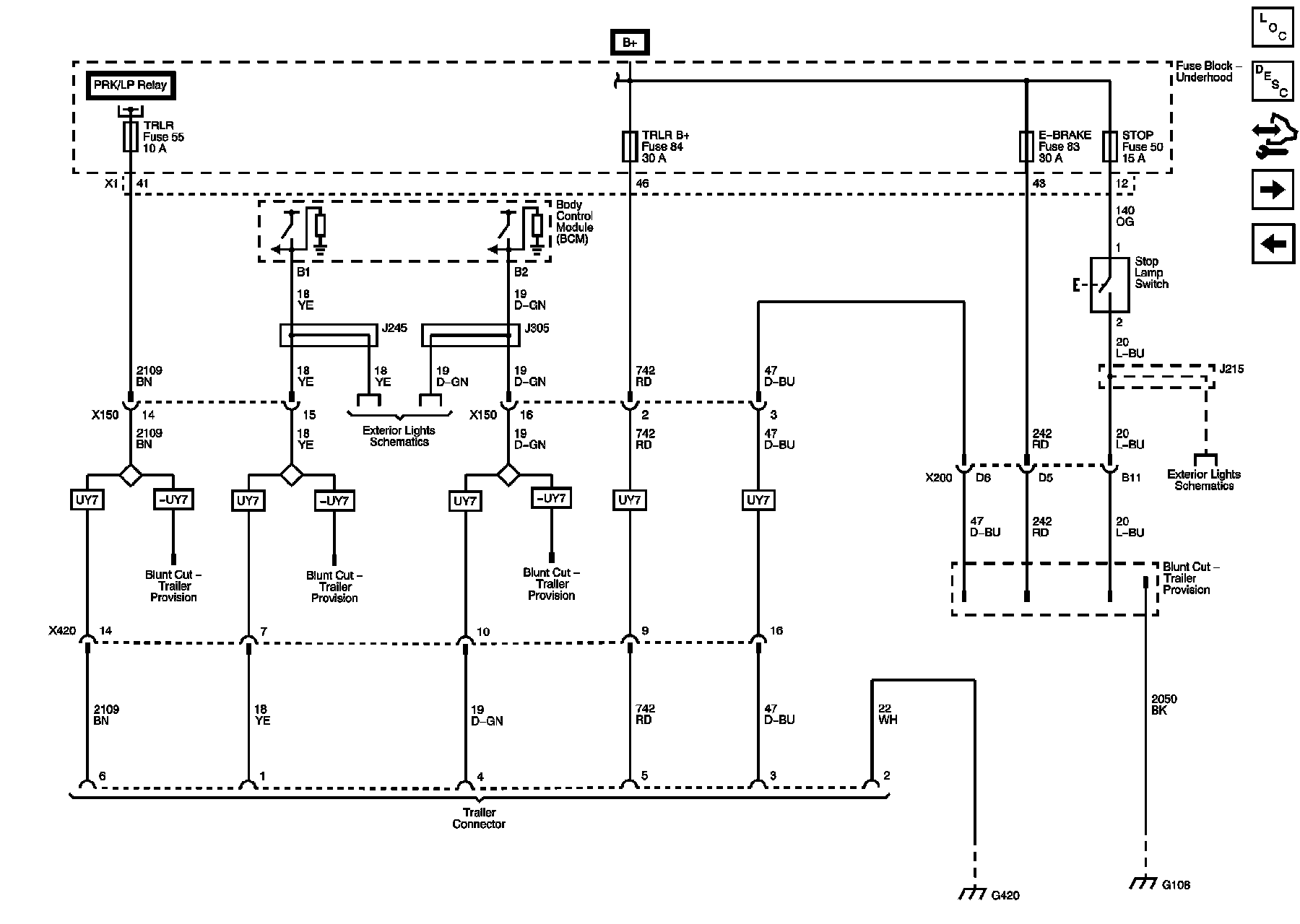

Trailer Wiring (Truck with UY7) 1 of 2

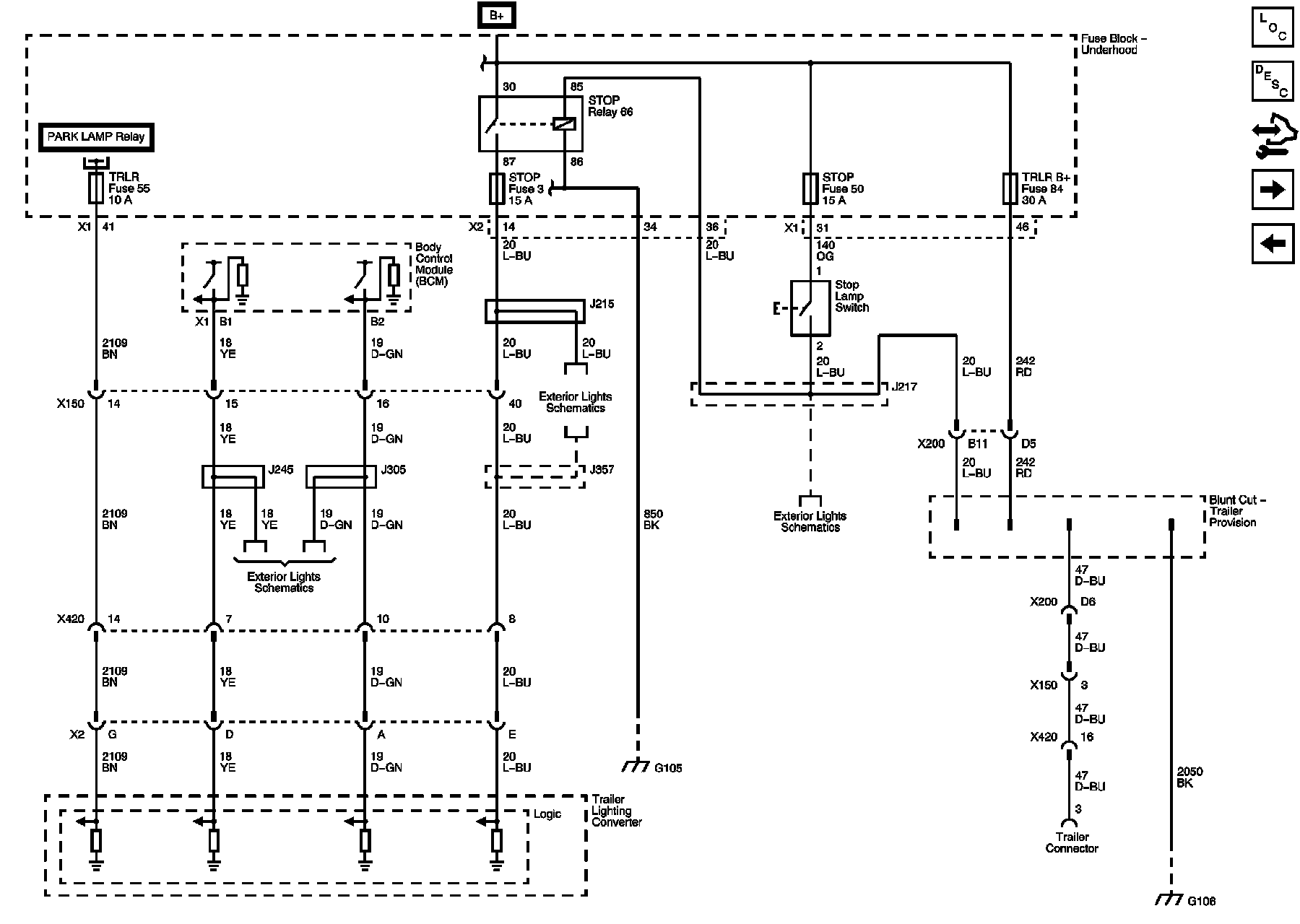

Trailer Wiring (Truck with UY7) 2 of 2
