Wiring Schematic Index

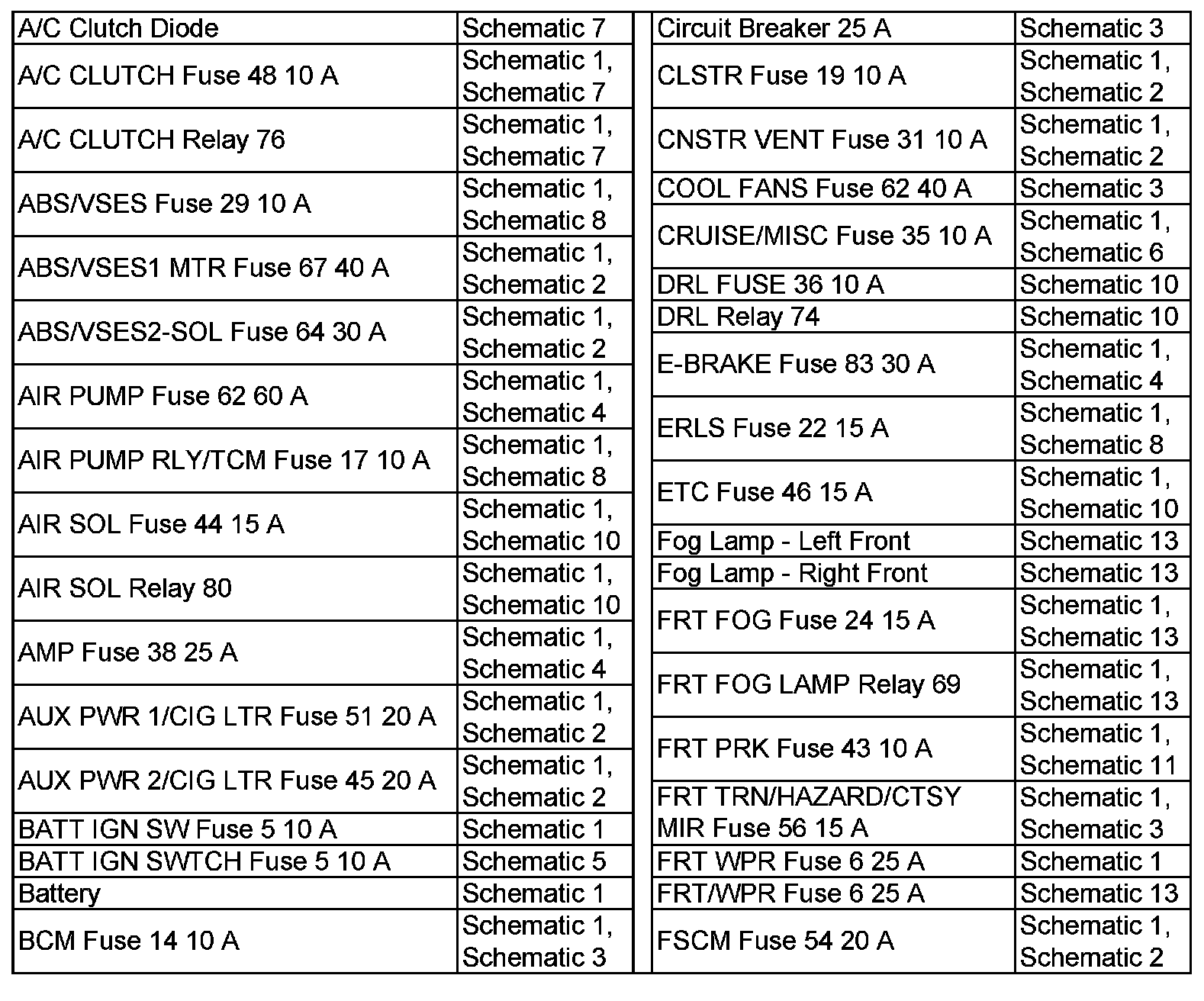

A/C Clutch Diode-FSCM Fuse 53 20 A:

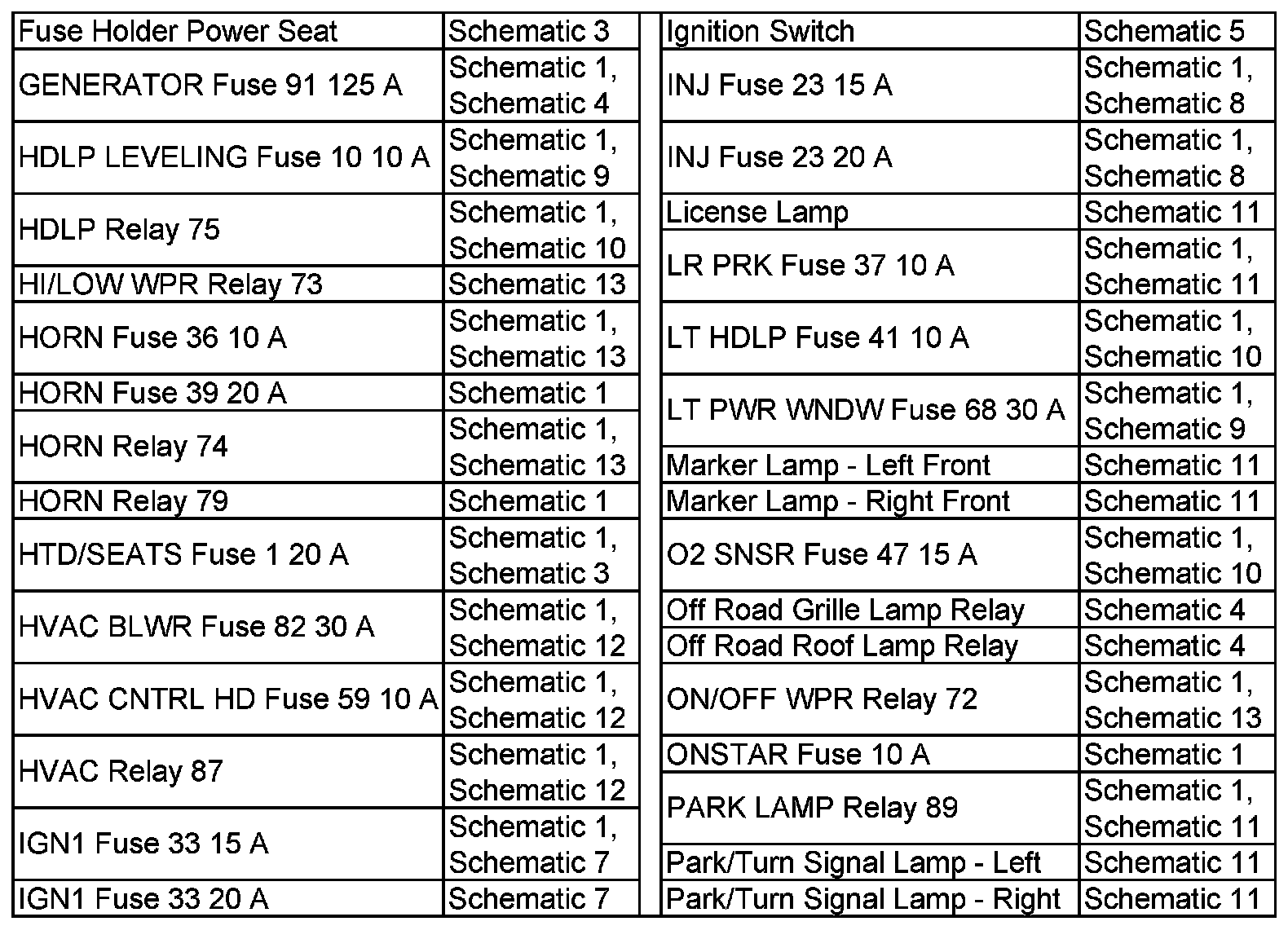

Fuse Holder Power Seat-Park/Turn Signal Lamp - Right:

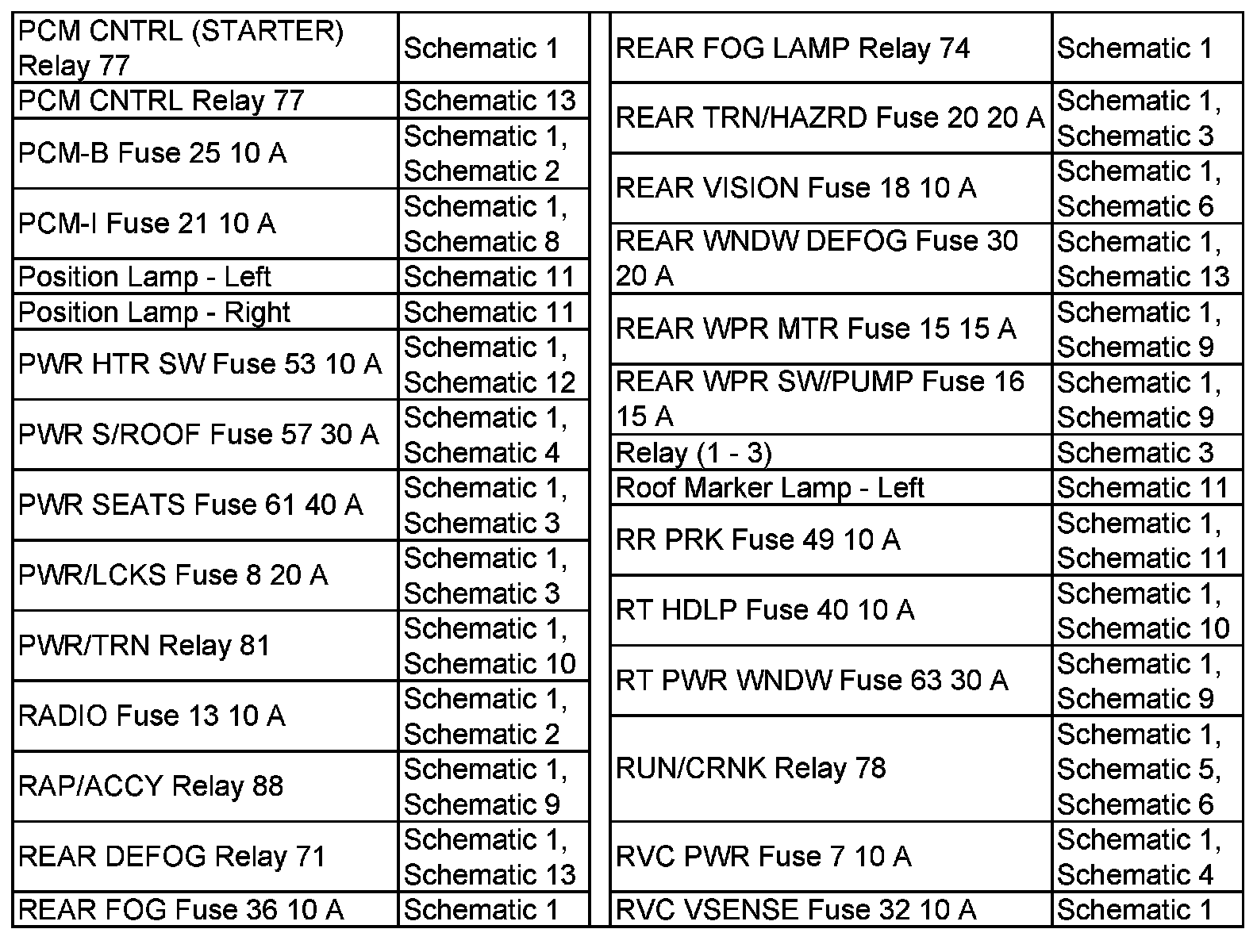

PCM CNTRL (STARTER) Relay 77-RVC VSENSE Fuse 32 10 A:

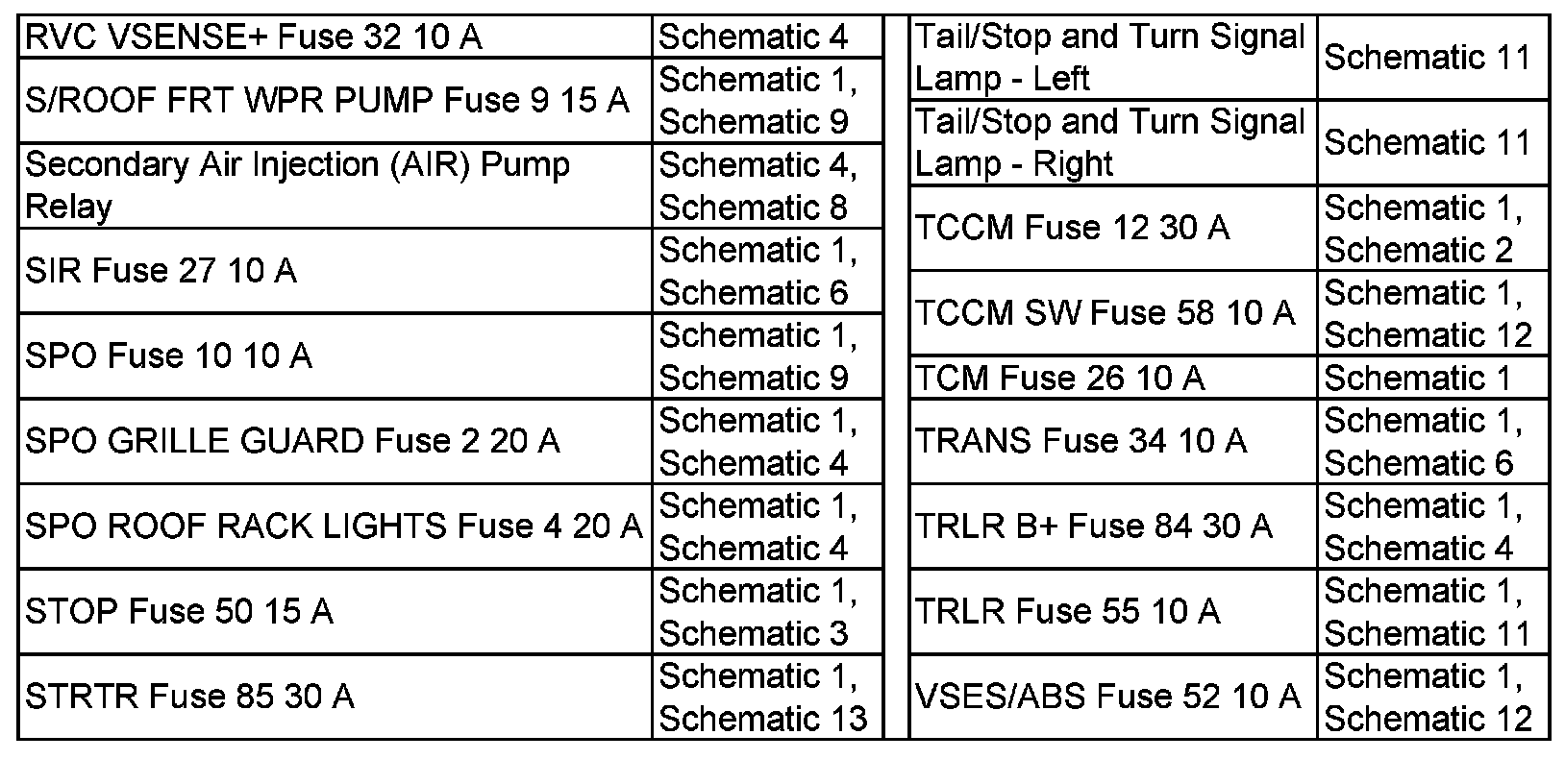

RVC VSENSE+ Fuse 32 10 A-VSES/ABS Fuse 52 10 A:
