Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Schematics >> Power Distribution Schematic 5

Power Distribution Schematic 5




Power Distribution Schematics

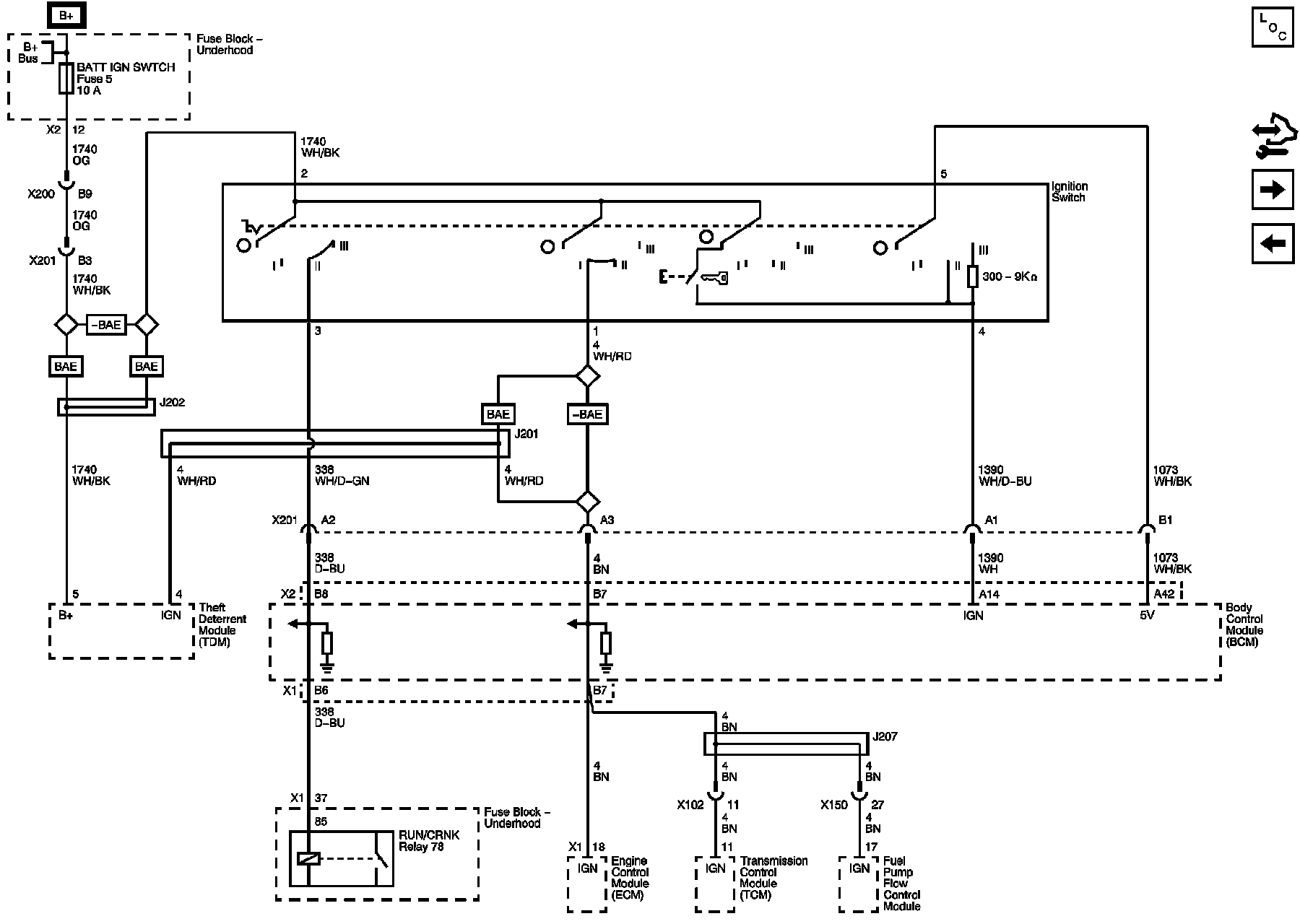

Ignition Switch and BATT IGN SWTCH Fuse
