Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Wiring Schematic Index

Wiring Schematic Index

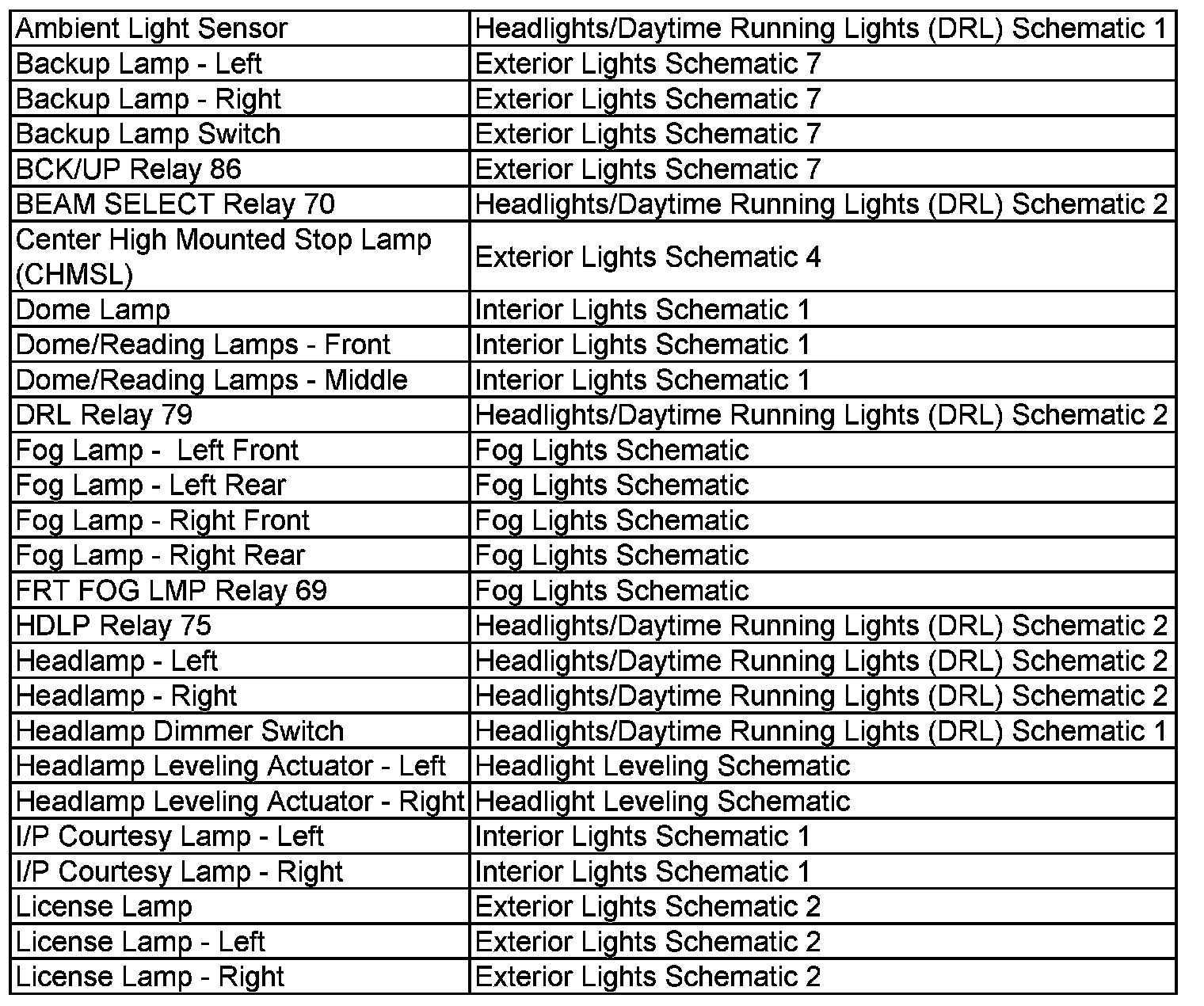

Am-Li:

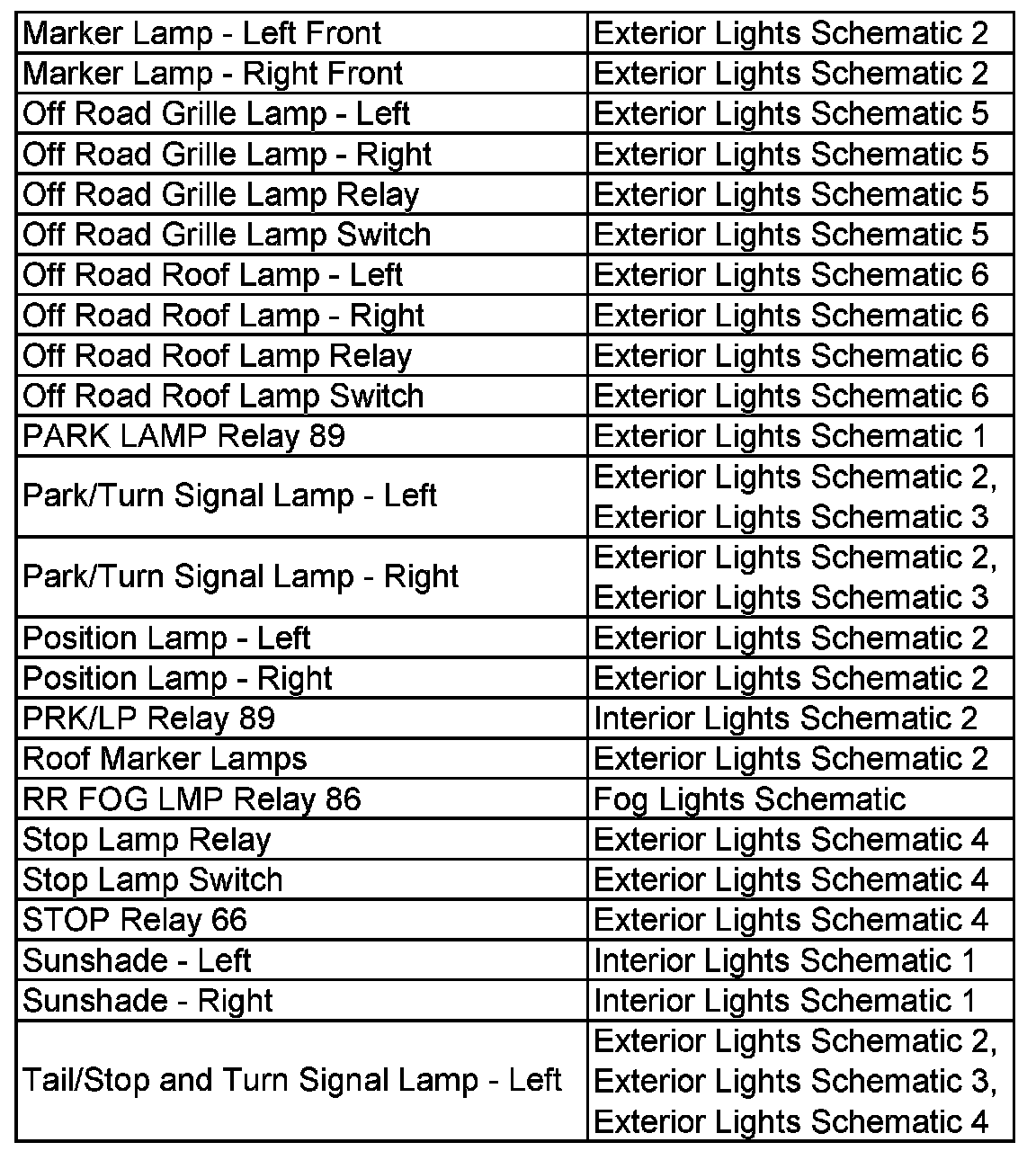

Ma-Ta:

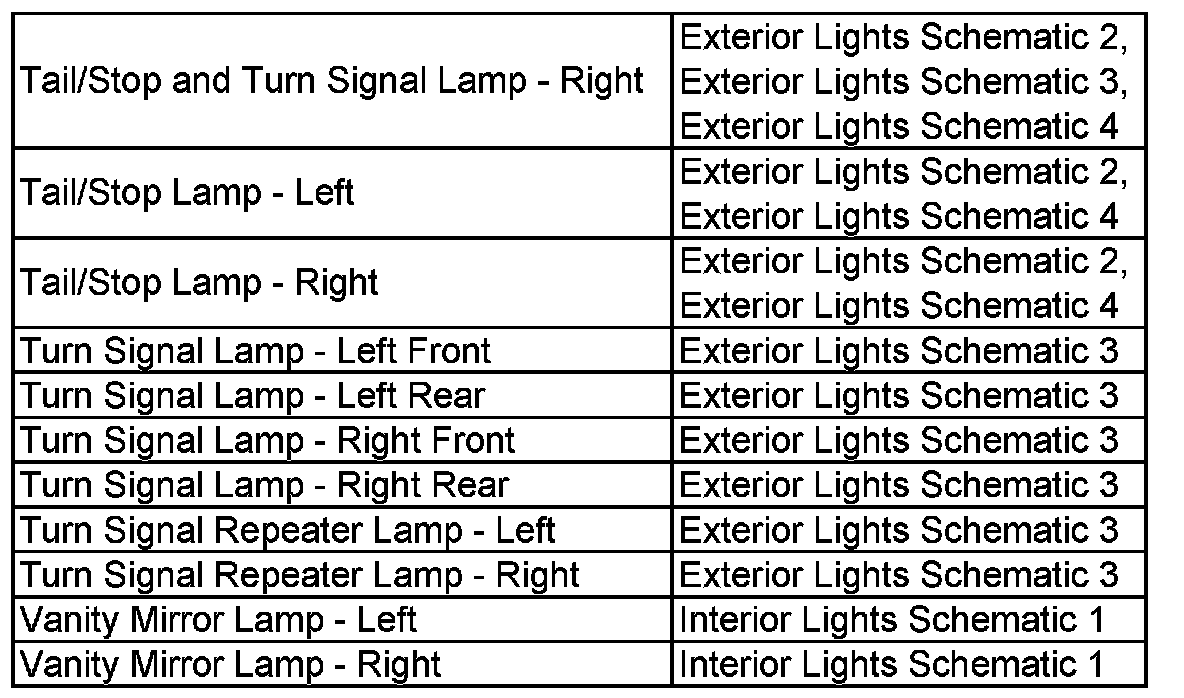

Ta-Va:
