Exterior Lights Schematics
>>
Exterior Lights Schematic 3
Exterior Lights Schematic 3
Exterior Lights Schematics

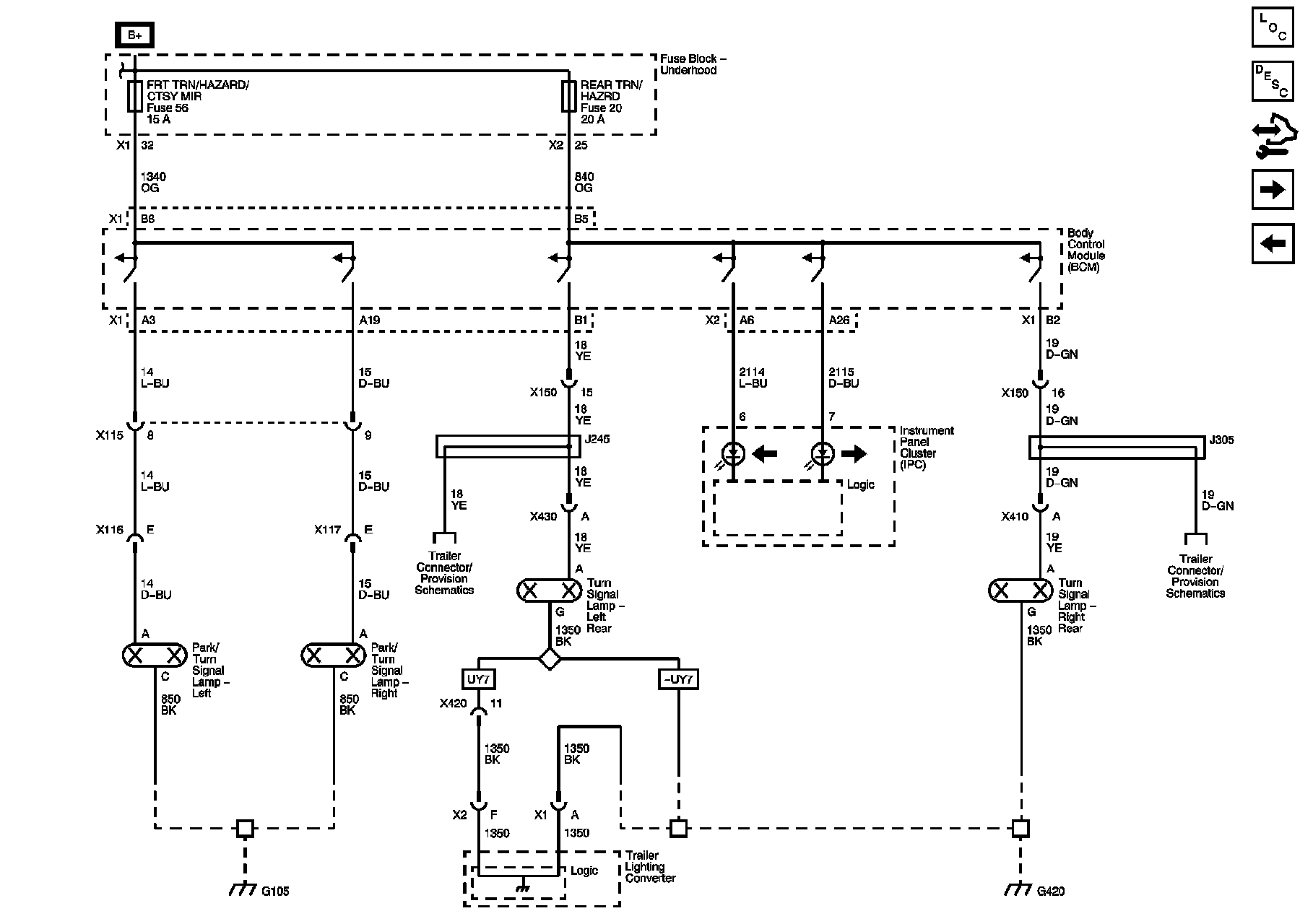

Turn Signals
(SUV with SLA)

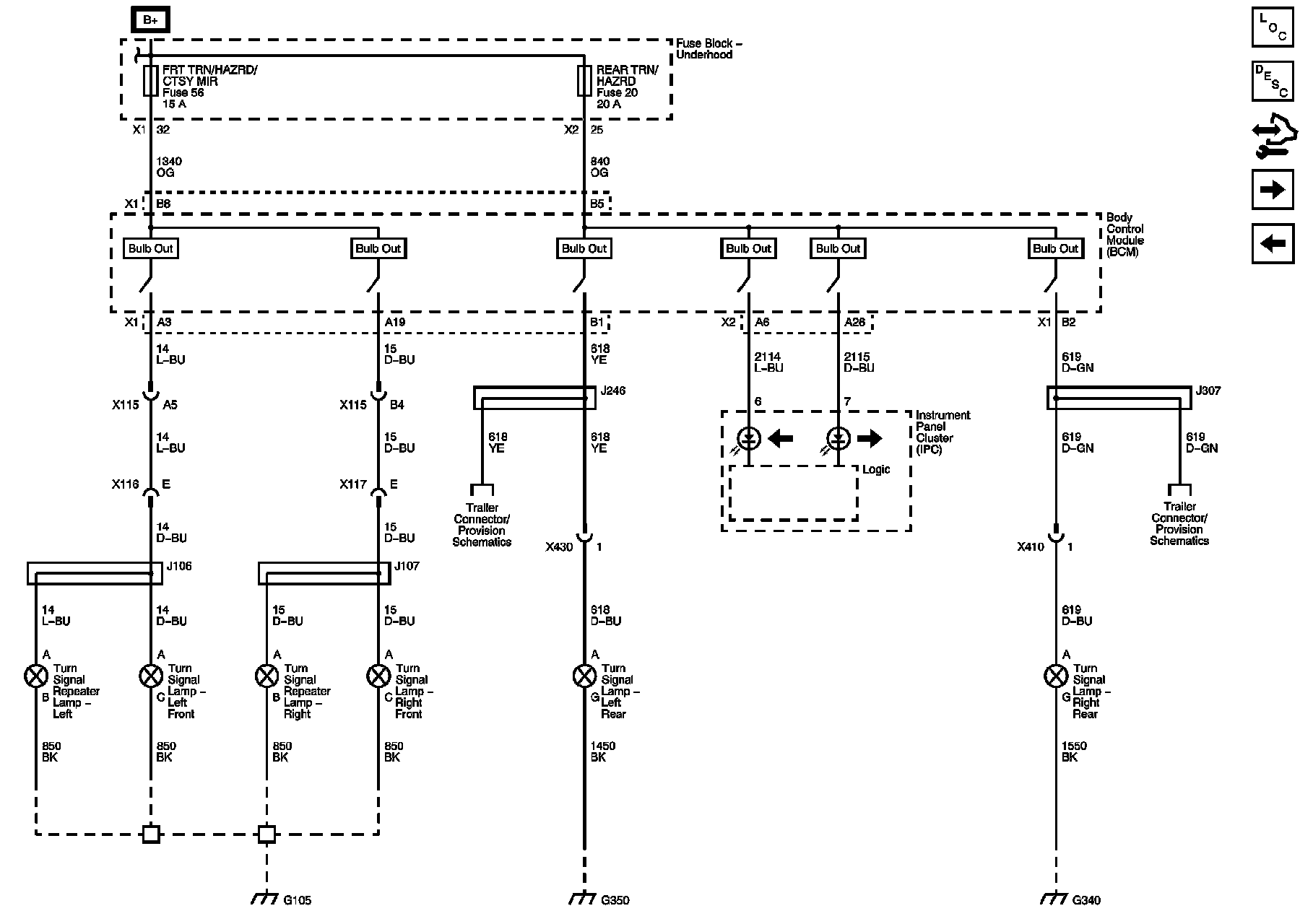

Turn Signals
(SUV with SSA)

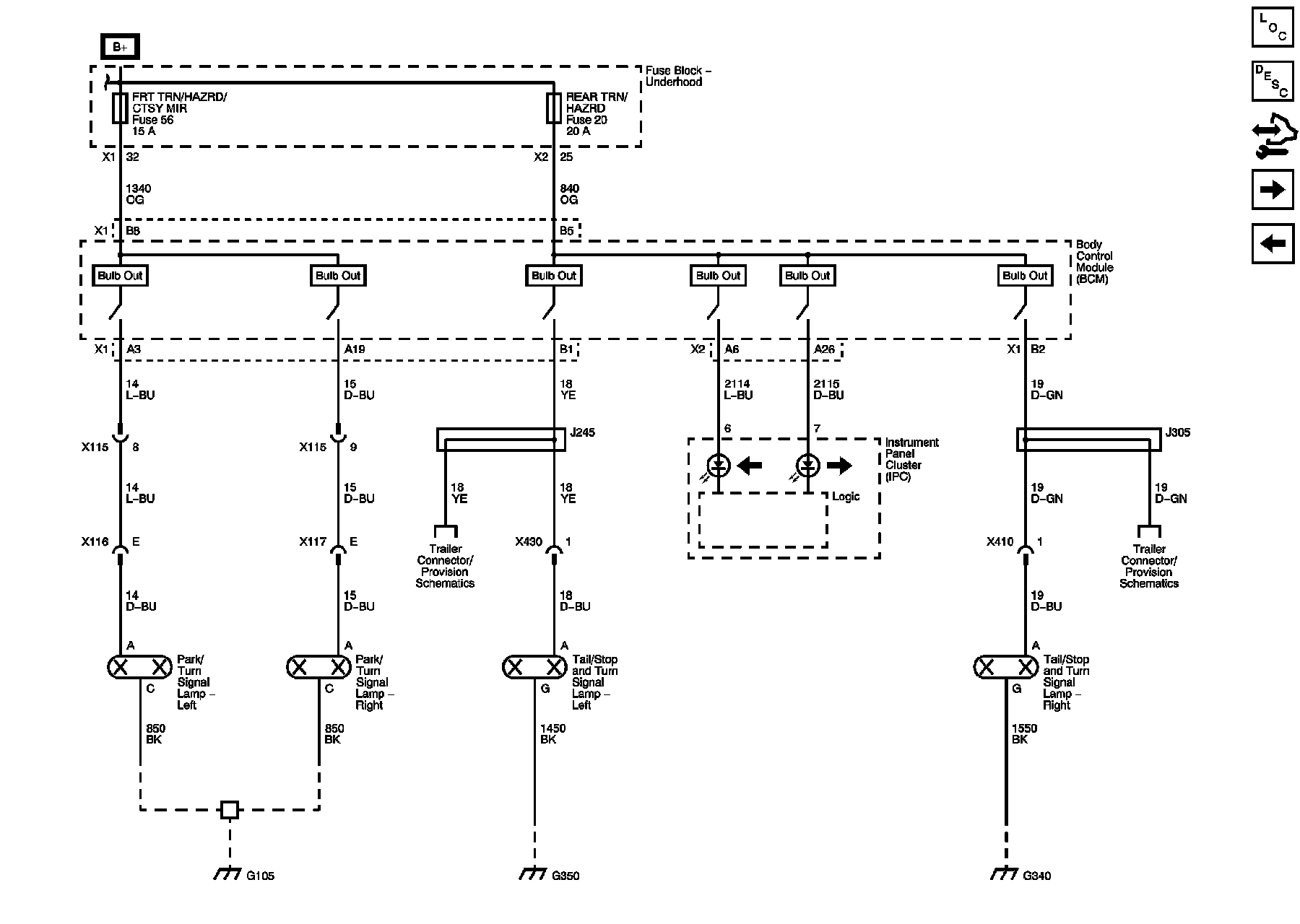

Turn Signals
(Truck)
