Hummer
>>
2009
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

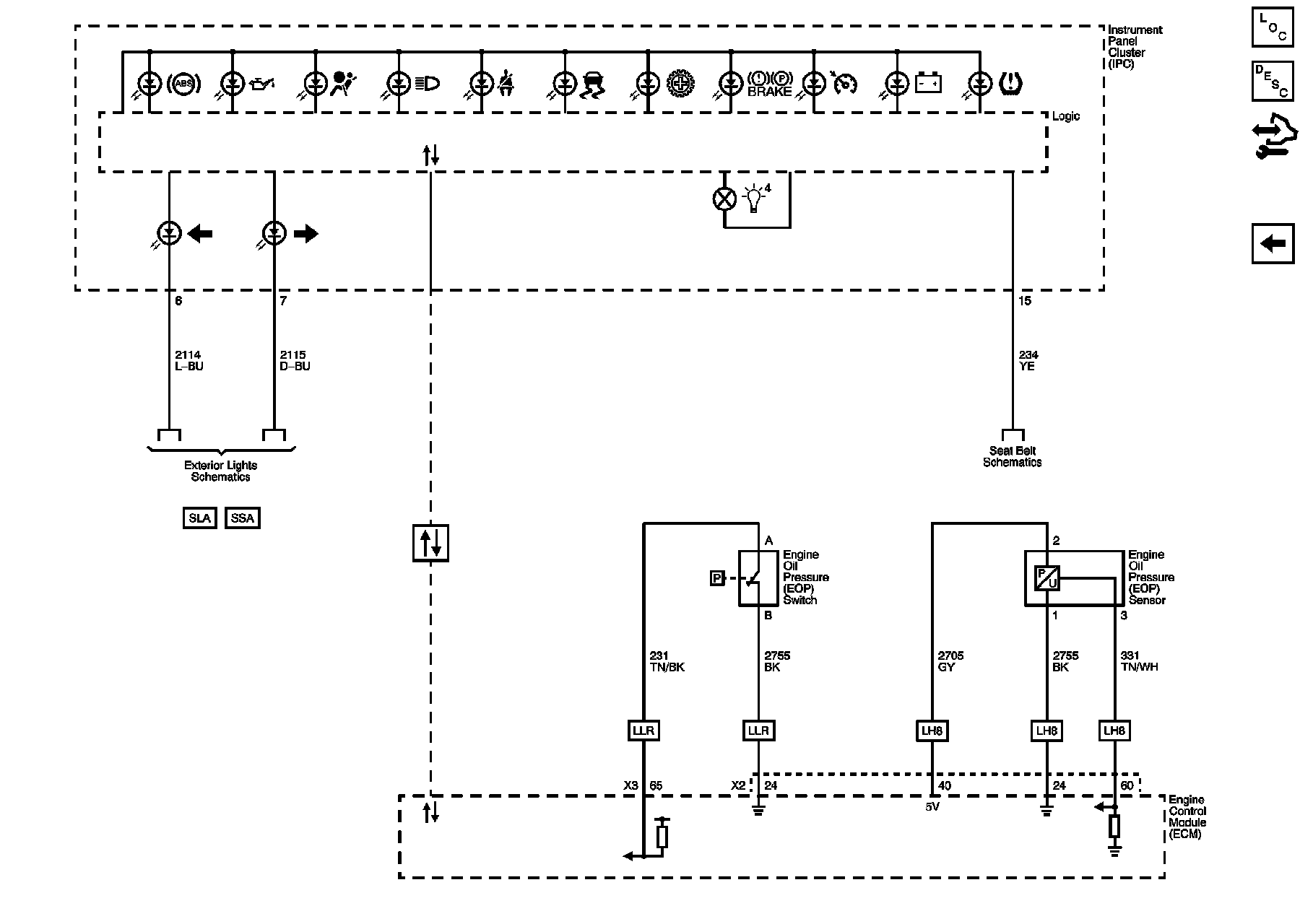

Instrument Cluster Schematics

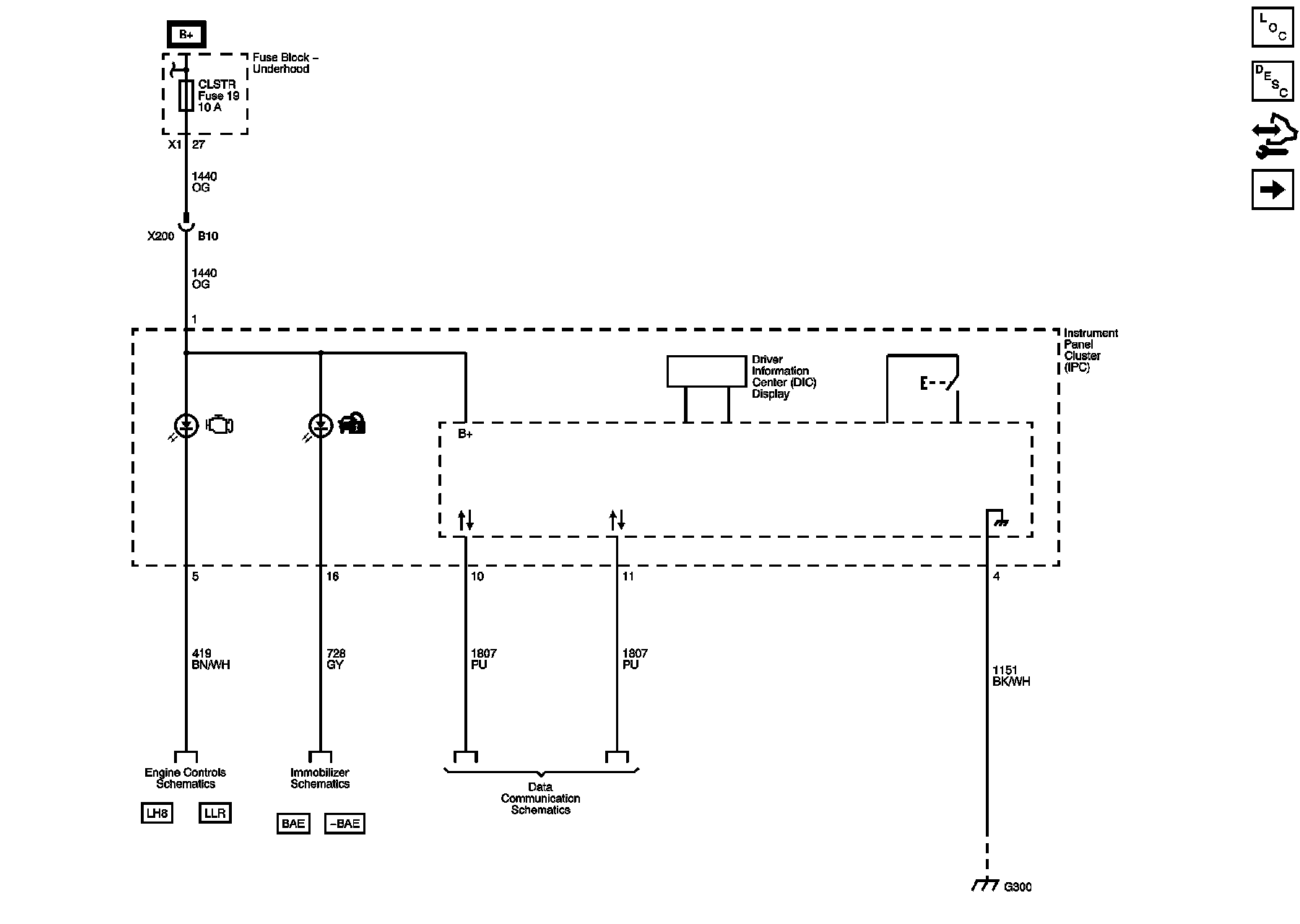

Instrument Cluster Schematics

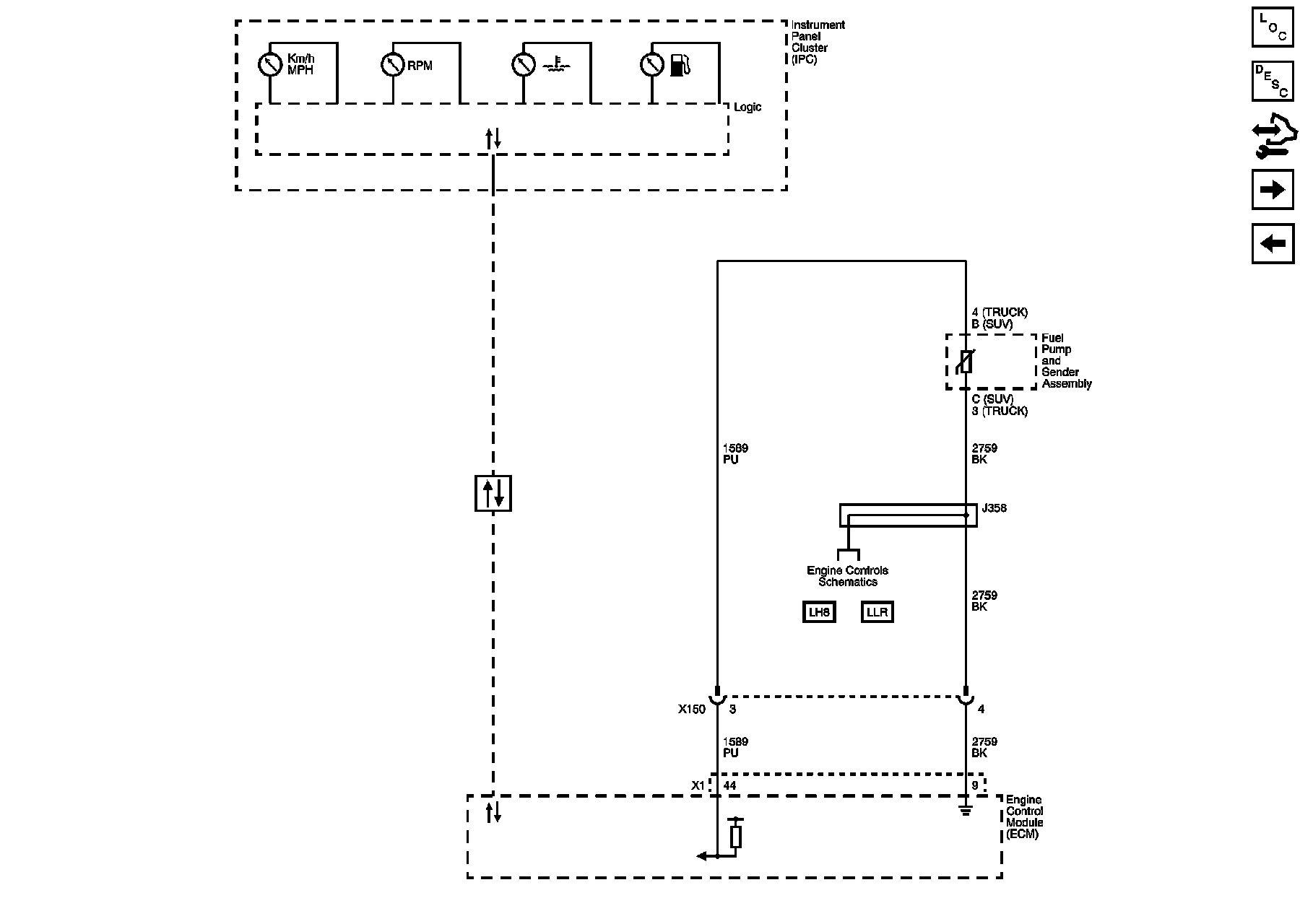

Instrument Cluster Schematics
Power, Ground, and Serial Data
Gages
Indicators
