Collision Avoidance and Parking Assist Systems




Object Detection Schematics

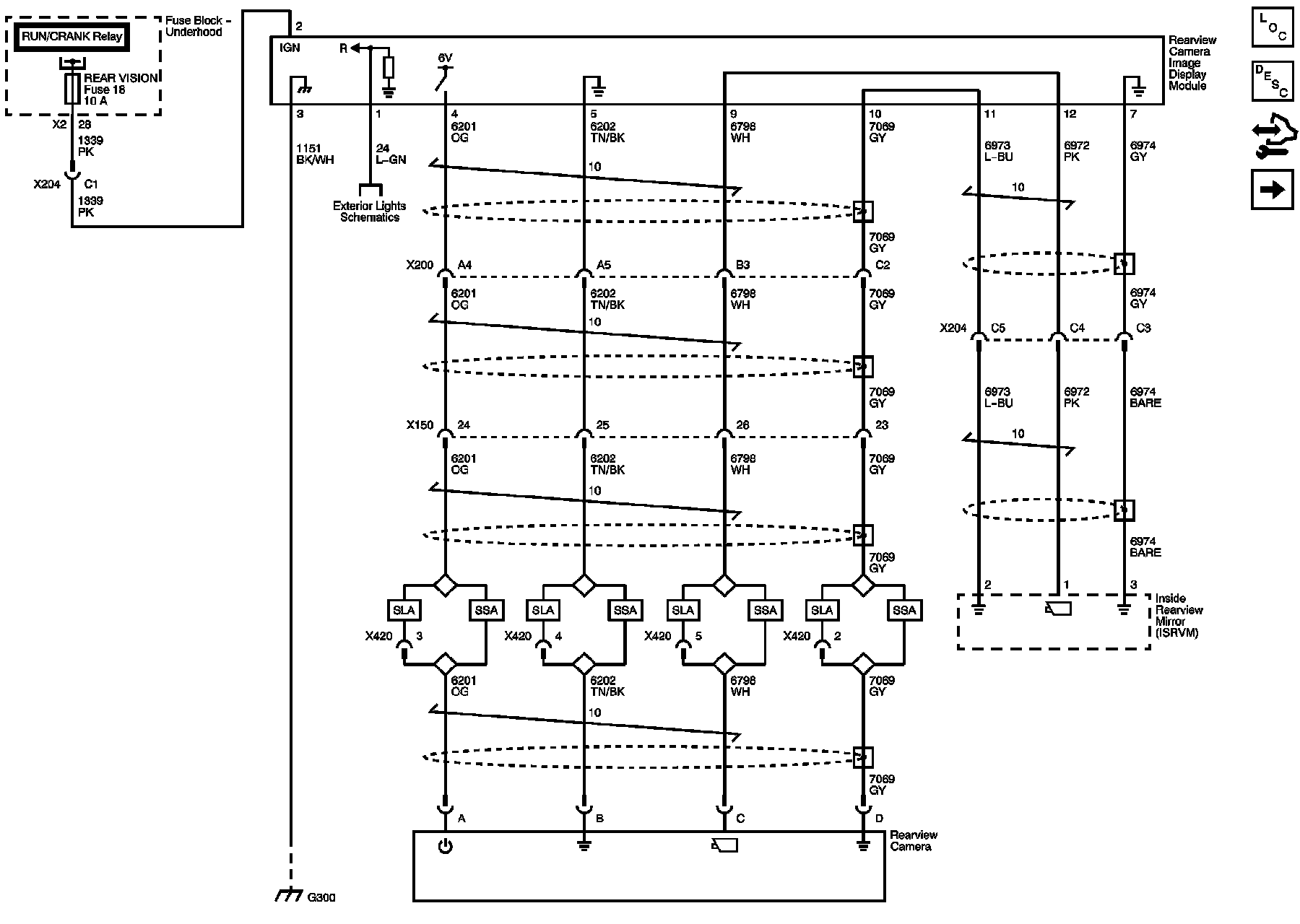

Rearview Camera (SUV with UVC)

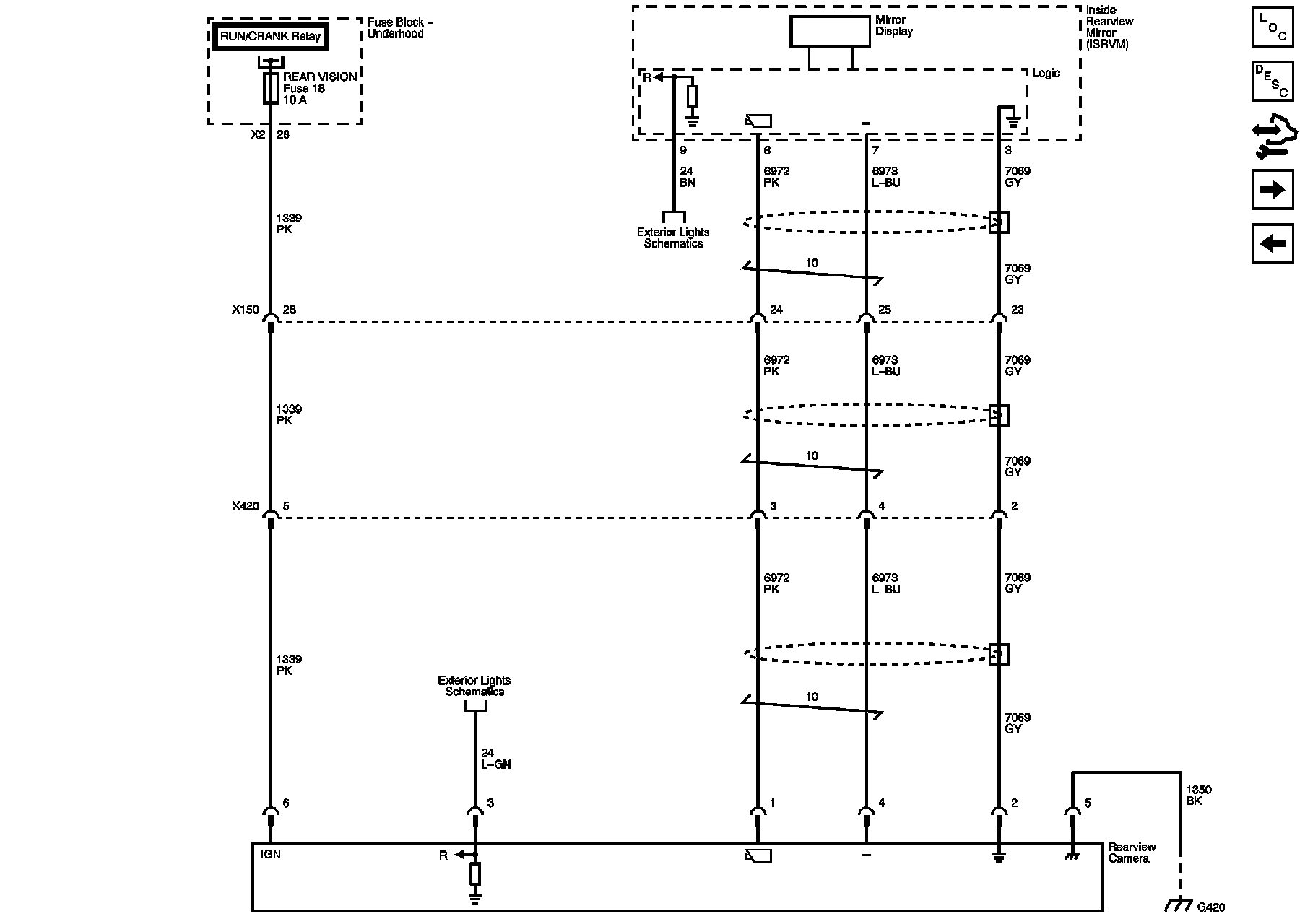

Rearview Camera (Truck with UVC)

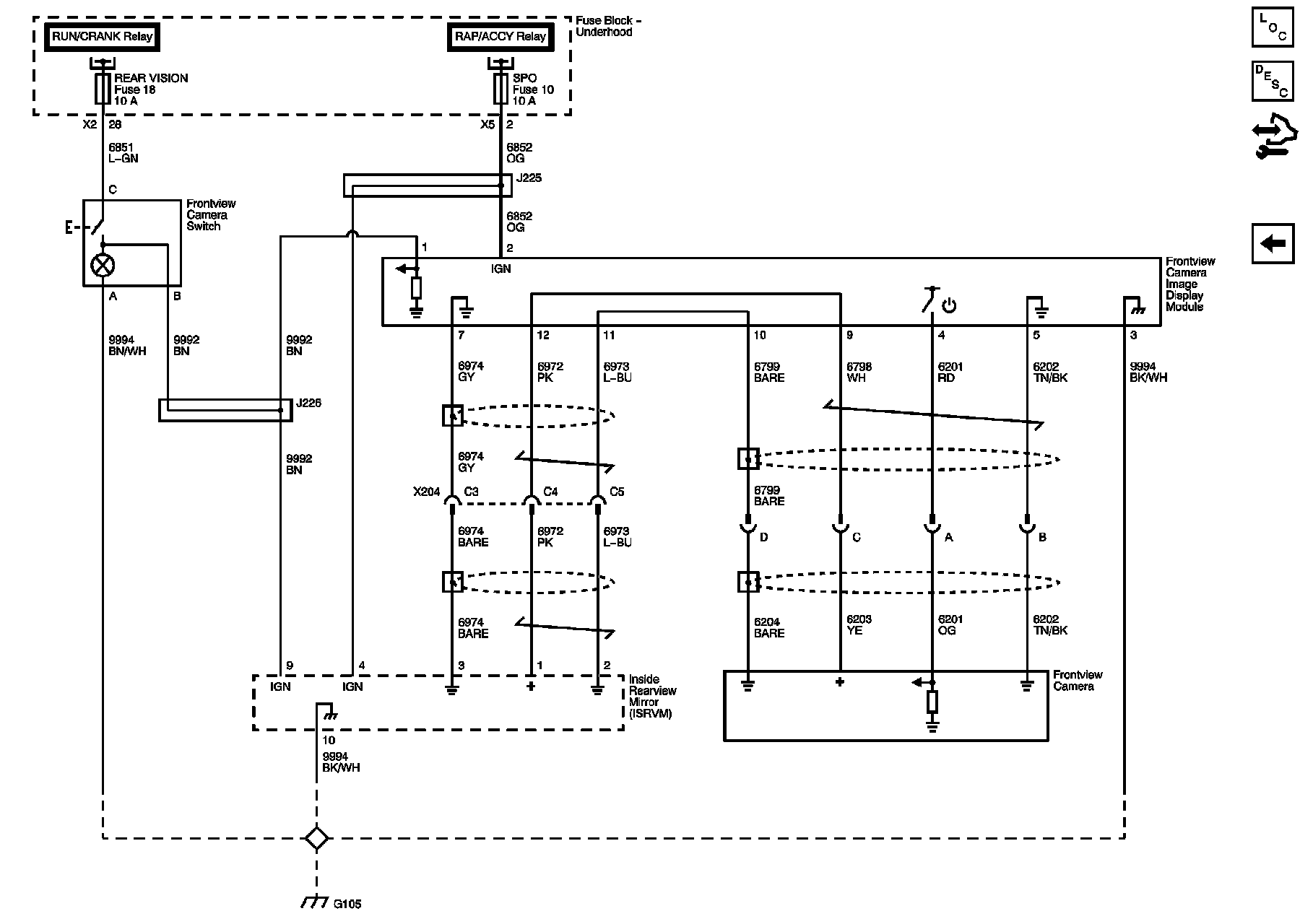

Frontview Camera (SUV with UVF)
