Harness Routing Views

Harness Routing Views

Body Harness - Left (Left Hand Drive)




1 - X330
2 - X335 (CF5 or UE1)
3 - X600
4 - X275
5 - G300
6 - X307
7 - X308
8 - X380

Body Harness - Right (Right Hand Drive)




1 - X330
2 - X600
3 - X204
4 - G300
5 - X307
6 - X308
7 - X380

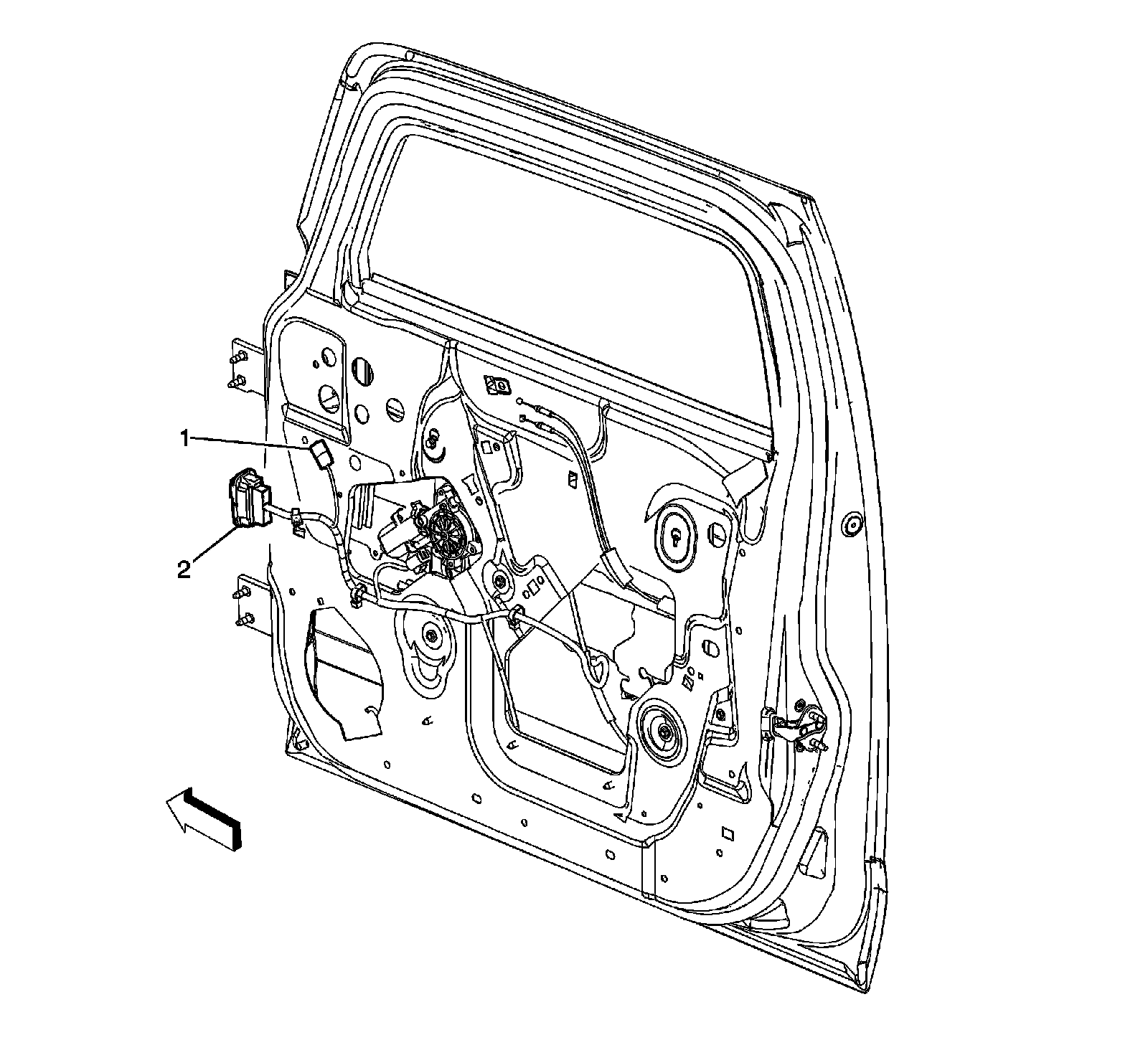

Right Front Door Harness (Left Hand Drive)




1 - X610
2 - X600

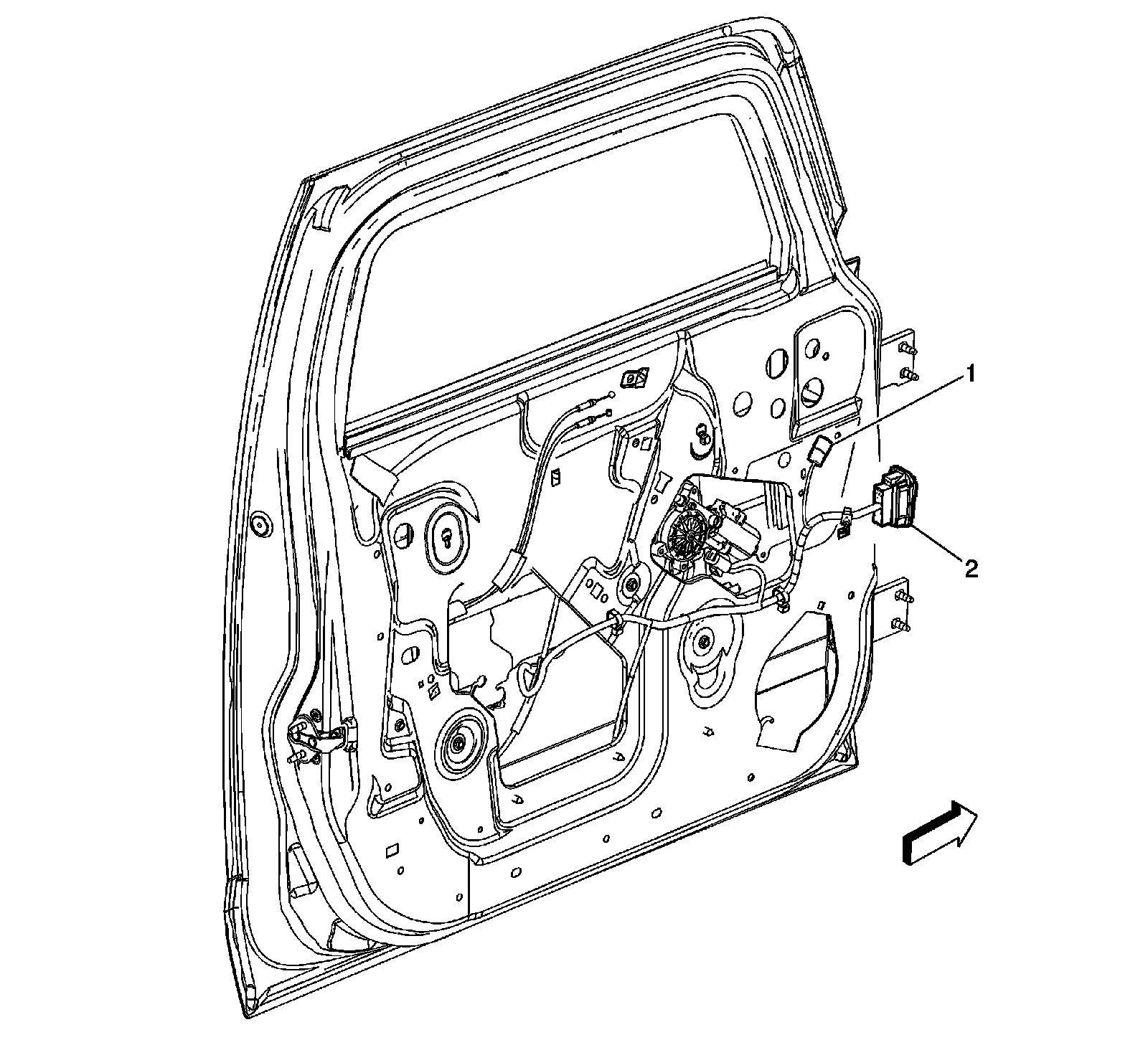

Left Front Door Harness (Right Hand Drive)




1 - X610
2 - X600
