X370

Harness Routing Views

Body Harness Right (Left Hand Drive)




1 - X350
2 - X500
3 - X204
4 - X315
5 - X320
6 - X370
7 - G320

Body Harness Routing - Left (Right Hand Drive)




1 - X330
2 - X335
3 - G106
4 - X155
5 - X150
6 - X125
7 - X115
8 - X500
9 - X208
10 - X207
11 - X200
12 - G320
13 - X315
14 - X320
15 - X370
16 - G310

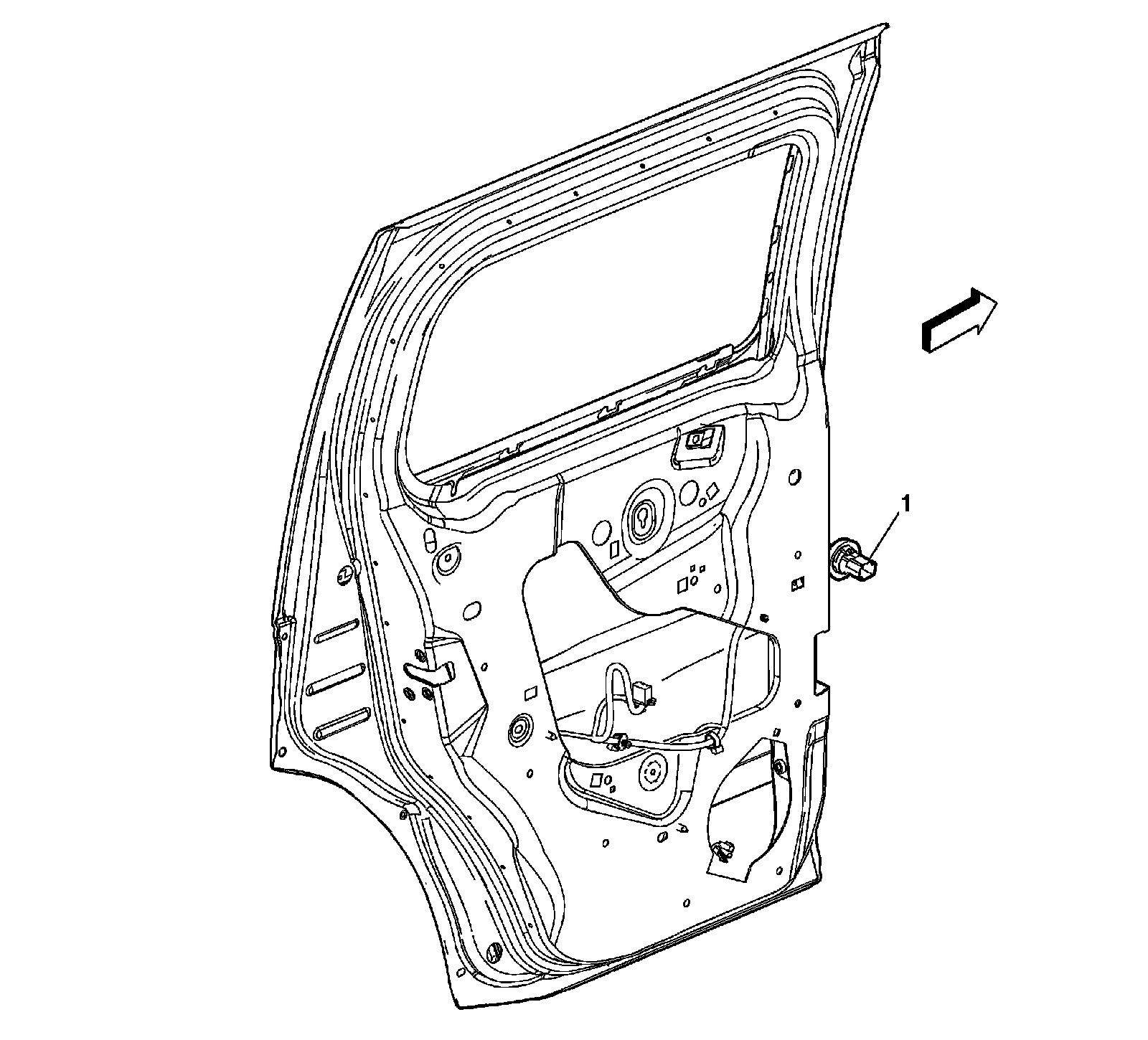

Left Rear Door Harness




1 - X370
