Harness Routing Views

Harness Routing Views

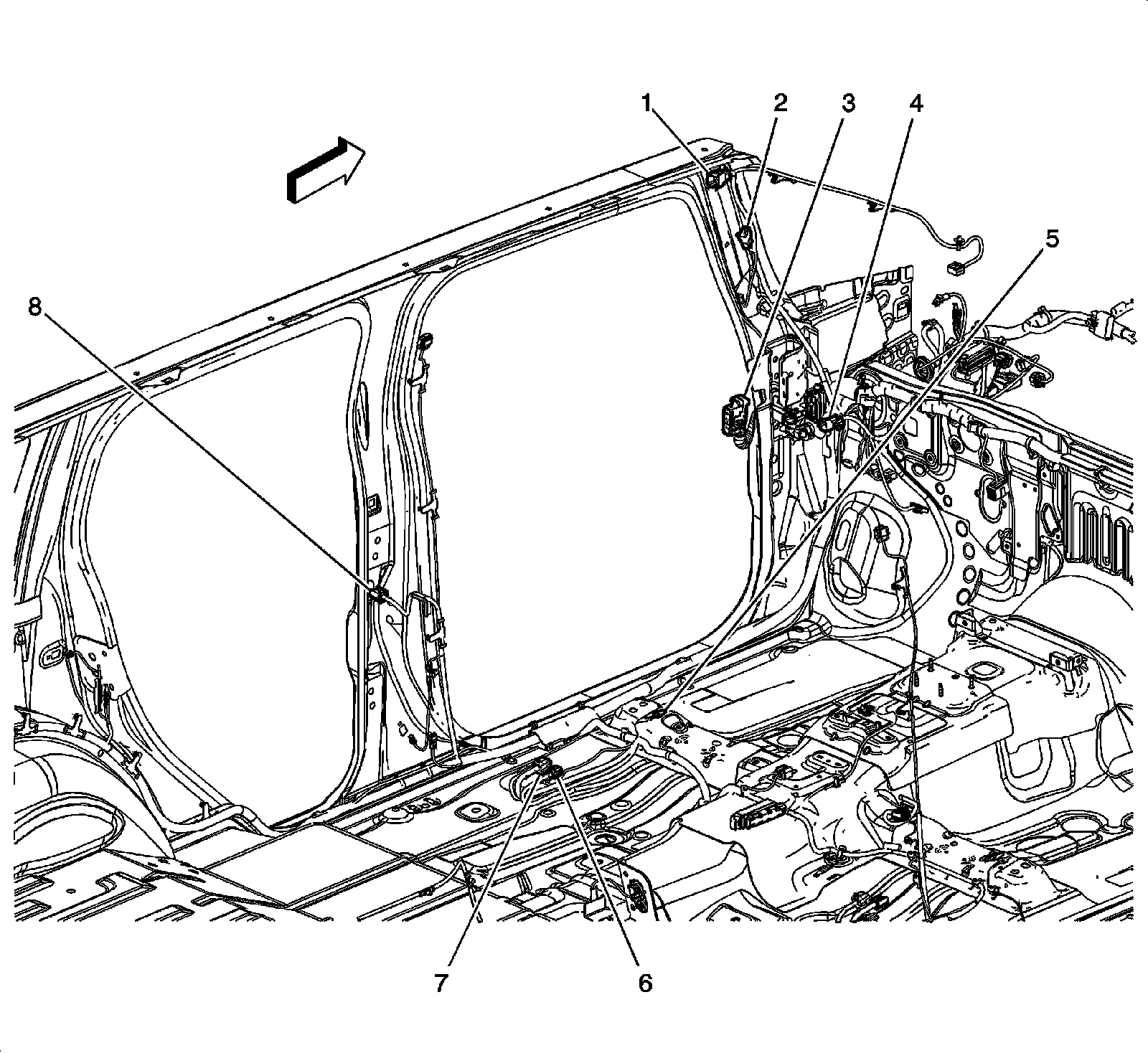

Body Harness - Left (Left Hand Drive)




1 - X330
2 - X335 (CF5 or UE1)
3 - X600
4 - X275
5 - G300
6 - X307
7 - X308
8 - X380

Body Harness Routing - Left (Right Hand Drive)




1 - X330
2 - X335
3 - G106
4 - X155
5 - X150
6 - X125
7 - X115
8 - X500
9 - X208
10 - X207
11 - X200
12 - G320
13 - X315
14 - X320
15 - X370
16 - G310

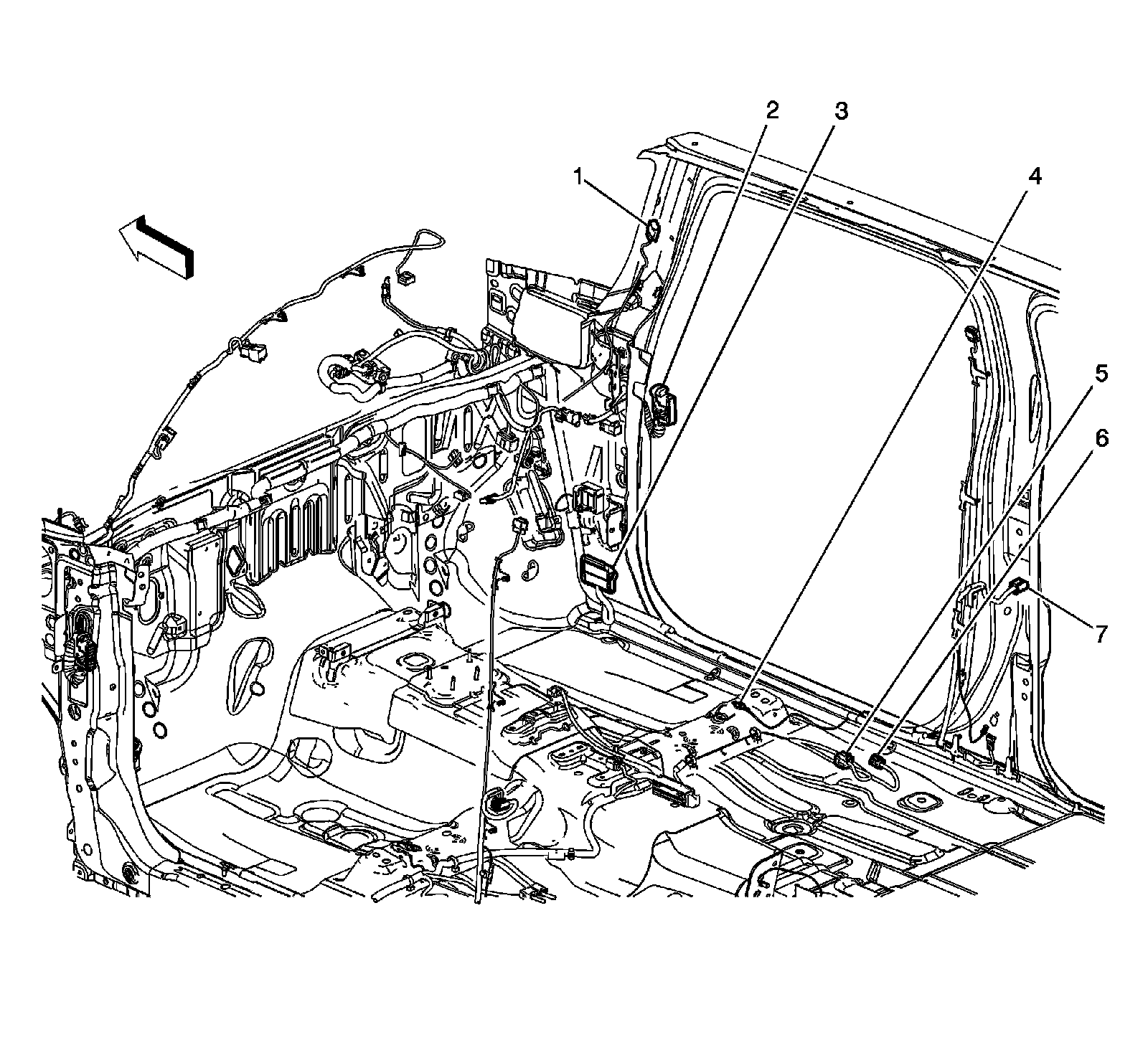

Body Harness - Right (Right Hand Drive)




1 - X330
2 - X600
3 - X204
4 - G300
5 - X307
6 - X308
7 - X380
