Harness Routing Views

Harness Routing Views

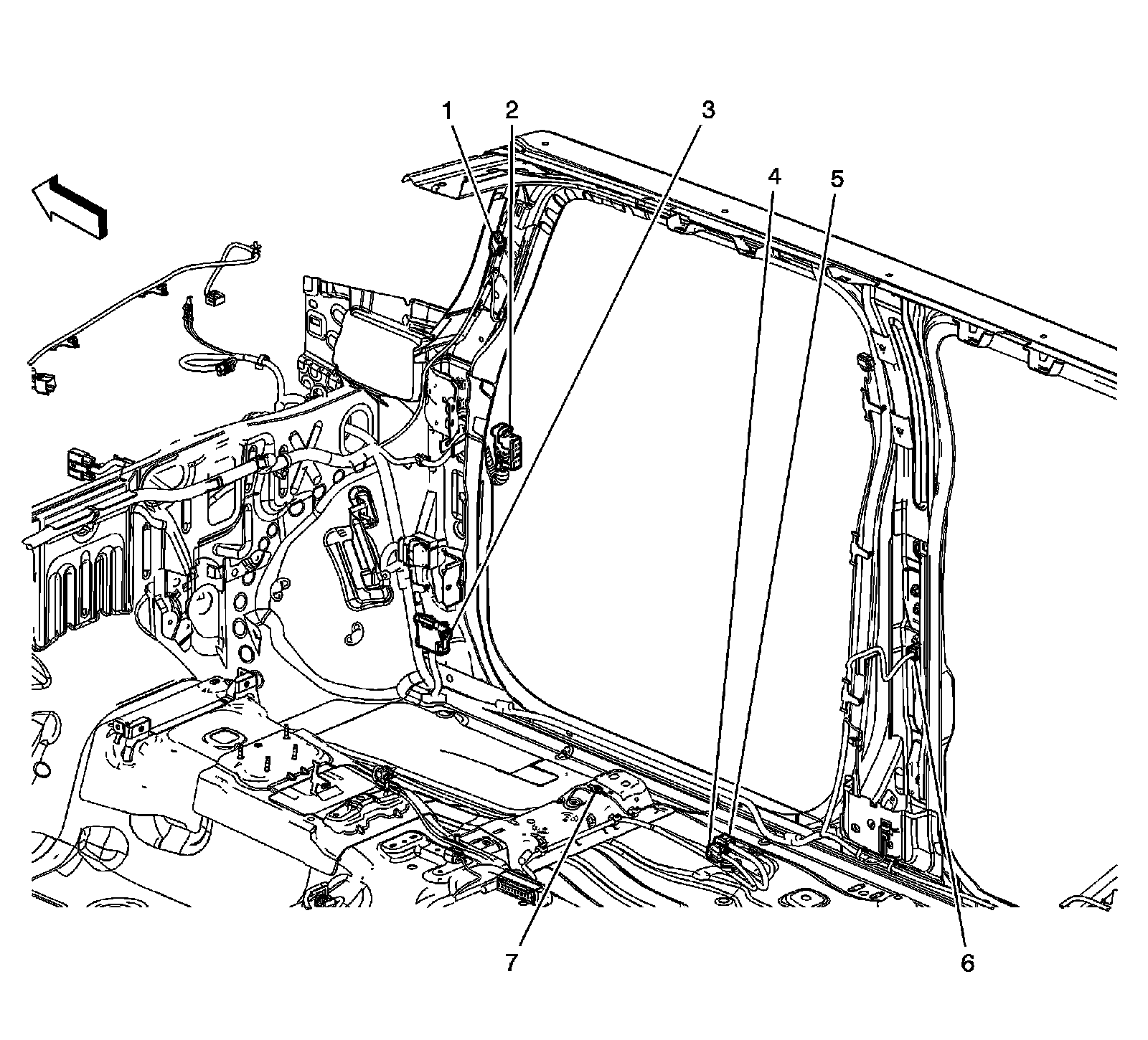

Body Harness Right (Left Hand Drive)




1 - X350
2 - X500
3 - X204
4 - X315
5 - X320
6 - X370
7 - G320

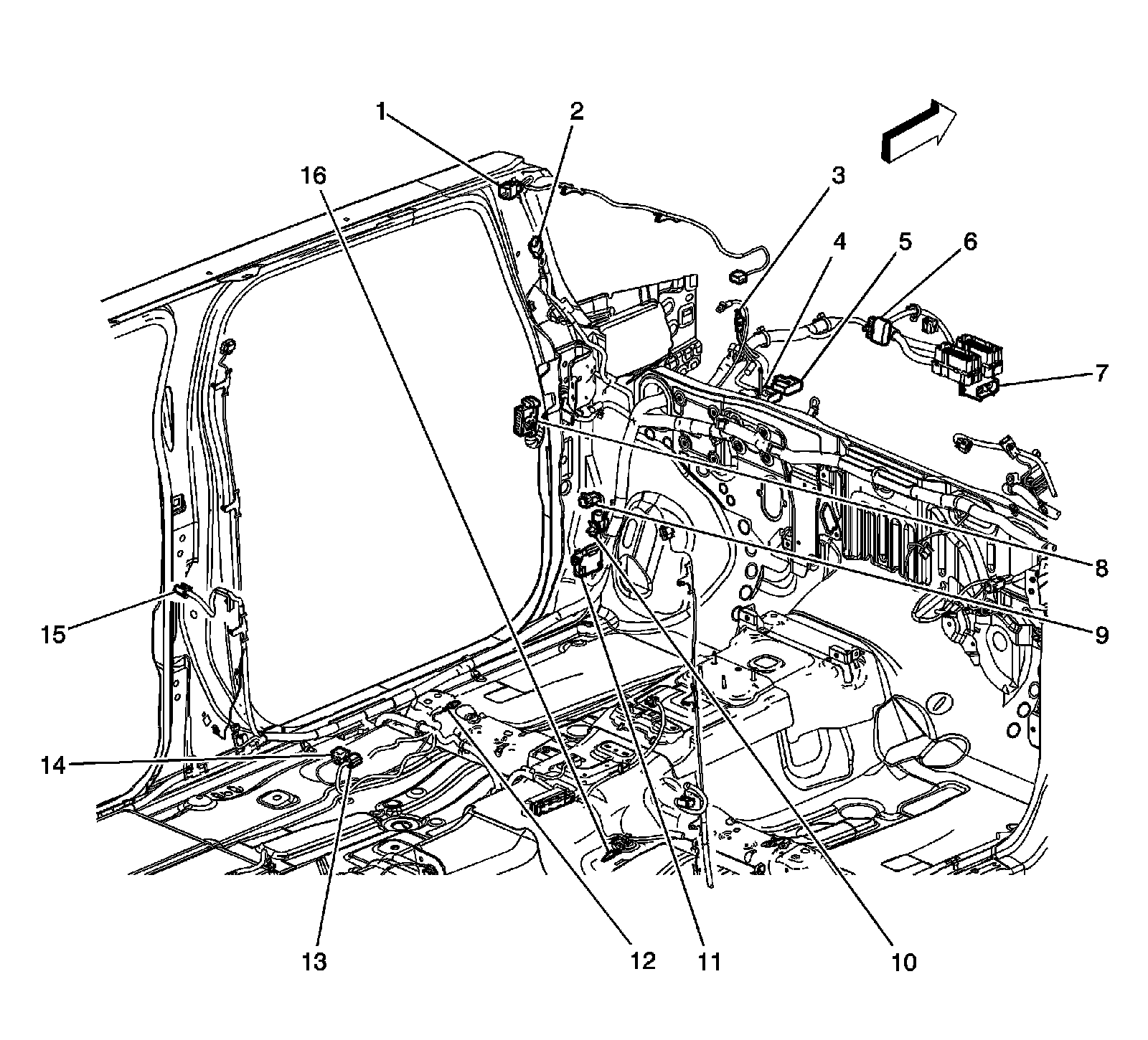

Body Harness Routing - Left (Right Hand Drive)




1 - X330
2 - X335
3 - G106
4 - X155
5 - X150
6 - X125
7 - X115
8 - X500
9 - X208
10 - X207
11 - X200
12 - G320
13 - X315
14 - X320
15 - X370
16 - G310

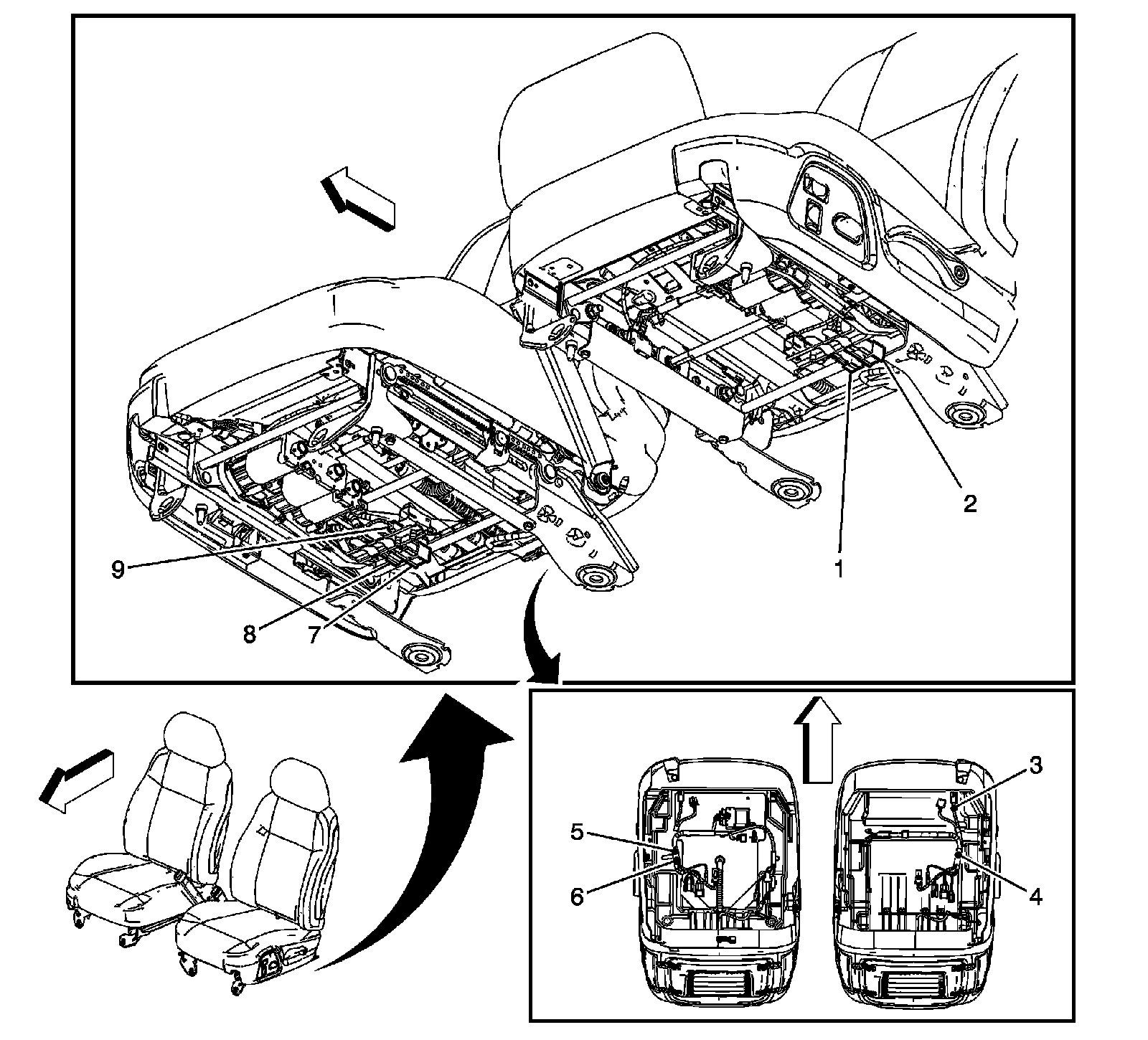

Driver and Passenger Seats Harness




1 - X308
2 - X307 (AG1)
3 - J306 (AG1)
4 - J312 (AG1)
5 - J316 (AG2)
6 - J341 (AG2)
7 - X320
8 - X315
9 - X118 (AG2)
