X150

Harness Routing Views

Body Harness - Engine Compartment




1 - J110
2 - J141
3 - J142
4 - G105
5 - J143
6 - X115
7 - X125
8 - X130
9 - X150
10 - X155
11 - G106

Body Harness Routing - Left (Right Hand Drive)




1 - X330
2 - X335
3 - G106
4 - X155
5 - X150
6 - X125
7 - X115
8 - X500
9 - X208
10 - X207
11 - X200
12 - G320
13 - X315
14 - X320
15 - X370
16 - G310

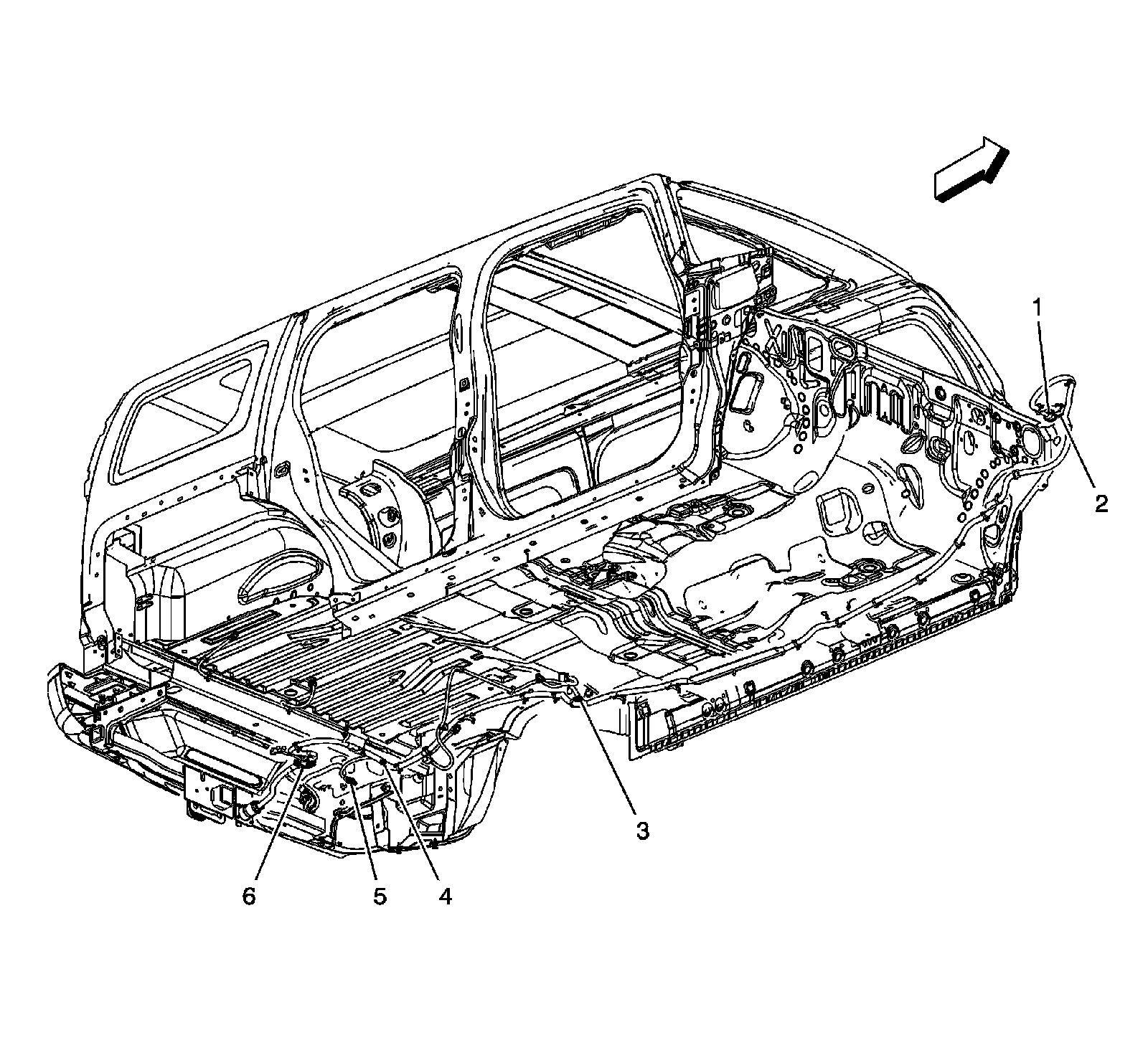

Chassis Harness




1 - X155
2 - X150
3 - S359
4 - S402
5 - S420
6 - X420
