Spot Lamp




Component Connector End Views

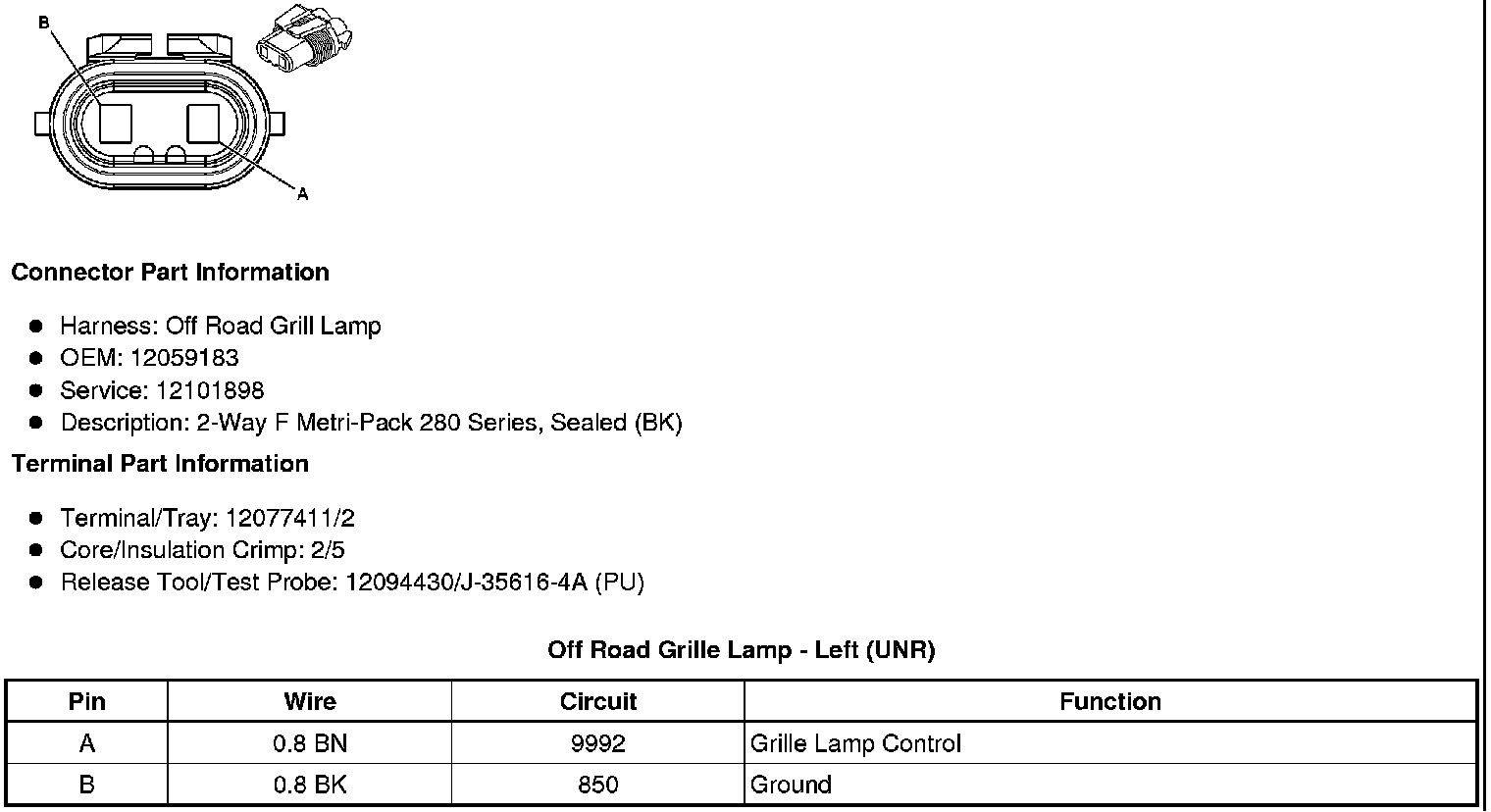

Off Road Grille Lamp - Left (UNR)

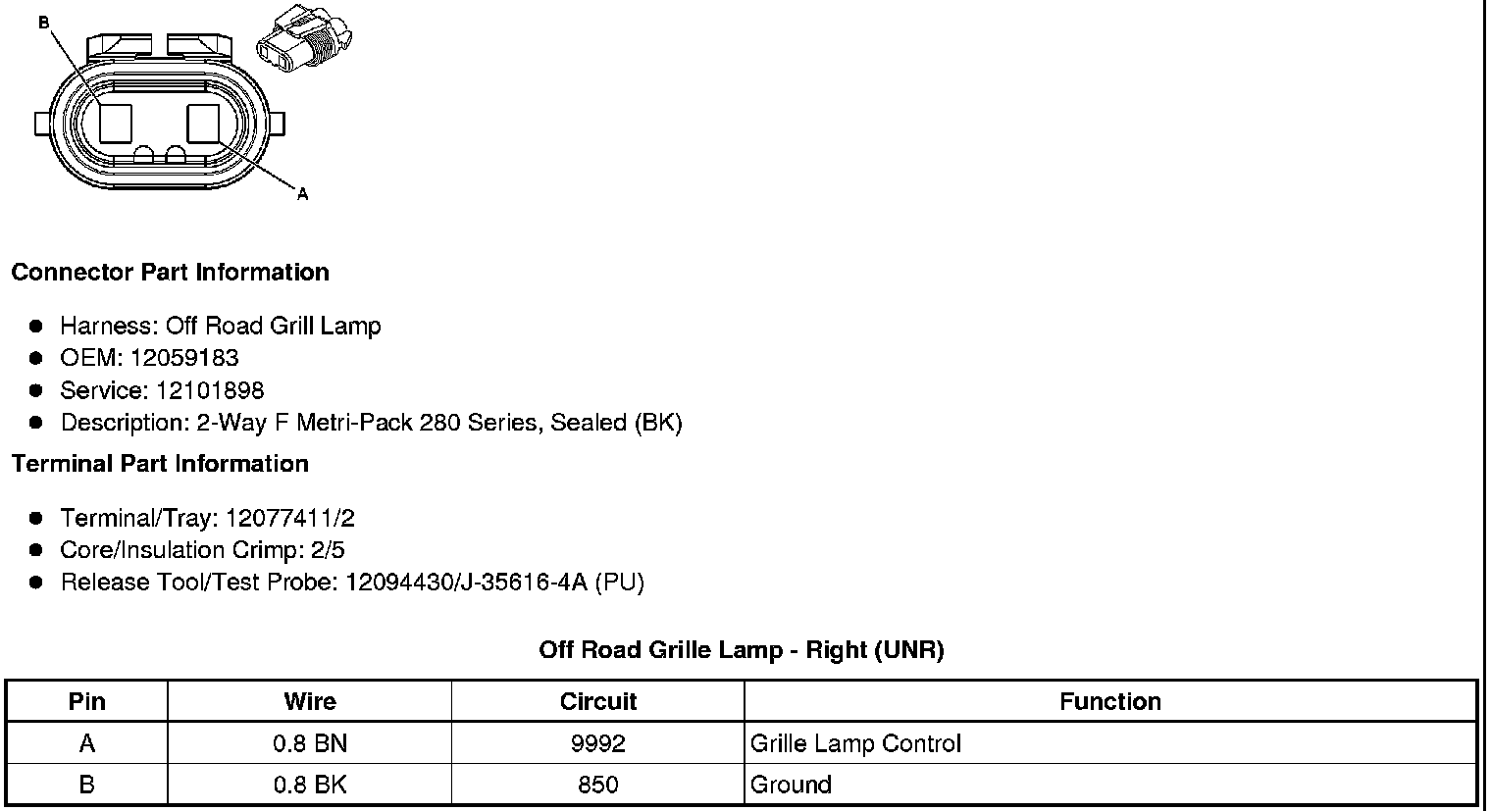

Off Road Grille Lamp - Right (UNR)

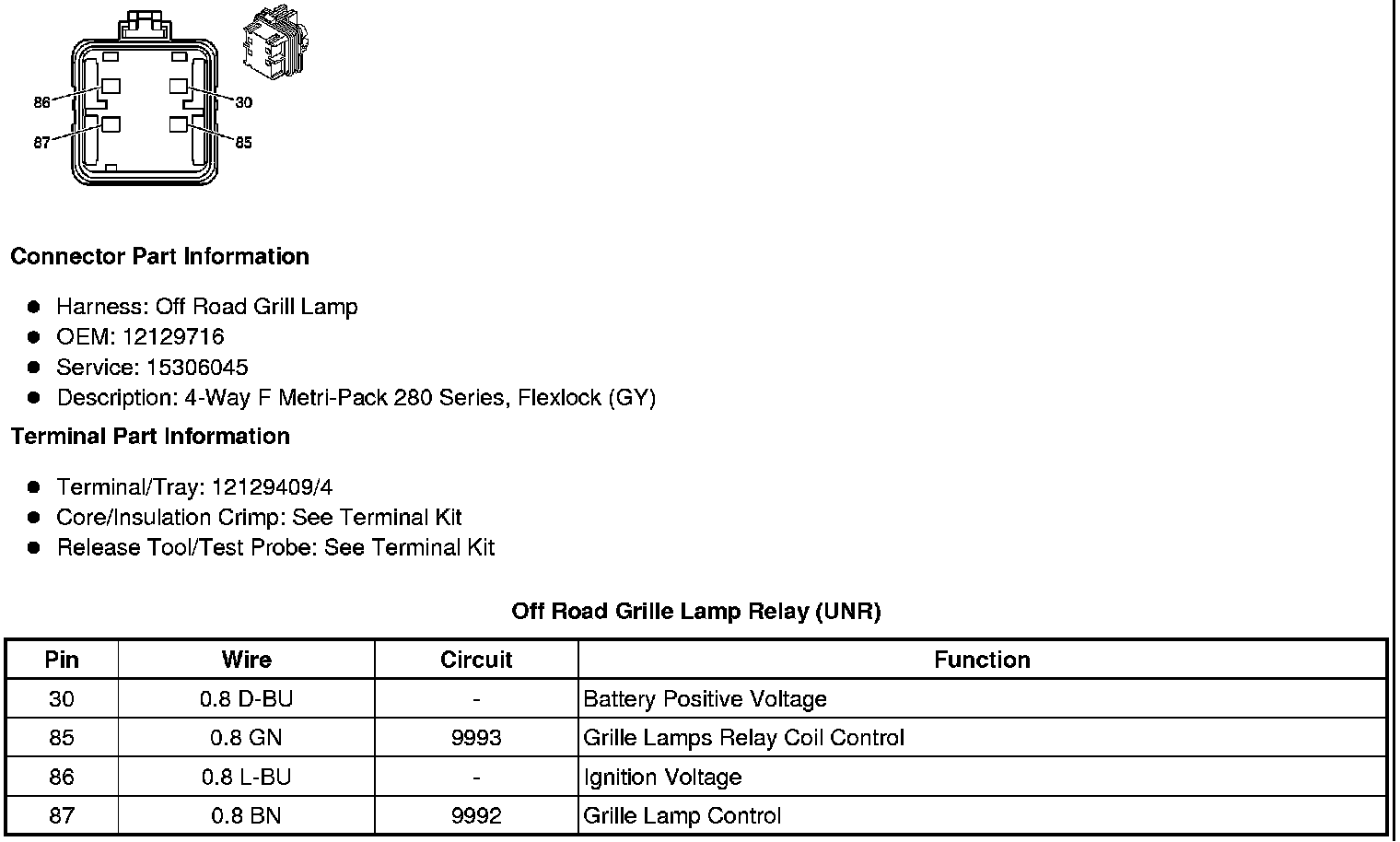

Off Road Grille Lamp Relay (UNR)

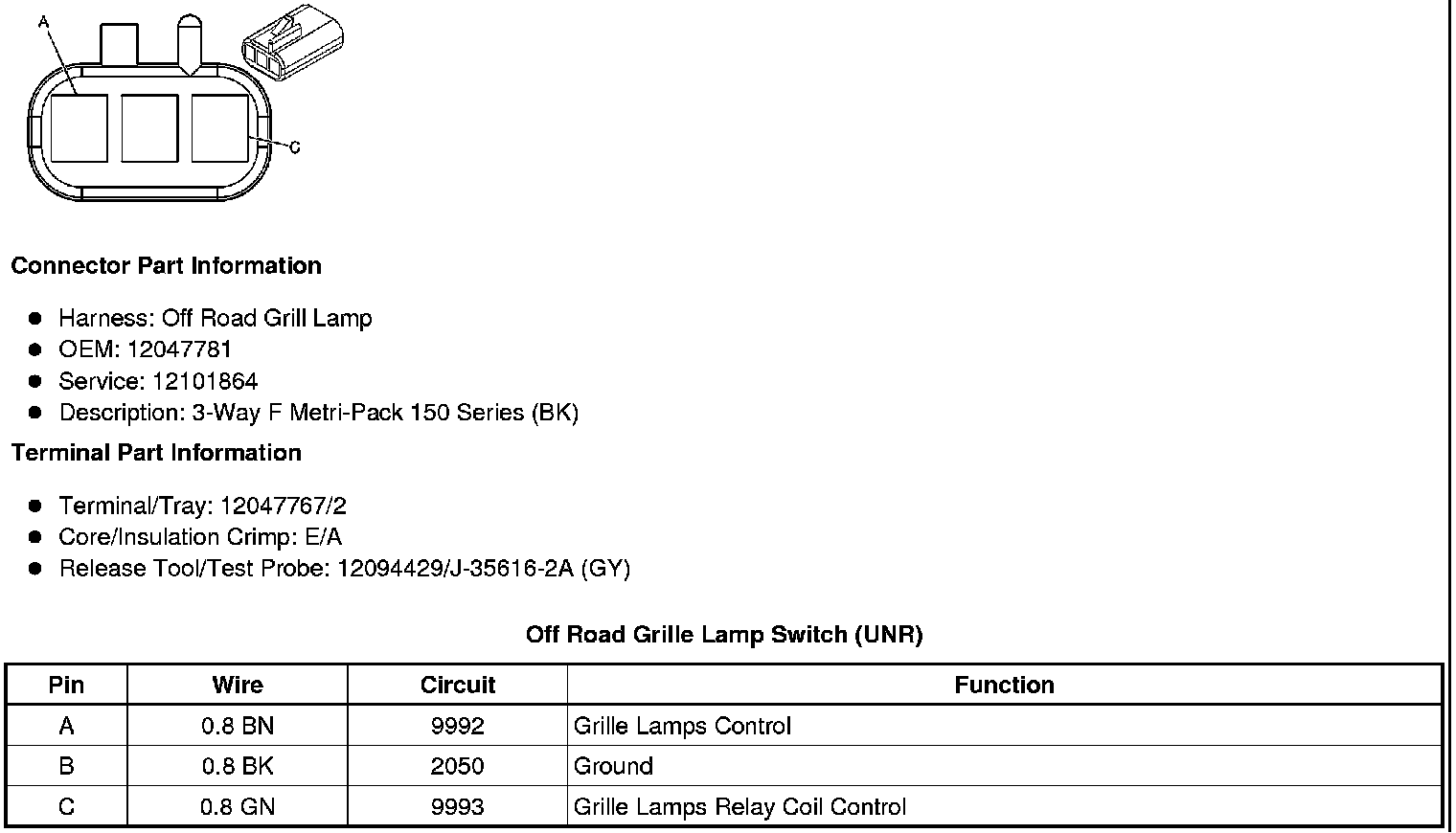

Off Road Grille Lamp Switch (UNR)
