Speaker




Component Connector End Views

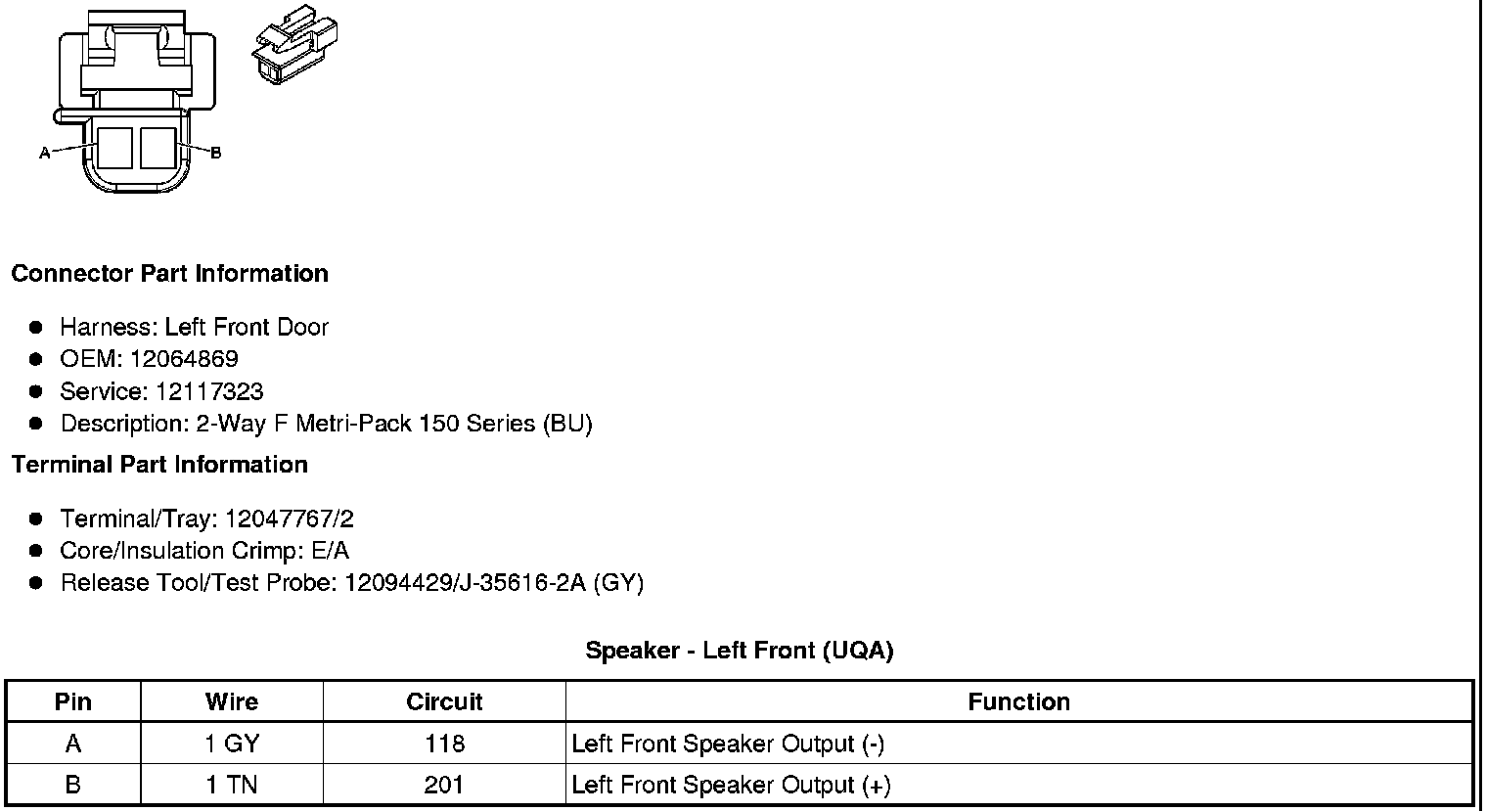

Speaker - Left Front (UQA)

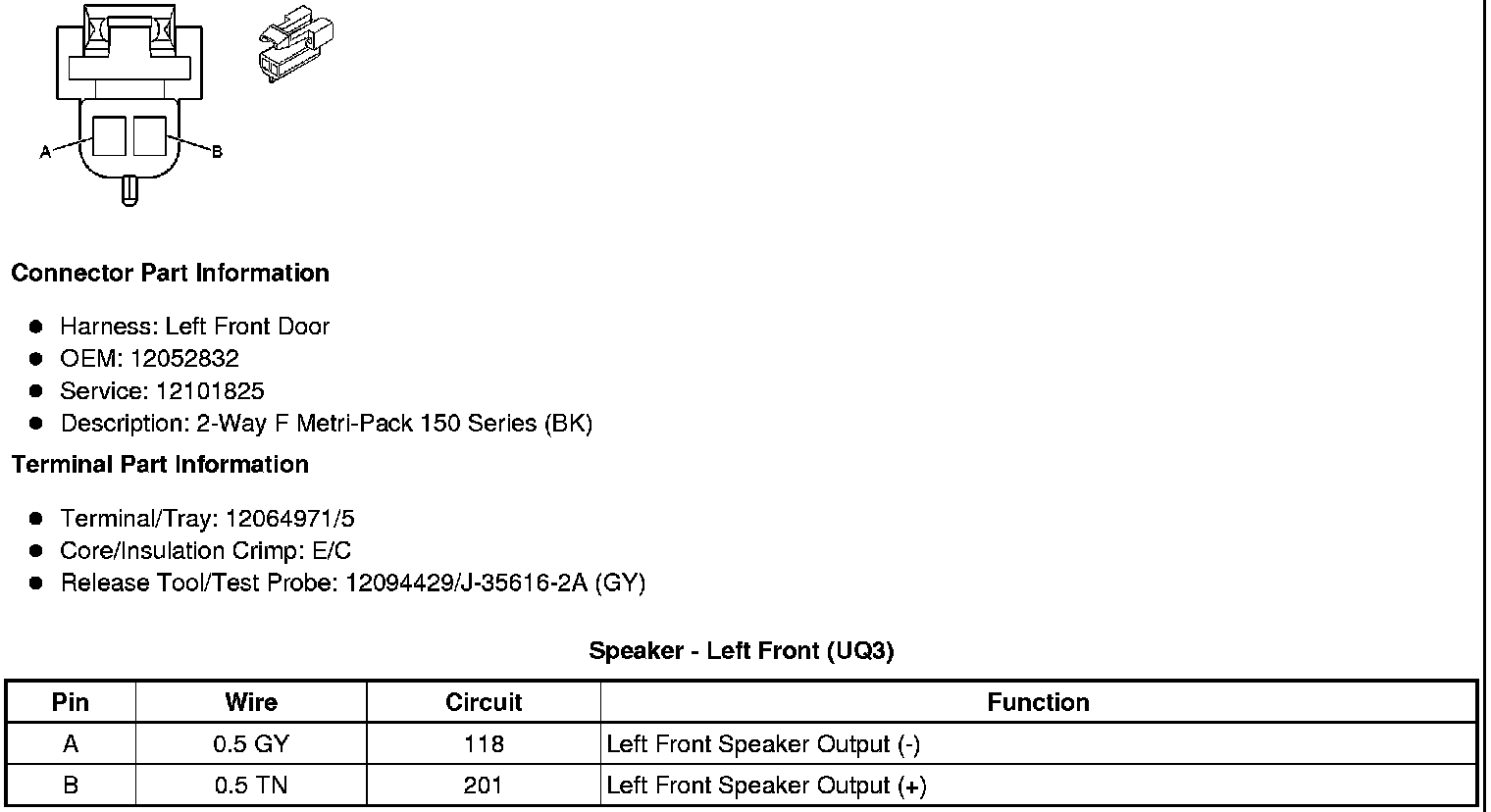

Speaker - Left Front (UQ3)

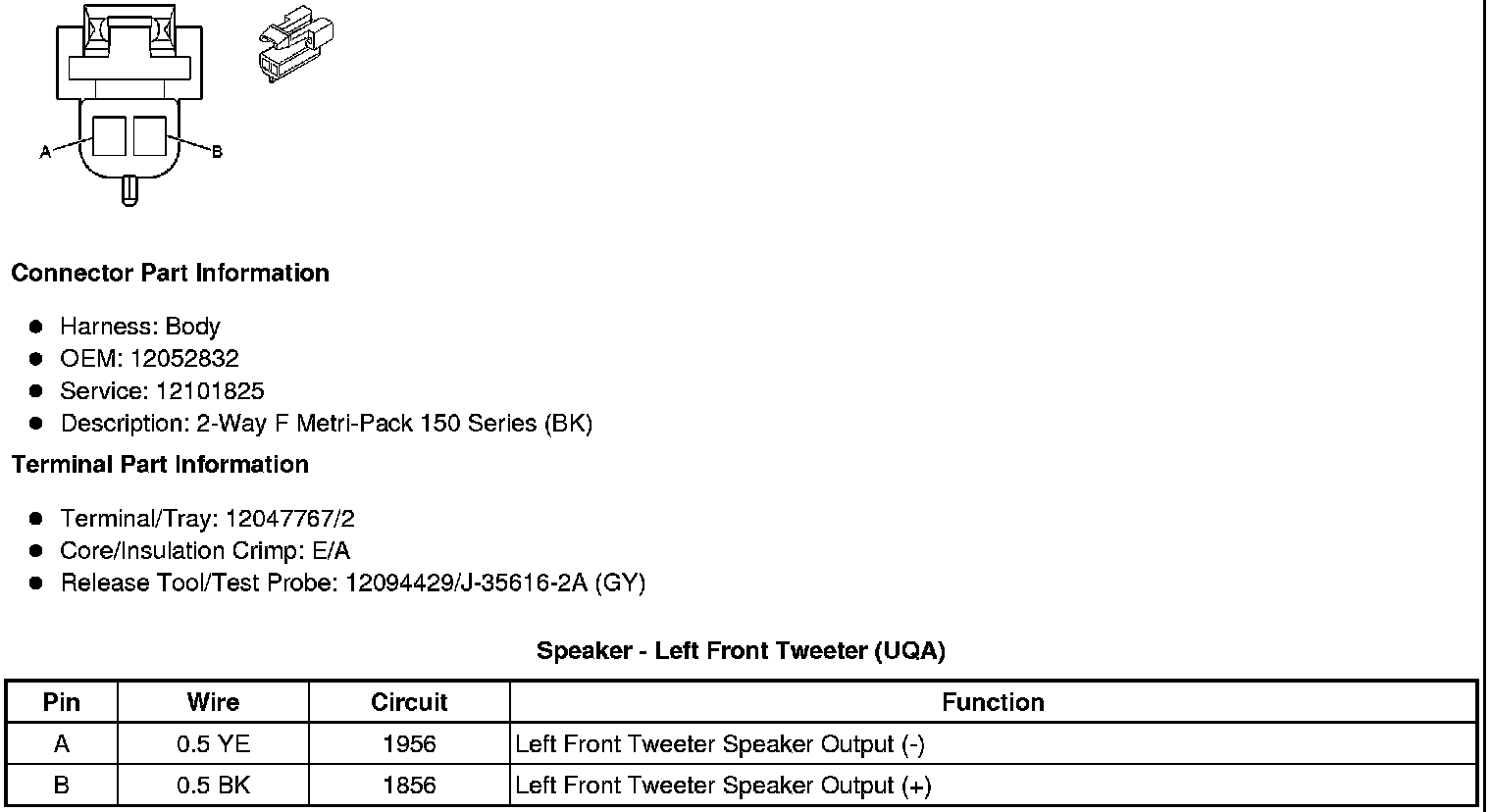

Speaker - Left Front Tweeter (UQA)

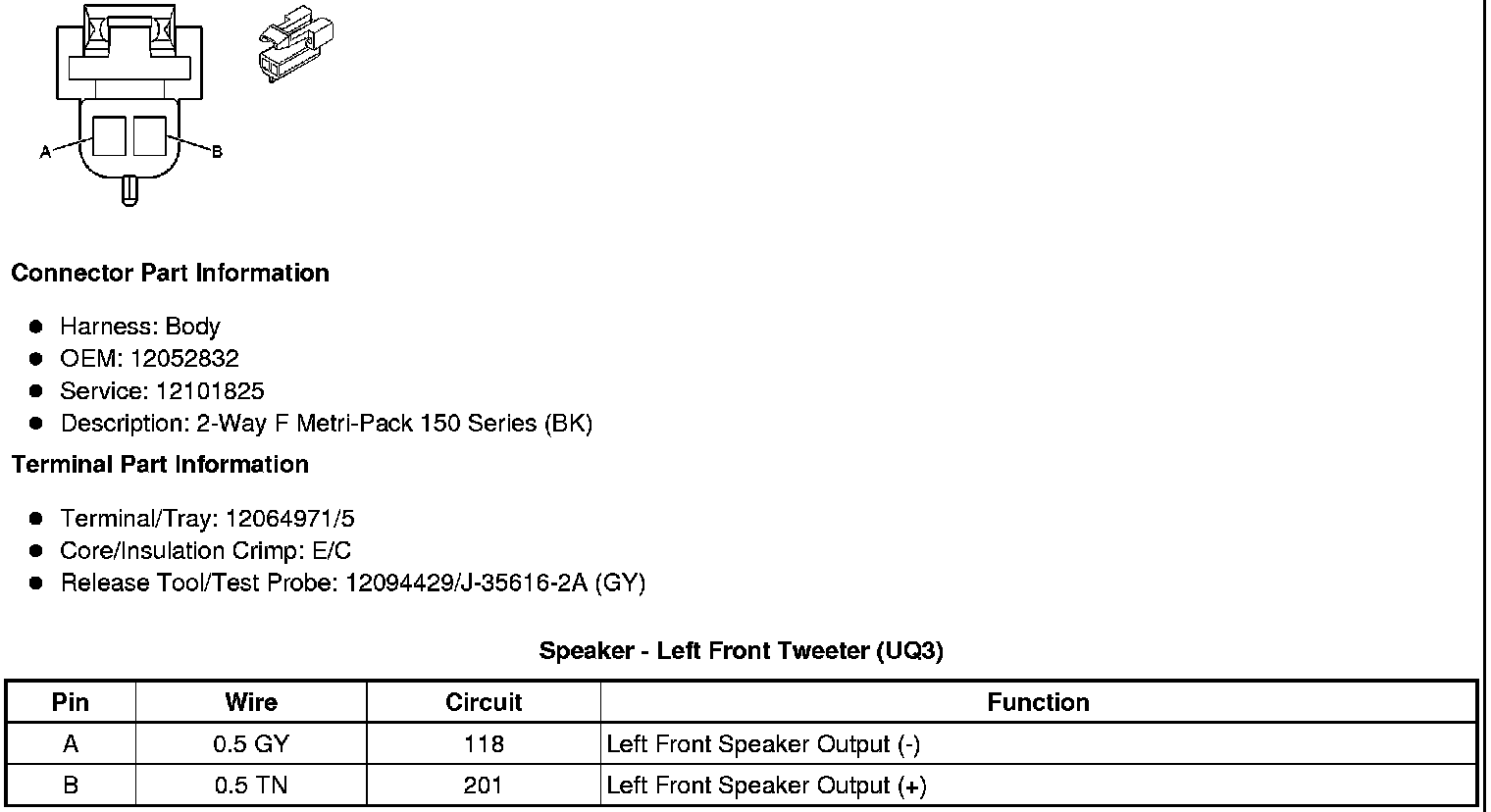

Speaker - Left Front Tweeter (UQ3)

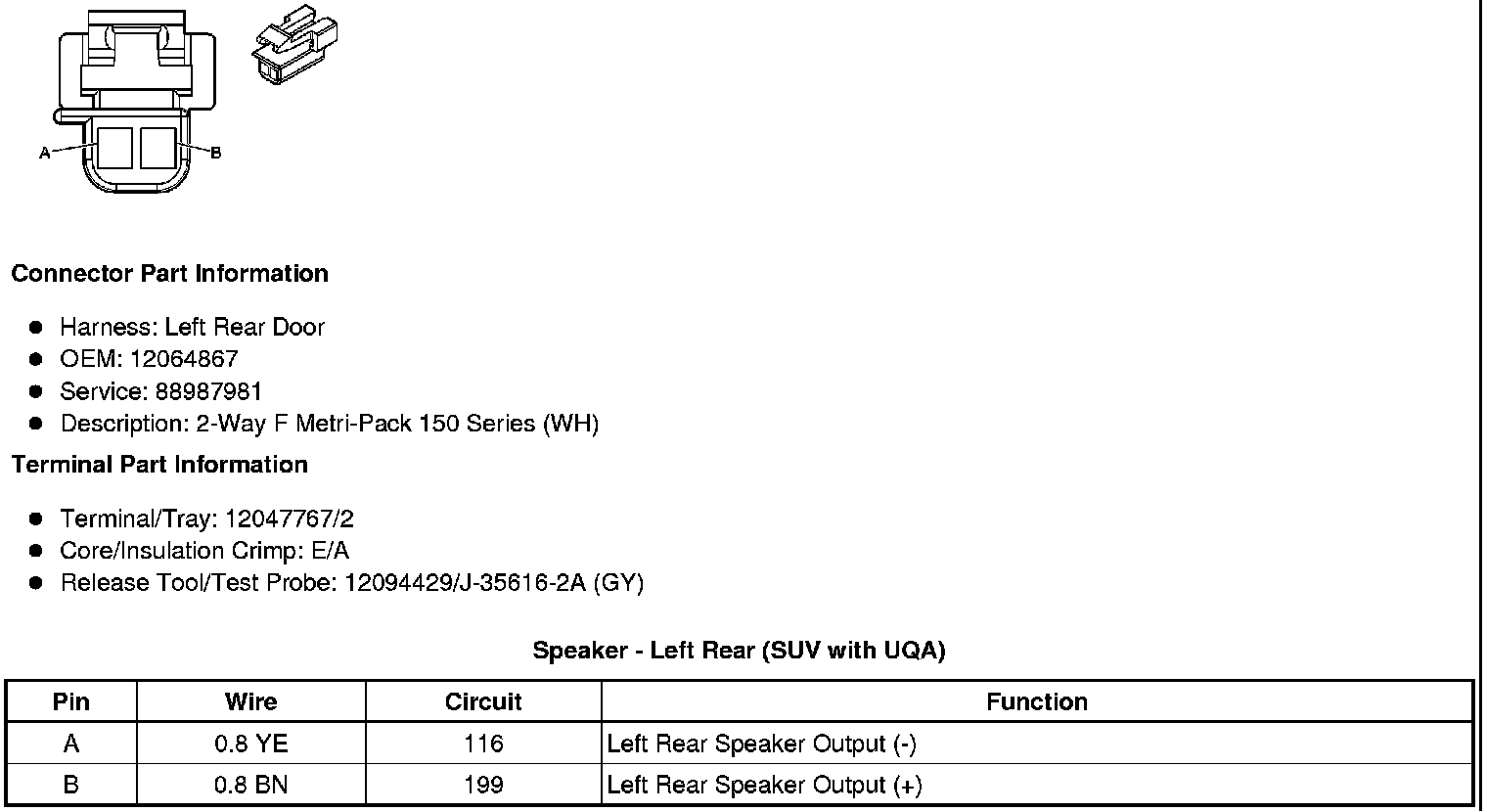

Speaker - Left Rear (SUV with UQA)

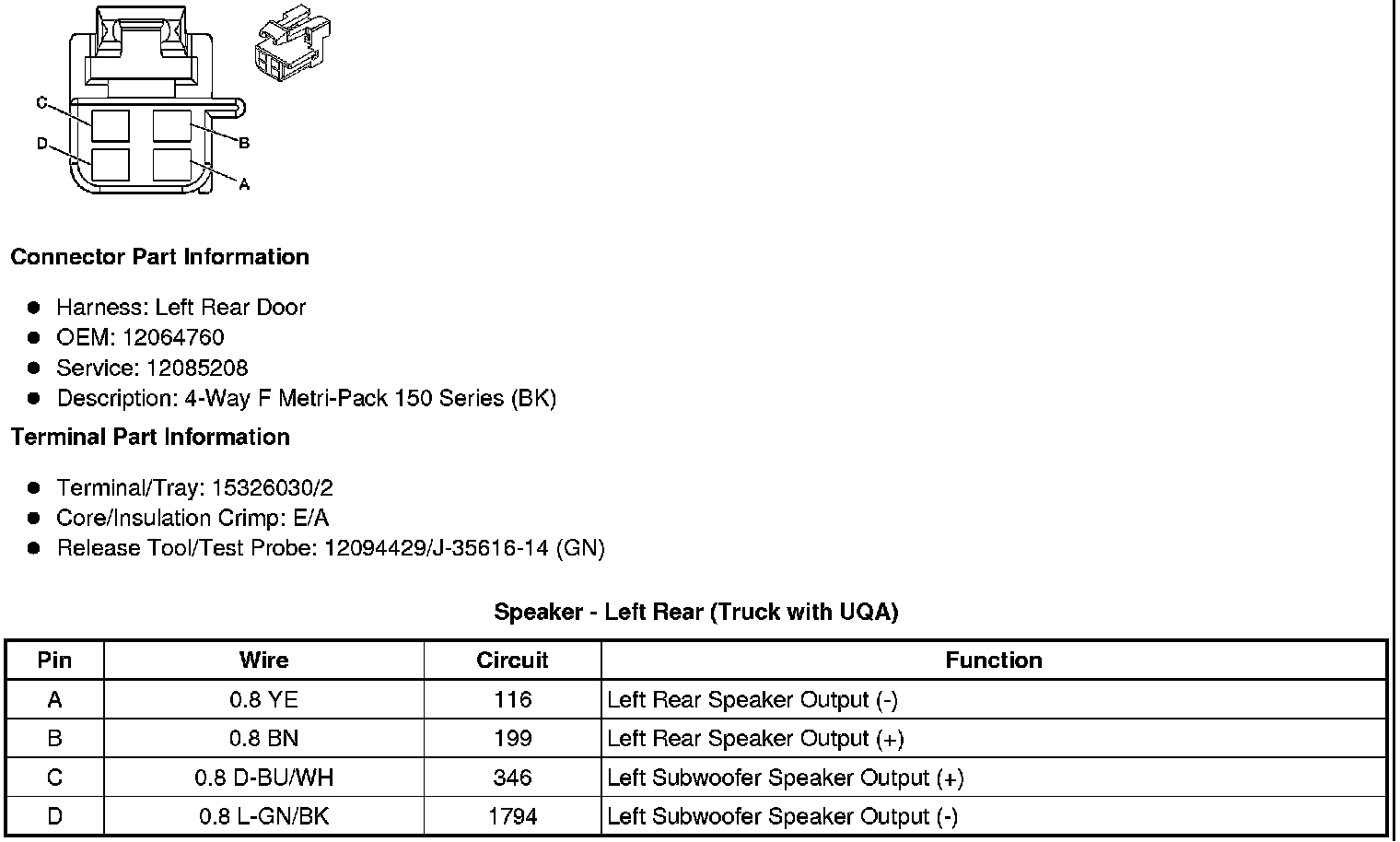

Speaker - Left Rear (Truck with UQA)






Speaker - Left Rear (UQ3)

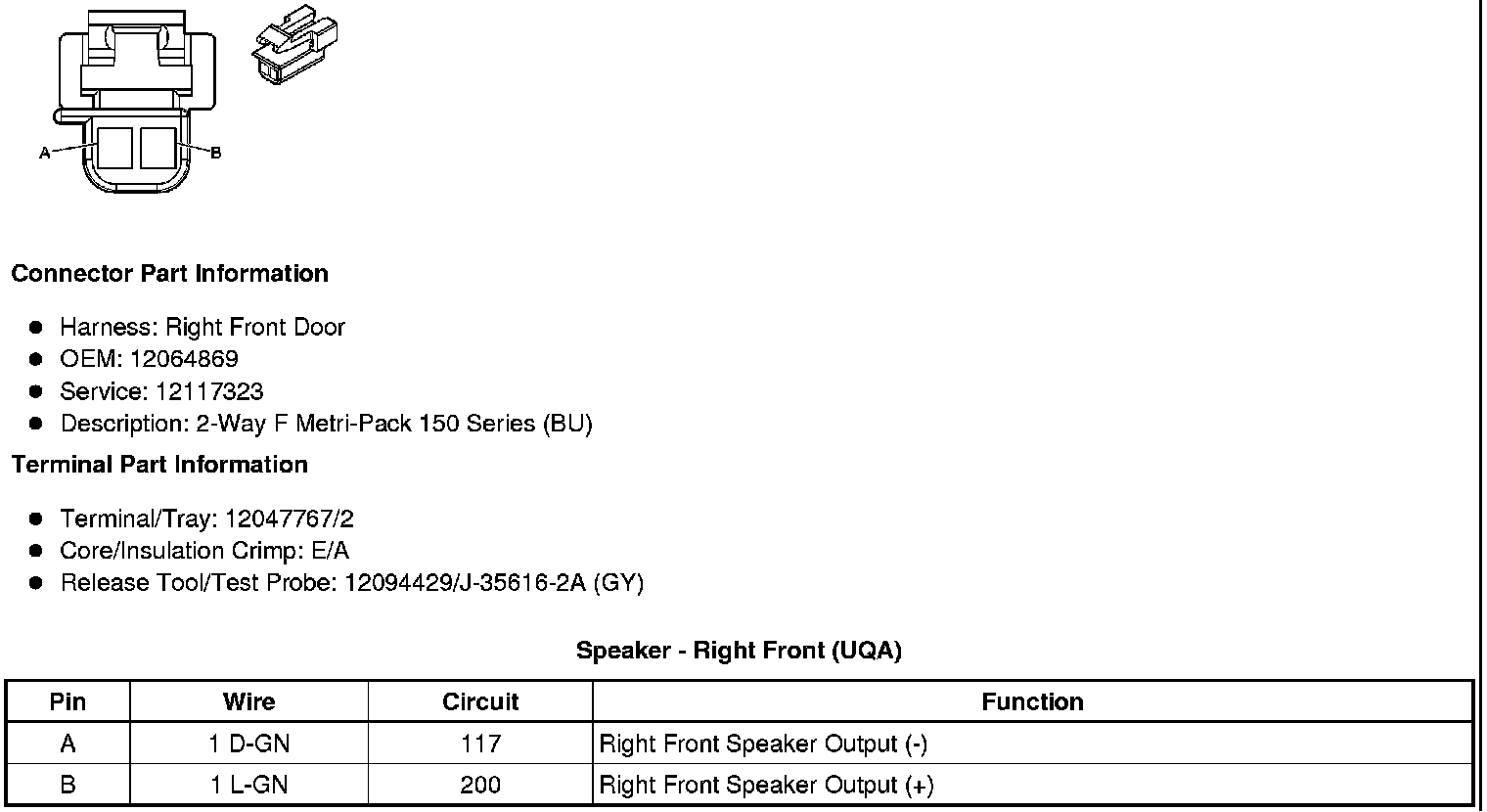

Speaker - Right Front (UQA)

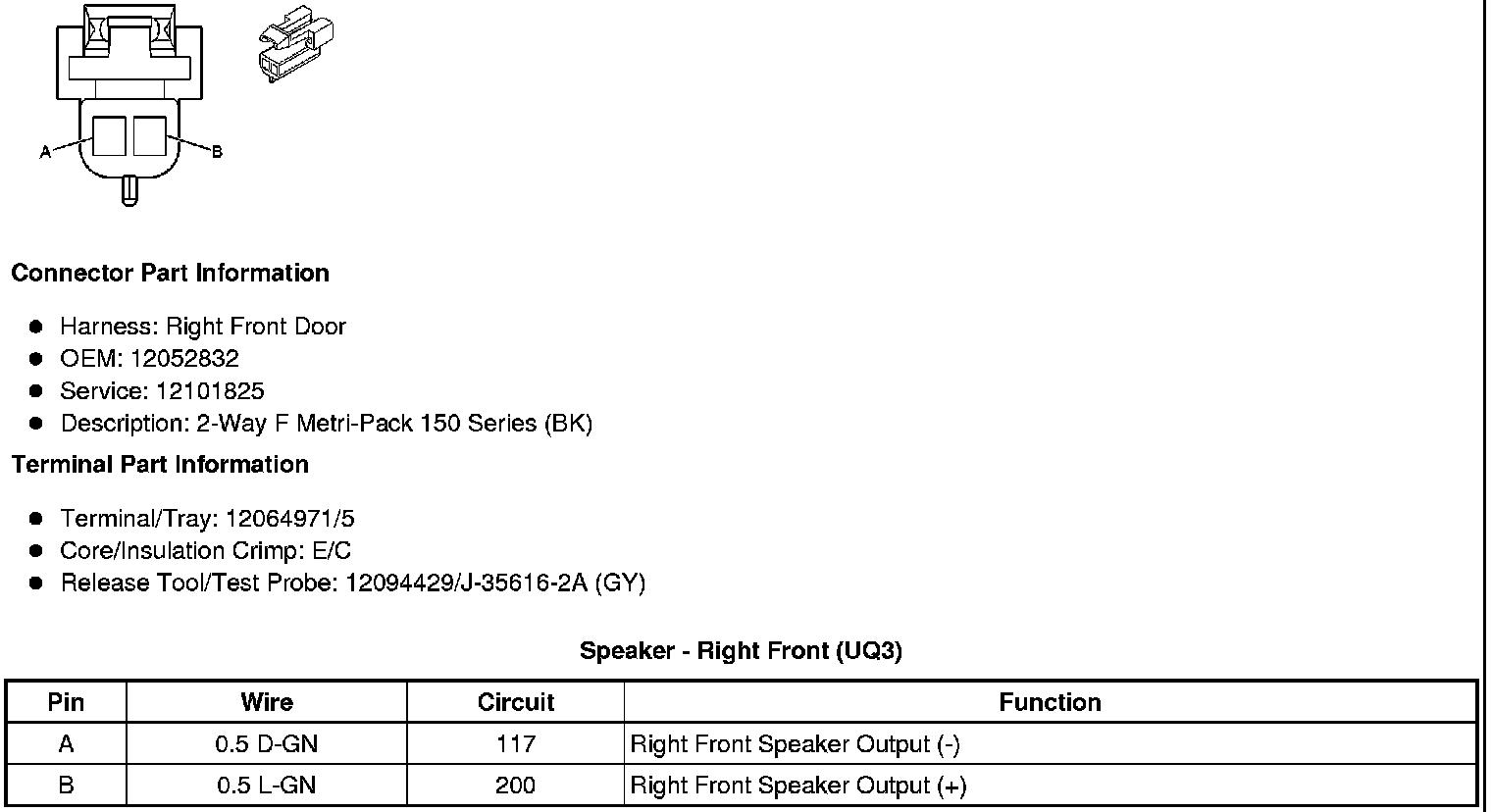

Speaker - Right Front (UQ3)

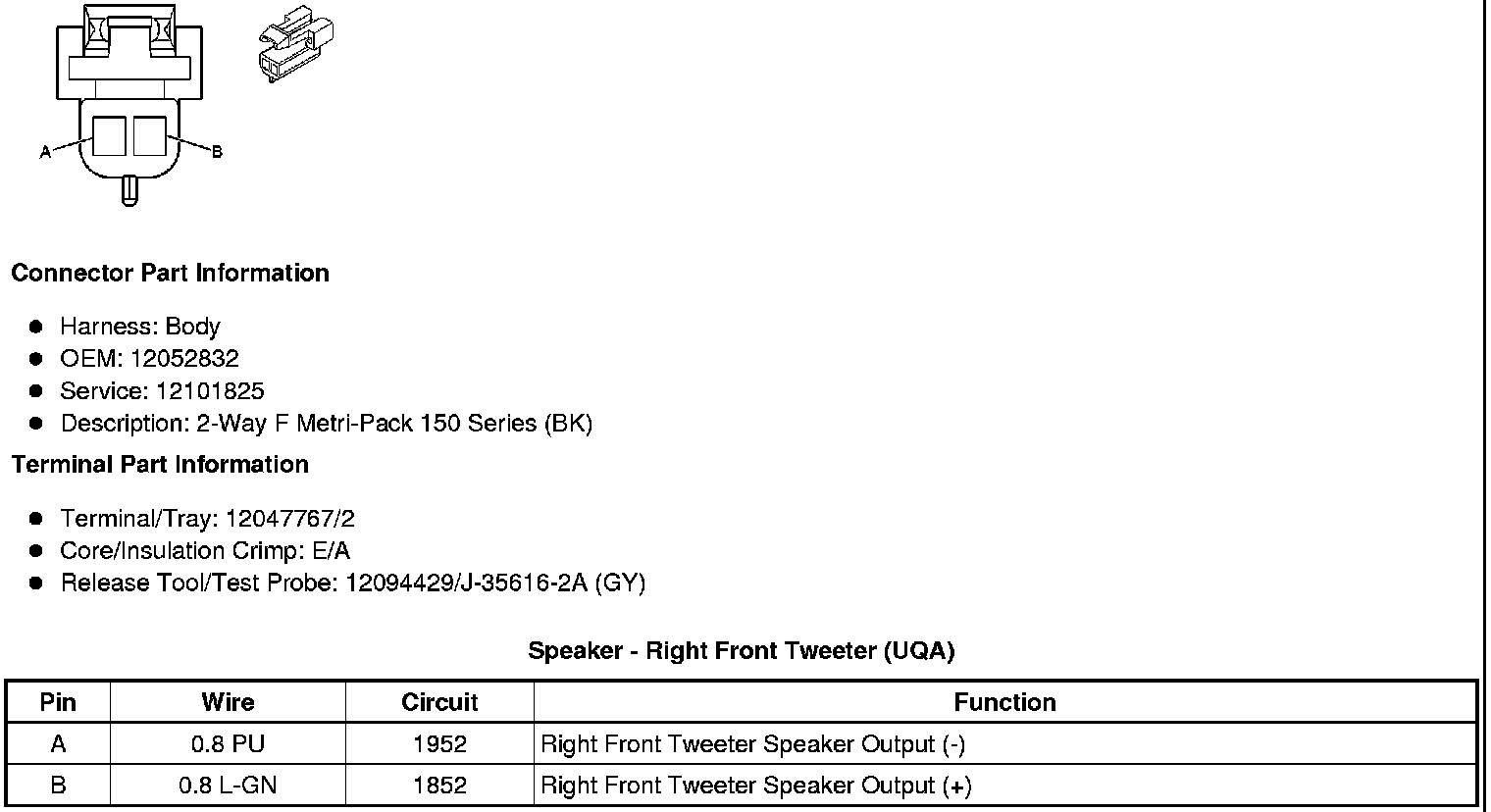

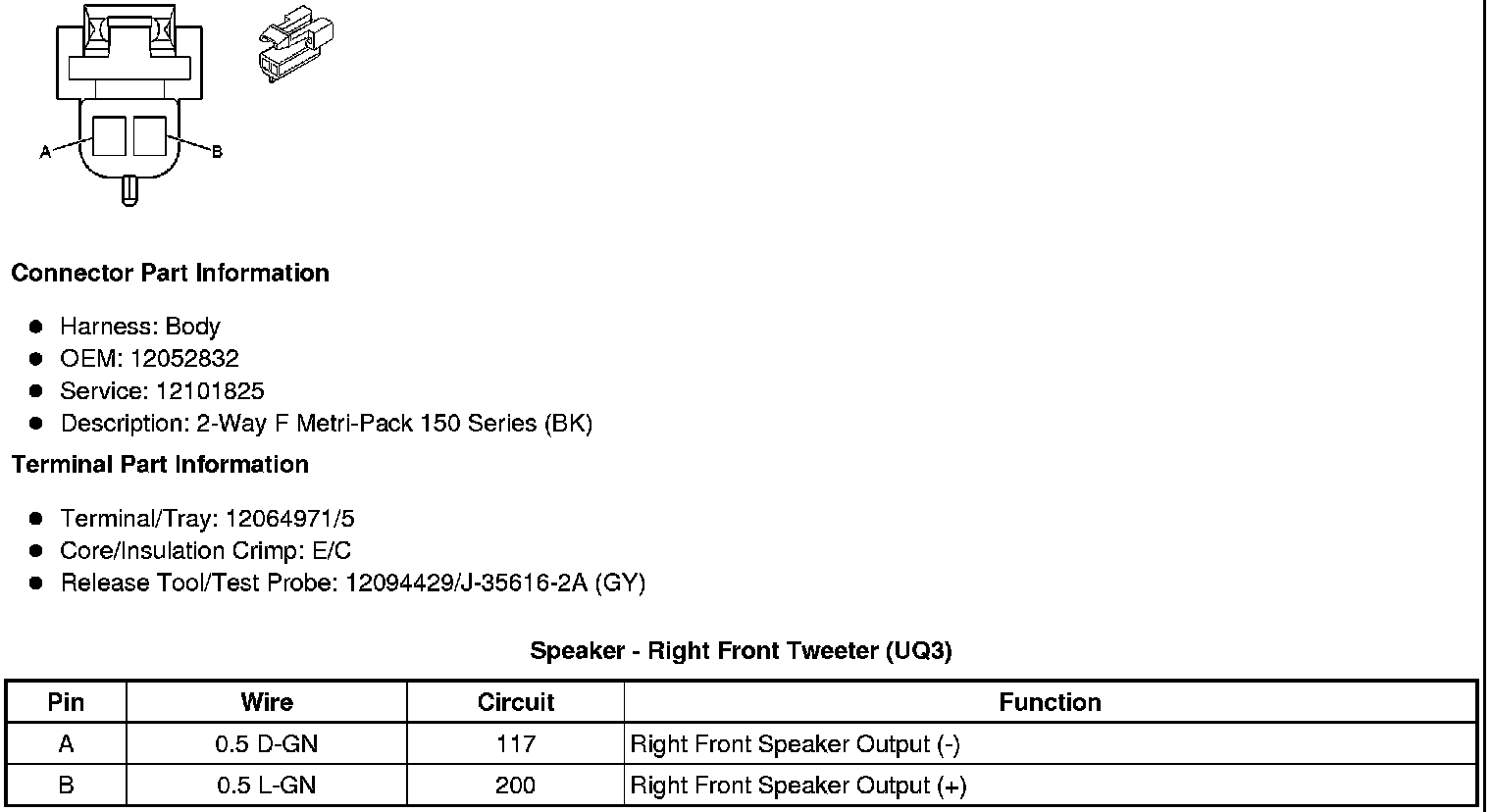

Speaker - Right Front Tweeter (UQA)






Speaker - Right Front Tweeter (UQ3)

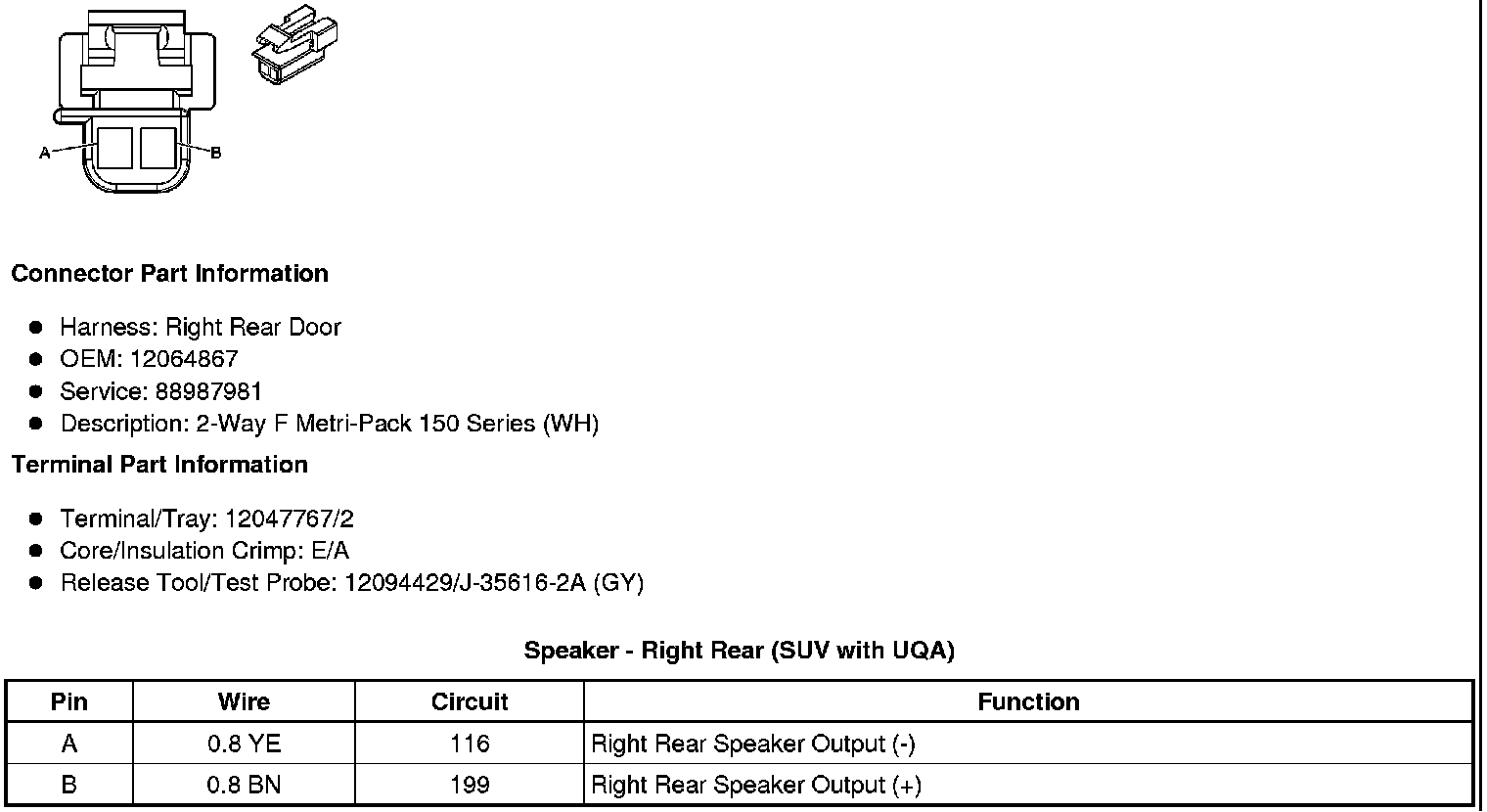

Speaker - Right Rear (SUV with UQA)

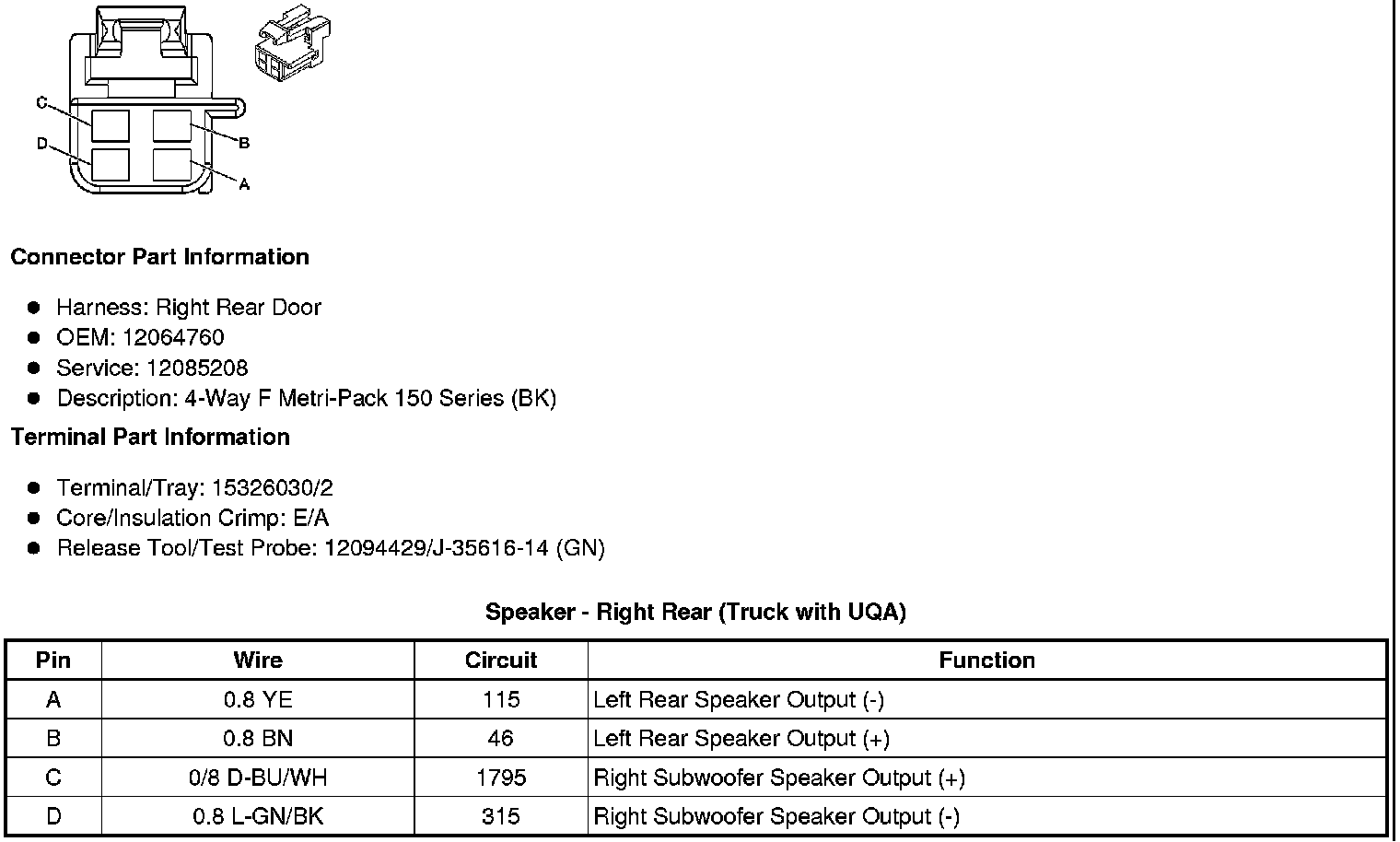

Speaker - Right Rear (Truck with UQA)

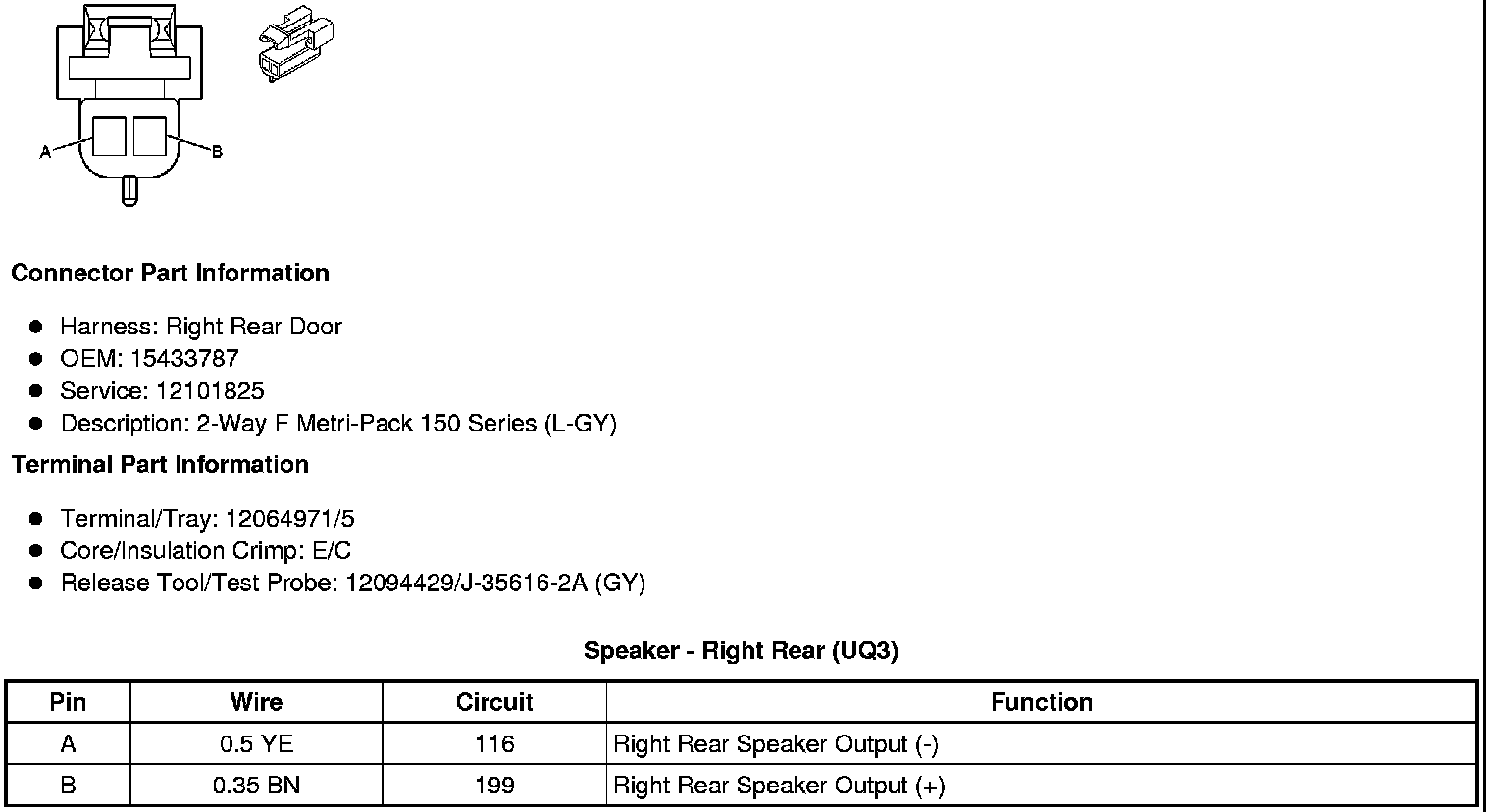

Speaker - Right Rear (UQ3)

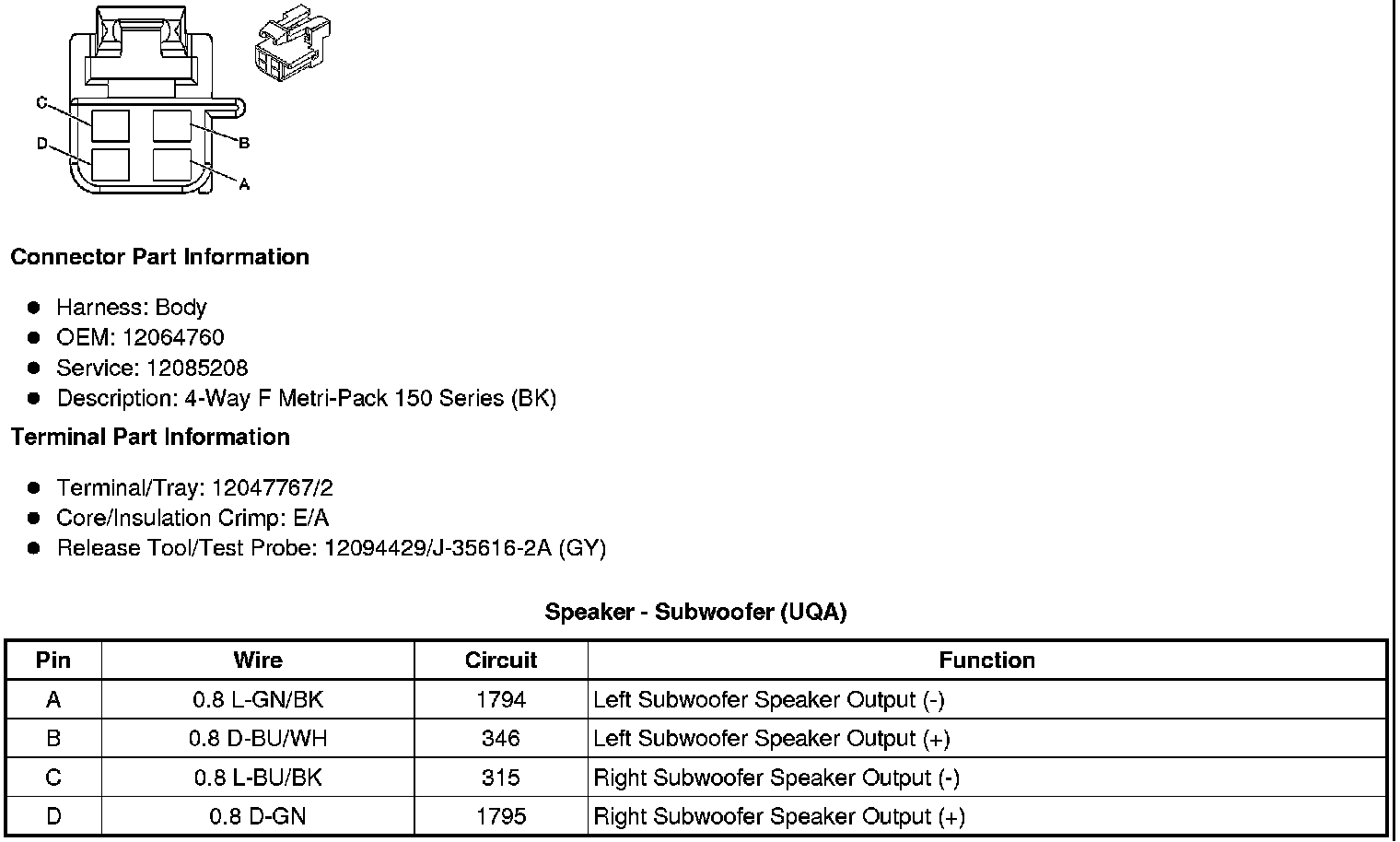

Speaker - Subwoofer (SUV with UQA)
