Marker Lamp
Marker Lamp
Component Connector End Views

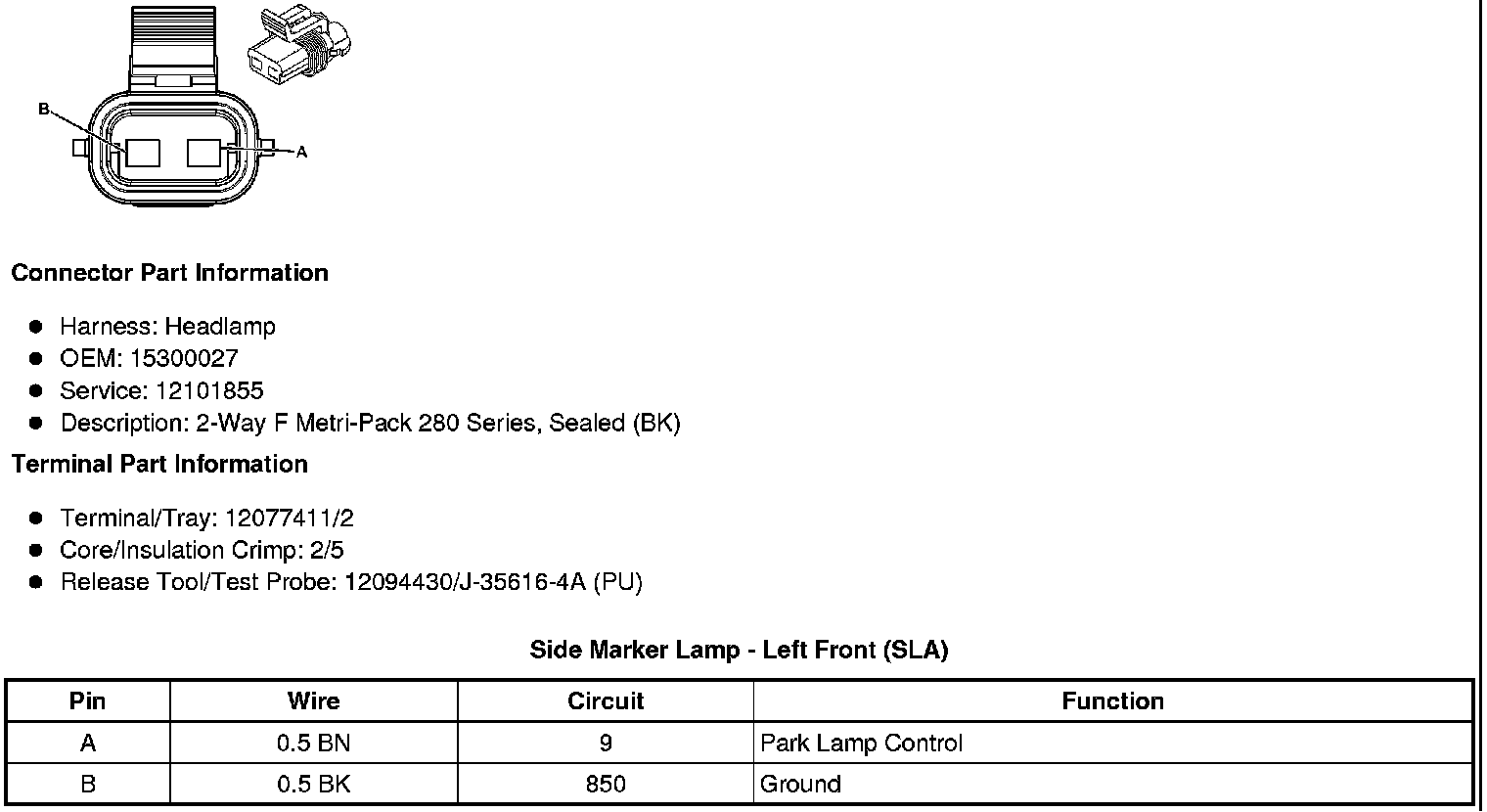

Side Marker Lamp - Left Front (SLA)

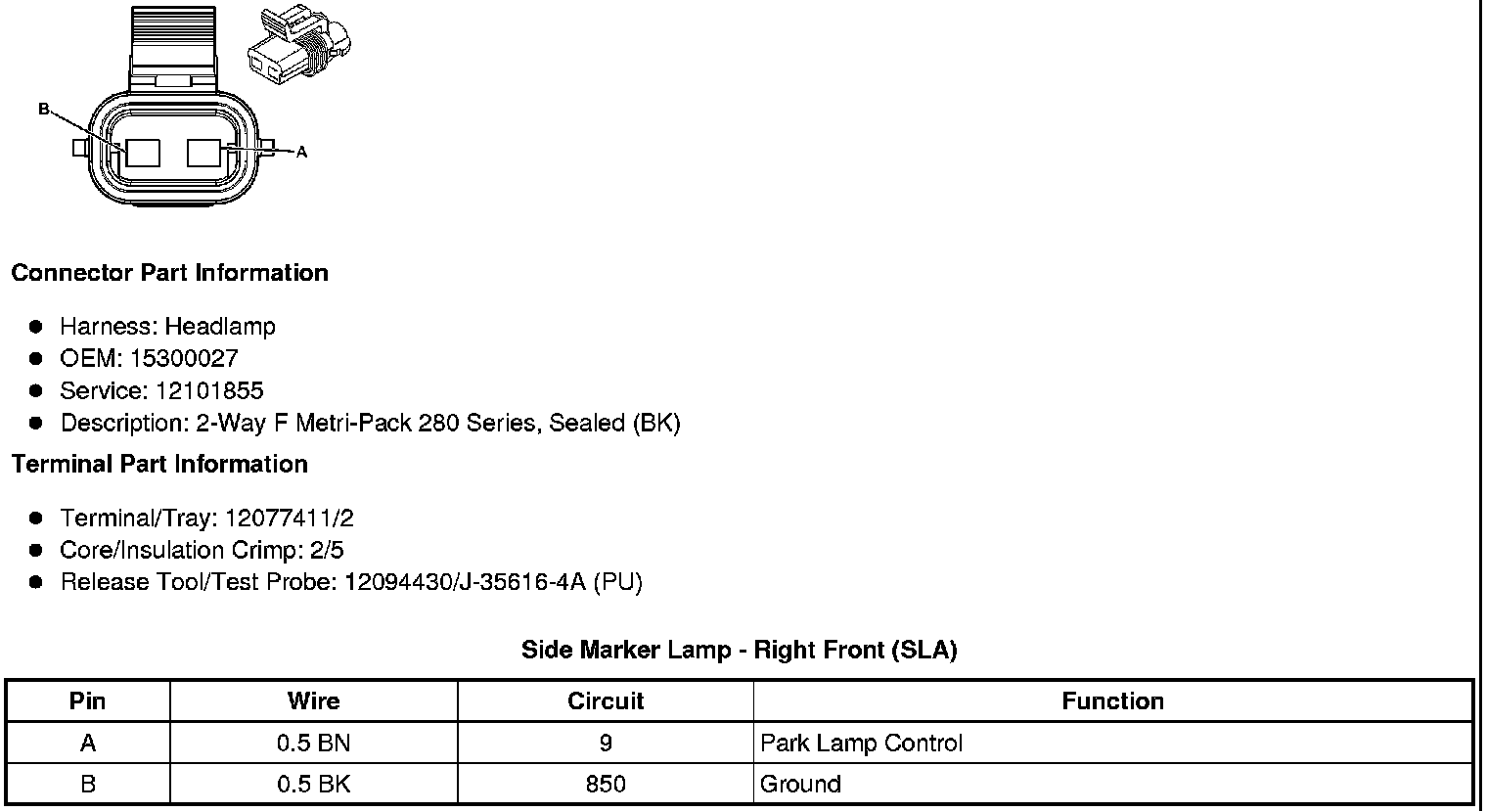

Side Marker Lamp - Right Front (SLA)
