License Plate Lamp
License Plate Lamp
Component Connector End Views

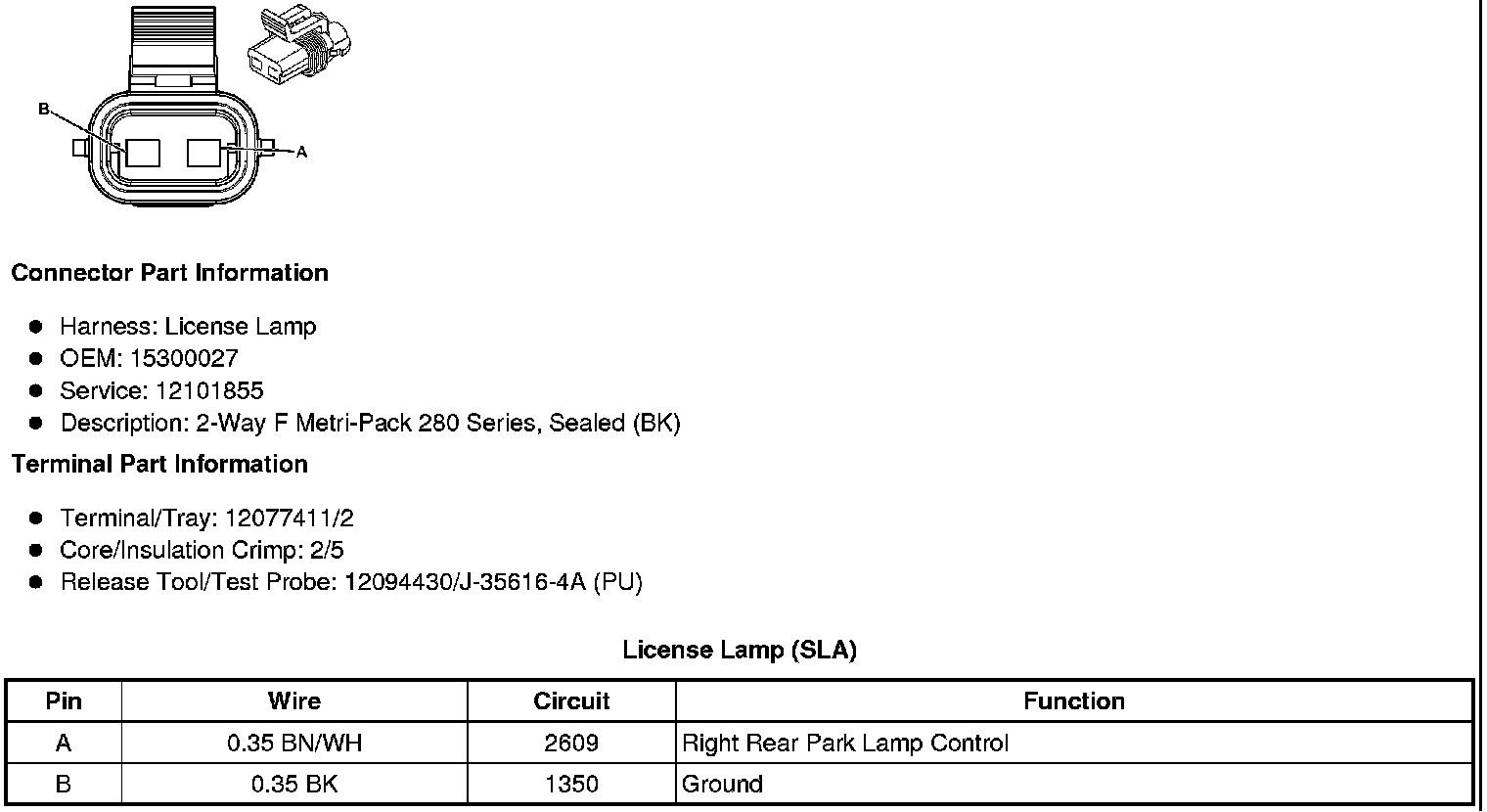

License Lamp (SLA)

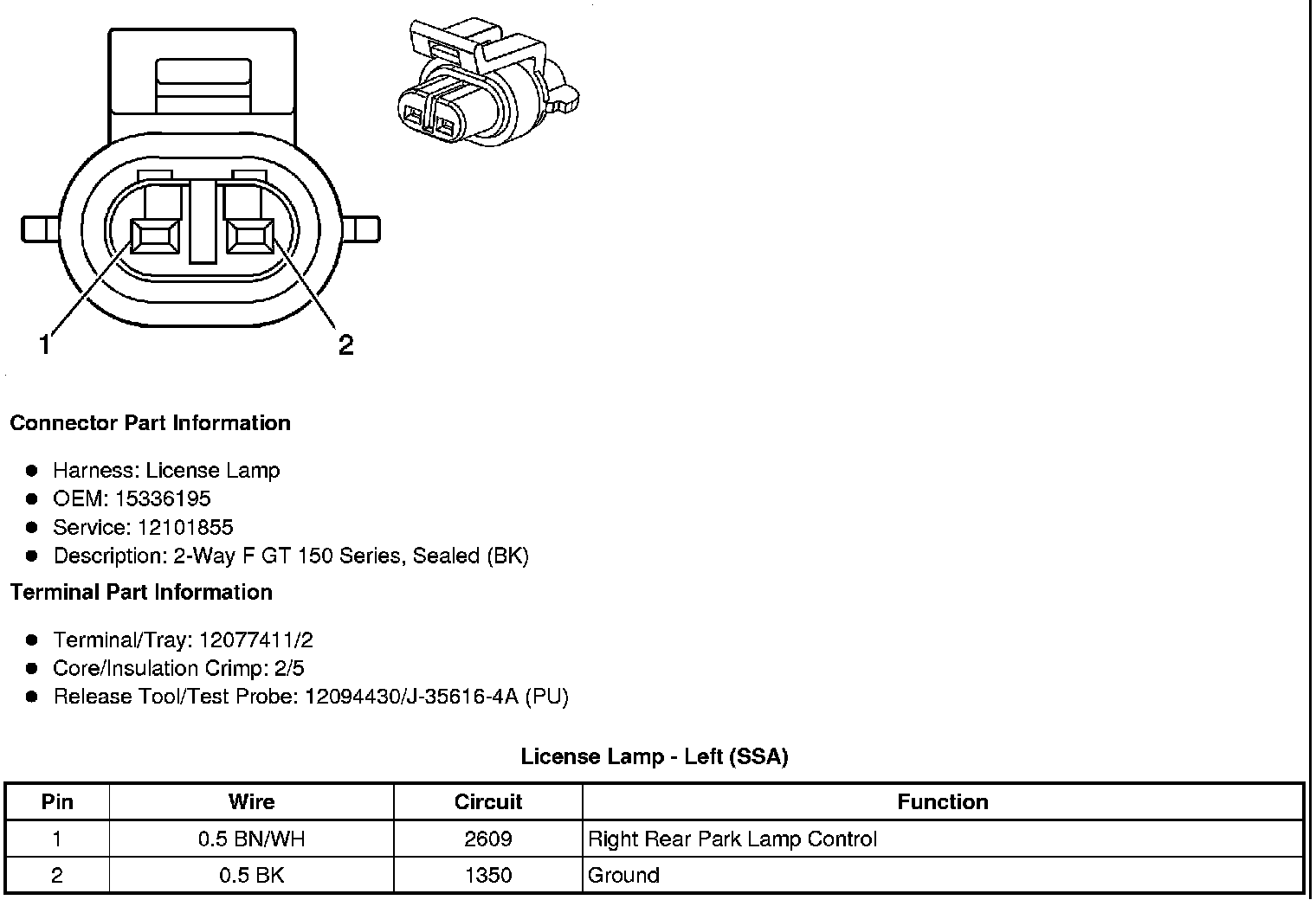

License Lamp - Left (SSA)

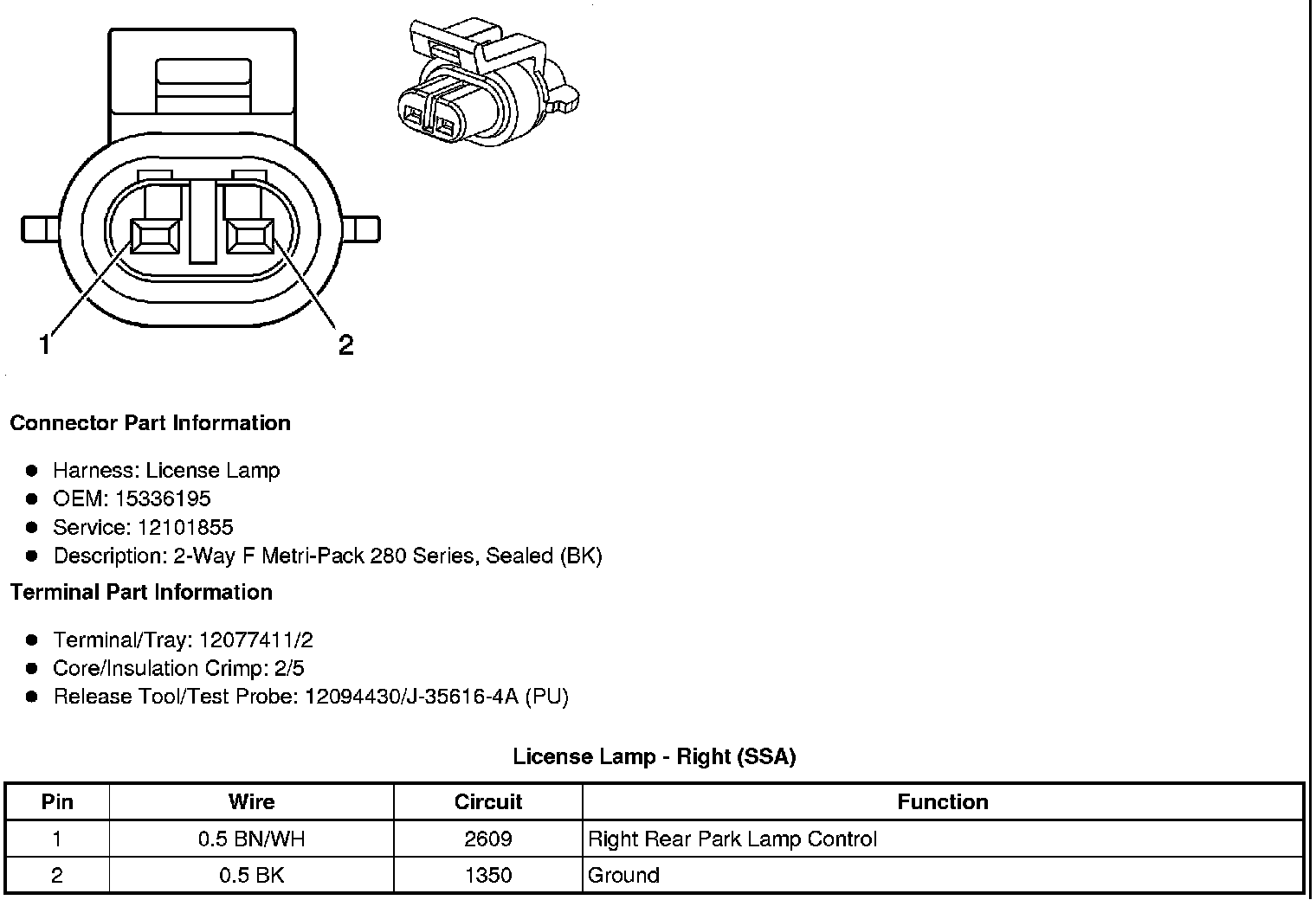

License Lamp - Right (SSA)
