Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram
Component Connector End Views

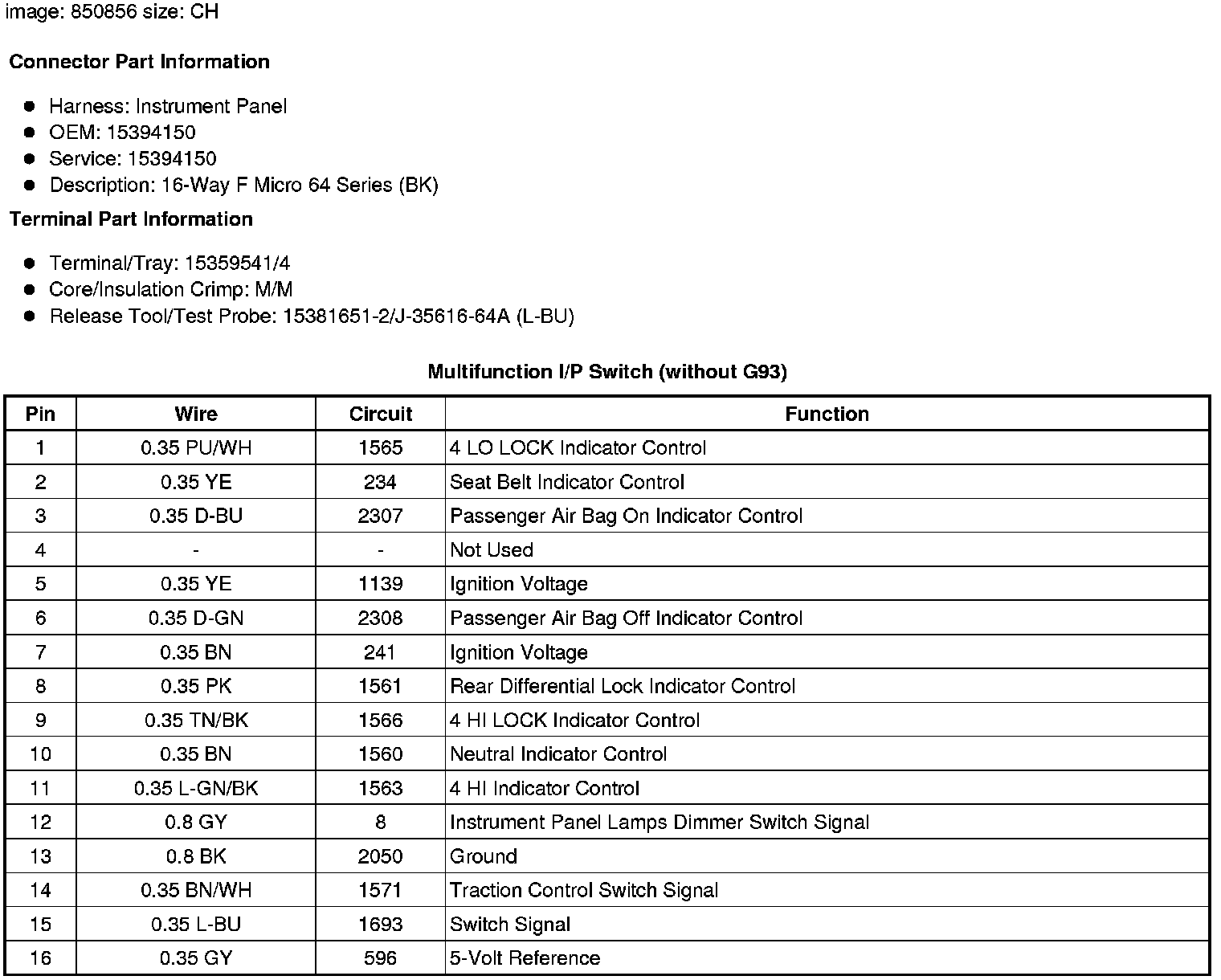

Multifunction I/P Switch (without G93)

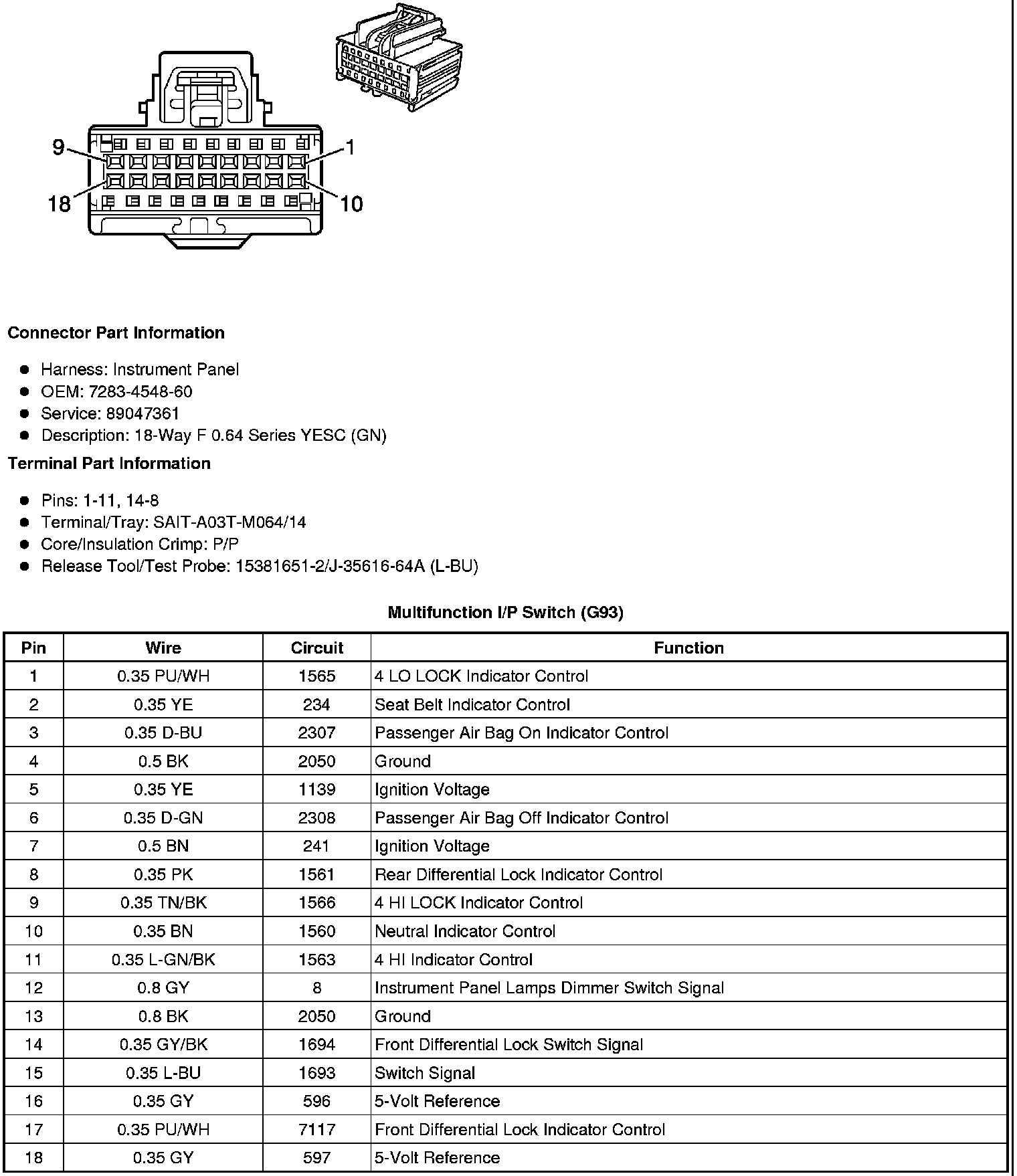

Multifunction I/P Switch (G93)
