Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor

Impact Sensor




Component Connector End Views

Inflatable Restraint Front End Sensor - Left (SUV)

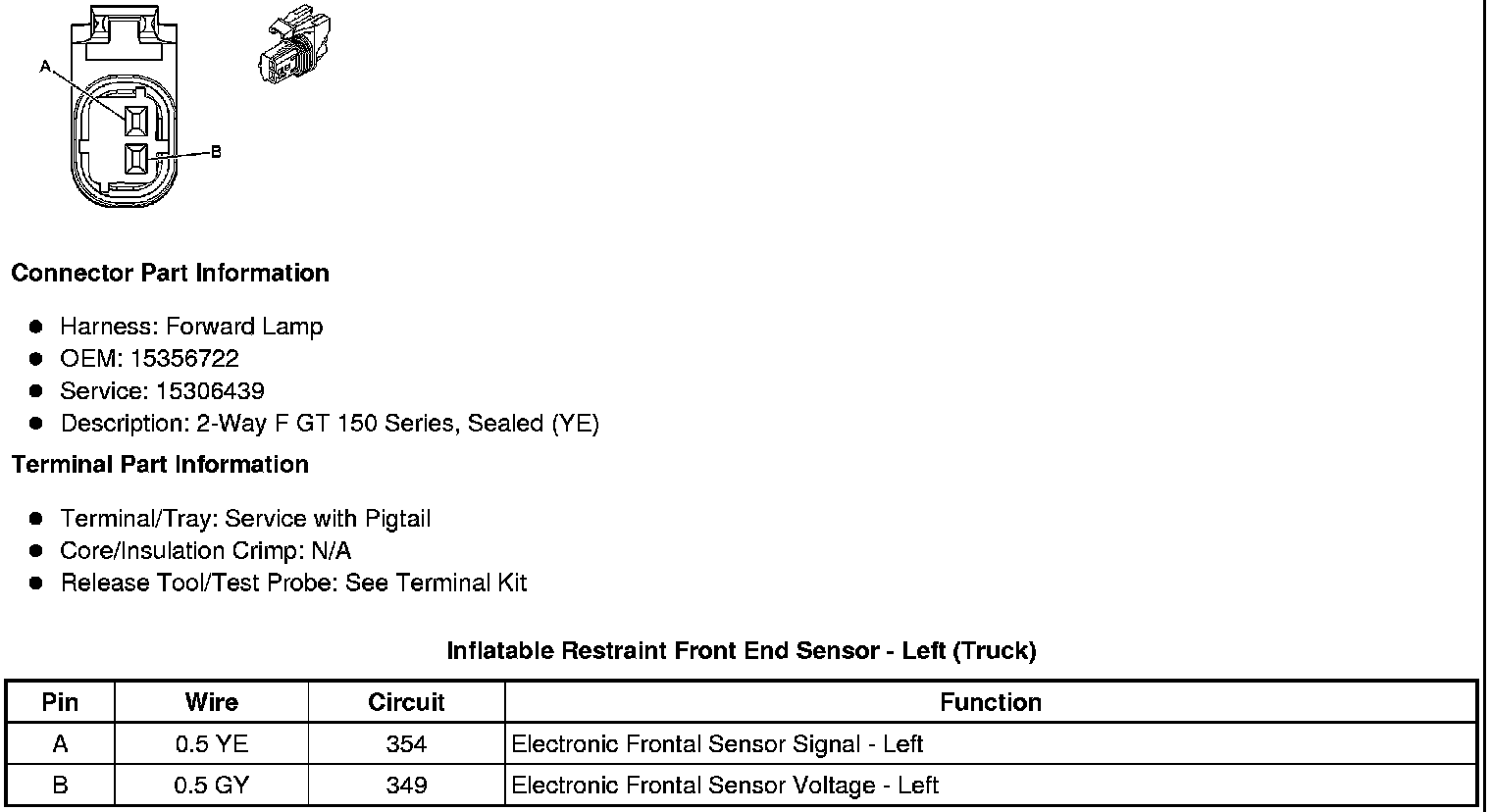

Inflatable Restraint Front End Sensor - Left (Truck)

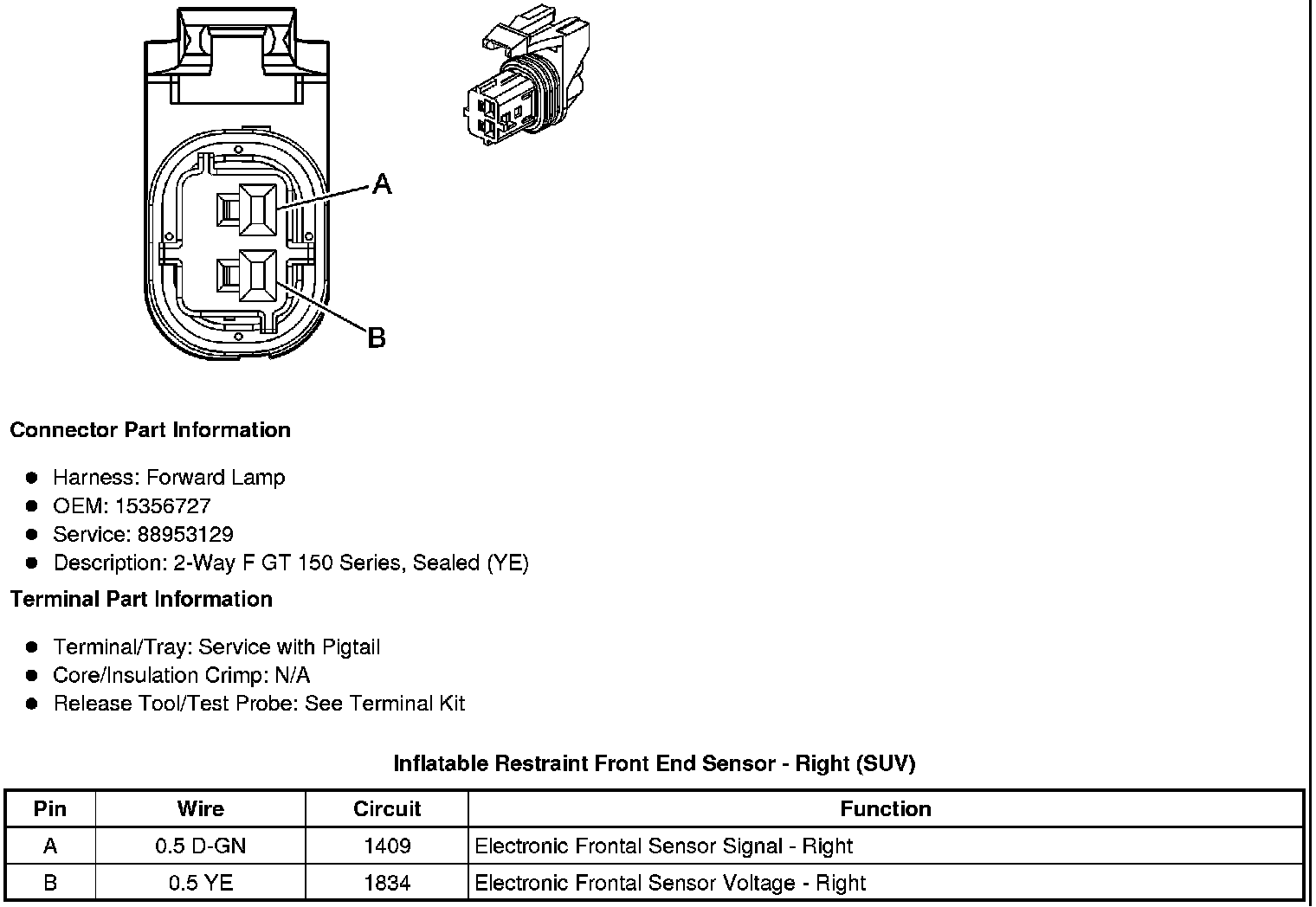

Inflatable Restraint Front End Sensor - Right (SUV)

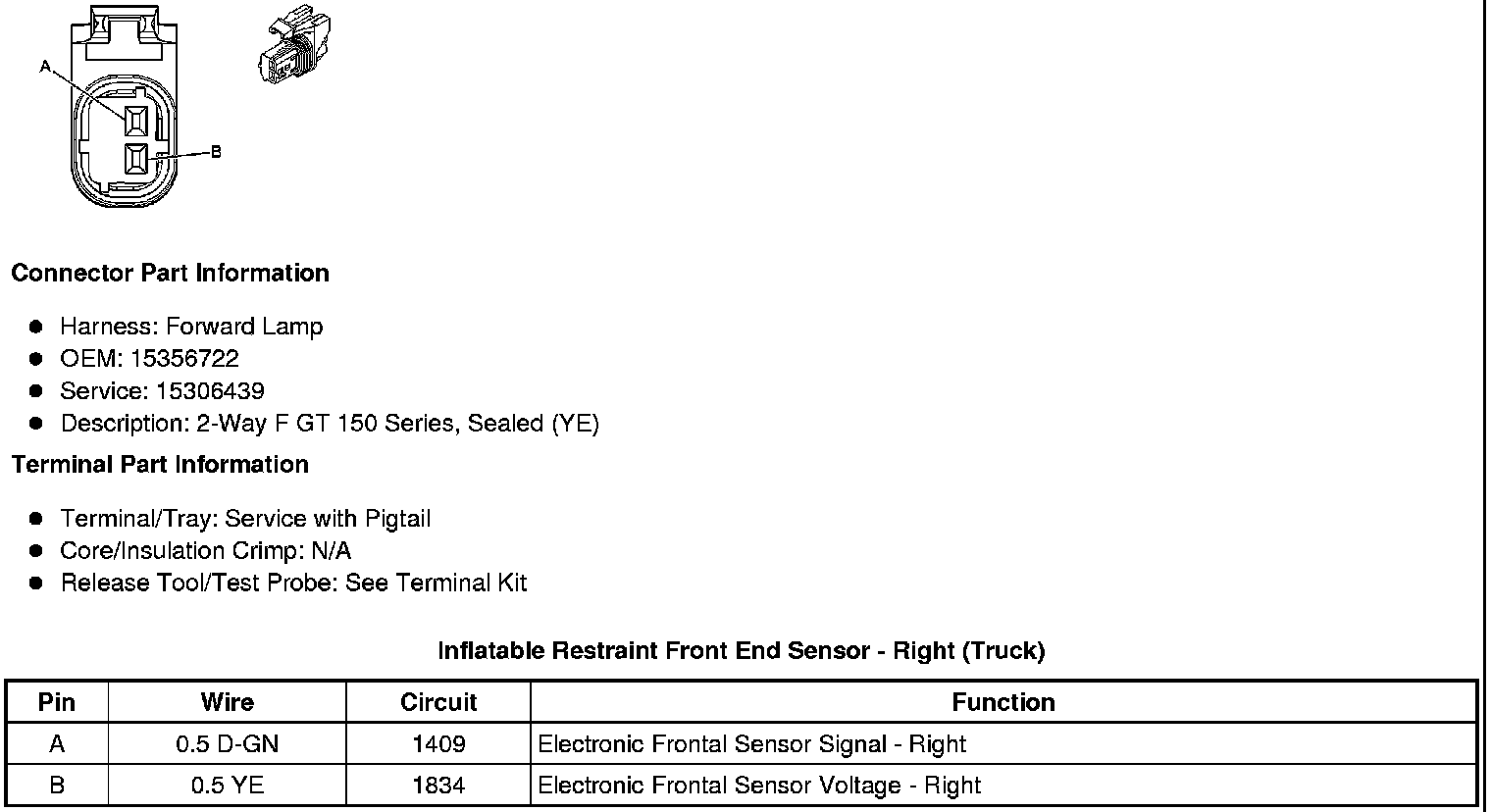

Inflatable Restraint Front End Sensor - Right (Truck)






Inflatable Restraint Side Impact Sensor (SIS) - Left (SUV with ASF)

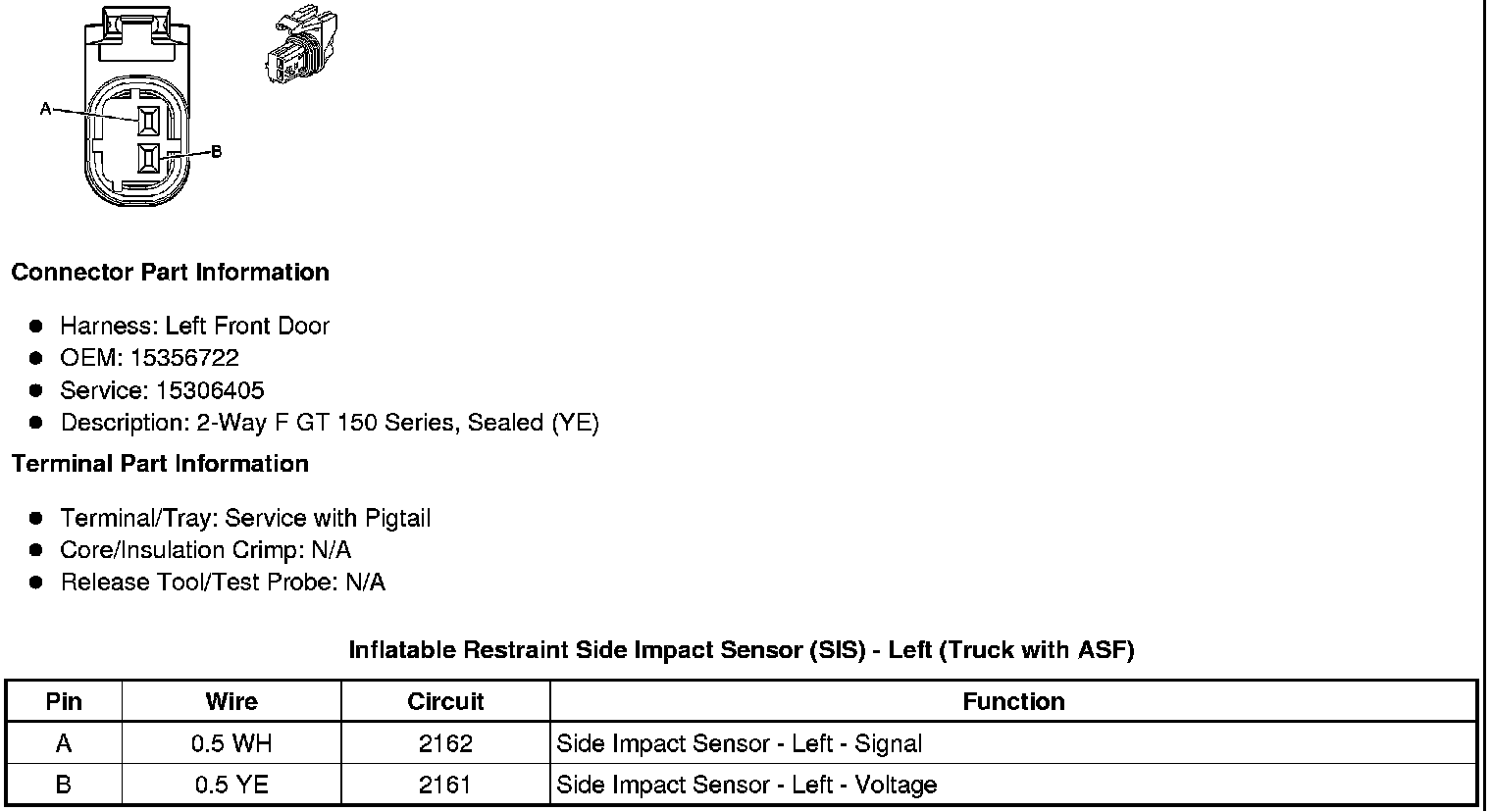

Inflatable Restraint Side Impact Sensor (SIS) - Left (Truck with ASF)

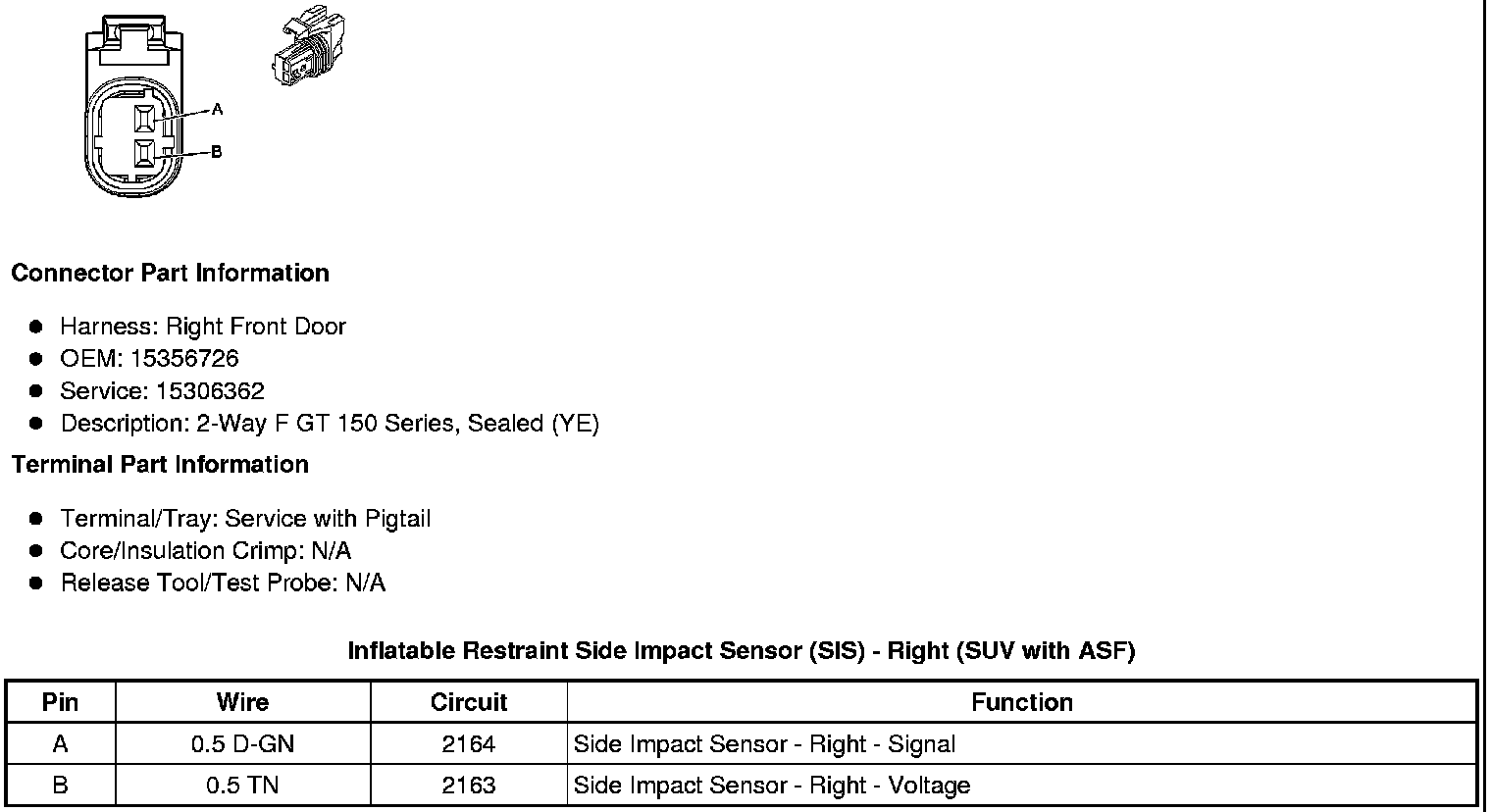

Inflatable Restraint Side Impact Sensor (SIS) - Right (SUV with ASF)

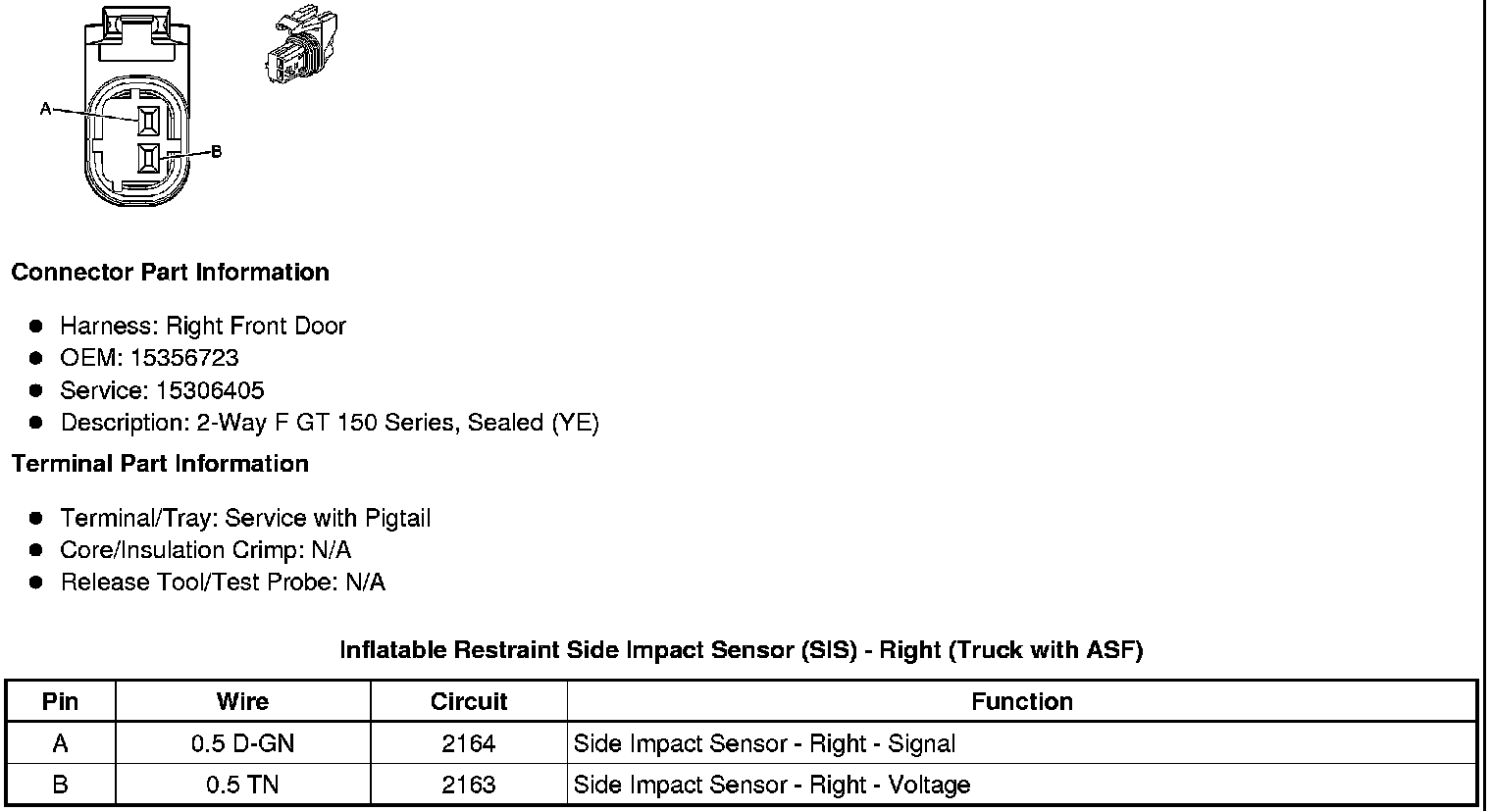

Inflatable Restraint Side Impact Sensor (SIS) - Right (Truck with ASF)

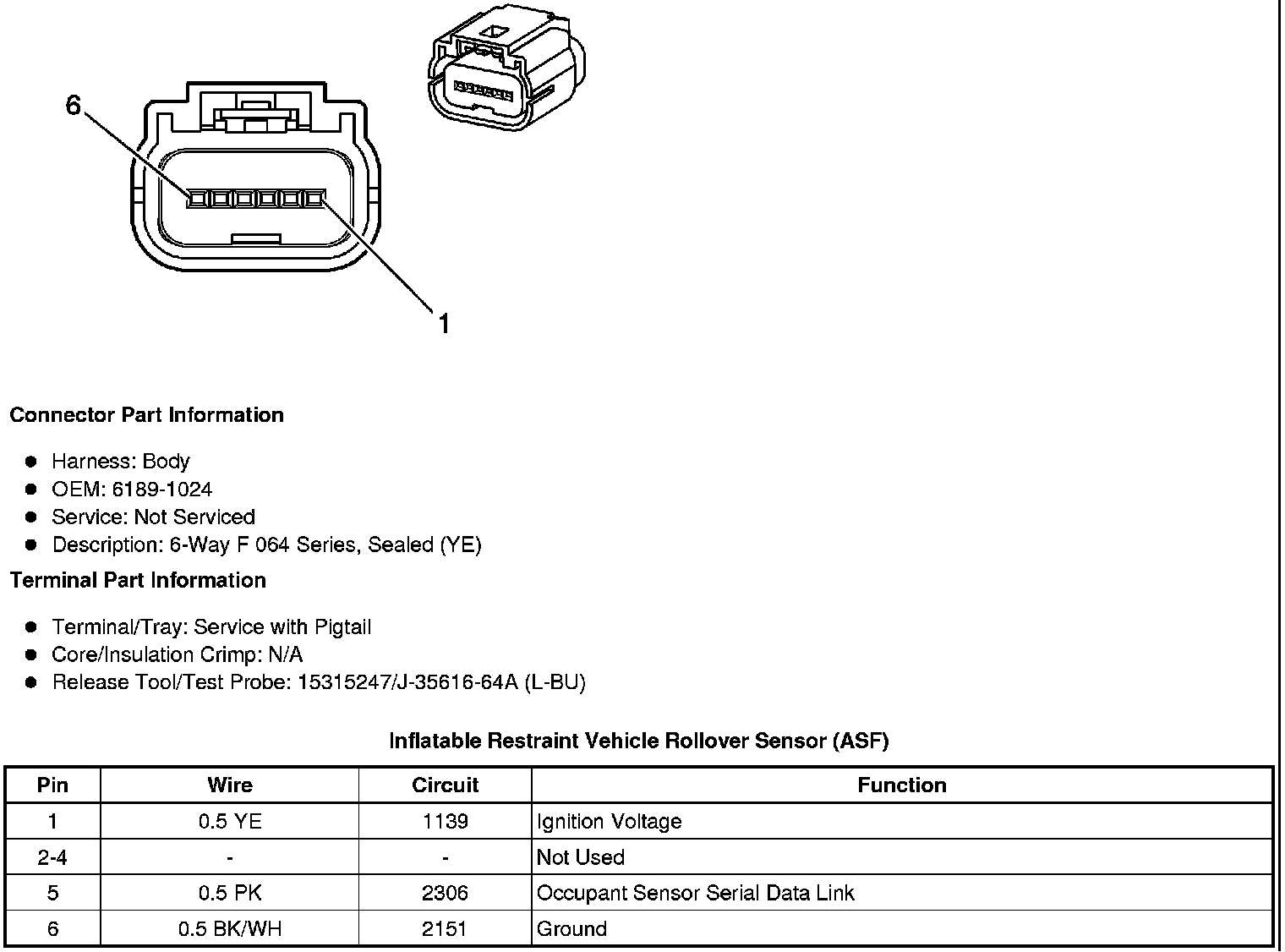

Inflatable Restraint Vehicle Rollover Sensor (ASF)
