Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Pressure Control Module

Fuel Pressure Control Module




Component Connector End Views

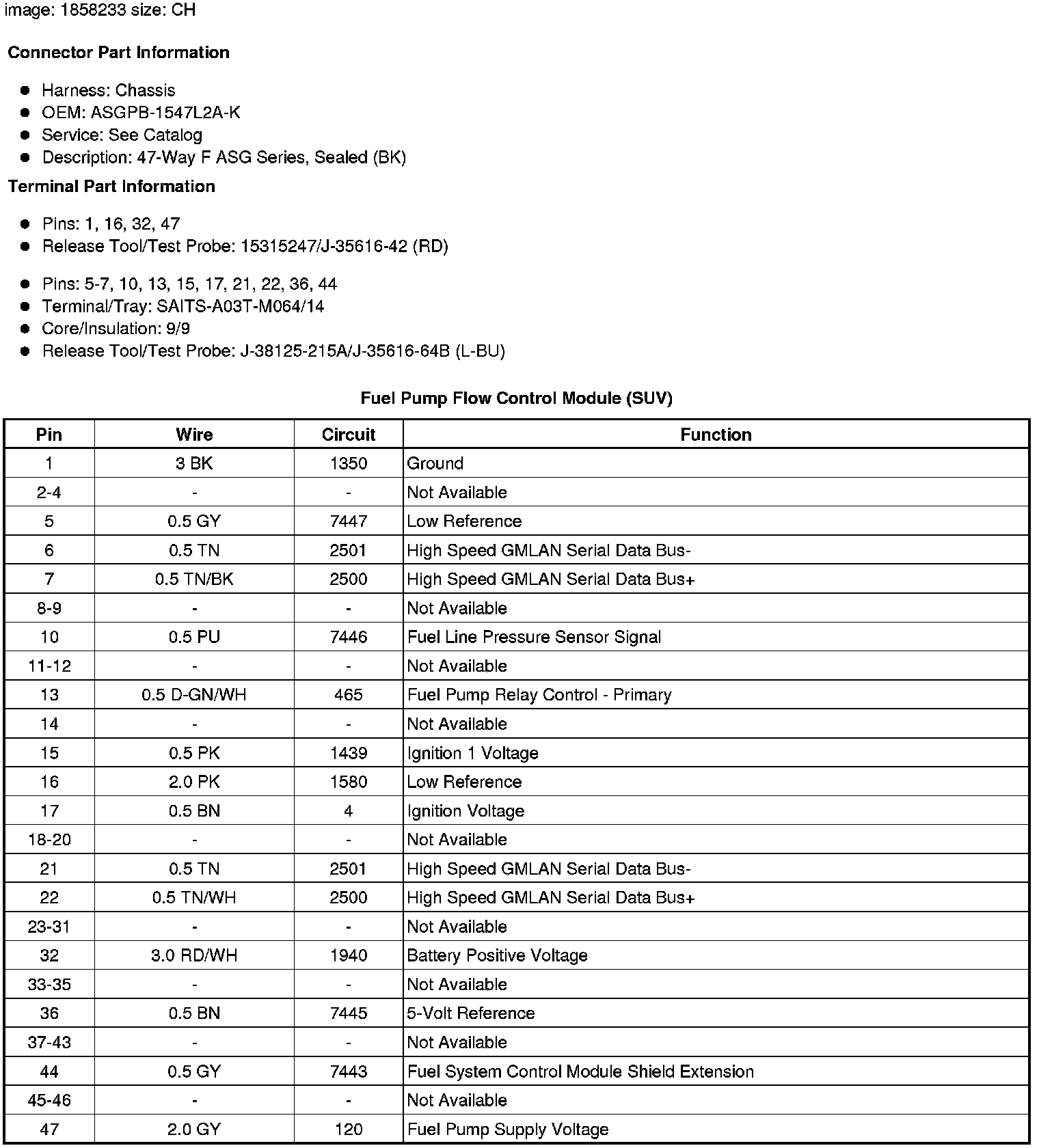

Fuel Pump Flow Control Module (SUV)

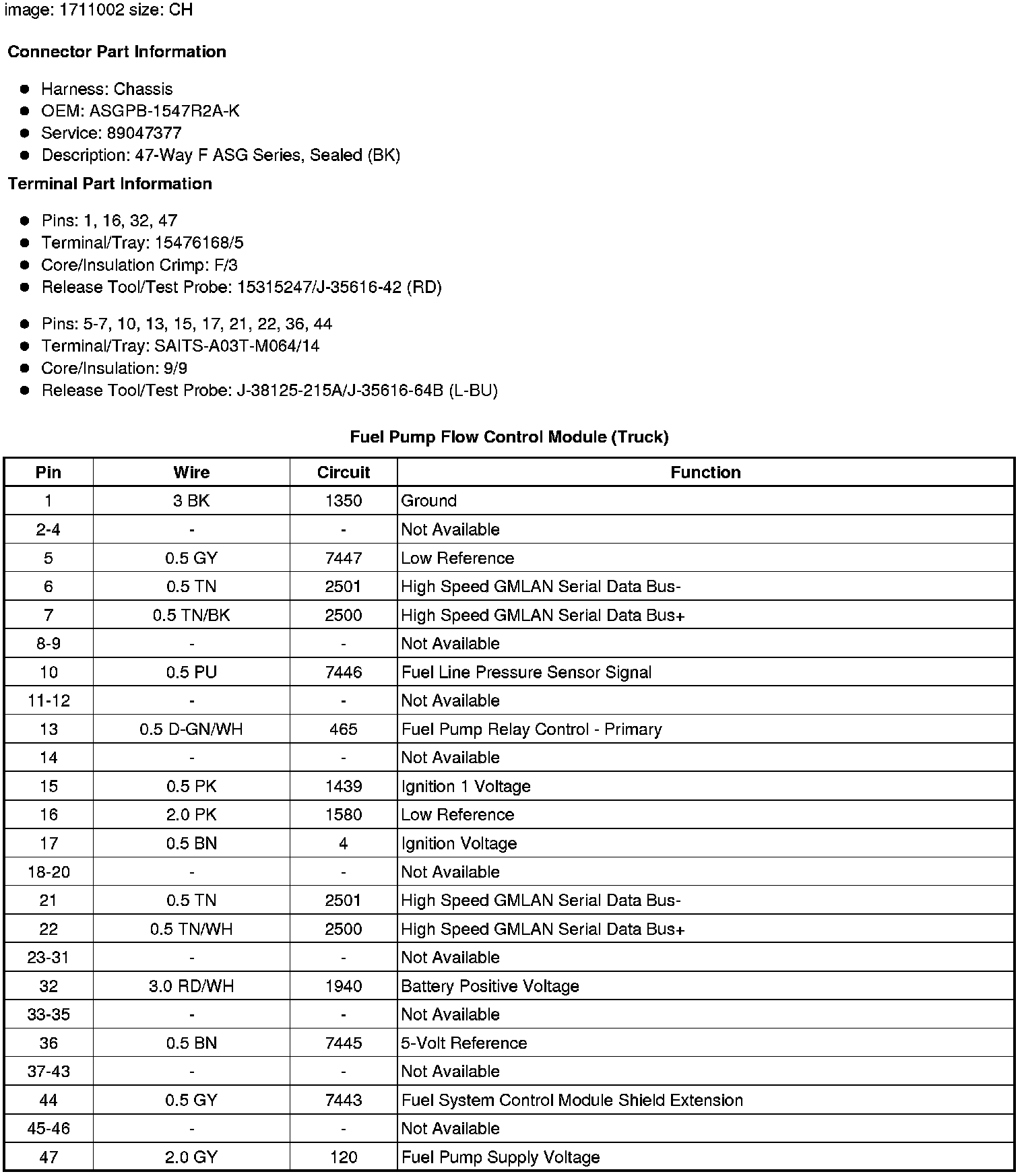

Fuel Pump Flow Control Module (Truck)
