Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp

Fog/Driving Lamp




Component Connector End Views

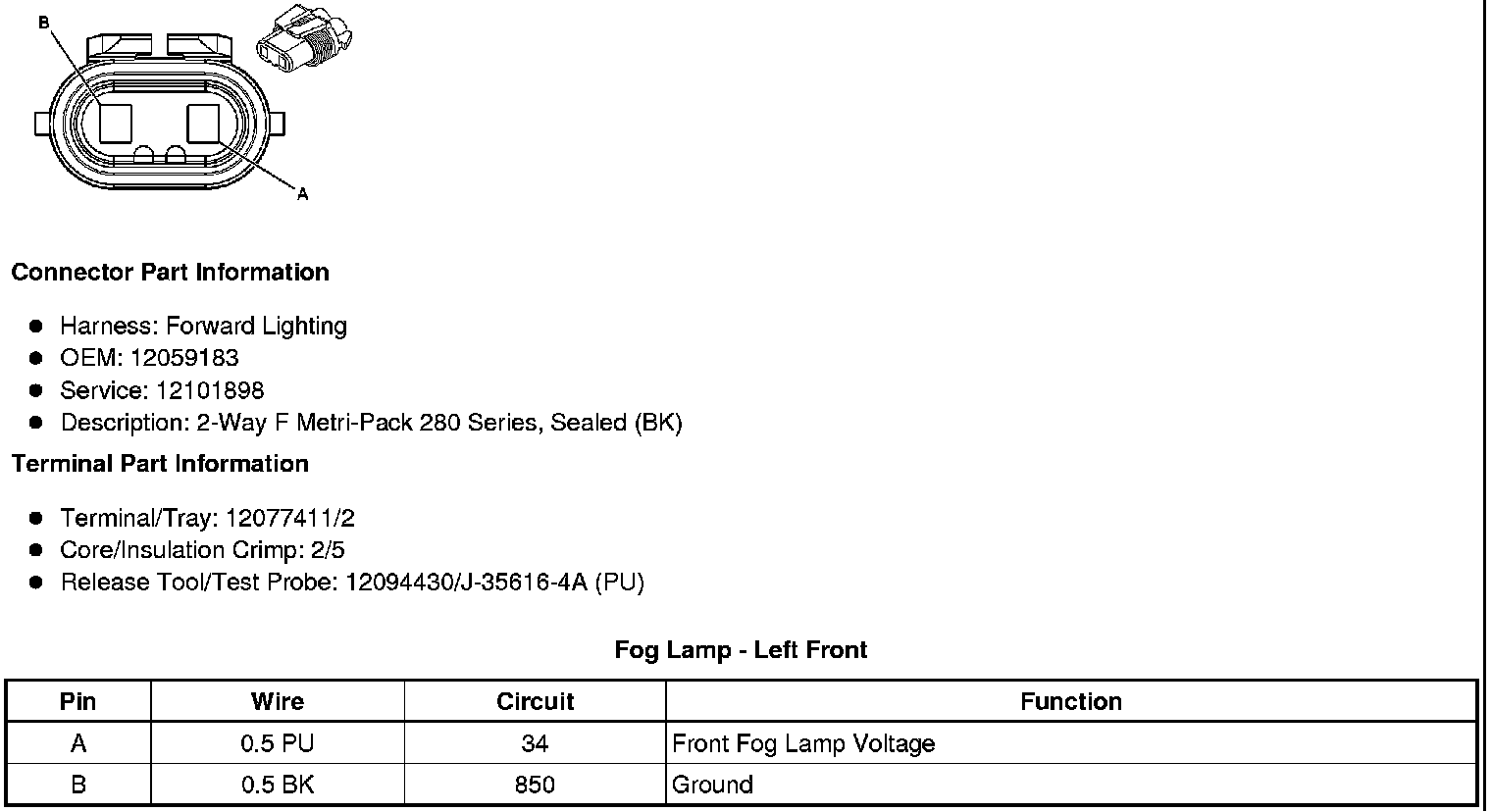

Fog Lamp - Left Front

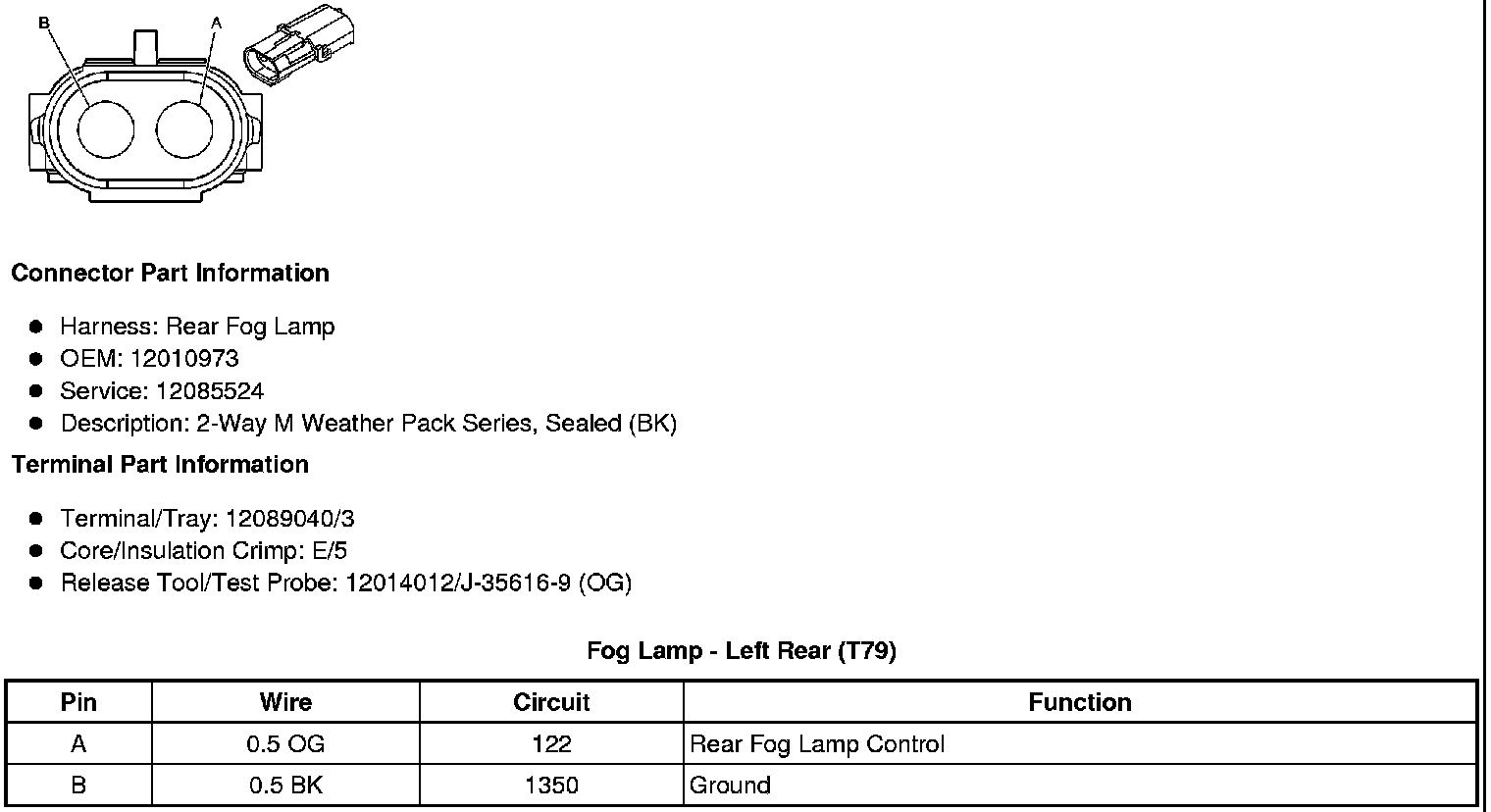

Fog Lamp - Left Rear (T79)

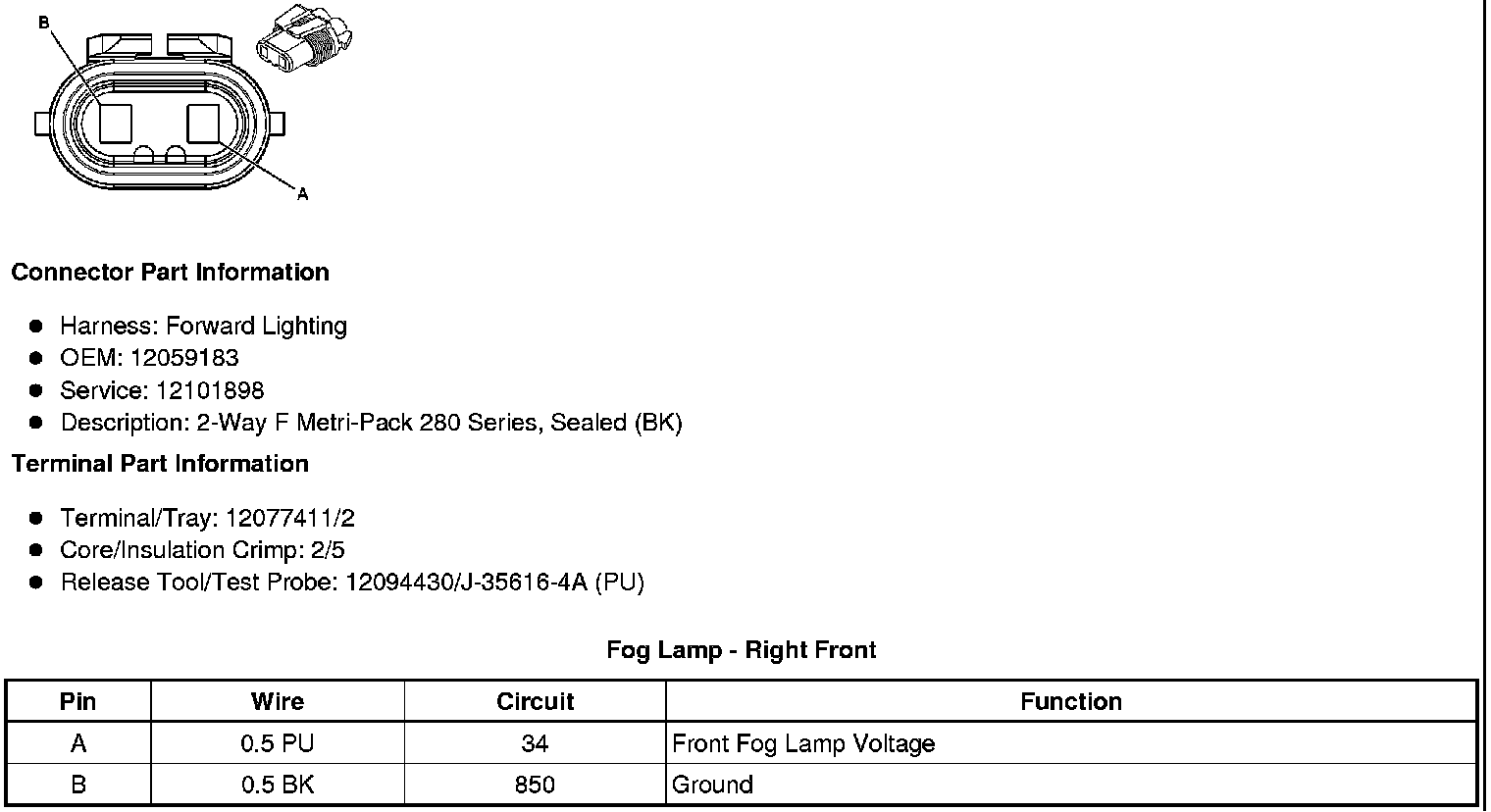

Fog Lamp - Right Front






Fog Lamp - Right Rear (T79)
