Electronic Brake Control Module




Component Connector End Views

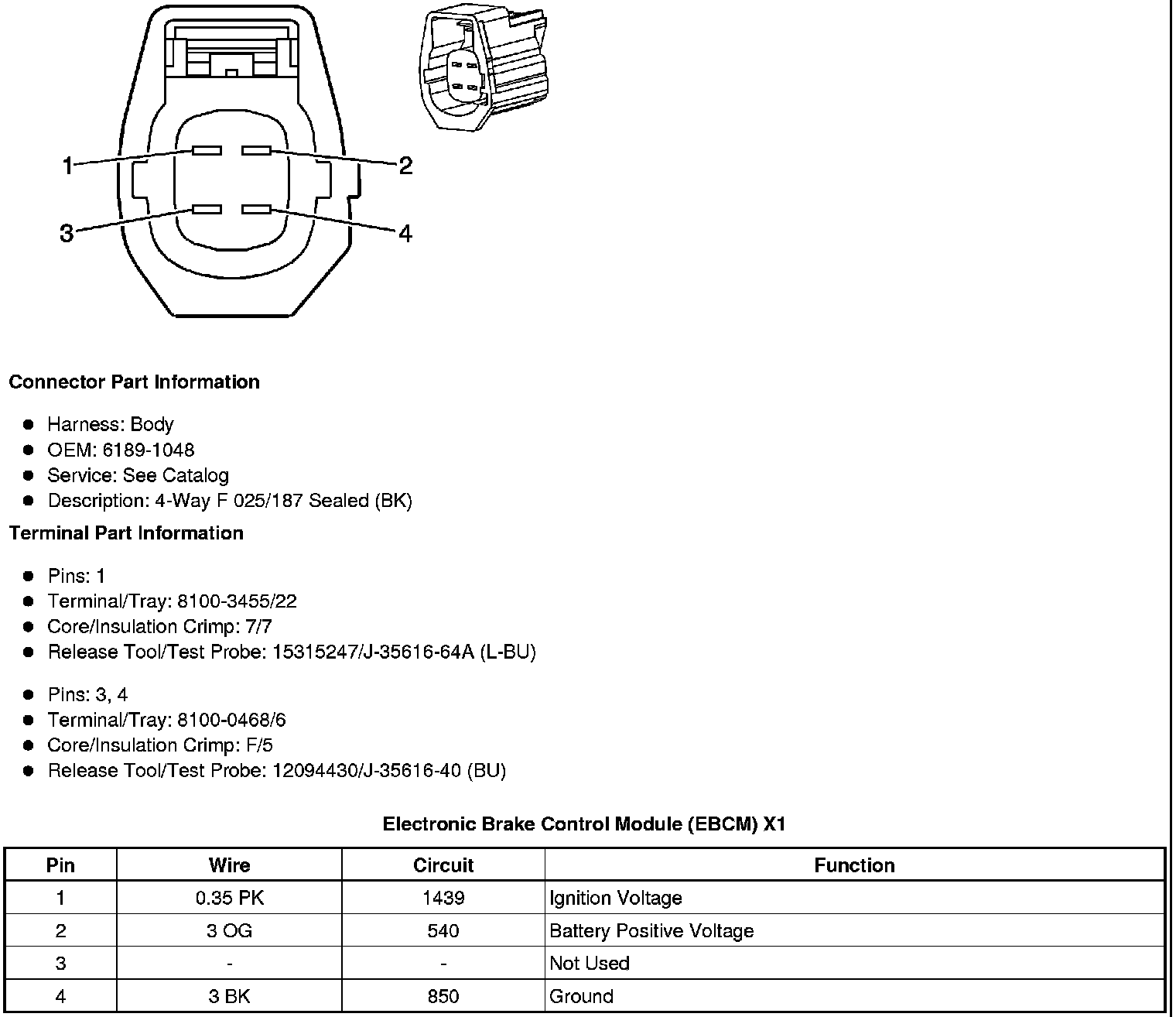

Electronic Brake Control Module (EBCM) X1

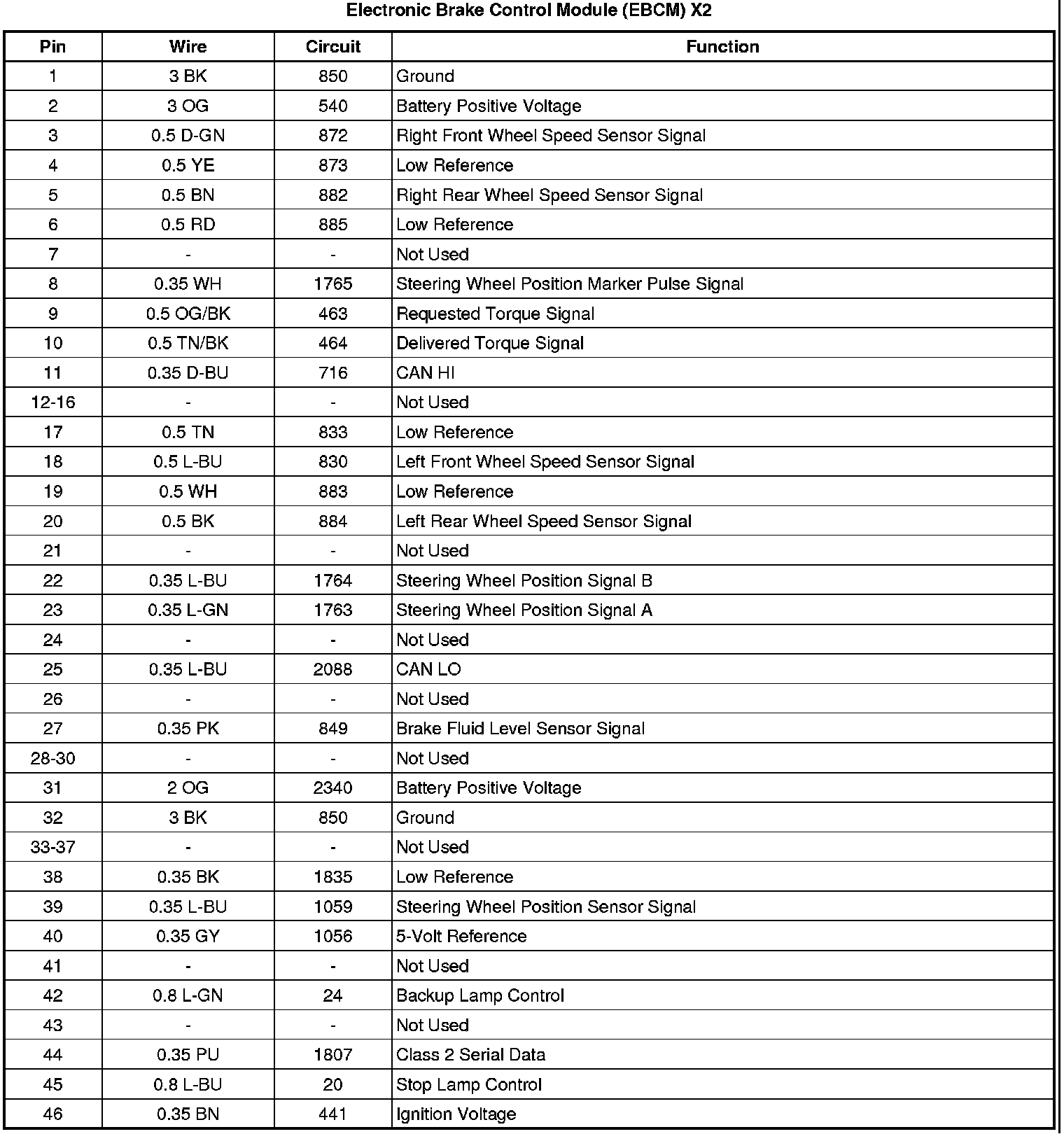

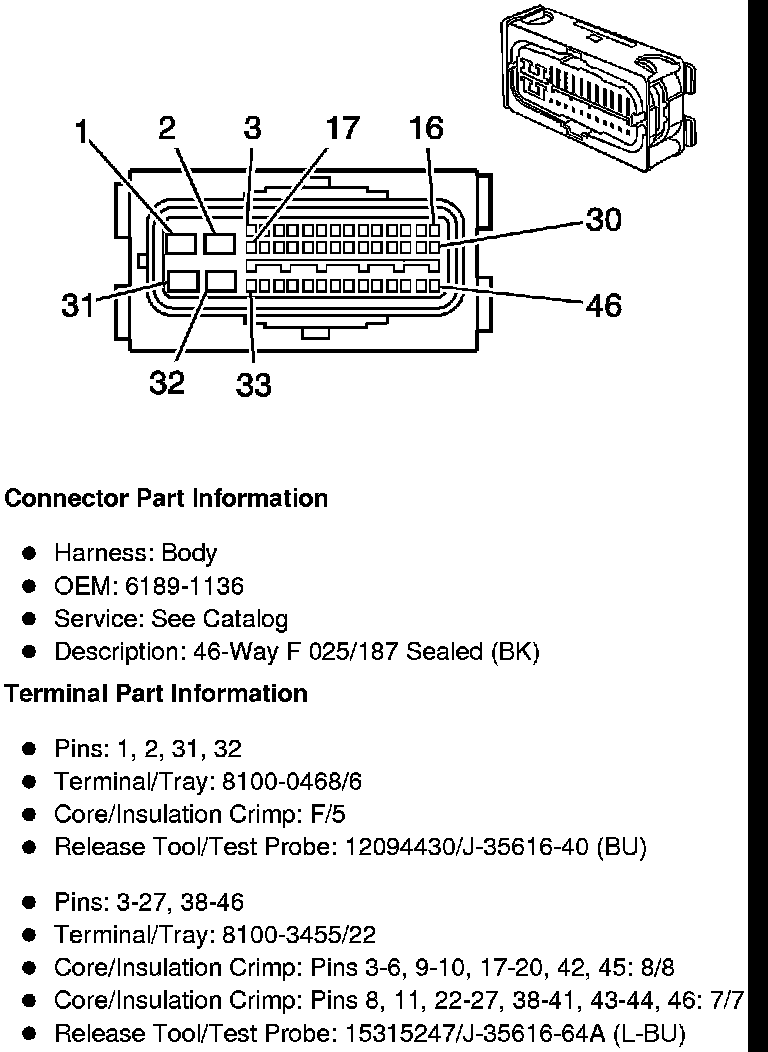

Electronic Brake Control Module (EBCM) X2
