Control Module, Transfer Case




Component Connector End Views

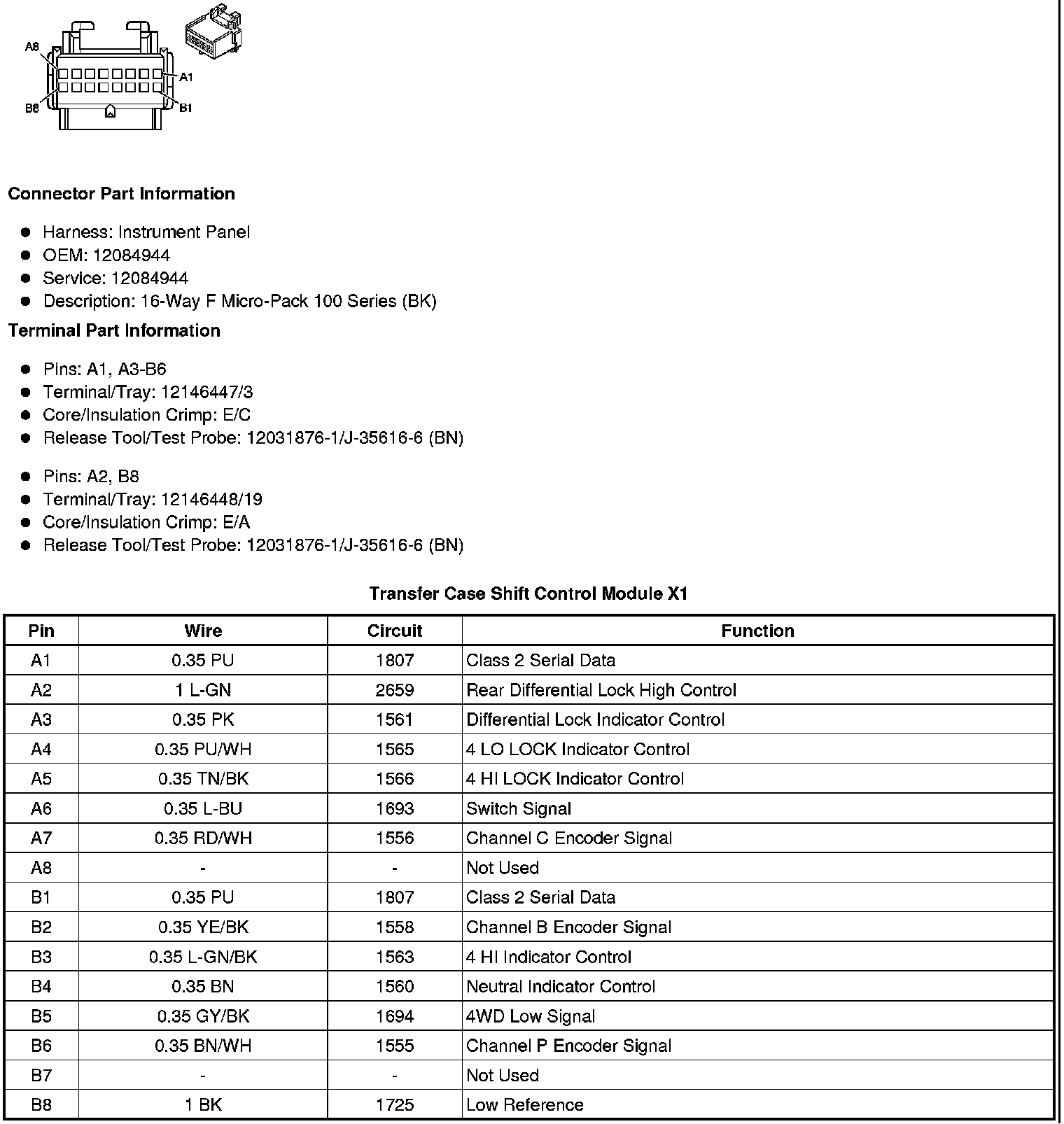

Transfer Case Shift Control Module X1

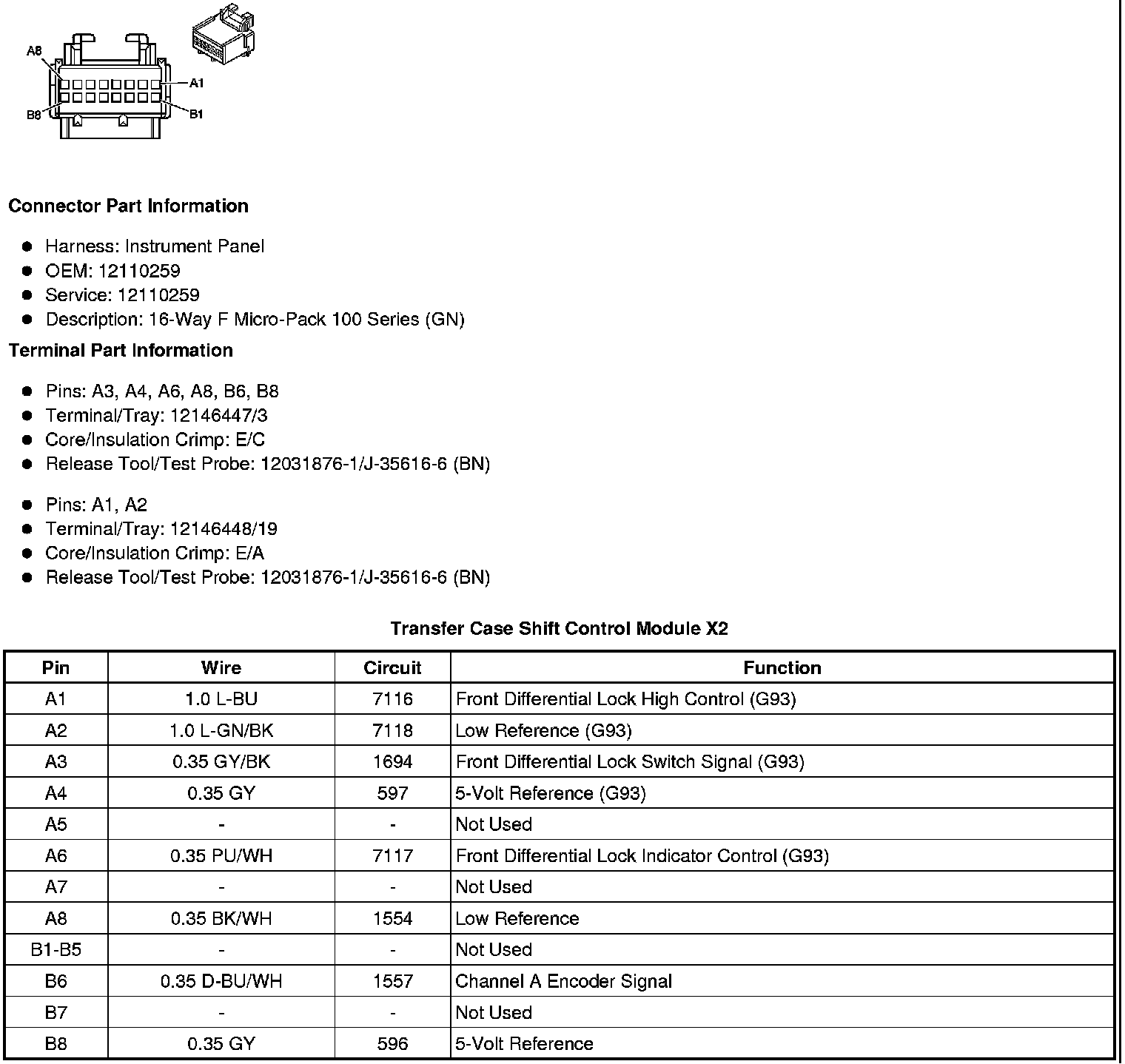

Transfer Case Shift Control Module X2

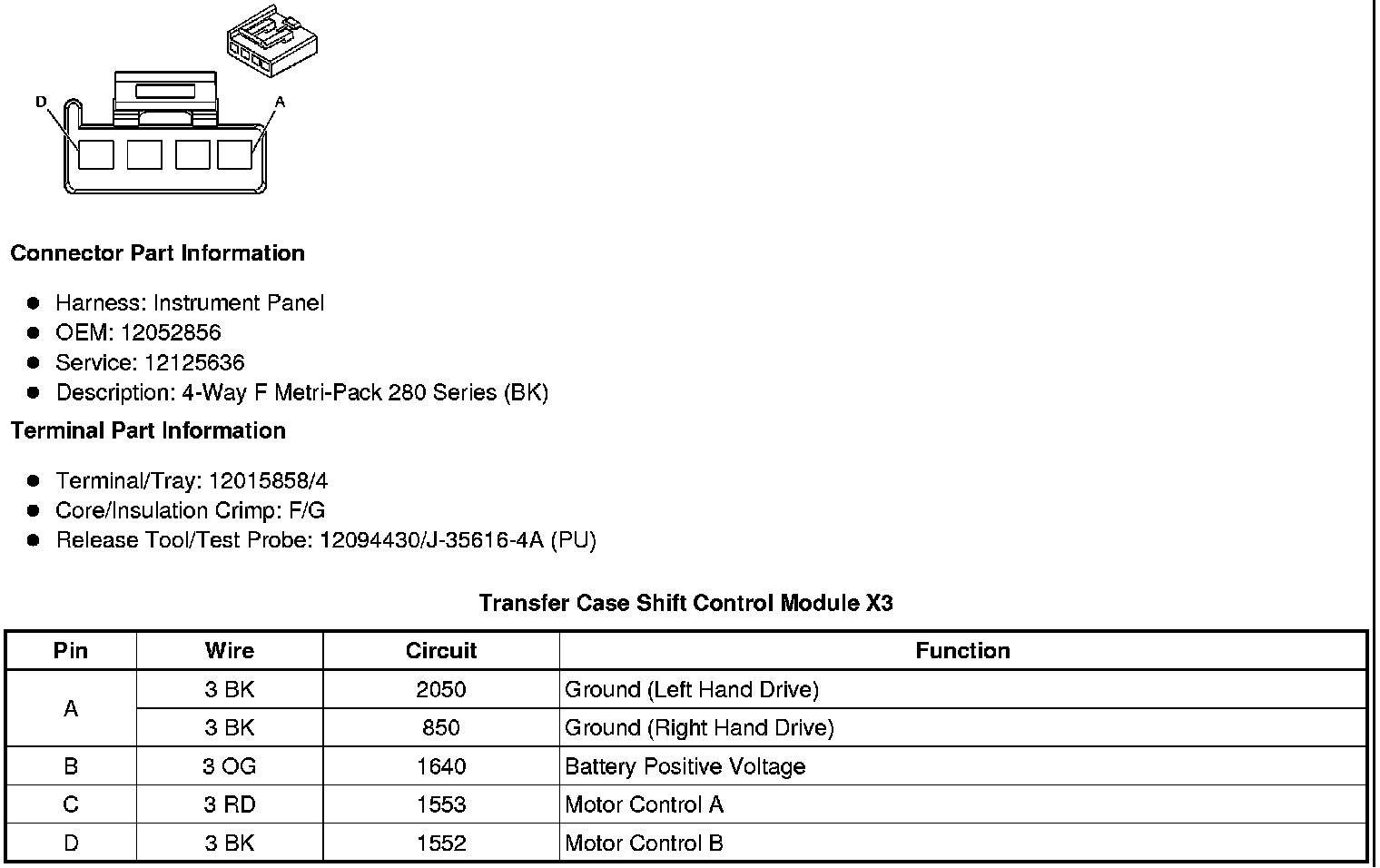

Transfer Case Shift Control Module X3
