X204

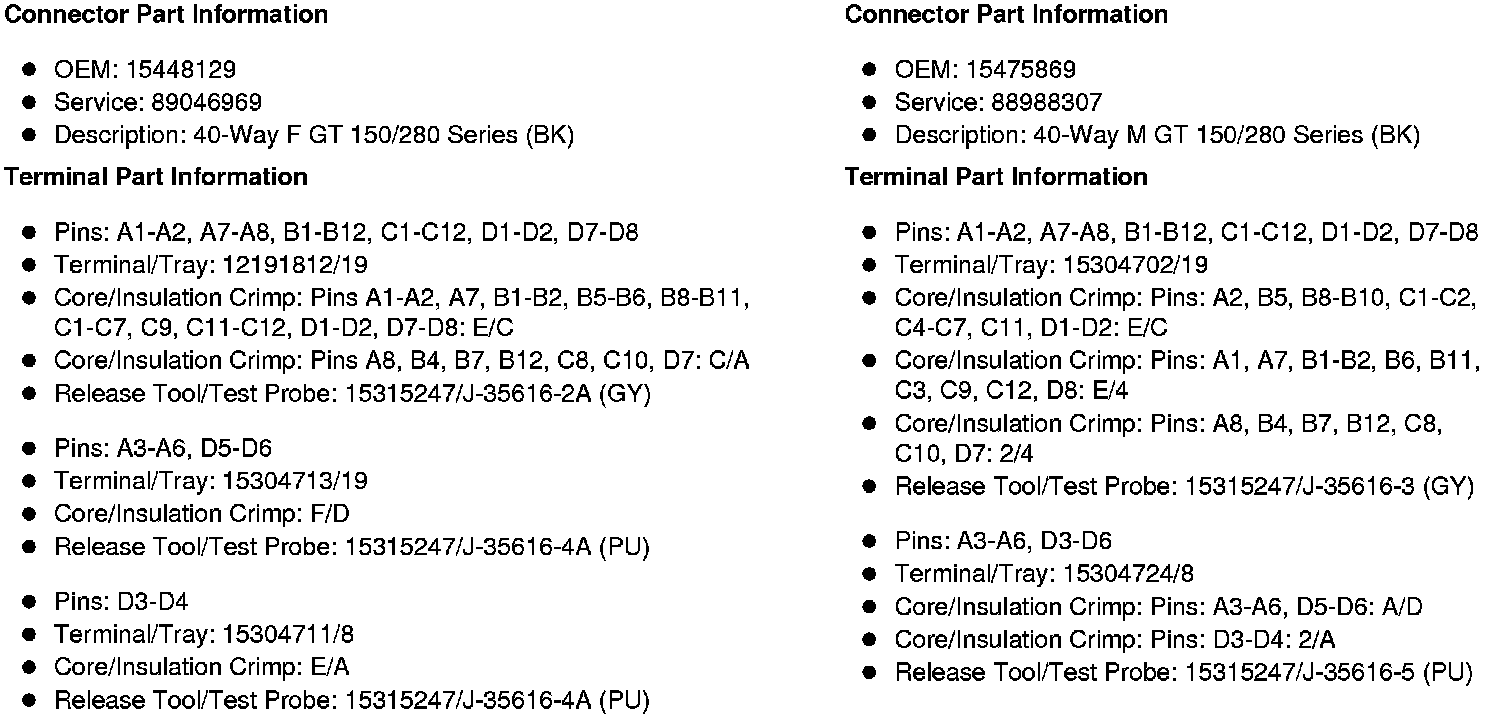

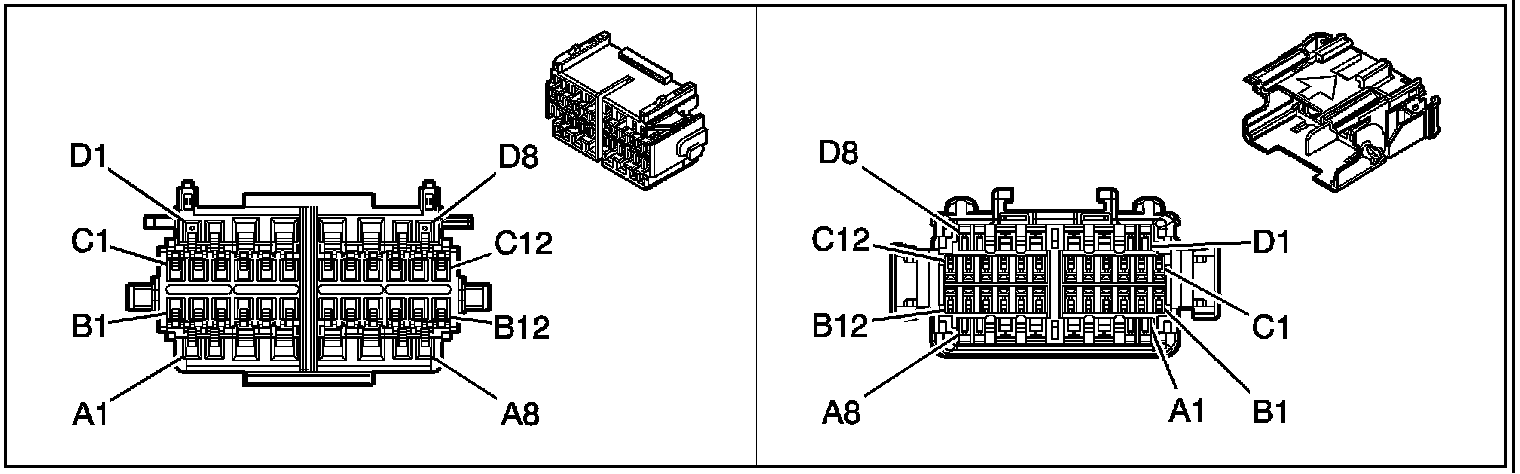

Inline Harness Connector End Views

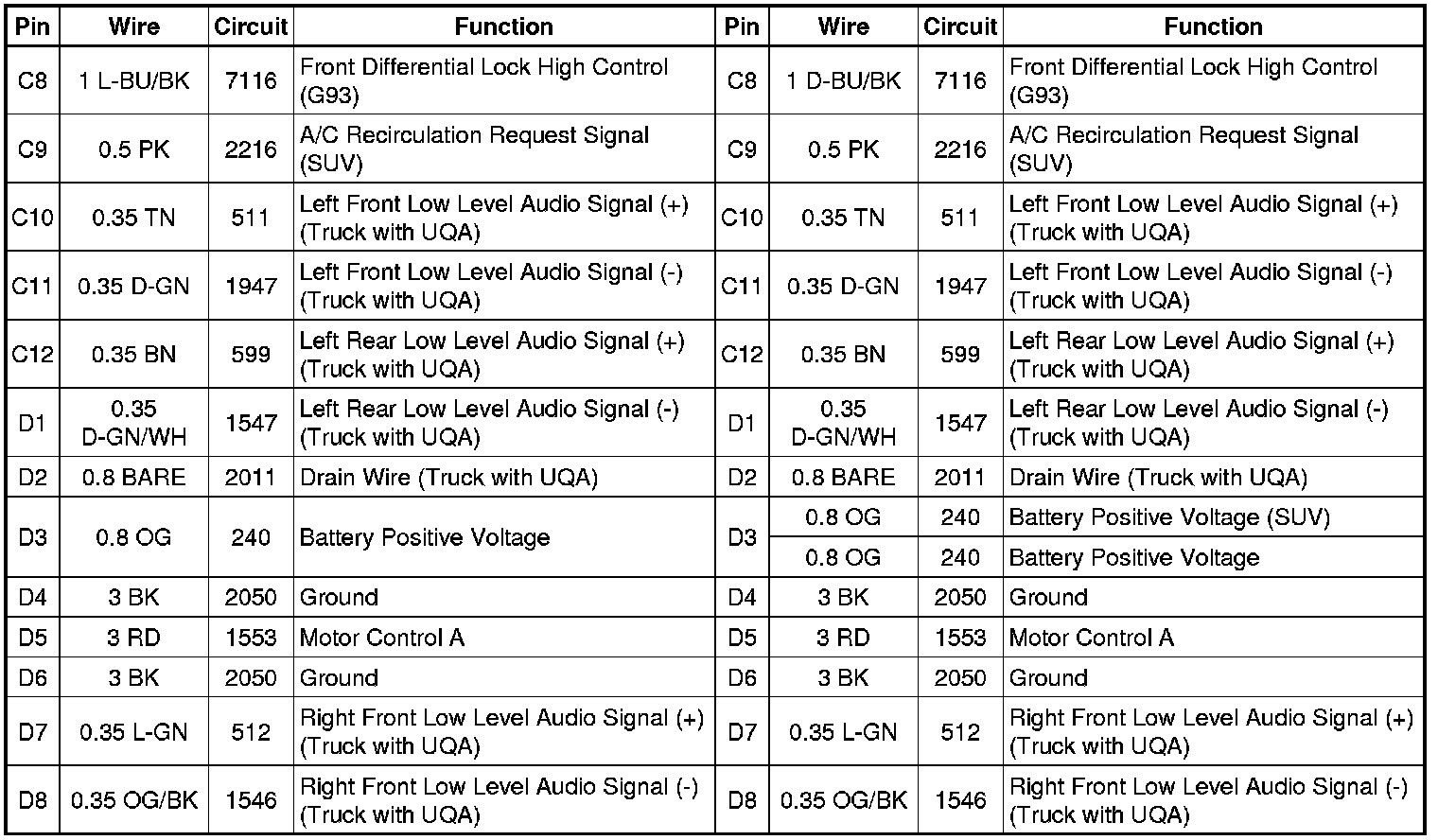

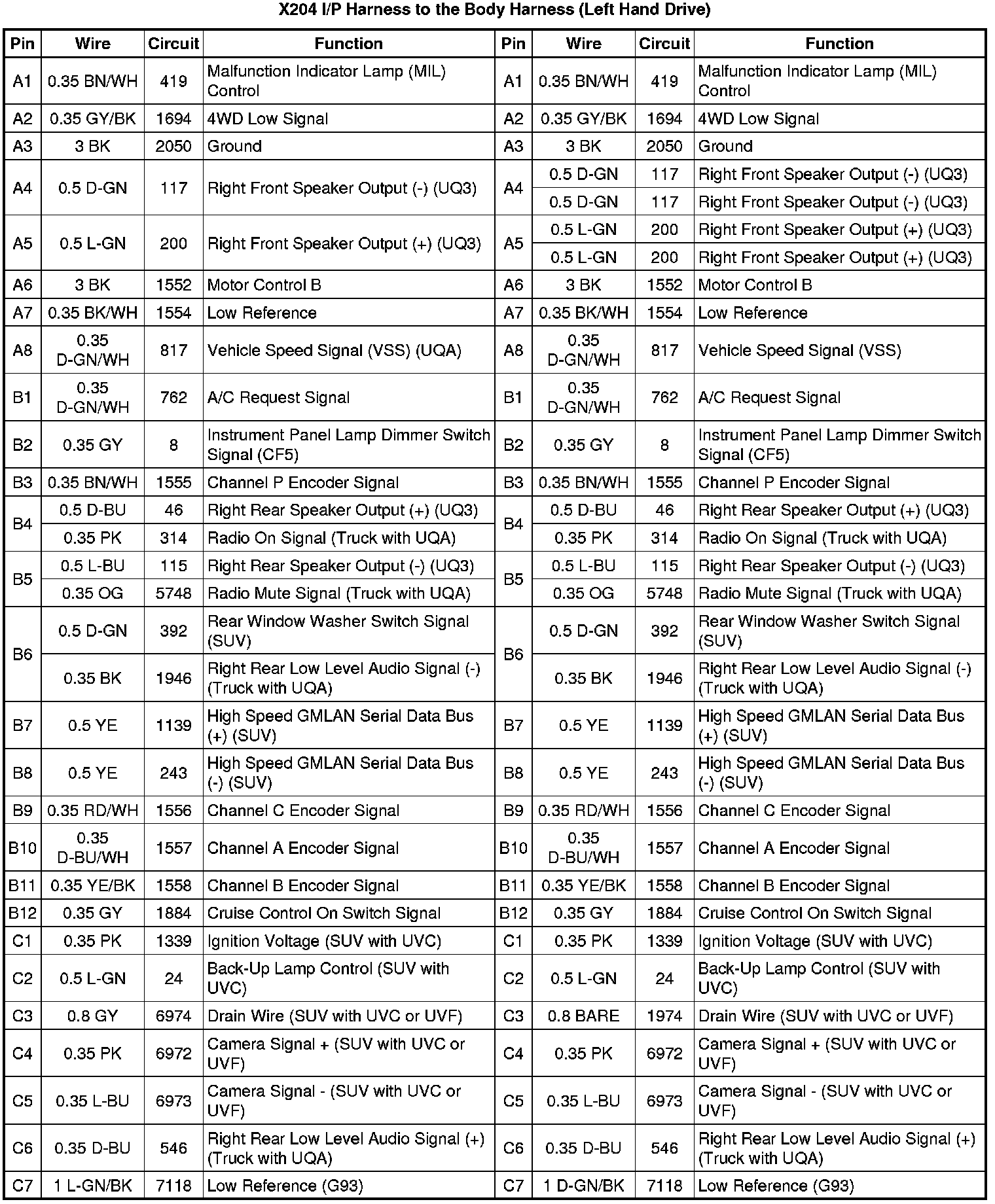

X204 I/P Harness to the Body Harness (Left Hand Drive)

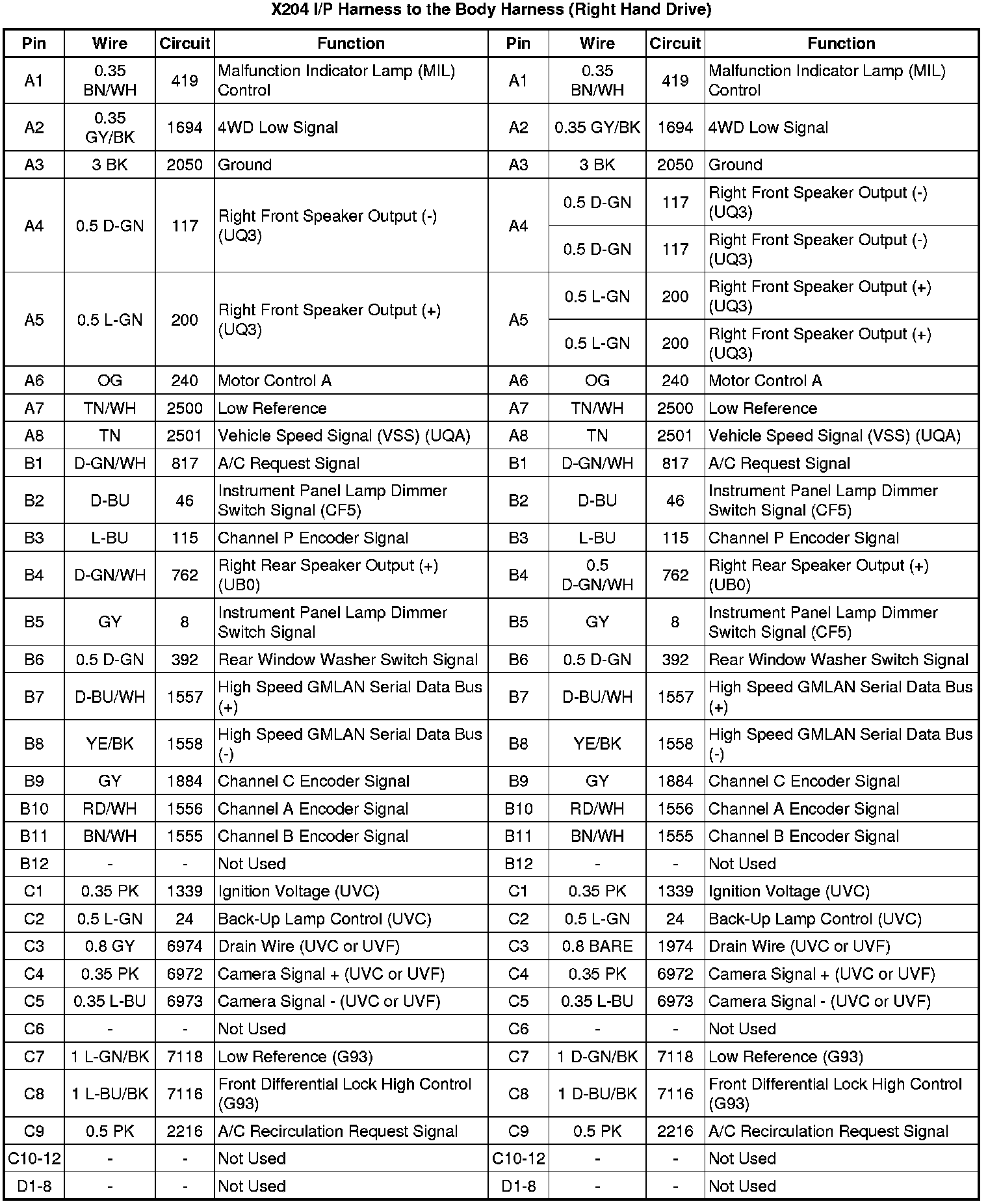

X204 I/P Harness to the Body Harness (Right Hand Drive)
