Passenger Compartment/Roof Component Views

Passenger Compartment/Roof Component Views

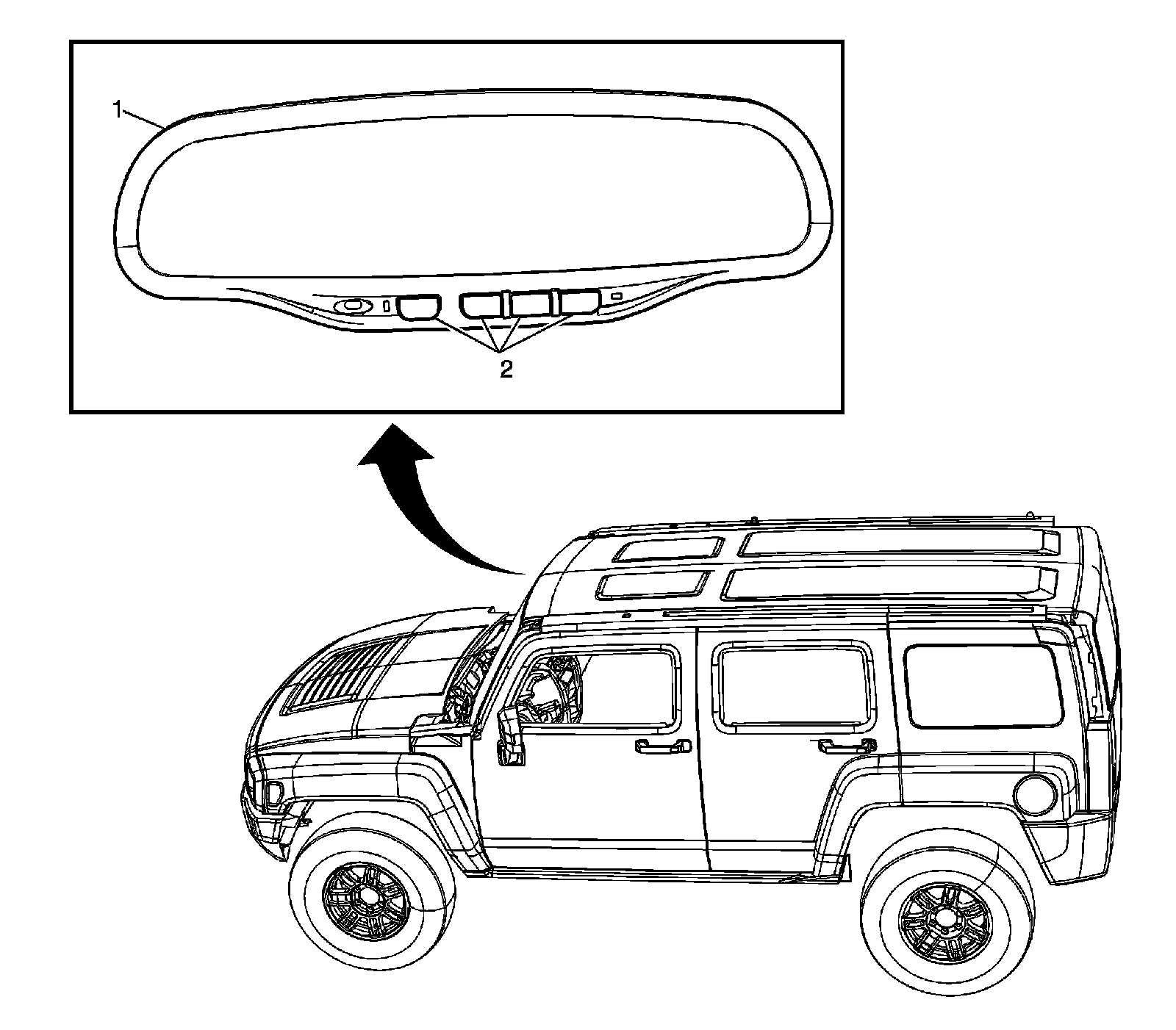

Top of the Windshield Components




1 - Inside Rearview Mirror (ISRVM)
2 - Onstar Keypad (UE1)

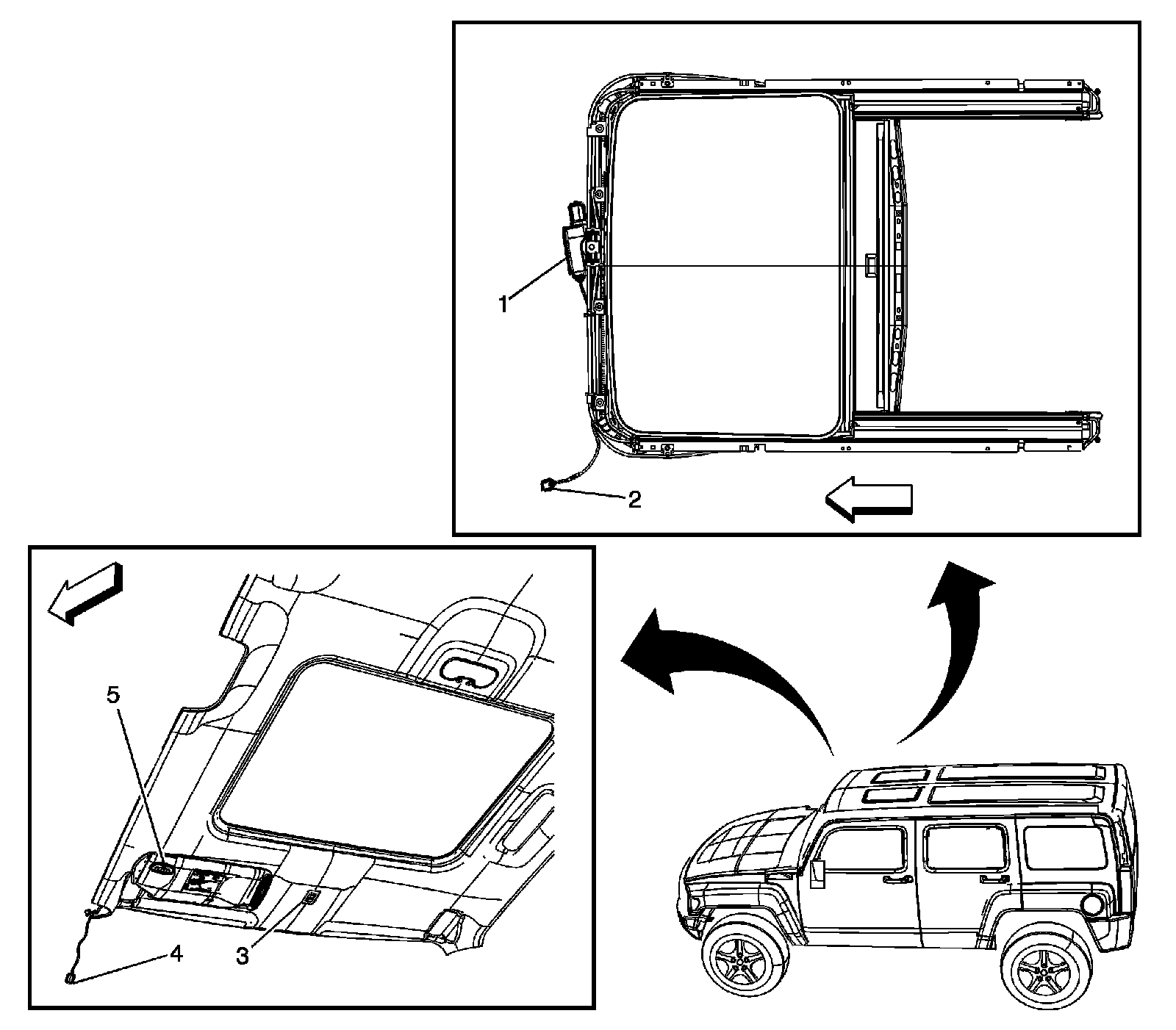

Front of the Headliner Components (CF5/UG1)




1 - Sunroof Motor (CF5)
2 - X330 (CF5)
3 - Sunroof Switch (CF5)
4 - X335 (CF5/UG1)
5 - Garage Door Opener (UG1)

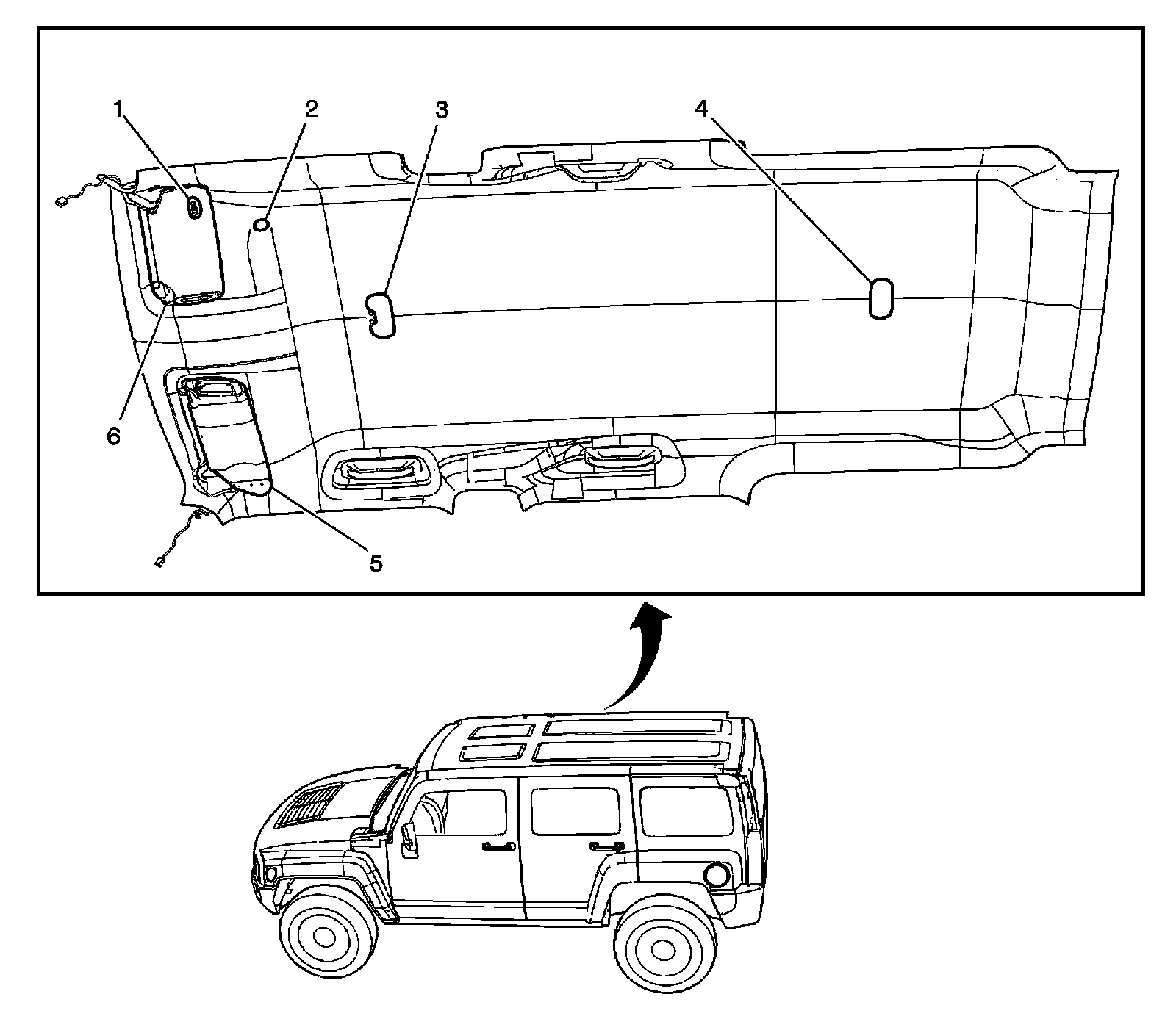

Headliner Components




1 - Garage Door Opener (UG1)
2 - Cellular Telephone Microphone (UE1)
3 - Dome/Reading Lamps
4 - Dome Lamp
5 - Sunshade - Right (DH6)
6 - Sunshade - Left (DH6)

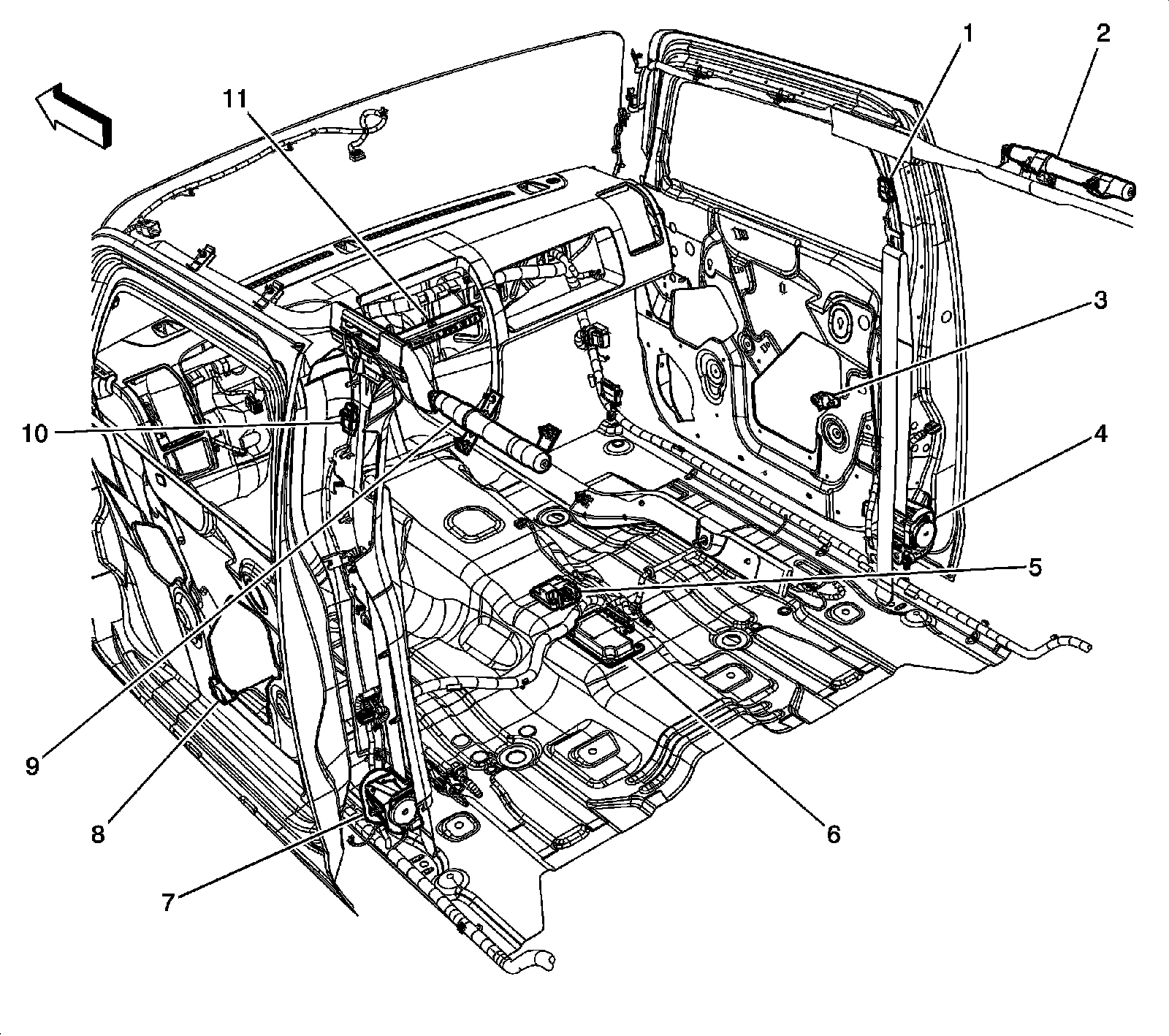

Front of the Passenger Compartment Components




1 - Inflatable Restraint Roof Rail Module - Right Connector (ASF)
2 - Inflatable Restraint Roof Rail Module - Right (ASF)
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
4 - Seat Belt Pretensioner - Passenger
5 - Inflatable Restraint Vehicle Rollover Sensor (ASF)
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Seat Belt Pretensioner - Driver
8 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
9 - Inflatable Restraint Roof Rail Module - Left (ASF)
10 - Inflatable Restraint Roof Rail Module - Left Connector (ASF)
11 - Accessory Switch

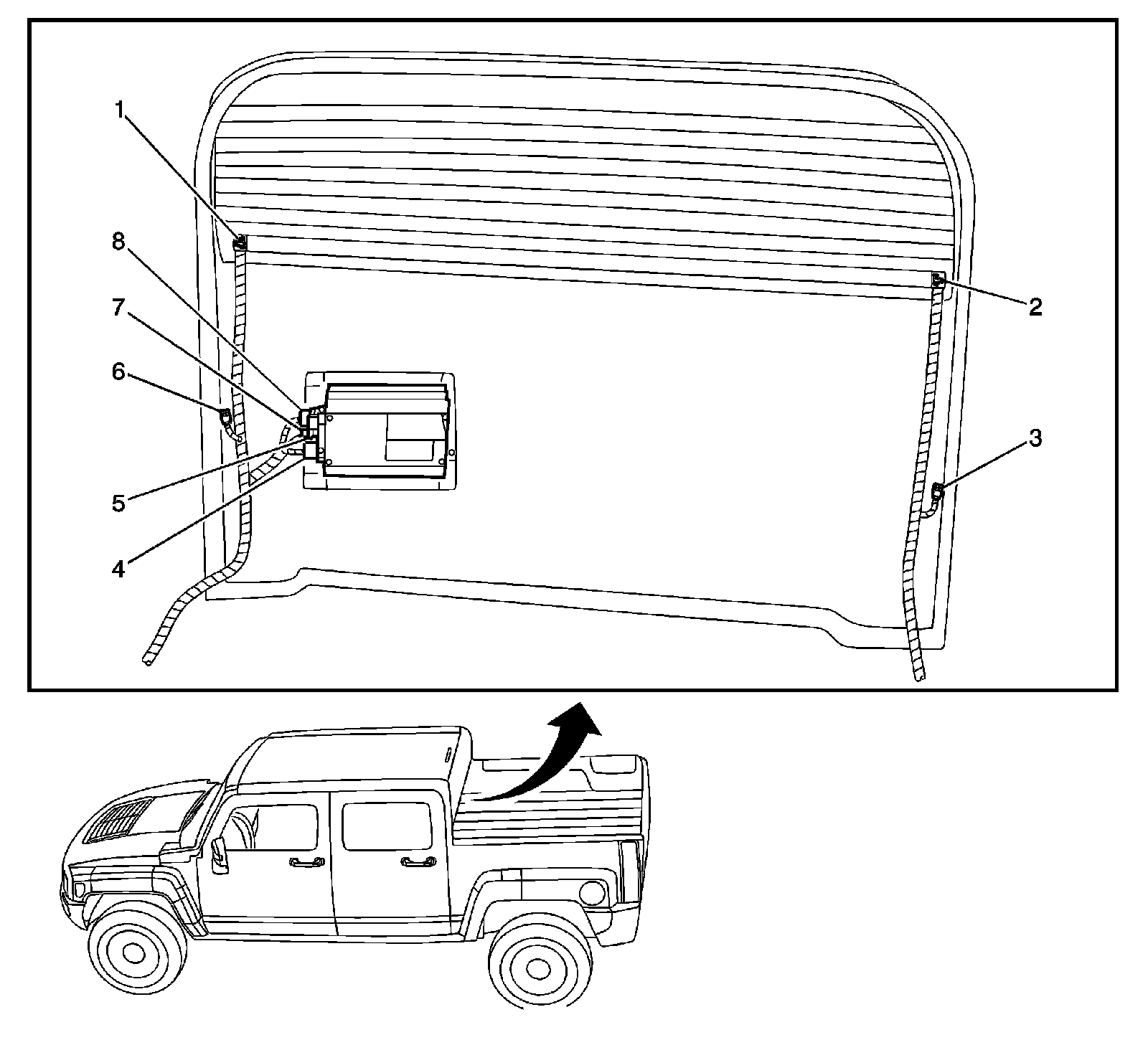

Rear of the Passenger Compartment Components (TRUCK)




1 - Rear Window Defogger Connector X2
2 - Rear Window Defogger Connector X1
3 - G345
4 - Audio Amplifier X1 (UQA)
5 - Audio Amplifier X2 (UQA)
6 - G340
7 - Audio Amplifier (UQA)
8 - Audio Amplifier X3 (UQA)

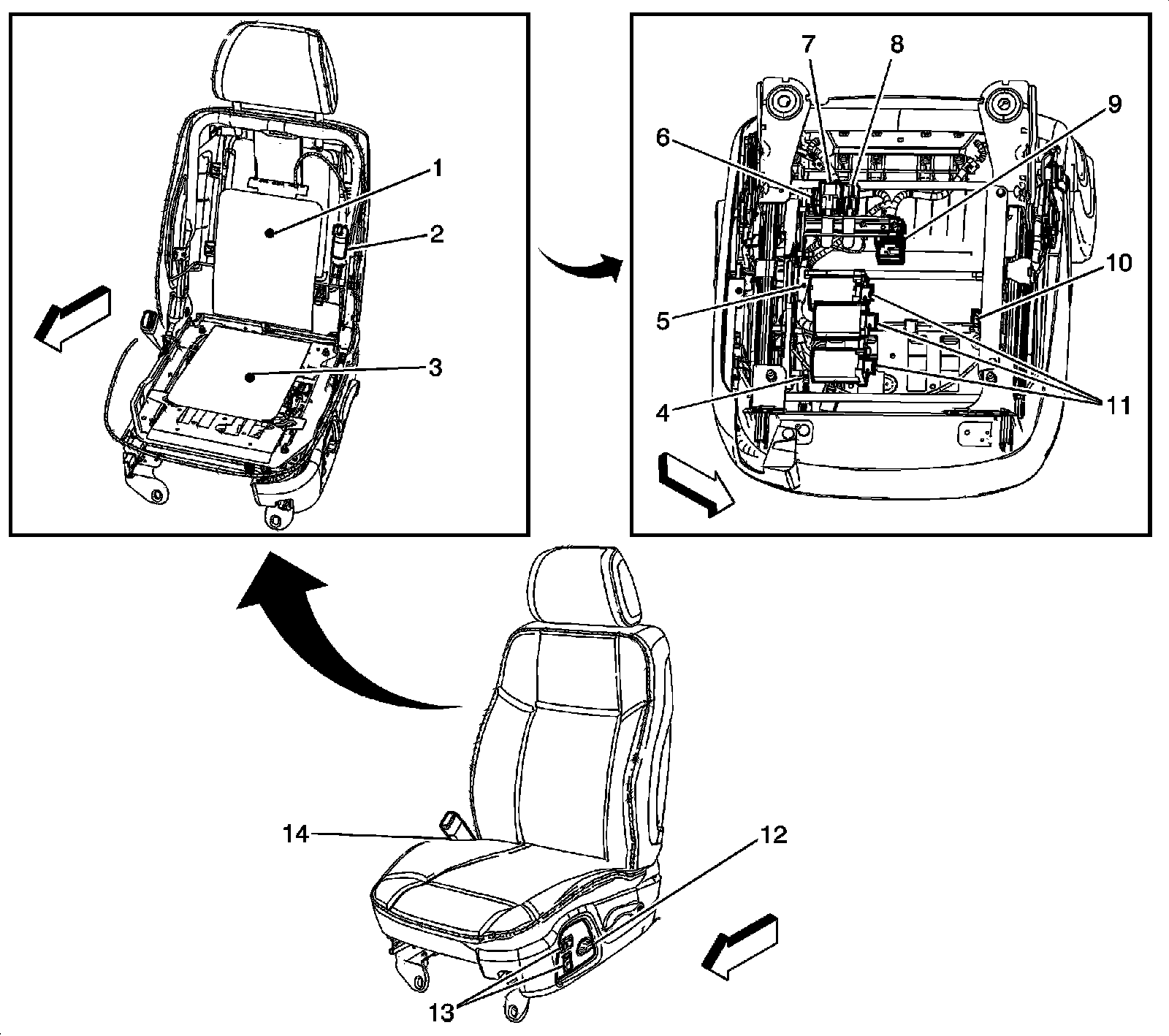

Driver Seat Components




1 - Heated Seat Element - Driver Back (KA1)
2 - Seat Lumbar Motor - Driver (AG1)
3 - Heated Seat Element - Driver Cushion (KA1)
4 - J306 (AG1)
5 - J312 (AG1)
6 - Fuse Holder Power Seat (AG1)
7 - X307 (AG1)
8 - X308
9 - Heated Seat Control Module - Driver (KA1)
10 - Inflatable Restraint Seat Position Sensor (SPS) - Driver
11 - Seat Adjuster Motor Assembly - Driver (AG1)
12 - Seat Adjuster Switch - Driver (AG1)
13 - Seat Lumbar Adjuster Switch - Driver (AG1)
14 - Seat Belt Buckle - Driver

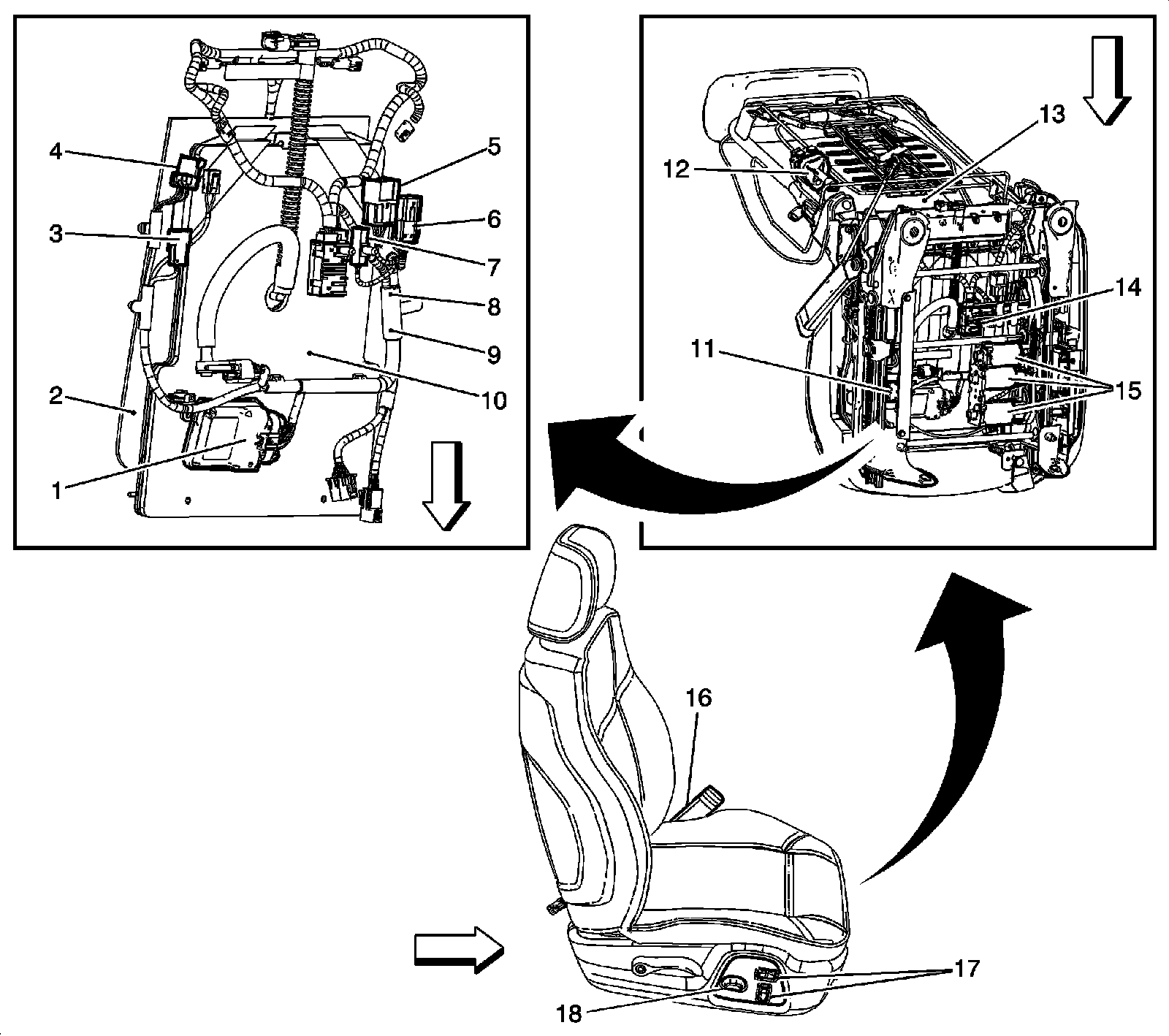

Passenger Seat Components




1 - Inflatable Restraint Front Passenger Presence System (PPS) Module
2 - Heated Seat Element - Passenger Cushion (KA1)
3 - Seat Belt Buckle - Passenger X1
4 - Seat Belt Buckle - Passenger X2
5 - X320
6 - X315
7 - X318 (AG2)
8 - J341 (AG2)
9 - J316 (AG2)
10 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
11 - Inflatable Restraint Seat Position Sensor (SPS) - Passenger
12 - Seat Lumbar Motor - Passenger (AG2)
13 - Heated Seat Element - Passenger Back (KA1)
14 - Heated Seat Control Module - Passenger (KA1)
15 - Seat Adjuster Motor Assembly - Passenger (AG2)
16 - Seat Belt Buckle - Passenger
17 - Seat Lumbar Adjuster Switch - Passenger (AG2)
18 - Seat Adjuster Switch - Passenger (AG2)
