Home
>>
Hummer
>>
2009
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Service and Repair
>>

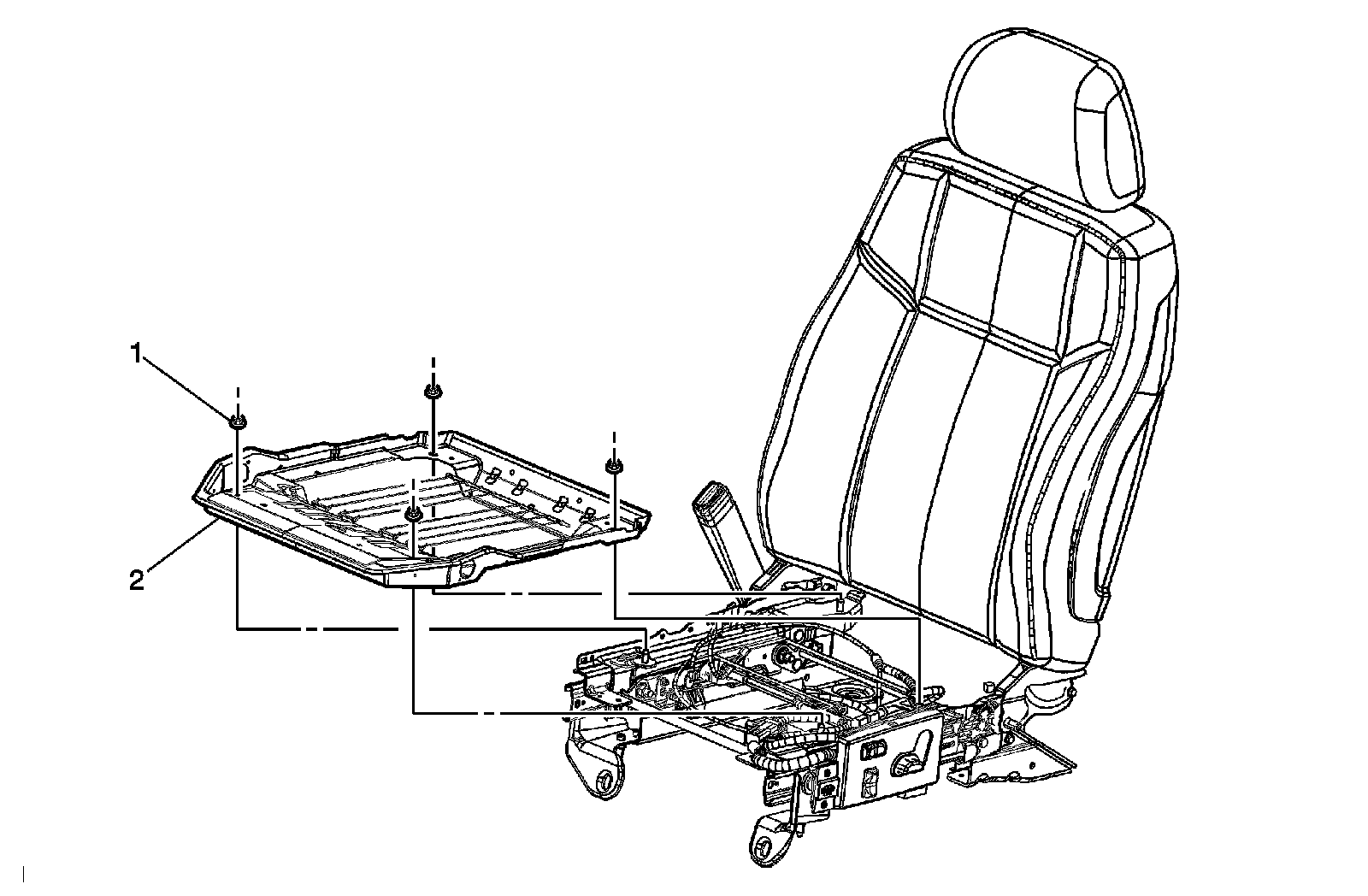

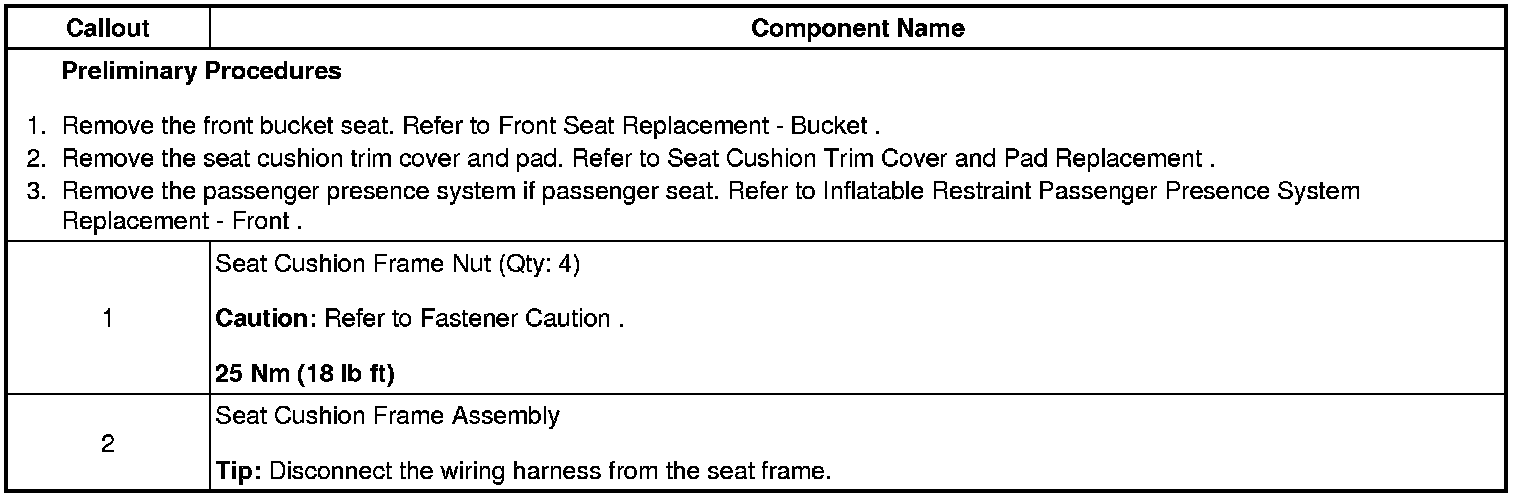

Driver or Passenger Seat Cushion Frame Replacement
Driver or Passenger Seat Cushion Frame Replacement
Driver or Passenger
Seat Cushion
Frame
Replacement
