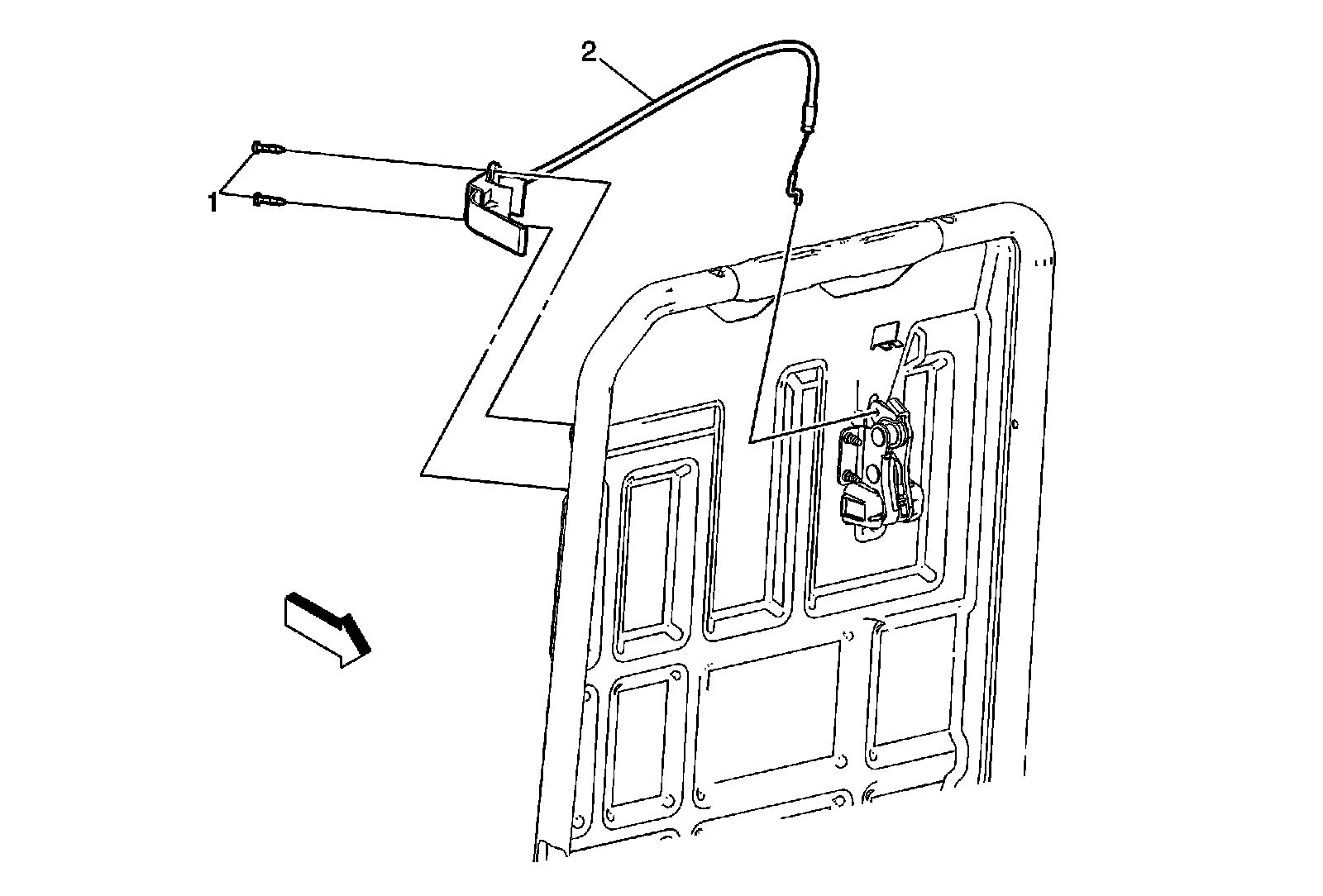

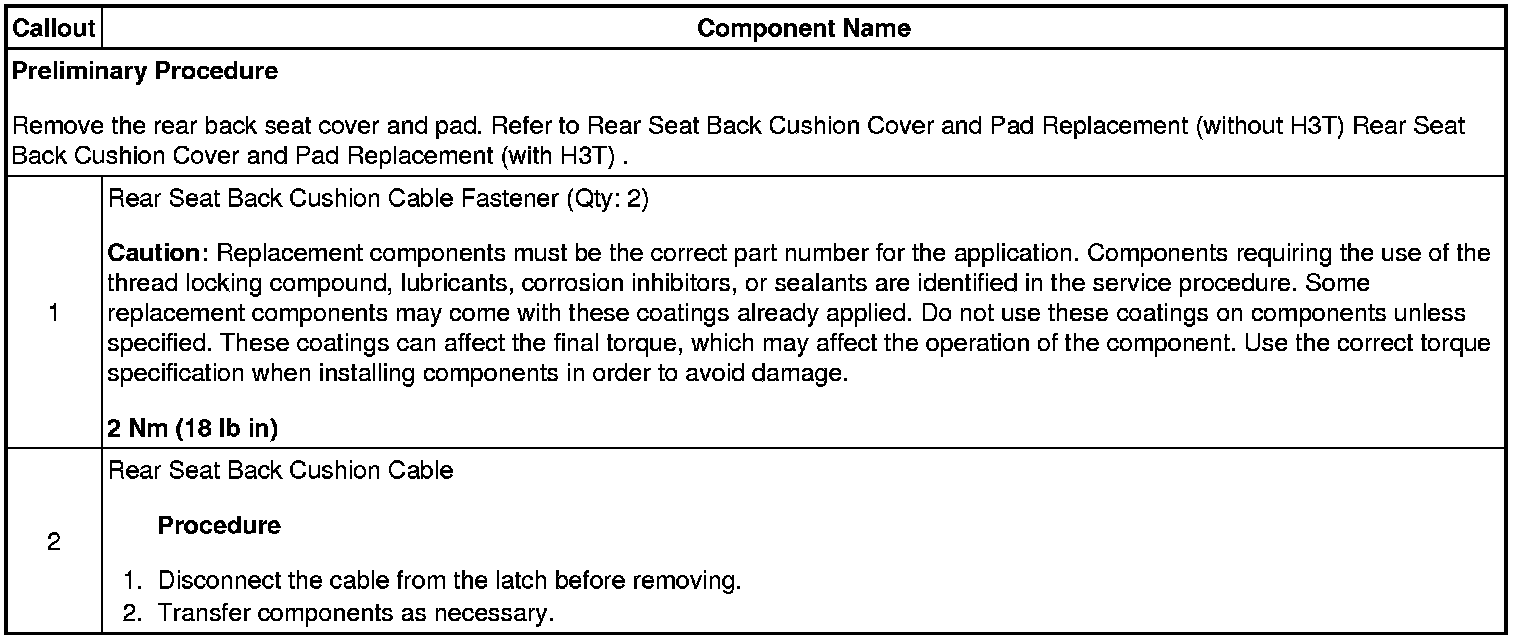

Rear Seat Back Cushion Latch Cable Replacement (with H3T)
Rear Seat Back Cushion Latch Cable Replacement (with H3T)
Rear
Seat Back
Cushion Latch Cable Replacement (with H3T)
