Body - Sunroof Glass Contacts Roof Bow
TECHNICALBulletin No.: 08-08-67-014
Date: October 01, 2008
Subject:
Sunroof Glass Contacts Roof Bow (Apply Adhesive)
Models:
2009 HUMMER H3, H3T
Condition
Some customers may comment that the sunroof glass rubs on something in the roof or that the glass rattles when the sunroof glass is partially open.
Cause
The back of the roof bow behind the sunroof opening may come in contact with the sunroof glass.
Correction
For a gap of 1/4 inch or less at the back of the bow to the roof:
1. Remove the headliner and sunroof module.
2. Plastic off the interior for protection.
3. Pull down on the roof bow slightly and remove any anti-flutter compound.

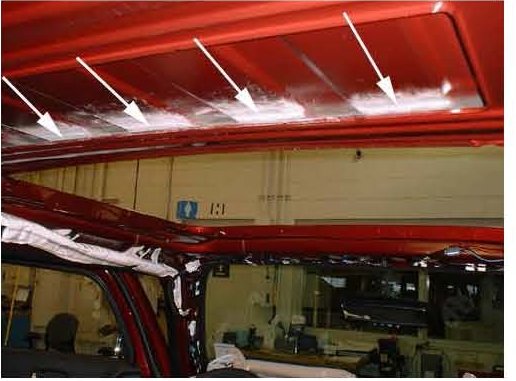

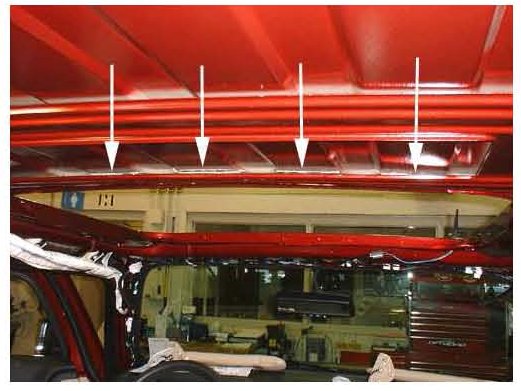

4. Sand the roof and the top of bow down to bare metal in four locations.

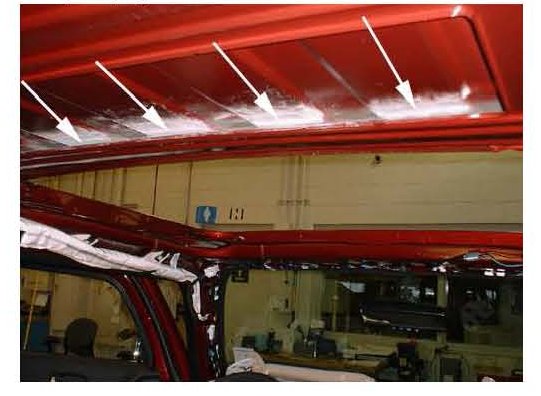

5. Apply 3M 08116 or equivalent to the top of the bow and to any bare metal.

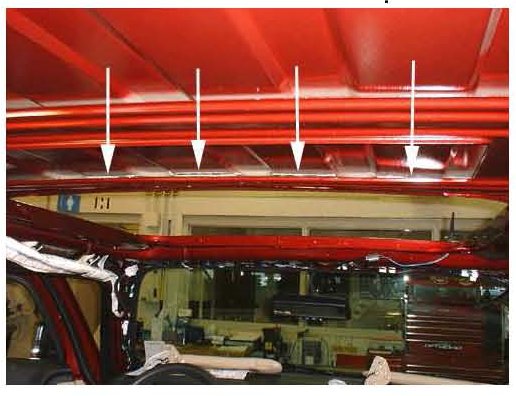

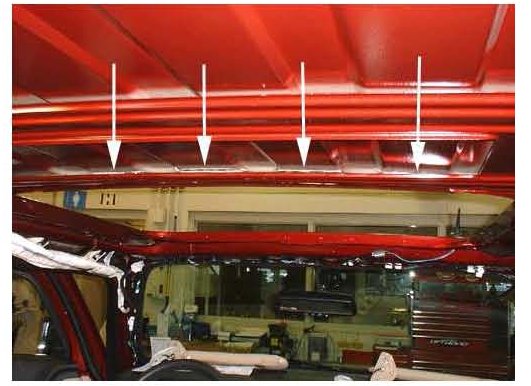

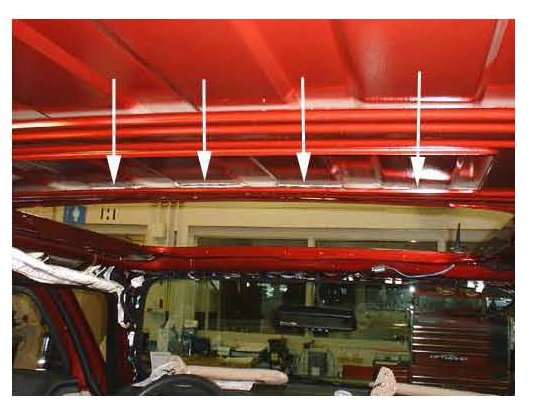

6. Push the back of the bow up to the roof to within 1/8 inch and squeeze 3M 08116 or equivalent between the roof and the bow in four roof locations.
7. Let it set for 24 hours.
8. It may be necessary to pull down on the center of the roof so that it is flush with the sunroof glass when done because it was pushed up during the repair process.
9. Adjust the sunroof glass so that the glass is flush to the top of the roof in the corners.
10. In some cases, it was necessary to elongate the holes for the sunroof glass attaching holes so that it was flush.
Correction
For a gap of 1/4 inch to 1/2 inch at the back of the bow to the roof:
1. Remove the front and rear seats.
2. Remove the headliner and sunroof module.
3. Place welding blankets in the interior to protect the interior.
4. Plastic off the interior for protection.

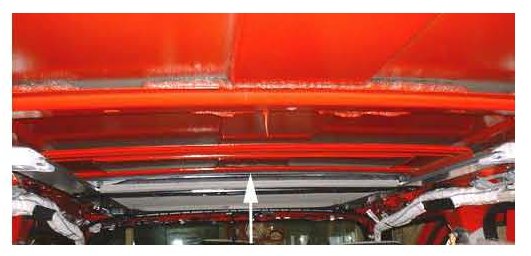

5. Place a piece of metal flat stock above the cut location to protect the roof and cut the bow through the second downturn.
6. Slightly pull down on the roof bow and remove any anti-flutter compound.
7. Sand the roof and the top of bow down to bare metal in four locations.
8. Apply 3M 08116 or equivalent to any bare metal on the roof and to the bow.
9. Push the back of the bow up to the roof within 1/8 inch.
10. Place a piece of aluminum flat stock above the cut line to protect the roof when welding.

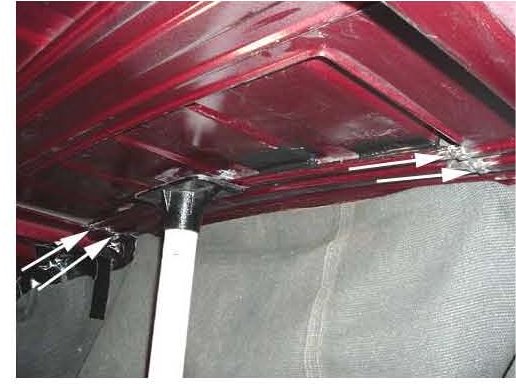

11. Mig weld the bow on both sides making sure the bow on the inside of the cut line is just above the cut line on the outer.

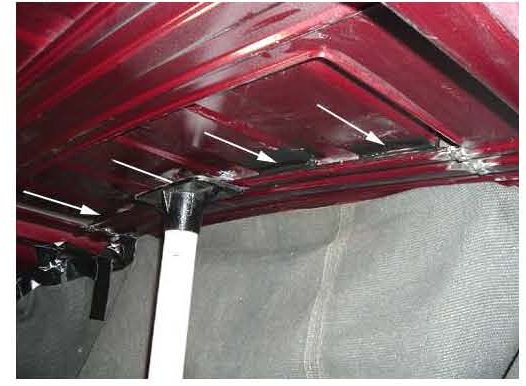

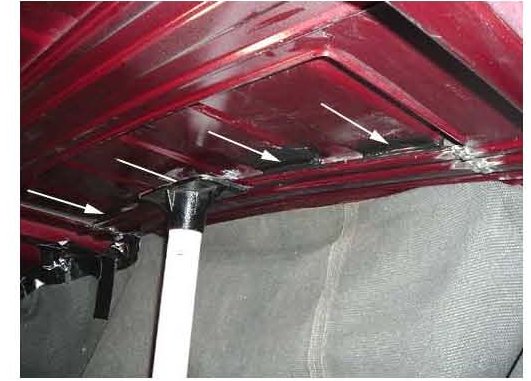

12. Squeeze 3M 08116 or equivalent between the roof and the bow in four locations and make sure the back of the bow is up to the roof within 1/8 inch.
13. Let it set for 24 hours and remove the jack.
14. Grind the welds flat in the two locations.
15. Coat the welded surfaces that are visible following the 2008 GMWI5406 GM Globally Approved Refinish Materials information. The refinish materials information is now online at the GMGOODWRENCH WEB SITE*. Printed books have been discontinued. To access the site, follow these steps:
^ Go to www.gmgoodwrench.com.
^ Click on For Body Shops & Services link at the bottom of the page.
^ Click on GM Technical Repair Information.
^ Click on Paint Shop tab.
^ *In Canada, the 2008 GM Approved Refinish Materials booklet is also available on the GM infoNET under the Service and Body tab.
16. Spray the top side of the welded bow surface with an anti-corrosion compound.
17. It may be necessary to pull down on the center of the roof when done because it was pushed up to meet the roof.
18. Adjust the sunroof glass so that the glass is flush to the roof in the corners.
19 In some cases it was necessary to elongate the holes for the sunroof glass attaching holes so that it was flush.

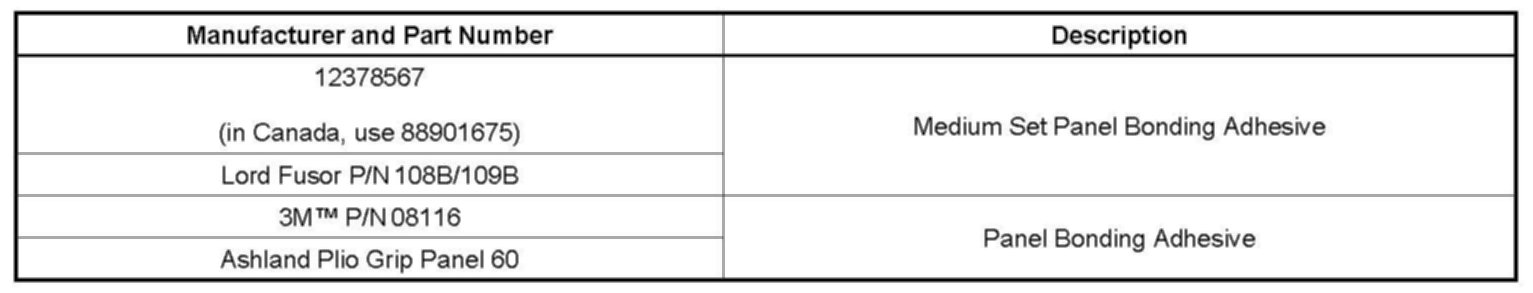

Parts Information
Warranty Information
For vehicles repaired under warranty, use the table.
