Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Cover / Fascia >> Service and Repair

Rear Bumper Cover / Fascia: Service and Repair

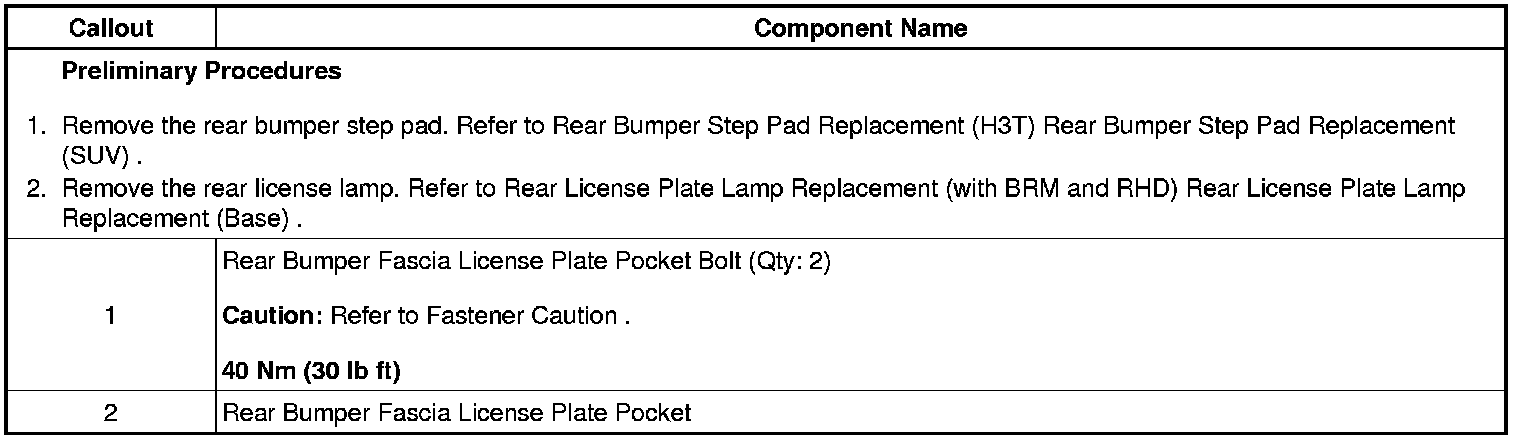

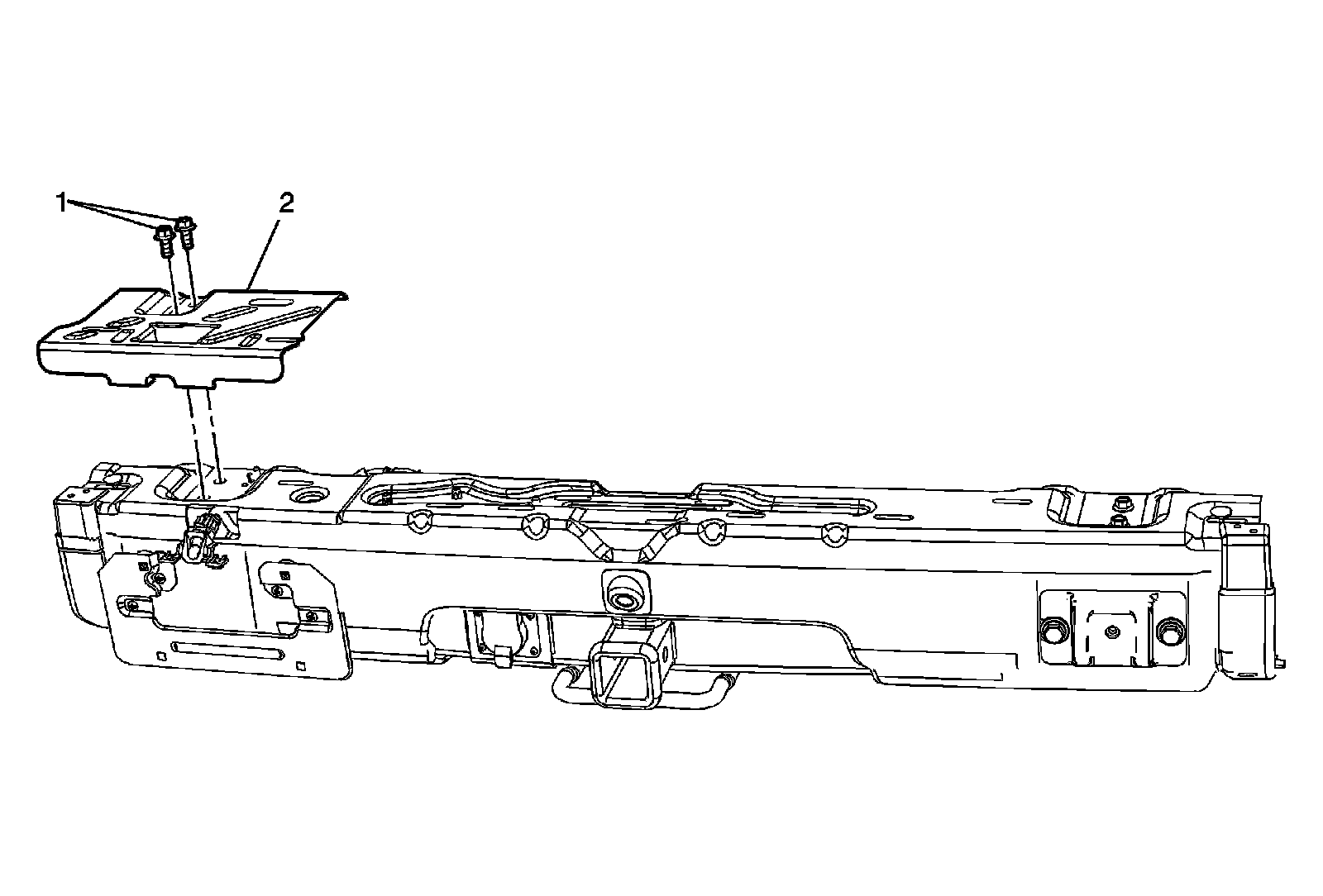

Rear Bumper Fascia License Plate Pocket Reinforcement Replacement (H3T)
