Trailer Connector: Diagrams




Component Connector End Views

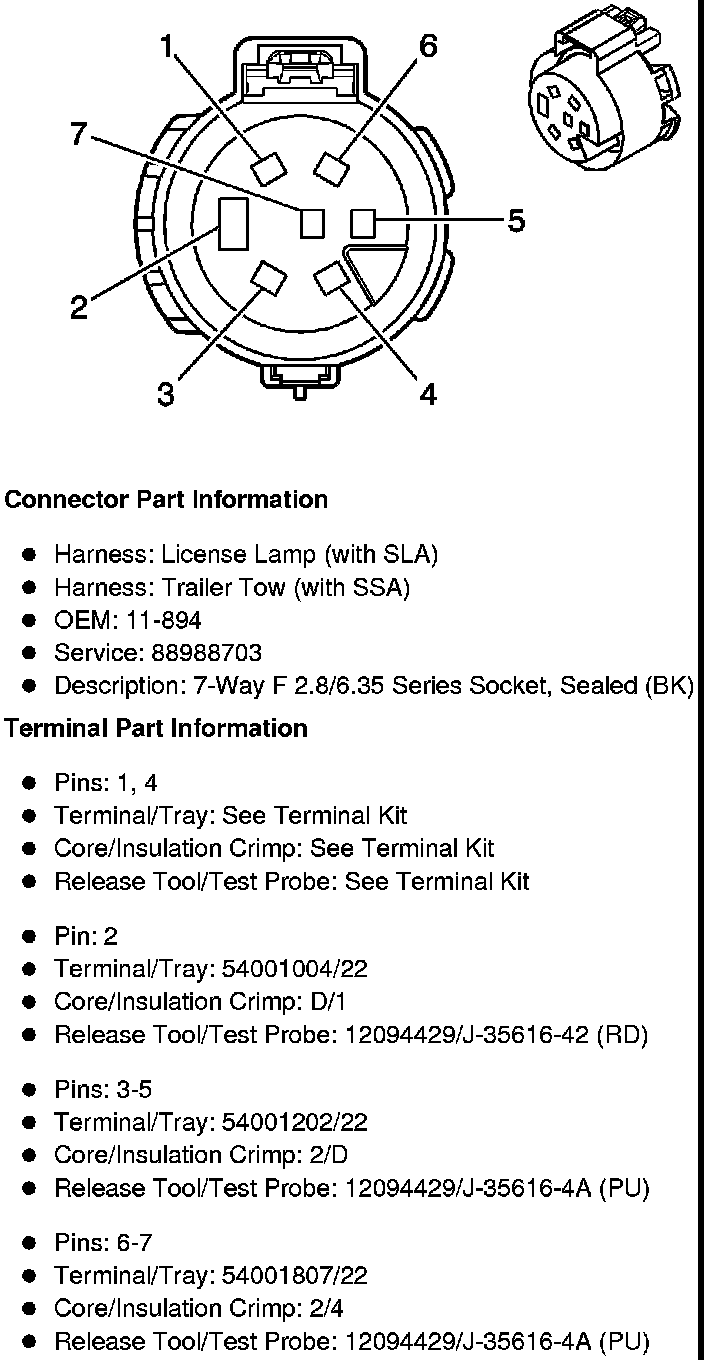

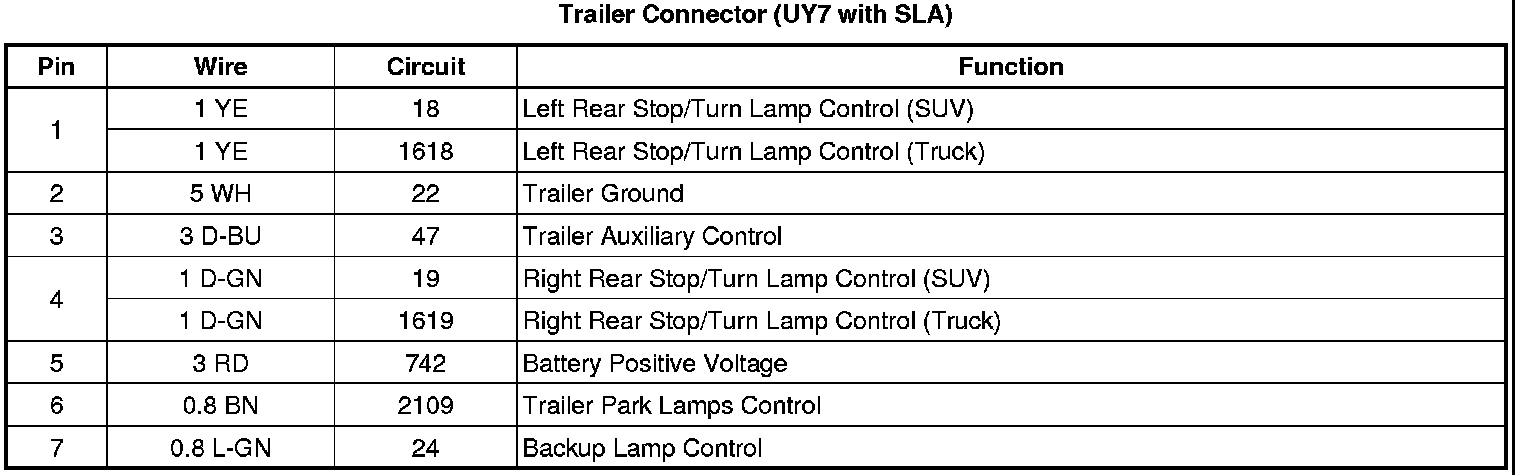

Trailer Connector (UY7 with SLA)

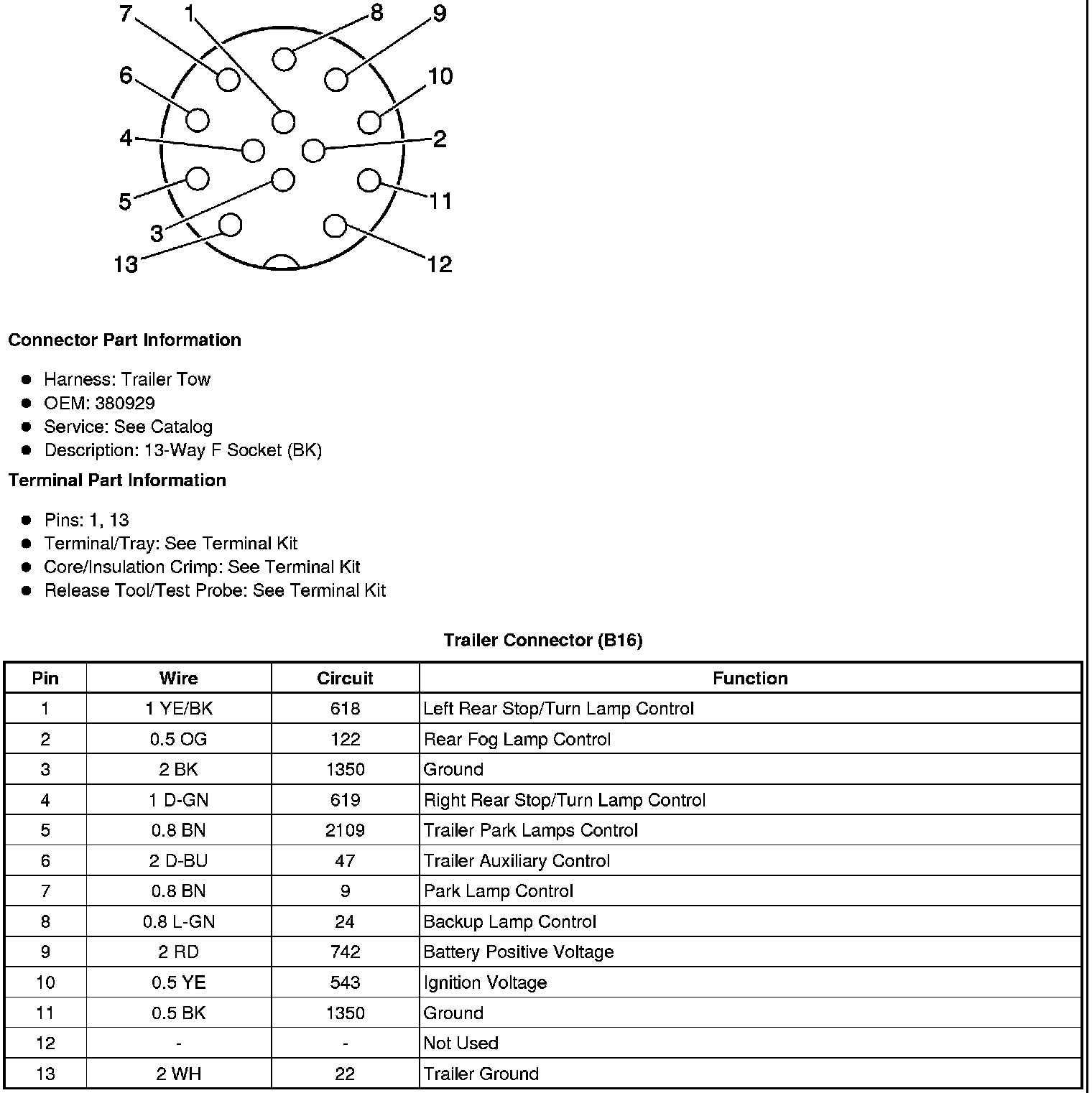

Trailer Connector (B16)
