P0013
DTC P0013
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.
DTC Descriptor
DTC P0013
- Exhaust Camshaft Position (CMP) Actuator Solenoid Control Circuit

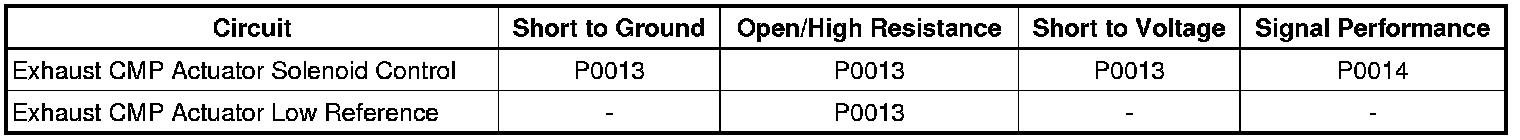

Diagnostic Fault Information
Circuit/System Description
The camshaft position actuator system enables the Engine Control Module (ECM) to change the timing of the exhaust camshaft while the engine is operating. The Camshaft Position Actuator Solenoid Valve signal from the ECM is pulse width modulated (PWM). The ECM controls the Camshaft Position Actuator Solenoid Valve duty cycle by controlling the amount of solenoid valve ON time. The Camshaft Position Actuator Solenoid Valve controls the advance or the retard of the camshaft. The Camshaft Position Actuator Solenoid Valve controls the oil flow that applies the pressure to advance or retard the camshaft.
The ECM controls the Camshaft Position Actuator Solenoid Valve by suppling a 12 V pulse width modulated (PWM) signal. The ECM supplies a ground to the low reference circuit.
Conditions for Running the DTC
* The engine is running.
* The ECM has commanded the Camshaft Position Actuator Solenoid Valve ON.
* The system voltage is between 11-18 volts.
Conditions for Setting the DTC
The ECM detects that the commanded state of the driver and the actual state of the control circuit do not match for greater than 5 s.
Action Taken When the DTC Sets
DTC P0013 is a Type B DTC.
Conditions for Clearing the MIL/DTC
DTC P0013 is a Type B DTC.
Reference Information
Schematic Reference
Engine Controls Schematics ([1][2]Electrical Diagrams)
Connector End View Reference
Component Connector End Views (Connector Views)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Verification
1. With the engine at normal operating temperature, raise the engine speed to 2,000 RPM for 10 s. DTC P0013 should not set.
2. Command the CMP actuator to 20 percent. The CMP actuator angle desired parameter should match the CMP actuator actual parameter.
3. Operate the vehicle within the Conditions for Running the DTC to verify the DTC does not reset. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the Camshaft Position Actuator Solenoid Valve.
2. Test for less than 5 ohm between the low reference circuit terminal B and ground.
• If greater than the specified value, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the ECM.
Note: A test lamp must be used for this test. The control circuit is pulled-up to a low current voltage, B+ on the control circuit is normal.
3. Ignition ON, engine OFF, verify that a test lamp does not illuminate between the control circuit terminal A and ground.
• If the test lamp illuminates, test the control circuit for a short to voltage. If the circuit tests normal, replace the ECM.
4. Connect the DMM black lead to the control circuit terminal A. Connect the DMM red lead to B+. Set the DMM on the diode setting. Command the CMP actuator solenoid ON and OFF with a scan tool. The DMM should transition from 2.5-3.5 V when commanded OFF to less than 1 V when commanded ON.
• If the circuit voltage does not correspond to the specified values, test the control circuit for an open/high resistance or a short to ground. If the circuit tests normal, replace the ECM.
5. If all circuits/connections test normal, test or replace the appropriate Camshaft Position Actuator Solenoid Valve.
Component Testing
1. Ignition OFF, disconnect the harness connector at the Camshaft Position Actuator Solenoid Valve.
2. Test for 5-13 ohm between the control terminal A and the low reference circuit terminal B of the Camshaft Position Actuator Solenoid Valve.
• If not within the specified range, replace the Camshaft Position Actuator Solenoid Valve.
3. Test for infinite resistance between each terminal and the Camshaft Position Actuator Solenoid Valve housing.
• If not the specified value, replace the Camshaft Position Actuator Solenoid Valve.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Camshaft Position Actuator Solenoid Valve Replacement (Service and Repair)
* Control Module References (Programming and Relearning) for Engine Control Module replacement, setup, and programming
