Control Module U Code List




Control Module U Code List

This list includes all Data Communications related U-code DTCs in alphanumeric order with descriptors for all modules. Not all DTCs listed will be applicable to all vehicles.

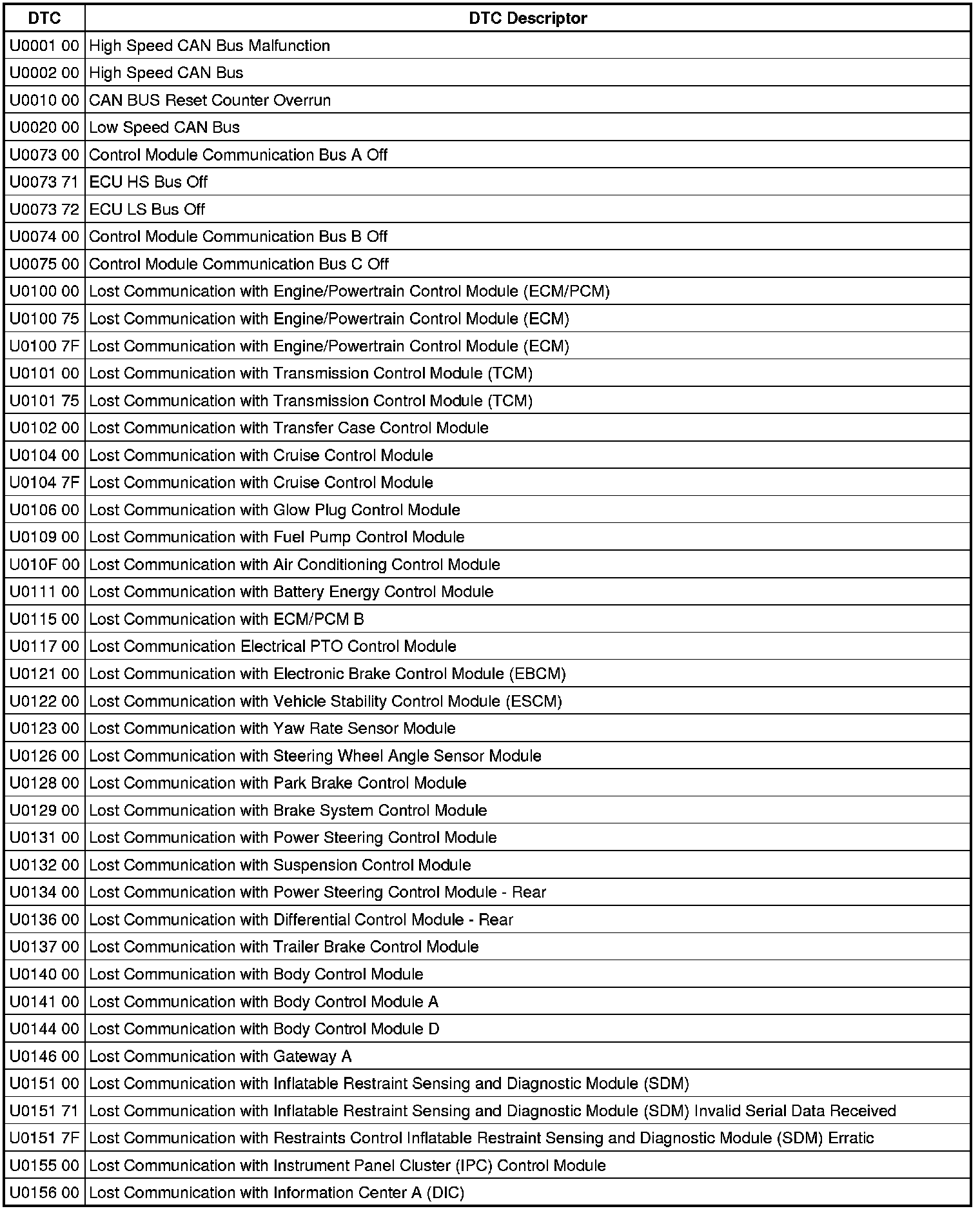

U0001 - U0156:

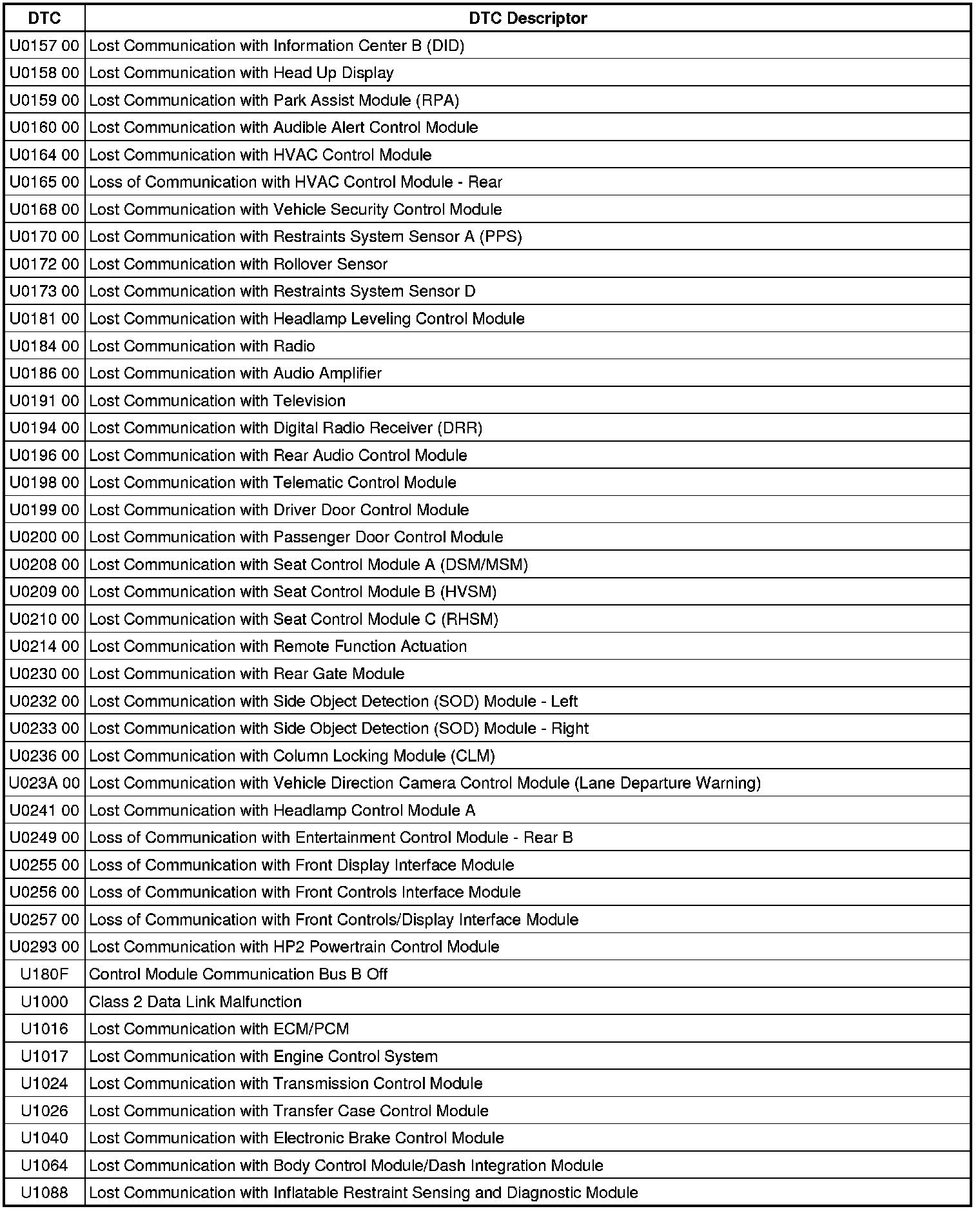

U0157 - U1088:

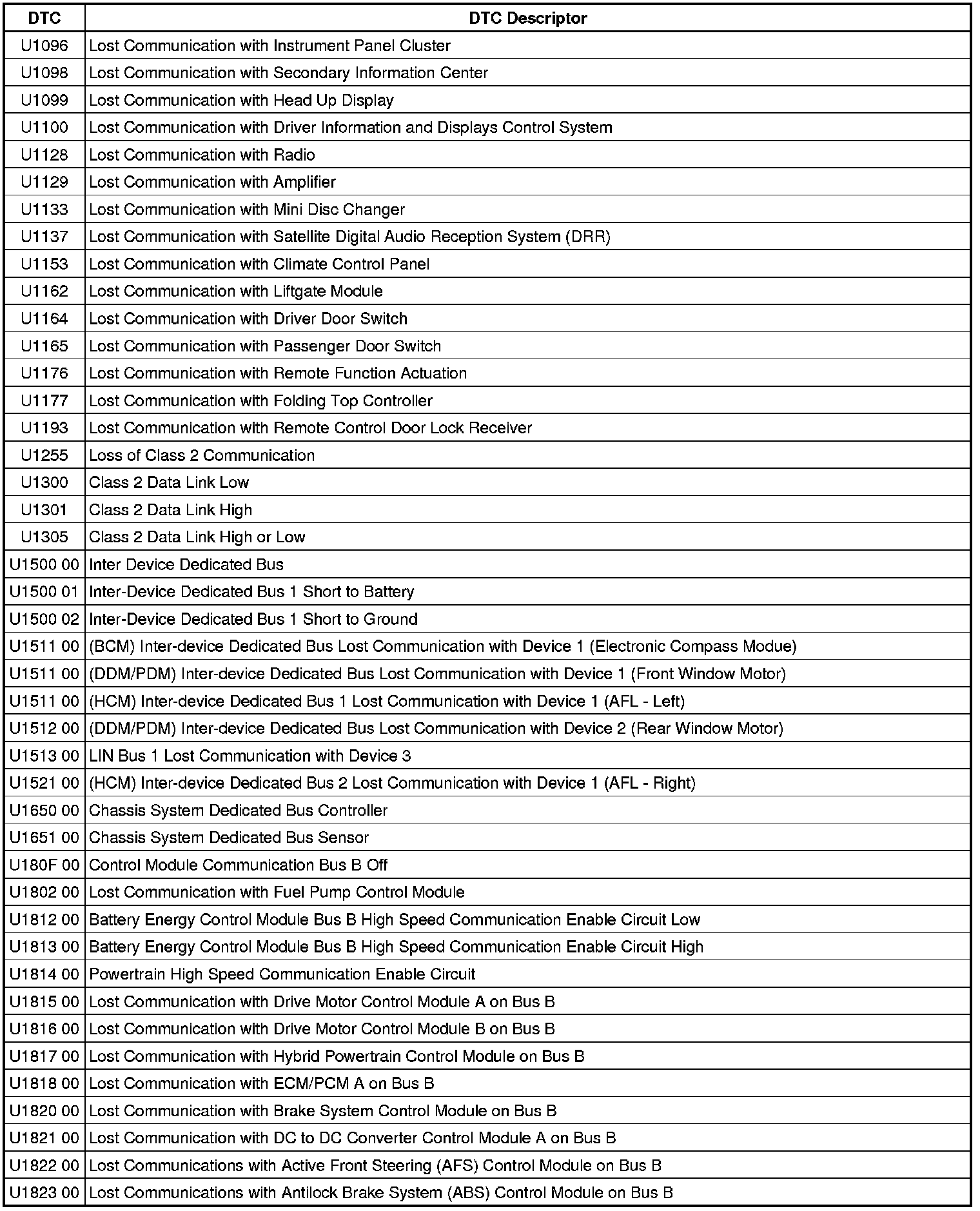

U1096 - U1823:

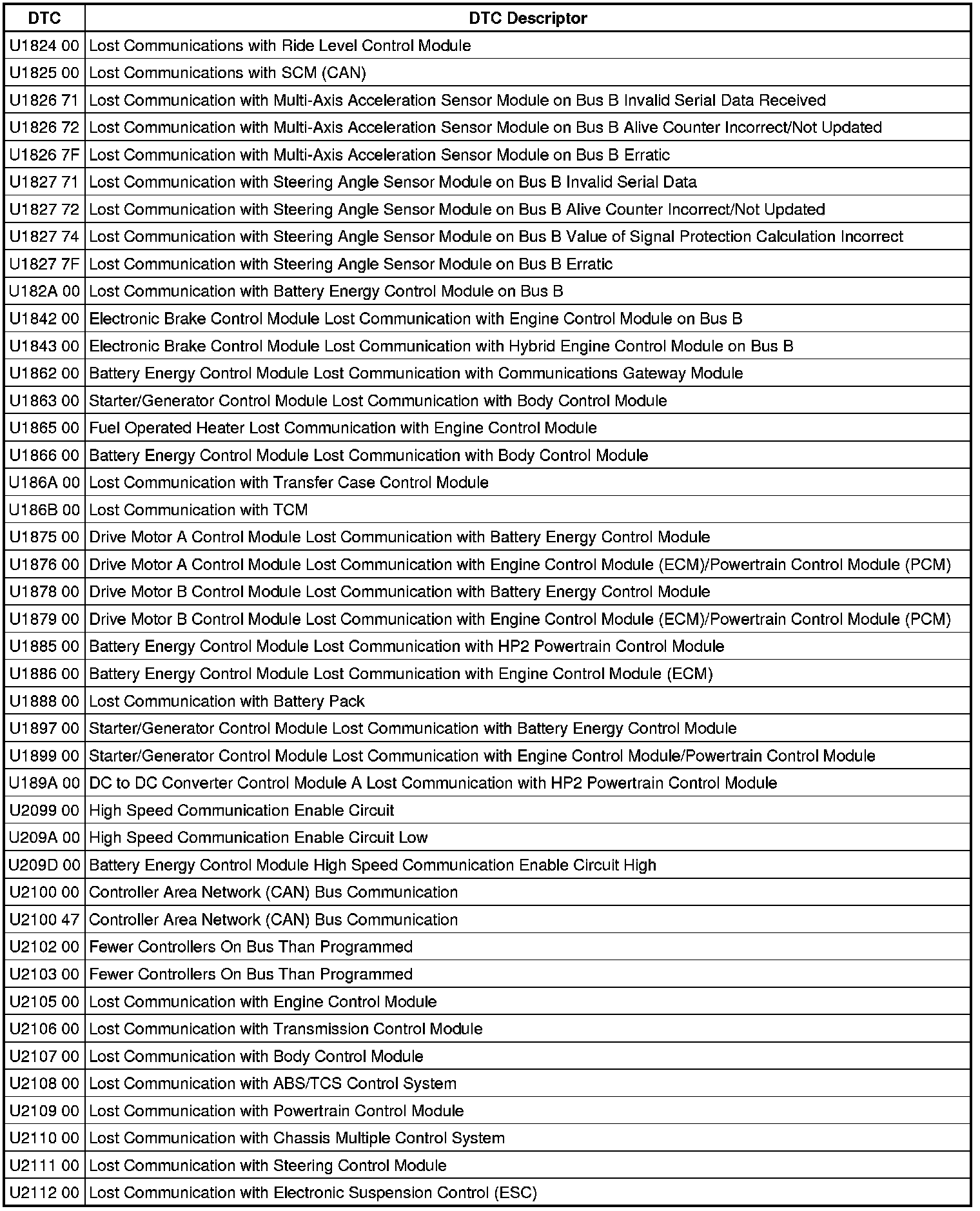

U1824 - U2112:

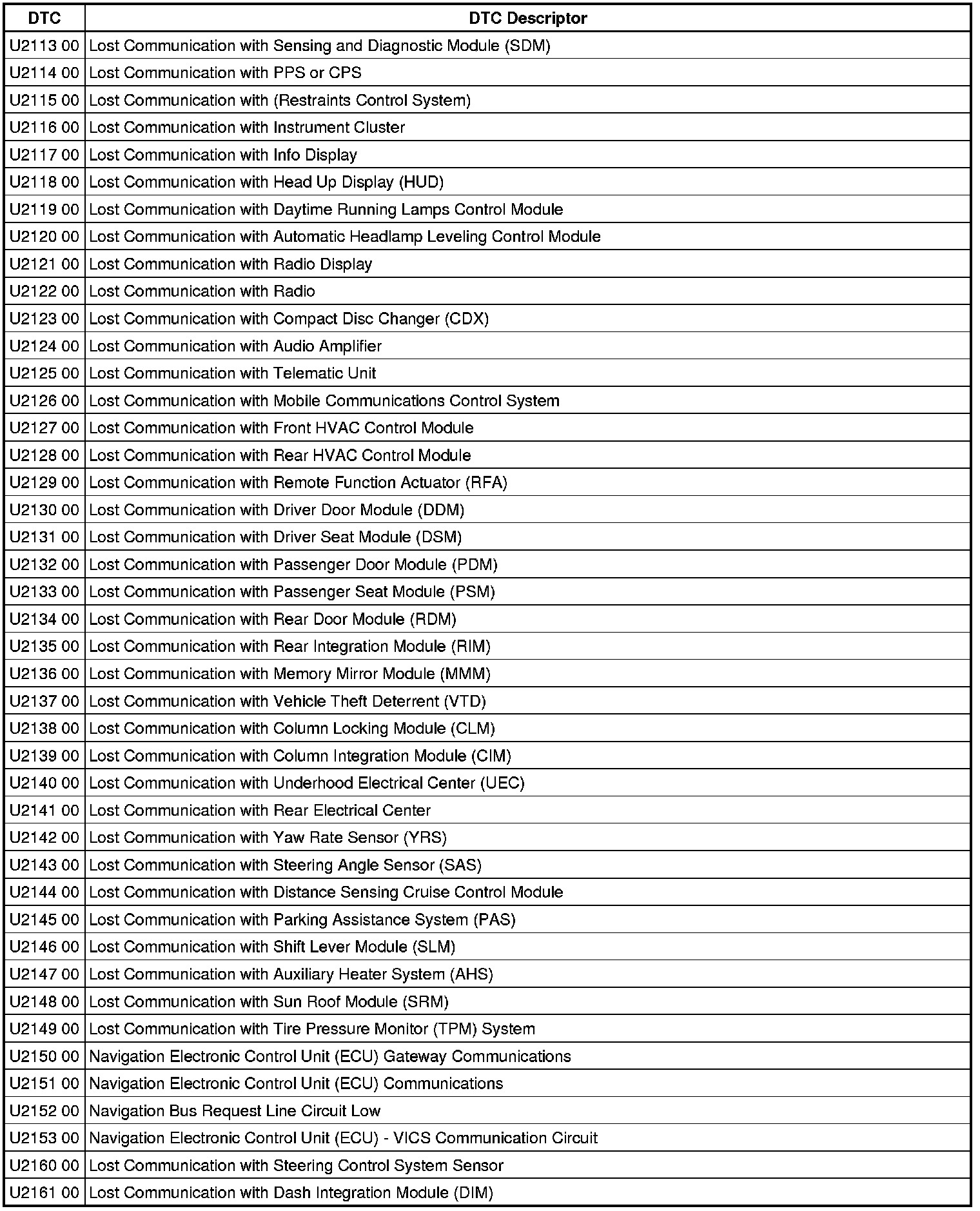

U2113 - U2161:

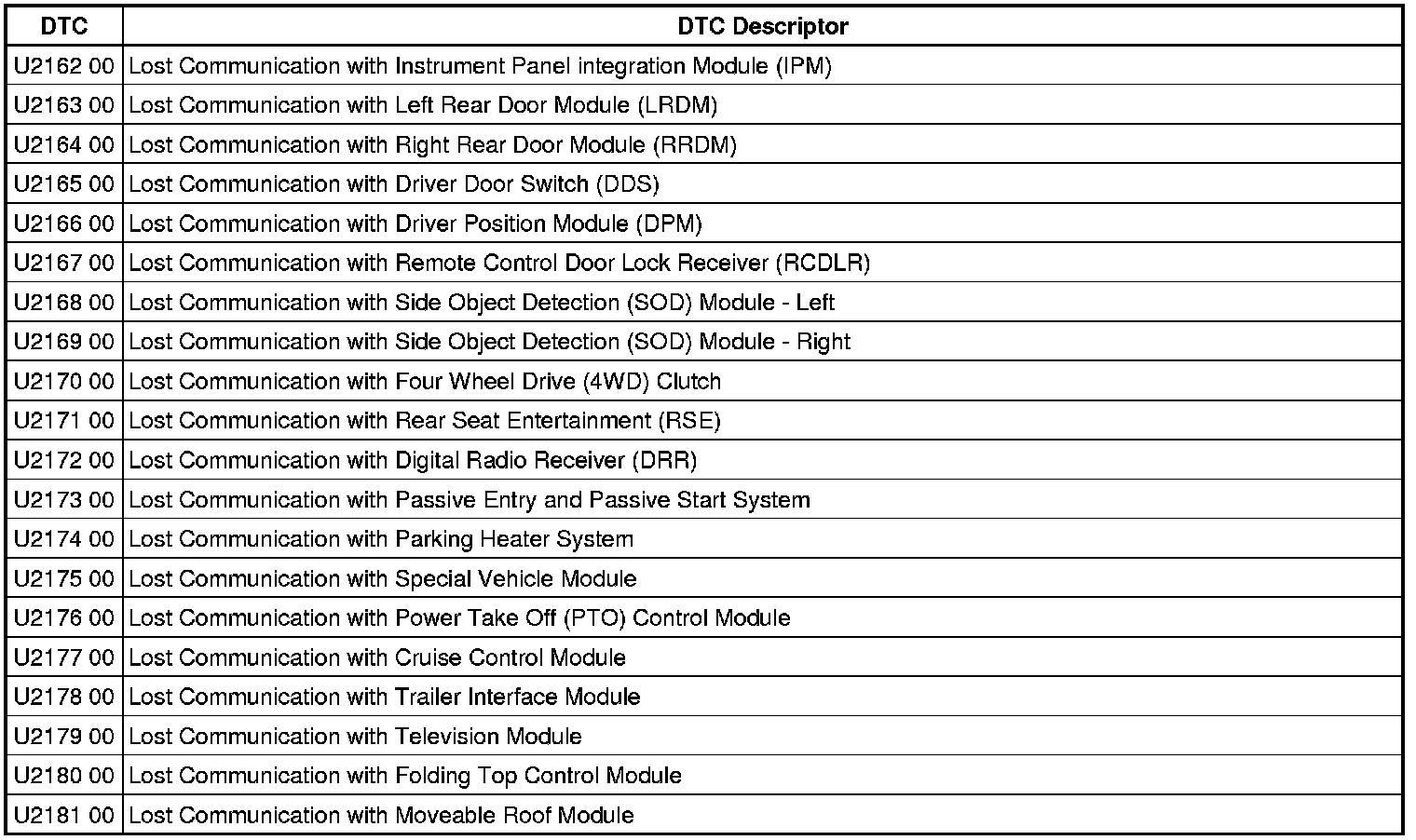

U2162 - U2181:
