Generator Replacement

Generator Replacement (LH8)

Removal Procedure





1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair) .
2. Remove the intake manifold cover. Refer to Upper Intake Manifold Sight Shield Replacement (Upper Intake Manifold Sight Shield Replacement) .
3. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory (Drive Belt Replacement - Accessory) .
4. Disconnect the engine wiring harness electrical connector (1) from the generator.
5. Reposition the engine wiring harness/positive battery cable boot (5).
6. Remove the engine wiring harness/positive battery cable nut from the generator.
7. Remove the engine wiring harness/positive battery cable (2) from the generator.

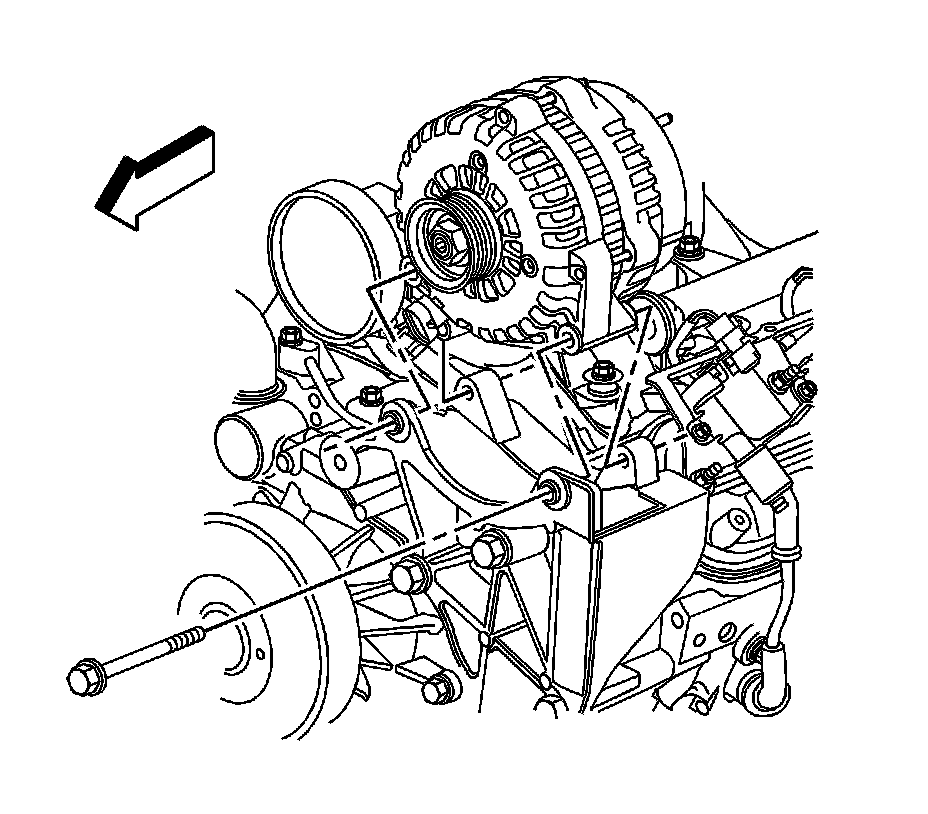

8. Remove the generator bolts.
9. Remove the generator.



Installation Procedure





1. Install the generator.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the generator bolts.

Tighten the bolts to 50 N.m (37 lb ft).





3. Install the engine wiring harness/positive battery cable (2) to the generator.
4. Install the engine wiring harness/positive battery cable nut to the generator.

Tighten the nut to 9 N.m (80 lb in).

5. Position the engine wiring harness/positive battery cable boot (5).
6. Connect the engine wiring harness electrical connector (1) to the generator.
7. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory (Drive Belt Replacement - Accessory) .
8. Install the intake manifold cover. Refer to Upper Intake Manifold Sight Shield Replacement (Upper Intake Manifold Sight Shield Replacement) .
9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair) .
