Engine Mount Replacement - Left

Engine Mount Replacement - Left Side

Removal Procedure

Notice: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Due to the small clearance between the oil pan and the oil pump screen, jacking against the oil pan may cause the pan to be bent against the pump screen. This will result in a damaged oil pickup unit.






1. Remove the left front wheelhouse panel. Refer to Wheelhouse Panel Replacement (Front) (Service and Repair)Wheelhouse Panel Replacement (Rear) (Service and Repair) .
2. Remove the engine protection shield. Refer to Engine Shield Replacement (Engine Shield Replacement) .
3. Remove the oil pan skid plate. Refer to Oil Pan Skid Plate Replacement (Oil Pan Skid Plate Replacement) .
4. Remove the wheelhouse liner. Refer to Wheelhouse Panel Replacement (Front) (Service and Repair)Wheelhouse Panel Replacement (Rear) (Service and Repair) .

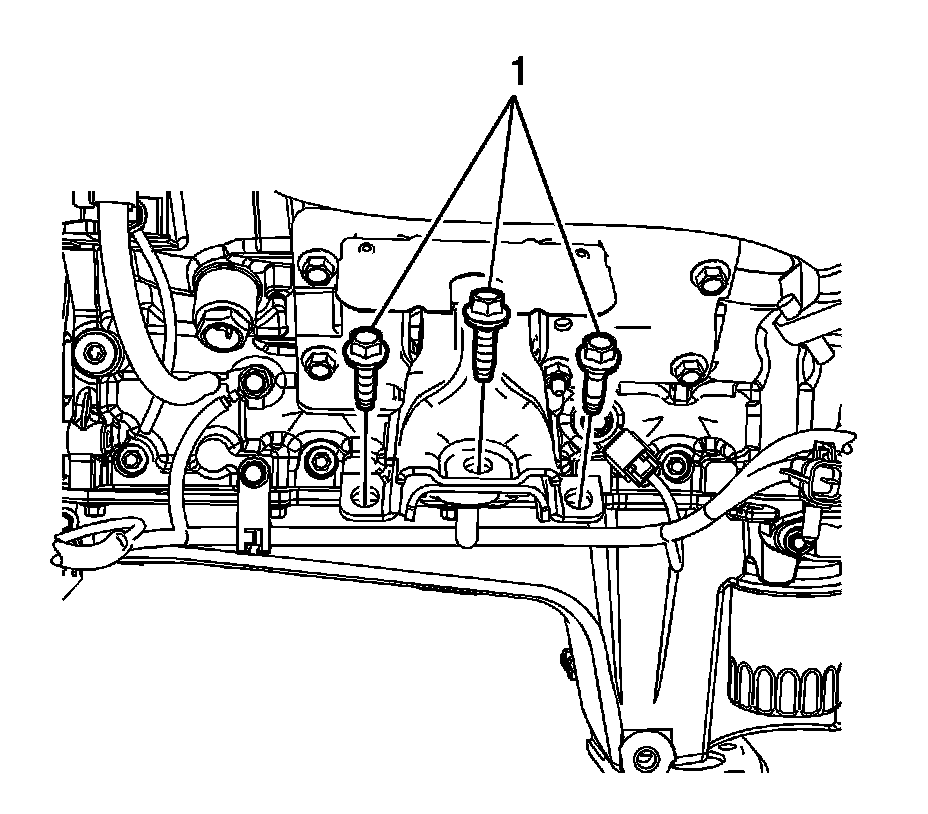

5. Remove the engine mount to frame bolts (1).





Important: DO NOT raise and/or support the engine by the crankshaft balancer, or oil pan.


6. Place an adjustable (screw type) jack to the tab (1) located on the engine block.

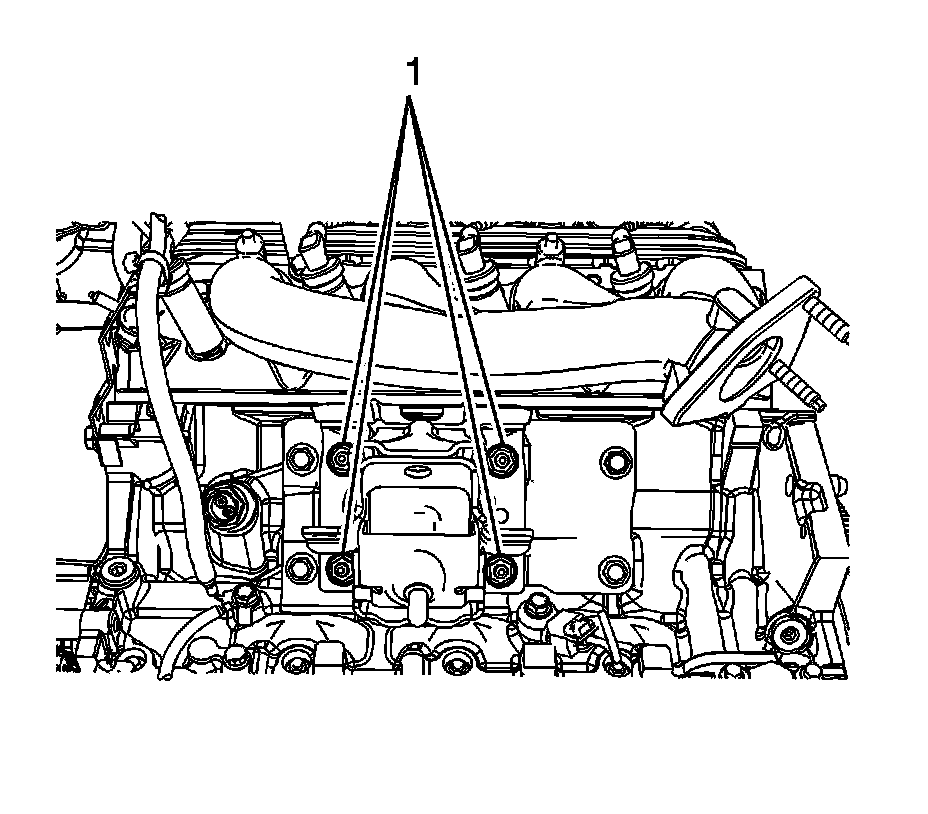

7. Working through the wheelhouse opening, remove the engine mount to engine bolts (1).
8. Using the adjustable jack, raise the engine slightly until there is enough clearance to remove the engine mount.




9. Remove the engine mount.



Installation Procedure





1. Position the engine mount to the engine.





Notice: Refer to Fastener Notice (Fastener Notice) .

2. Working through the wheelhouse opening, install the engine mount to engine nuts (1).

Tighten the bolts to 55 N.m (41 lb ft).

3. Using the adjustable jack, lower the engine until the engine mount is sitting flush on the frame.
4. Remove the adjustable jack from the engine block.




5. Install the engine mount to frame bolts (1).

Tighten the bolts to 65 N.m (48 lb ft) starting with the middle bolt then either side bolt.

6. Install the wheelhouse liner. Refer to Wheelhouse Panel Replacement (Front) (Service and Repair)Wheelhouse Panel Replacement (Rear) (Service and Repair) .
7. Install the oil pan skid plate. Refer to Oil Pan Skid Plate Replacement (Oil Pan Skid Plate Replacement) .
8. Install the engine protection shield. Refer to Engine Shield Replacement (Engine Shield Replacement) .
9. Install the left front wheelhouse panel. Refer to Wheelhouse Panel Replacement (Front) (Service and Repair)Wheelhouse Panel Replacement (Rear) (Service and Repair) .
10. Lower the vehicle.
