Home >> Hummer >> 2008 >> H3 V8-5.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls Schematic 9

Engine Controls Schematic 9



Engine Controls Schematics

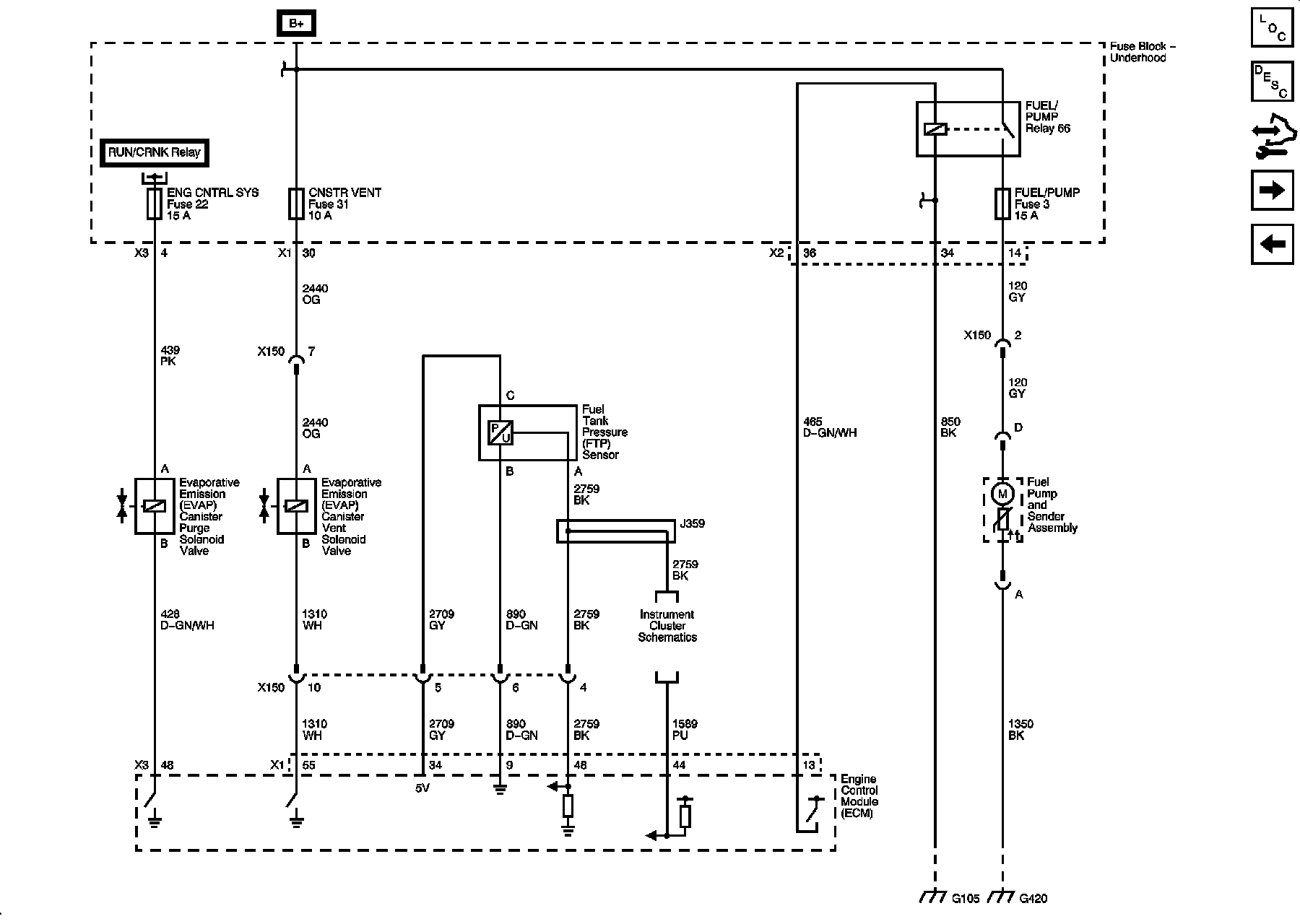

Fuel Controls - Fuel Pump and EVAP Controls
