Home >> Hummer >> 2008 >> H3 V8-5.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls Schematic 5

Engine Controls Schematic 5



Engine Controls Schematics

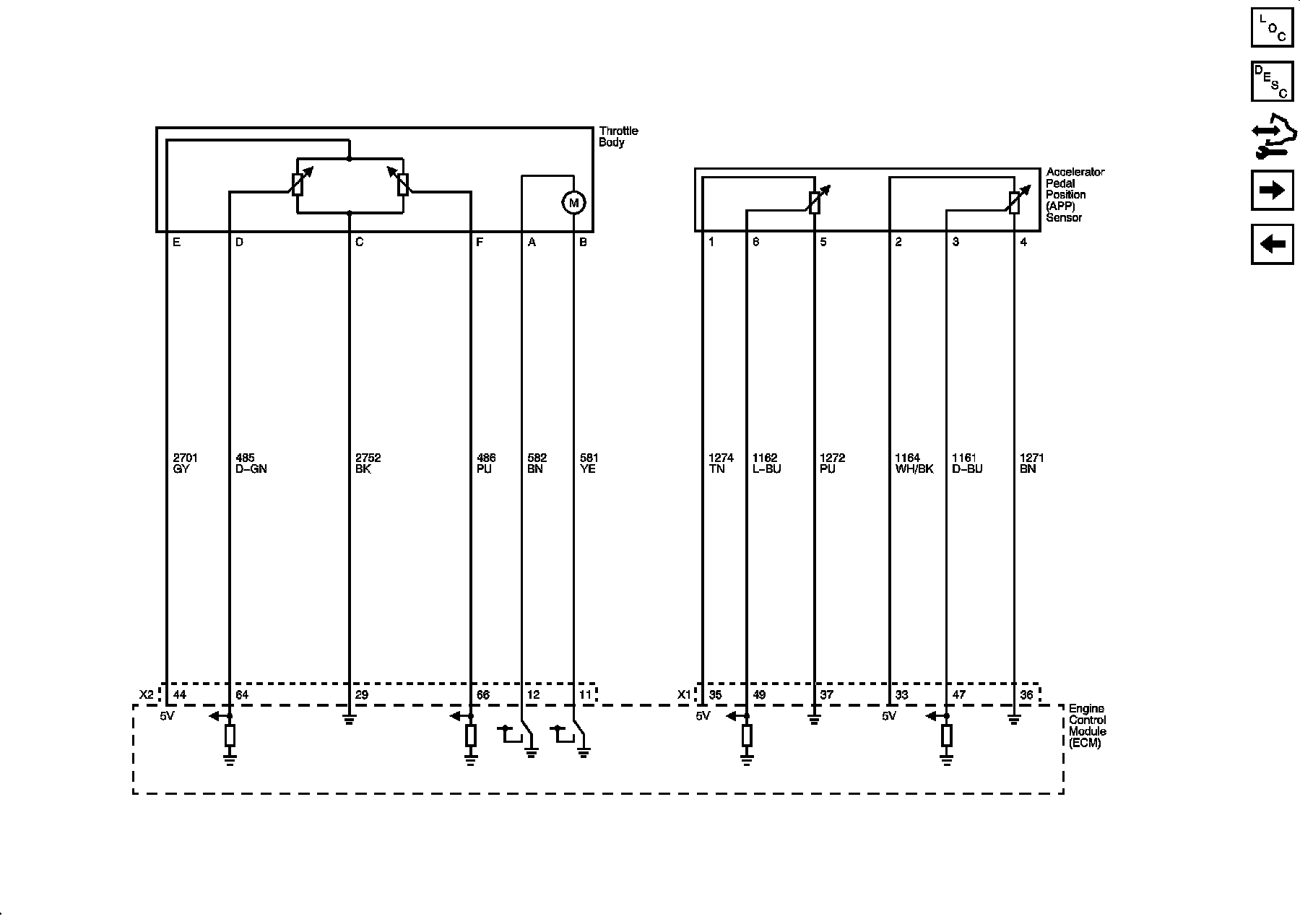

Engine Data Sensors - Electronic Throttle Control
