Tie Rod: Service and Repair

Rack and Pinion Inner Tie Rod Replacement

Tools Required

J 34028 Inner Tie Rod Wrench


Removal Procedure


Important: After removing the boot, inspect the inner tie rod for evidence of corrosion or contamination. If none is evident, continue with the repair. If corrosion or contamination is evident, replace the steering gear.


1. Remove the steering gear boot. Refer to Steering Gear Boot Replacement - On Vehicle (Steering Gear Boot Replacement - On Vehicle) .





Notice: Do not change the rack bearing preload adjustment before removing the inner tie rod from the steering rack. This could cause damage to the pinion or the steering rack or both.

2. Remove the rack and pinion inner tie rod (5) from the steering gear (1) as follows:

1. Place a wrench on the flats of the rack and pinion inner tie rod housing (4).
2. Rotate the rack and pinion inner tie rod housing (4) counterclockwise until the rack and pinion inner tie rod (5) separates from the steering gear rack (3).




Installation Procedure

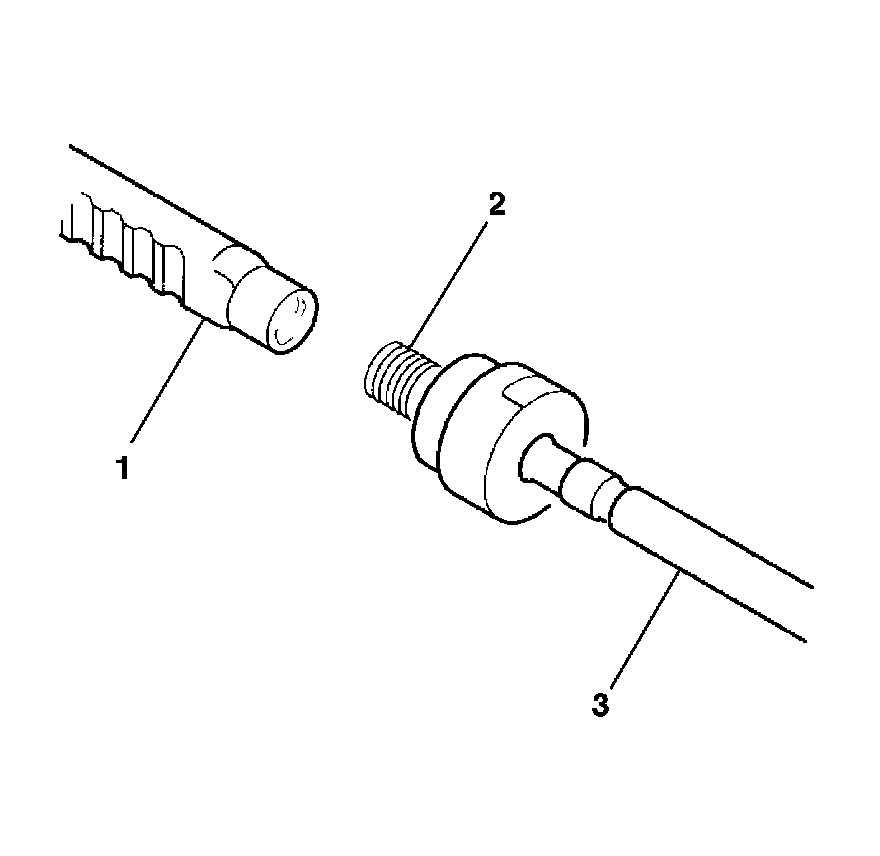

1. Clean the rack and pinion inner tie rod threads (2)
2. Install the rack and pinion inner tie rod (3) to the steering gear rack (1).





Notice: Refer to Fastener Notice (Fastener Notice) .

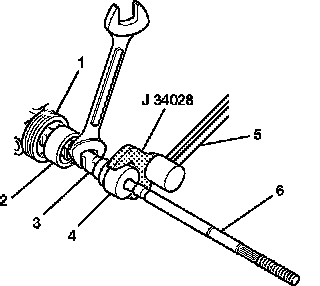

3. Install a torque wrench (5) and wrench J 34028 to the rack and pinion inner tie rod housing (4).
Hold the steering gear rack (3) while tightening the rack and pinion inner tie rod as shown (6).

Tighten the rack and pinion inner tie rod to 88 N.m (65 lb ft).

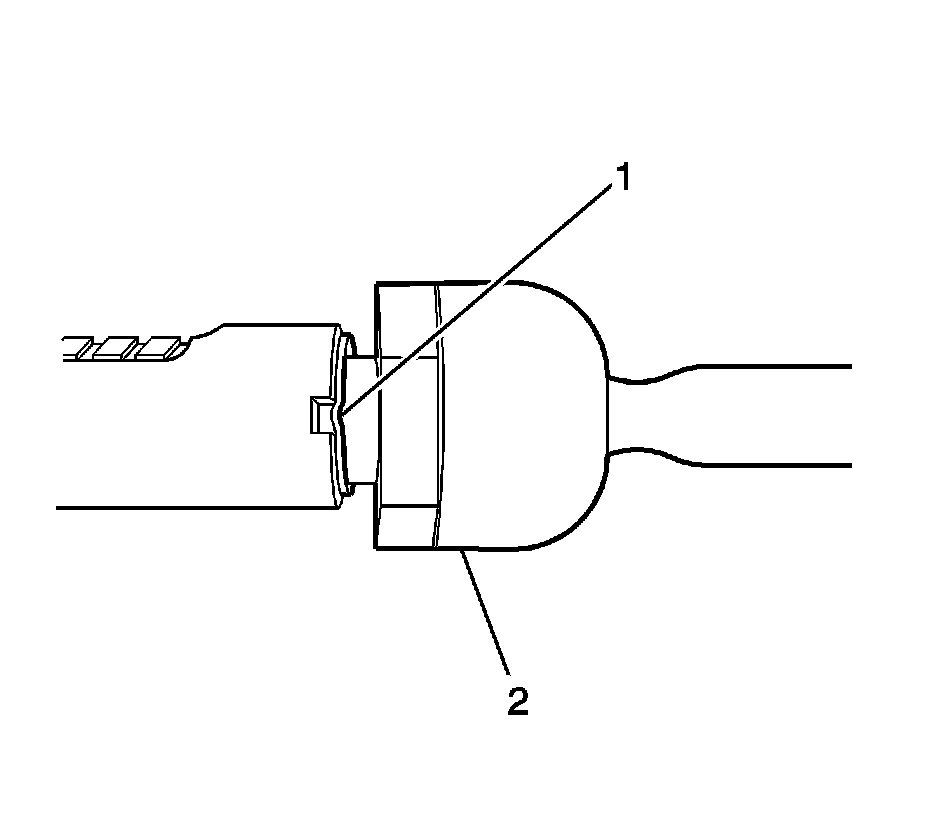

4. Stake the rack and pinion inner tie rod (2) at the location shown (1) with a hammer and punch.
5. Install the steering gear boot. Refer to Steering Gear Boot Replacement - On Vehicle (Steering Gear Boot Replacement - On Vehicle) .
6. Adjust the front toe. Refer to Front Toe Adjustment (Front Toe Adjustment) .
