X320



Inline Harness Connector End Views

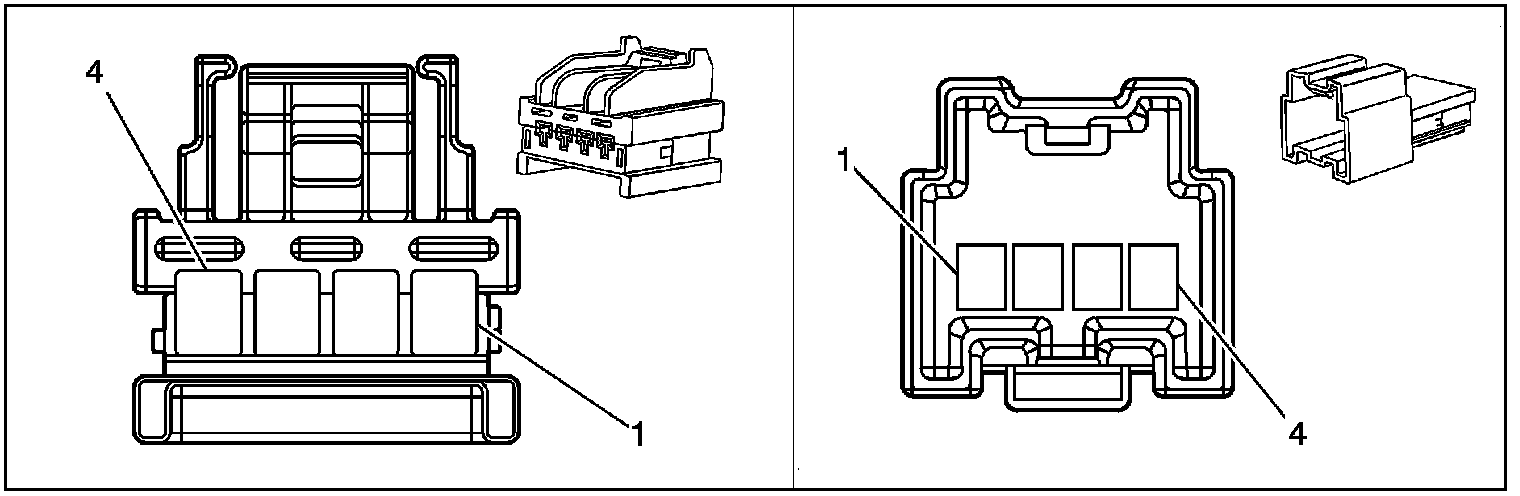

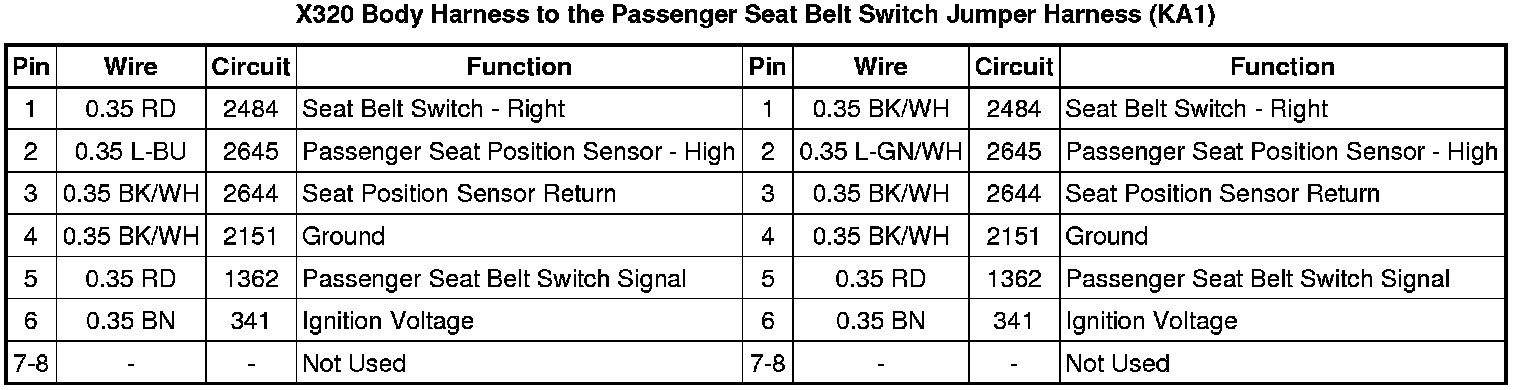

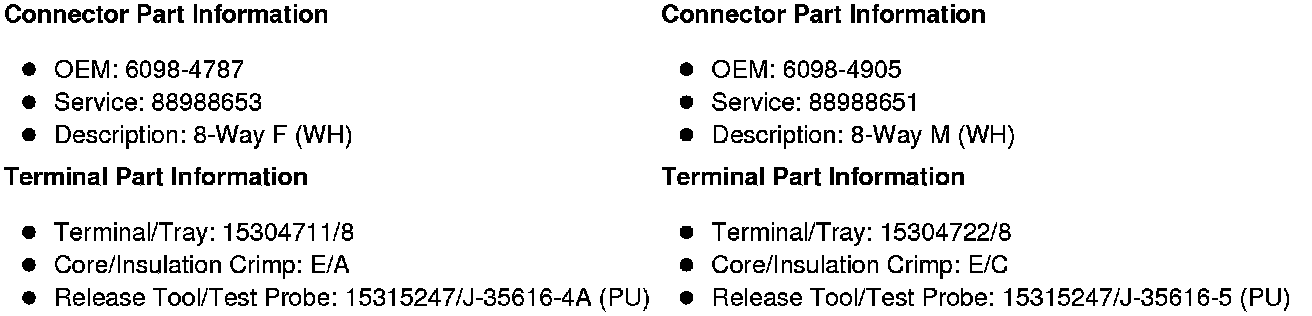

X320 Body Harness to the Passenger Seat Belt Switch Jumper Harness (KA1)

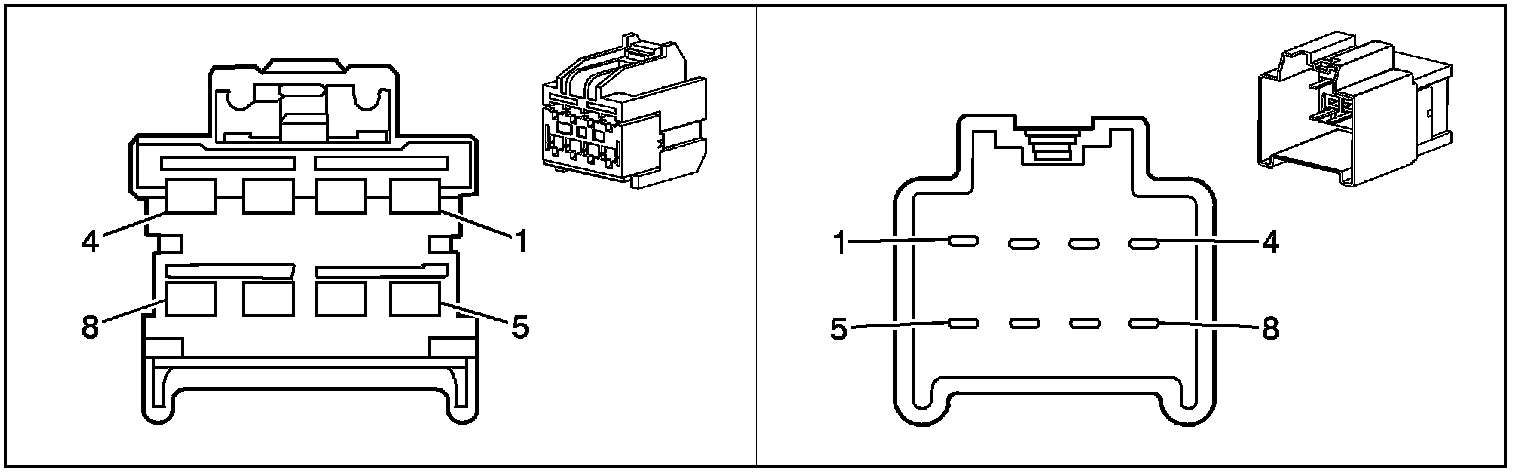

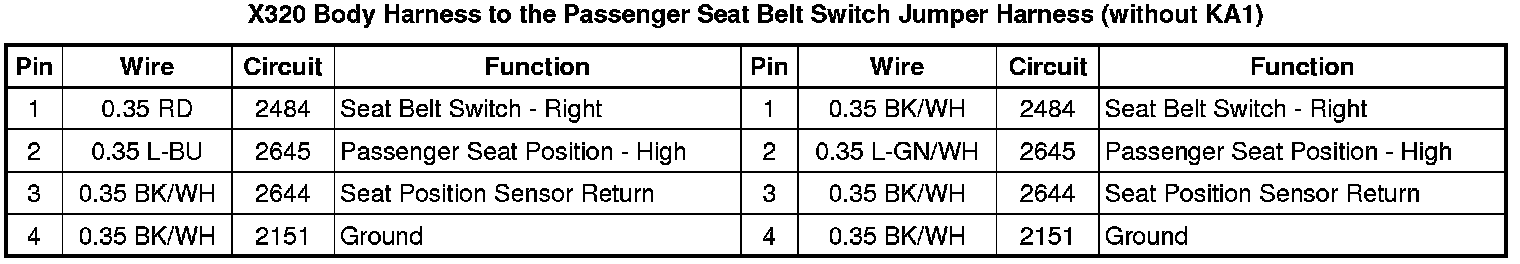

X320 Body Harness to the Passenger Seat Belt Switch Jumper Harness (without KA1)
