Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X100 - X199 >> X155

X155

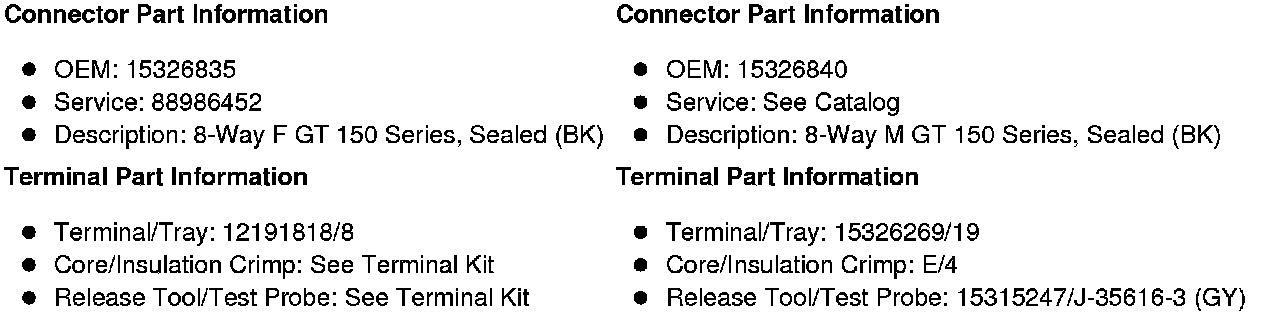

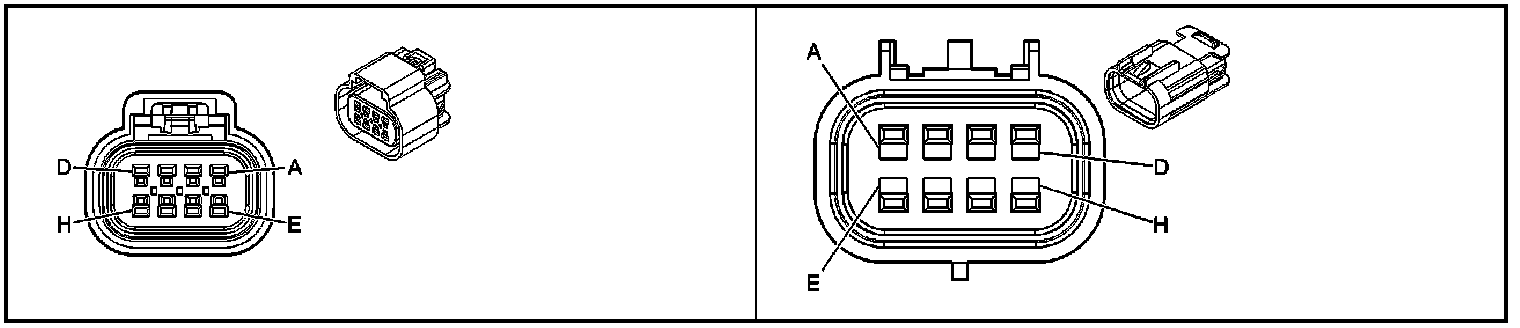

Inline Harness Connector End Views

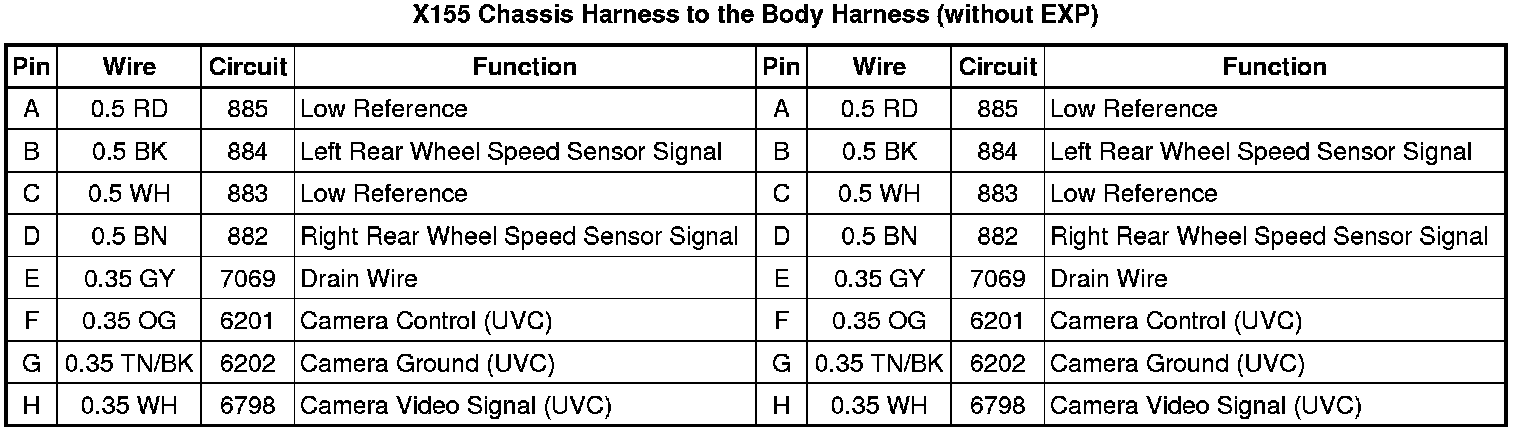

X155 Chassis Harness to the Body Harness (without EXP)
