Trailer Connector/Provision Schematics



Trailer Connector/Provision Schematics

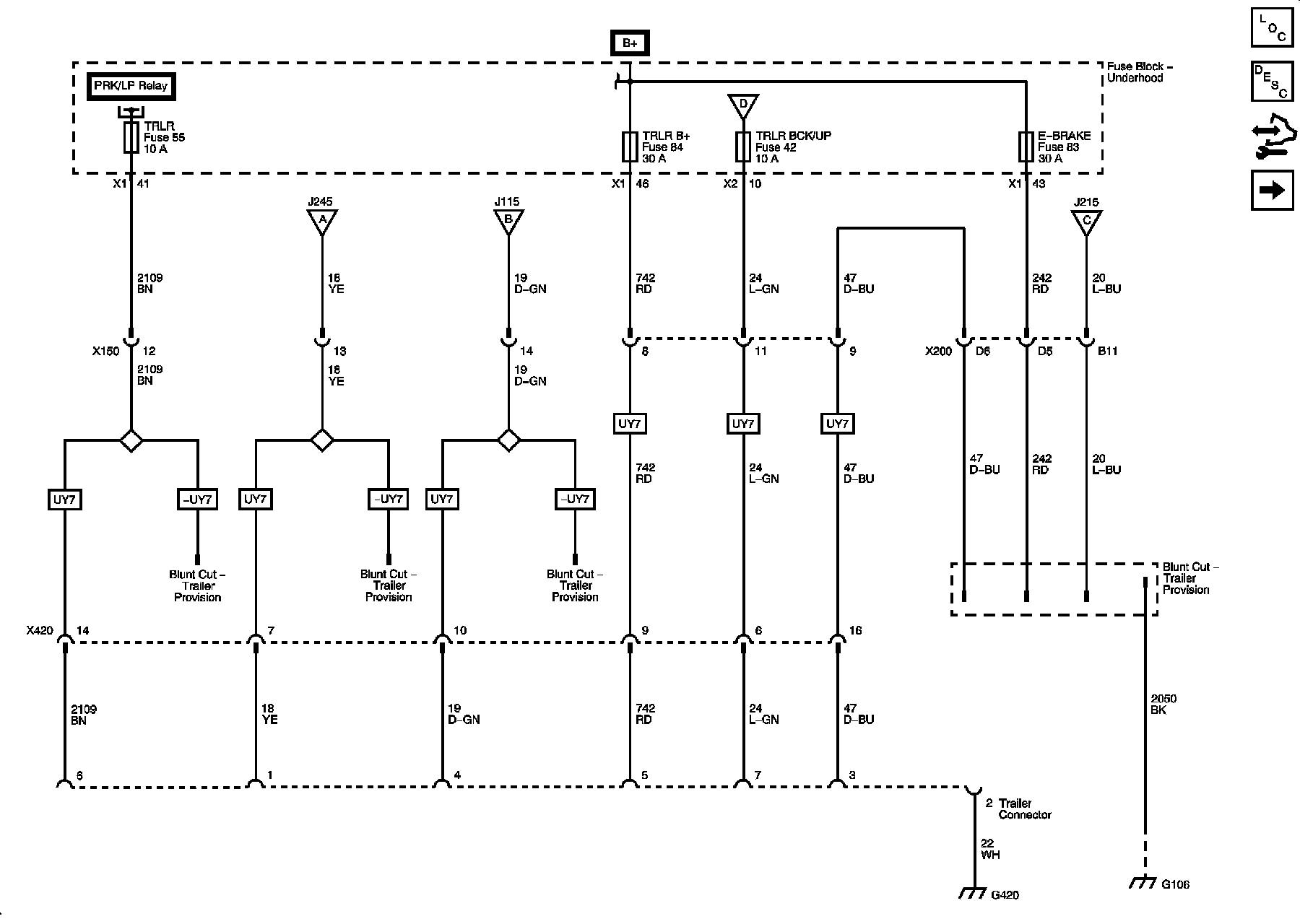

Trailer Wiring - Domestic

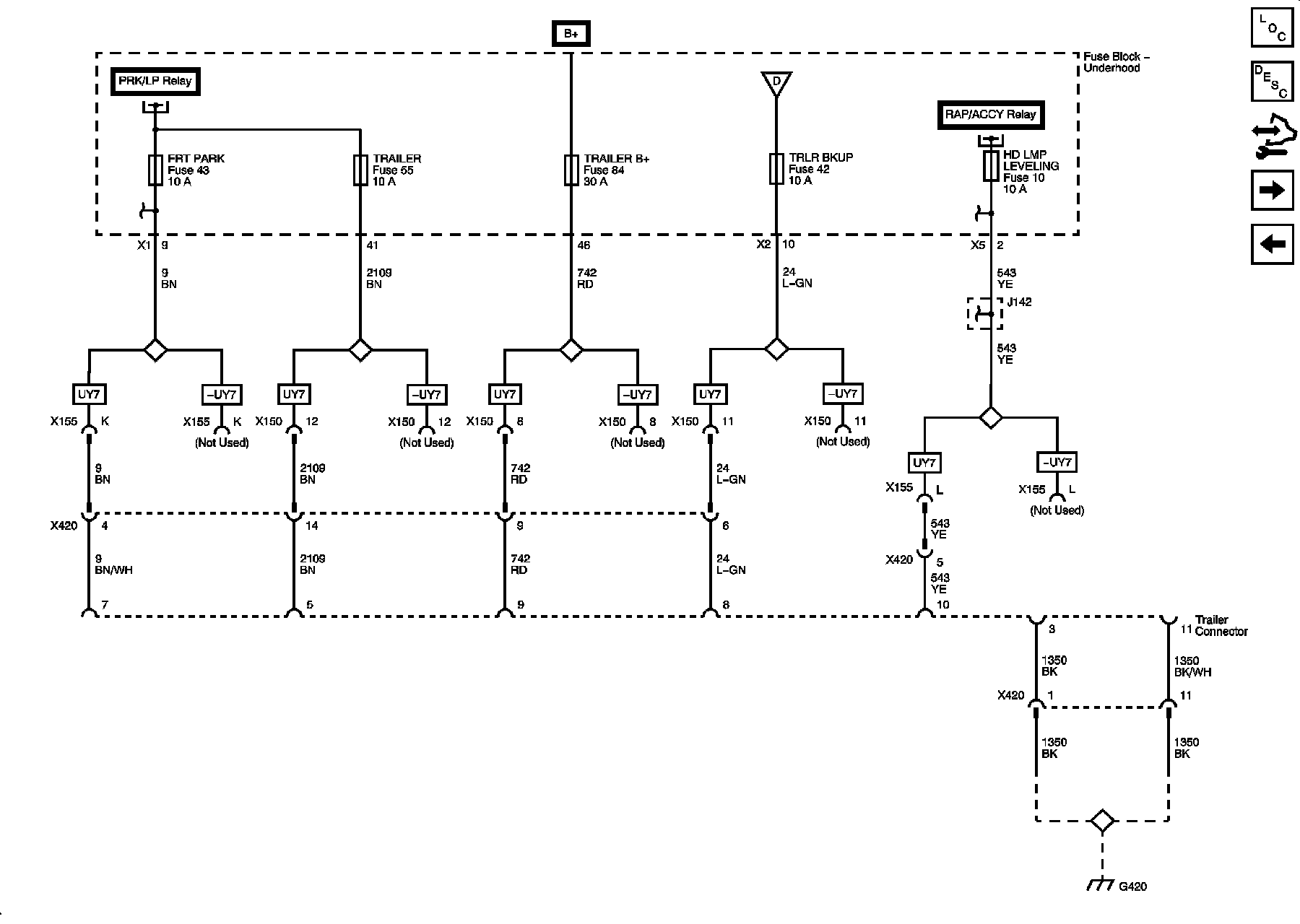

Export Trailer Wiring - 1 of 2





Export Trailer Wiring - 2 of 2
