Connector Views

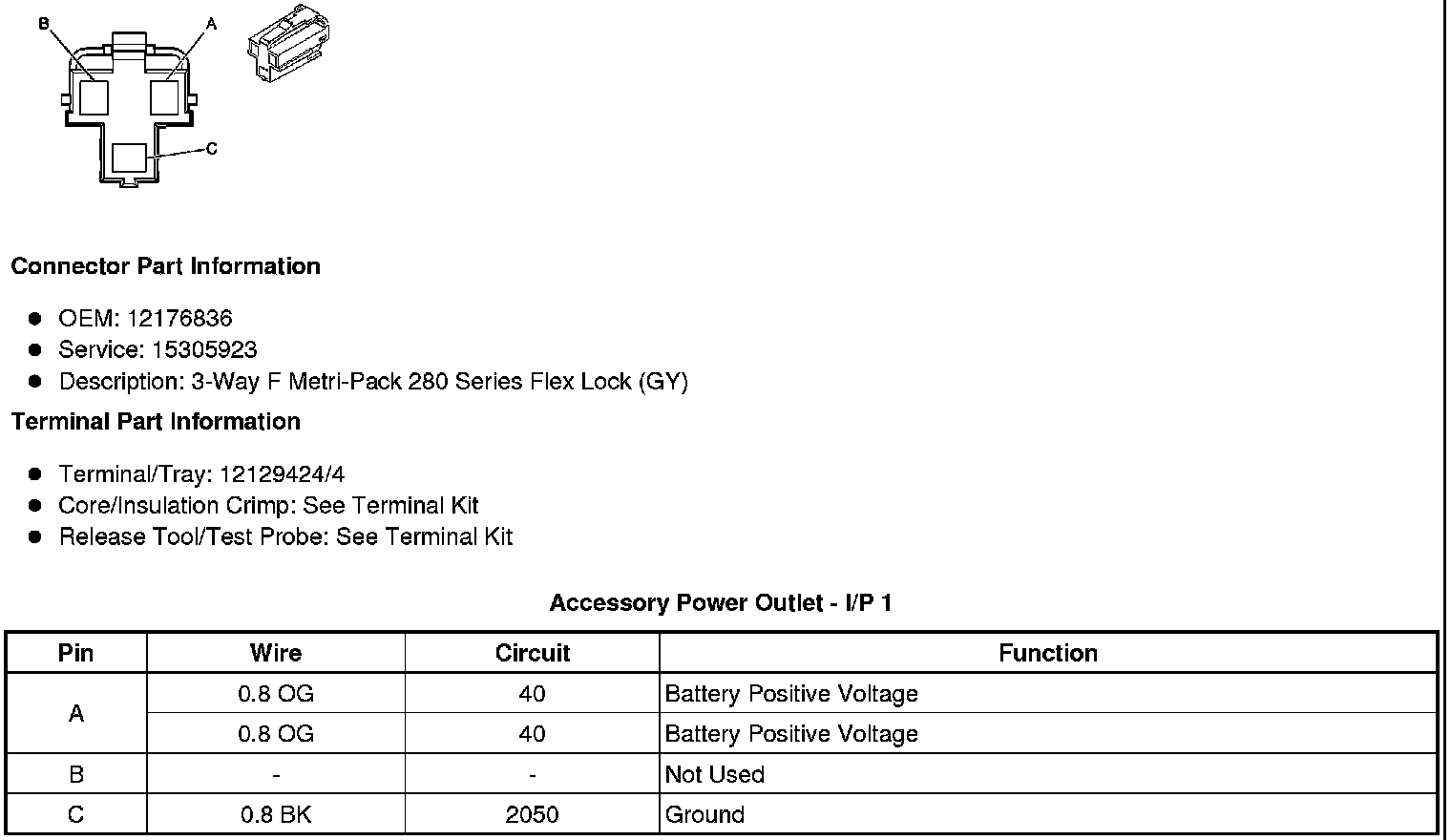

Accessory Power Outlet - I/P 1

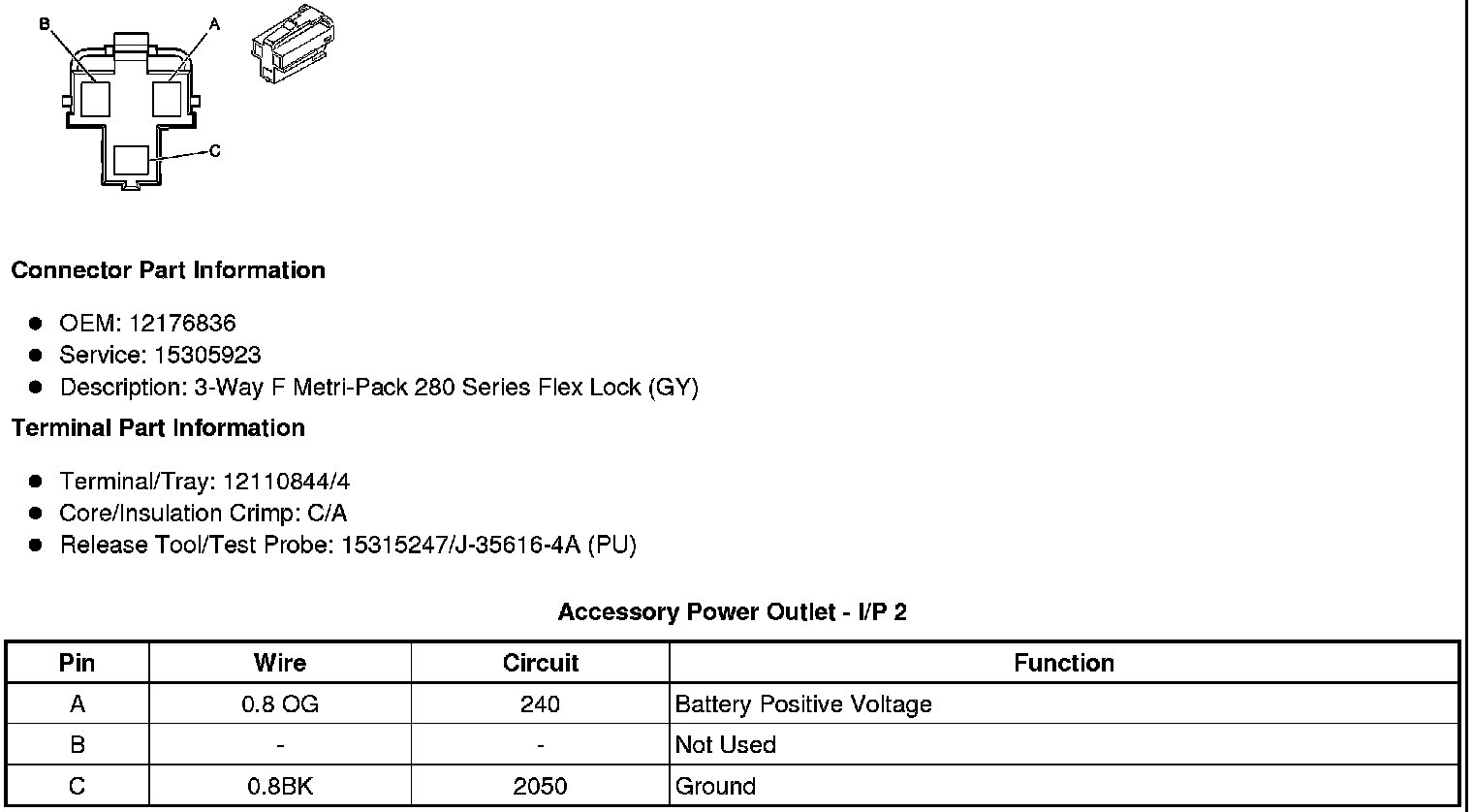

Accessory Power Outlet - I/P 2

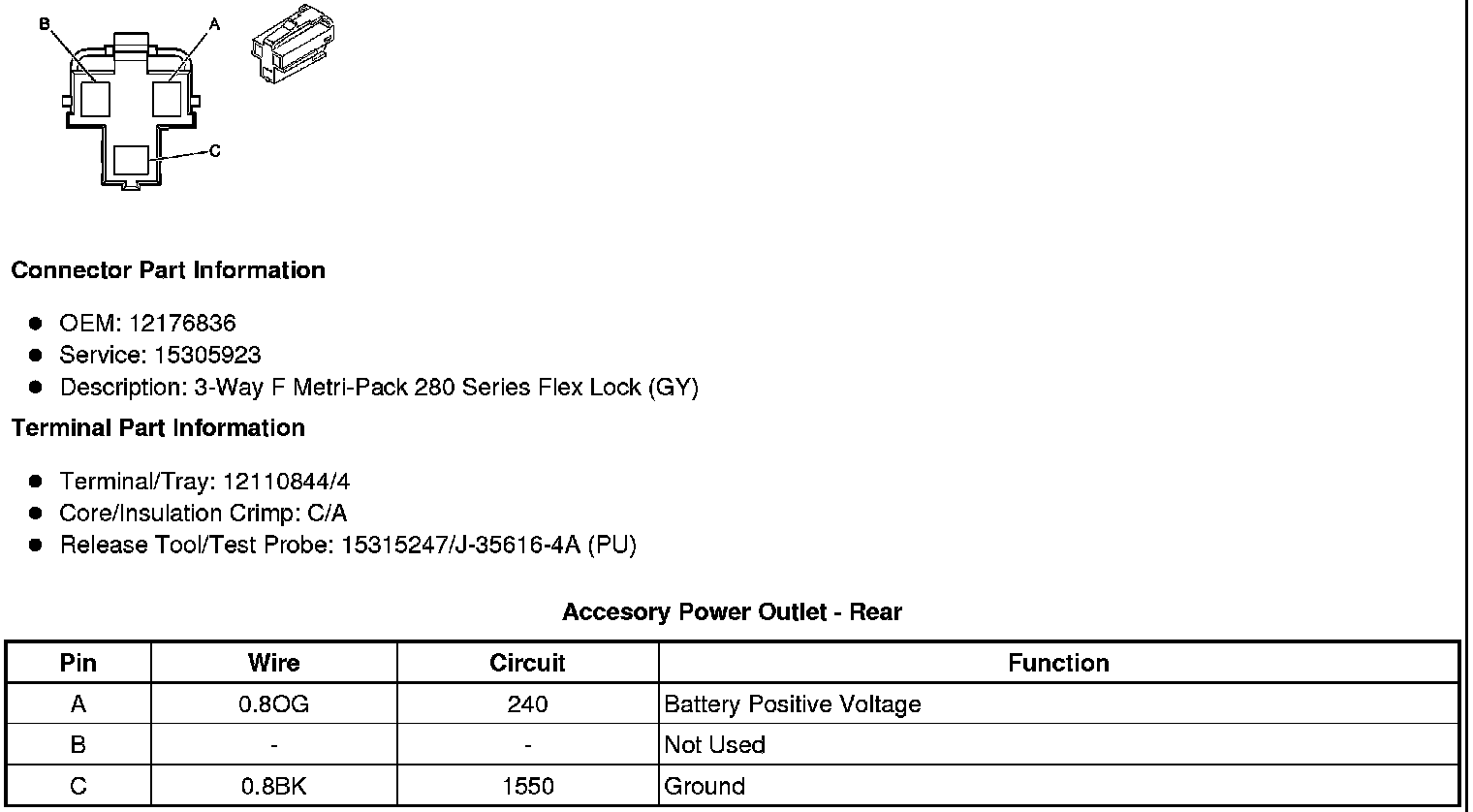

Accessory Power Outlet - Rear
