Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - HVAC
>>
Refrigerant Pressure Sensor / Switch
>>
Service and Repair
>>

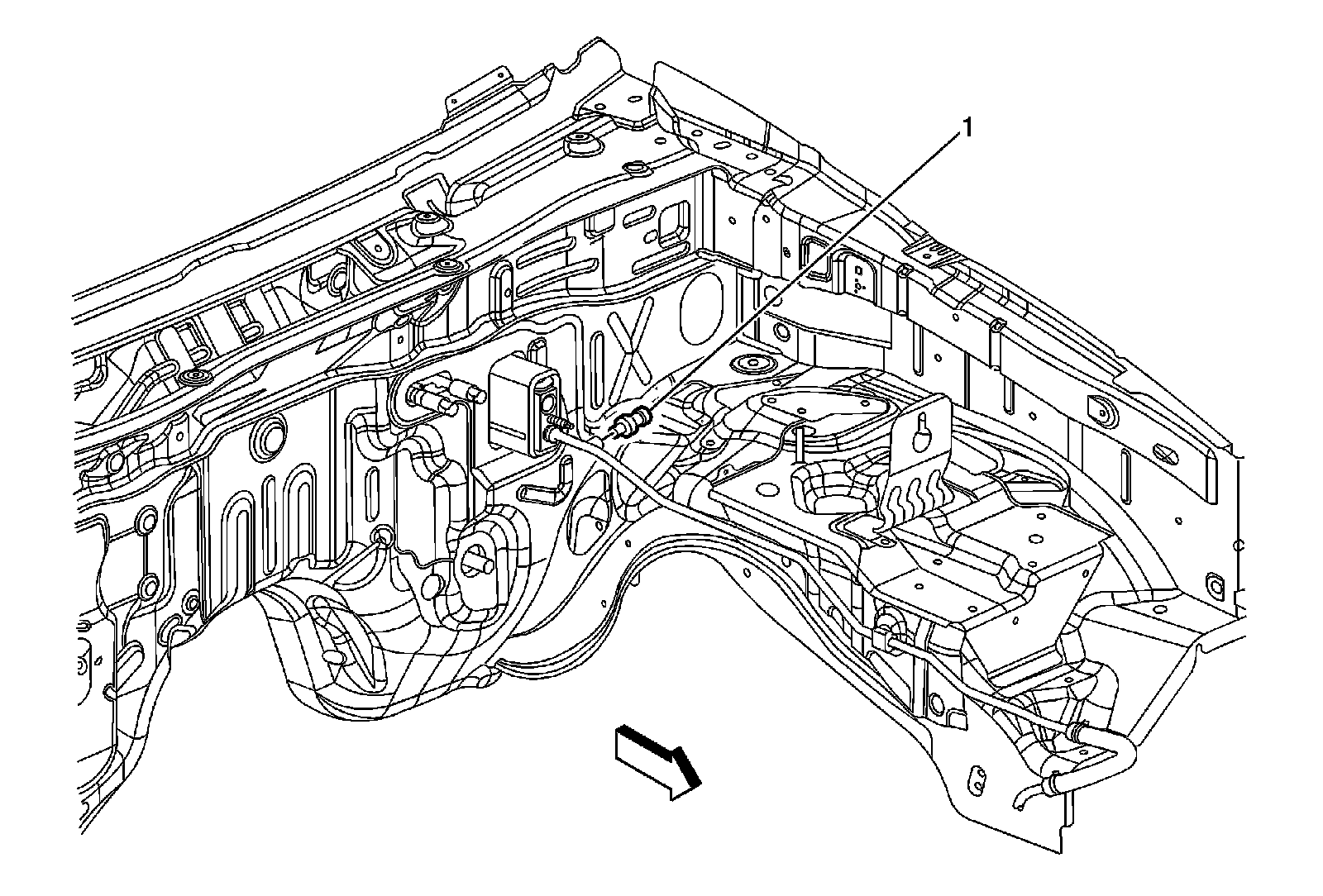

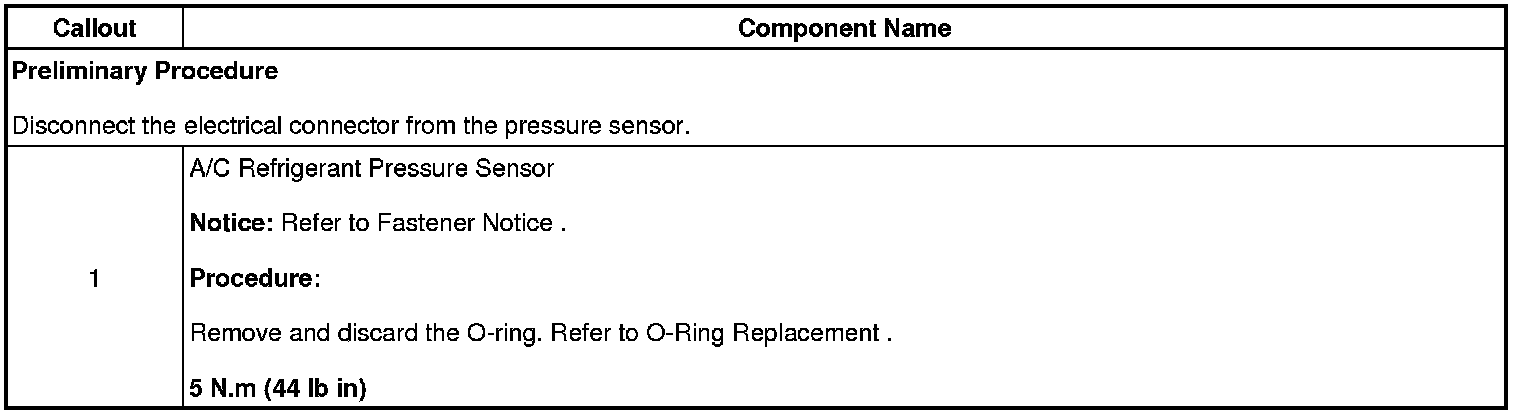

Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (Right Hand Drive)
Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (Right Hand Drive)
Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (Right Hand Drive)
