Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls Schematic 11

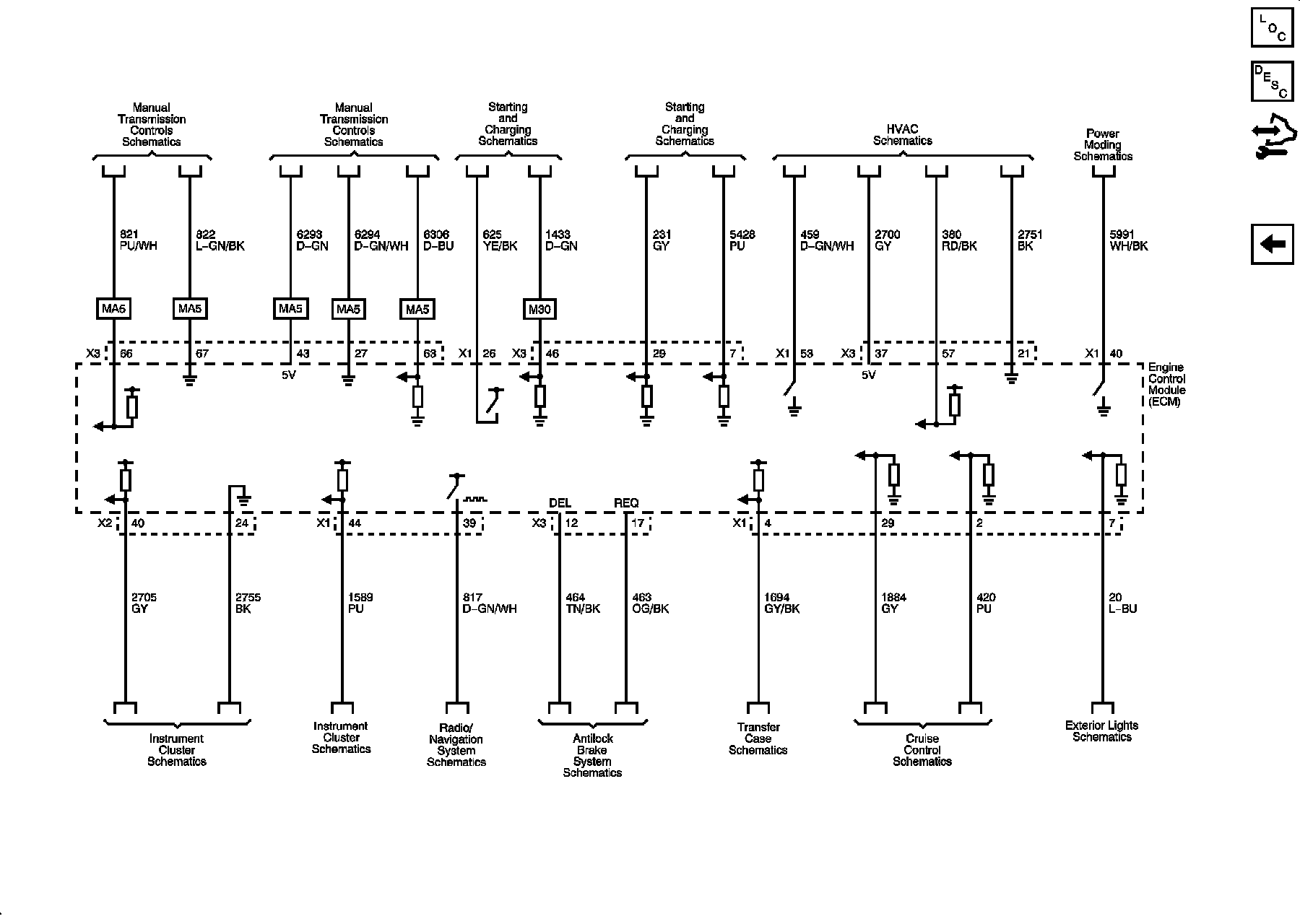

Engine Controls Schematic 11



Engine Controls Schematics

Controlled/Monitored Subsystem References
