X101
X101

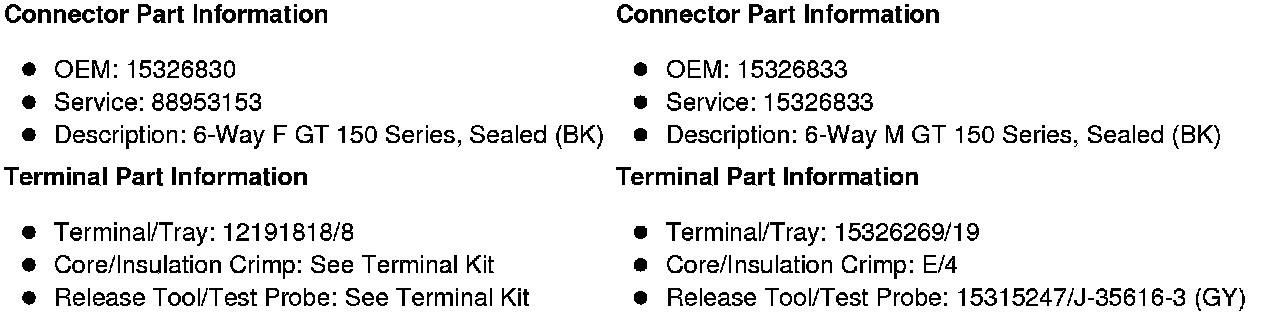

Inline Harness Connector End Views

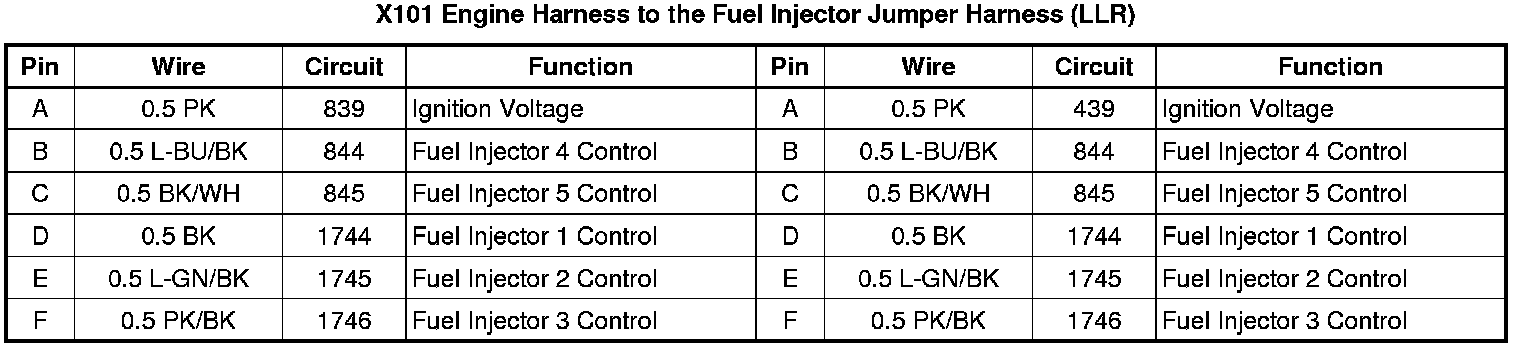

X101 Engine Harness to the Fuel Injector Jumper Harness (LLR)
